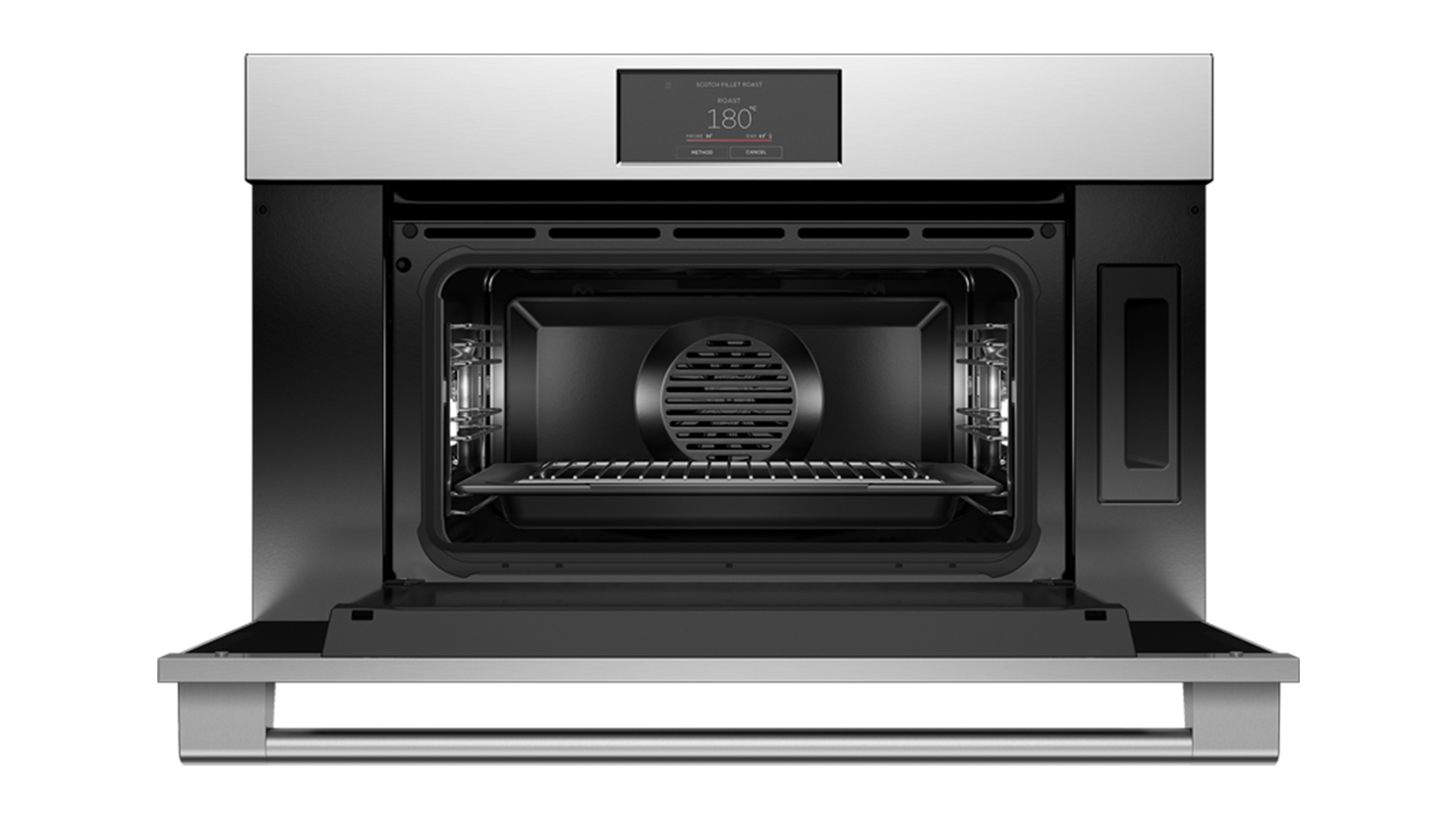

Fisher & Paykel 76cm Built-In Compact Smart Steam Oven - Stainless Steel (Series 9/ OS76NPTX1)
Fisher & Paykel 76cm Built-In Compact Smart Steam Oven - Stainless Steel (Series 9/ OS76NPTX1)
$7,999
Fisher & Paykel 76cm Built-In Compact Smart Steam Oven - Stainless Steel (Series 9/ OS76NPTX1)
OS76NPTX1
Available on 60 months of equal Interest Free instalments:
approximately per month
^ Total repayments $7,999 (excluding fees). Min purchase of $1,500 applies. Offer ends 28/07/2026. Equal monthly payments required. Lending criteria, T&Cs & fees apply incl. a $55 estb. fee & $65 annual fee ($32.50 half yearly). Standard interest rate (currently 29.49% p.a.) applies after interest free term ends. Exclusions may apply. *Further information on rates and fees can be found at gemfinance.co.nz. Credit provided by Latitude Financial Services Ltd.
How it worksGem Finance Interest Free
Available on participating Gem credit cards.
New to Gem? Follow the steps below to apply for a Gem Visa now.
Apply Online
Complete your online application in just 10-15 minutes
Credit Check
Submit income, employment details, and expenses. Include proof of income by sharing your online statement or uploading income documents.
Provide Identification
All applicants must provide a form of identification, e.g., NZ driver's license, NZ Passport, or International Passport.
Extended Range Item | Available by Special Order Only
Delivery expectation: 2-4 weeks
This item is available by special order and may not be stocked in stores.
Purchase online today to secure your product. For more information, please
contact your local Harvey Norman store.
Upgrade your kitchen and discover endless cooking possibilities with the Fisher & Paykel 76cm Built-In Compact Steam Oven! Made to accommodate your different culinary needs, this innovative appliance boasts myriad functions such as Air Fry, Bake, Crisp Regenerate, Fan Forced, Grill, Roast, Slow Cook, Steam, and Warm. It also integrates Steam Clean and a Descale Cycle for breezy maintenance. Plus, this unit flaunts a sleek stainless steel finish so it can beautifully blend into your home.
Key Overview
- 55L Oven Capacity Gross
- 45L Oven Capacity Net
- 23 x Oven Functions
- 4 x Rack Height Positions
- 3000W Grill Power
- 35°C to 230°C Temperature Range
- Internal Lighting
- Steam Clean Function
- (W x H x D): 757 x 458 x 575 mm
Cook Type
Air Fry, Bake, Classic Bake, Crisp Regenerate, Fan Bake, Fan Forced, Fan Forced + High Steam, Fan Forced + Low Steam, Fan Forced + Medium Steam, Grill, Pastry Bake, Pizza Bake, Roast, Slow Cook, Sous Vide, Steam, Steam Clean (Oven), Steam Defrost, Steam Proof, Steam Regenerate, Vent Bake, Warm
Product Highlights
- Convenient Culinary Companion: Experience precision cooking and exceptional flavour with the Fisher & Paykel Series 9 Steam Oven. By combining convection heat and steam when cooking, this unit lets you seamlessly create dishes at reduced times and lower temperatures.
- Optimum Versatility: Create an array of delicious meals! This appliance offers 23 oven functions including AirFry, Bake, Classic Bake, Crisp Regenerate, Fan Bake, Fan Forced, Fan Forced + High/Low/Medium Steam, Grill, Pastry Bake, Pizza Bake, Roast, Slow Cook, Sous Vide, Steam, Steam Defrost, Steam Proof, Steam Regenerate, Vent Bake, and Warm.
- Breezy Operations: This Fisher & Paykel Built-In Steam Oven integrates an intuitive 5" touchscreen display, making it easy to set your preferred cooking programme, track cooking progress, and adjust more settings. It is also Wi-Fi-enabled and supports the SmartHQ App, so you can access additional remote features.

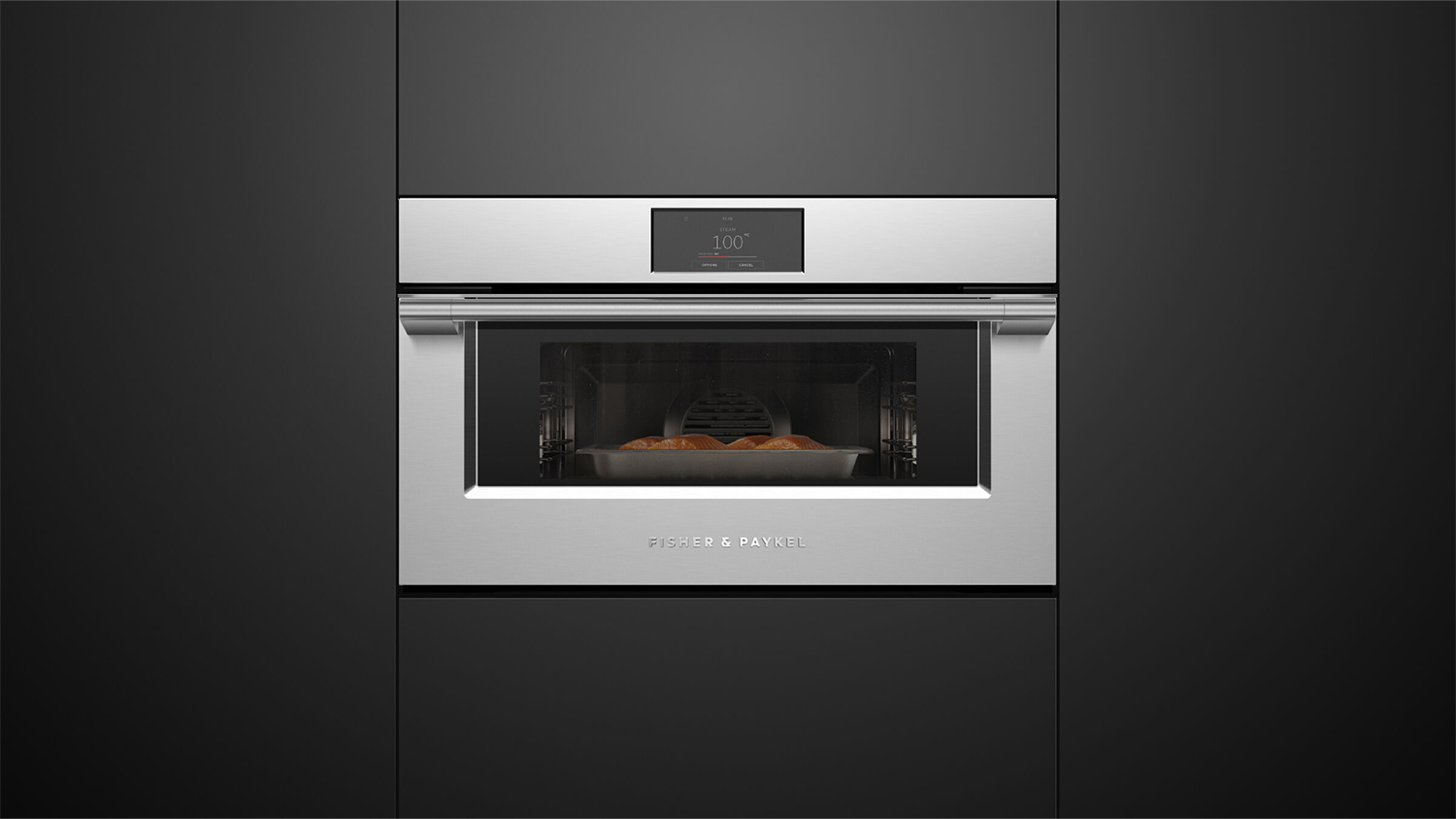

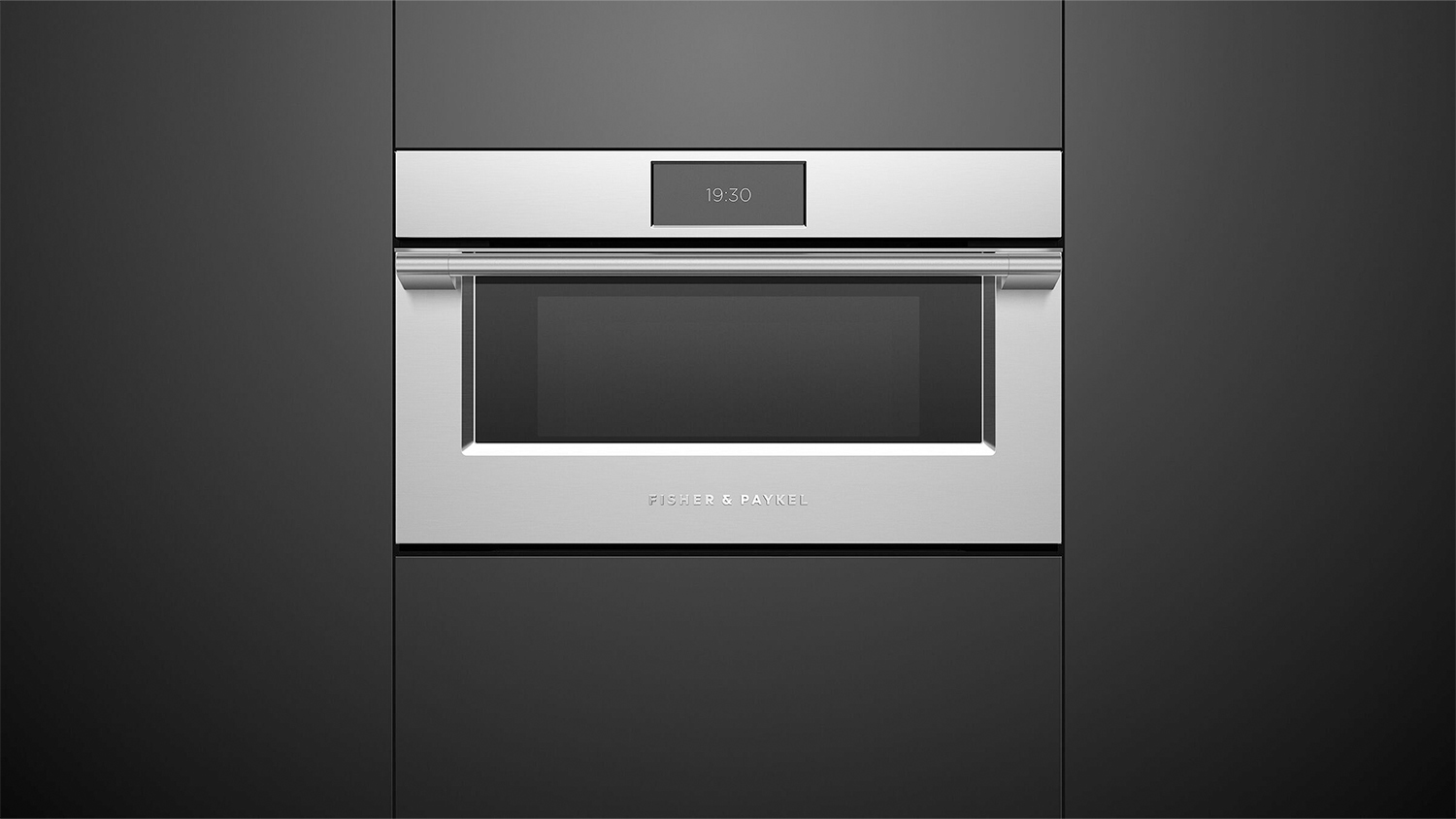

- Streamlined Build: Seamlessly integrate this compact oven into your cabinetry. It also showcases a sleek stainless steel finish that perfectly complements any modern kitchen interior.
- Makes Clean-Ups A Breeze: Thanks to its Steam Clean function and Descale Cycle, maintaining the Series 9 Steam Oven is effortless. Additionally, its oven door, oven door inner glass, shelf runners, and water tank are removable.
| Brand | Fisher & Paykel |
|---|---|
| Product Type | Built-In Ovens |
| Model Number | OS76NPTX1 |
| Colour | Stainless Steel |
Product Specifications
| Series | Series 9 |
|---|
Whiteware Capacity
| Oven Capacity (Gross) | 55L |
|---|---|
| Oven Capacity (Net) | 45L |
Water Efficiency
| Water Supply | Non-Plumbed Water Supply |
|---|
Oven
| Oven Type | Built-In Compact Oven |
|---|---|
| Convection Type | Single-fan with heating element |
| Single/Double Oven | Single Oven |
| Number of Oven Trays | 1 |
| Number of Oven Rack Height Positions | 4 x Rack Height Positions |
| Number of Oven Functions | 23 x Oven Functions |
| Oven Cooking Modes | AirFry, Bake, Classic Bake, Crisp Regenerate, Fan Bake, Fan Forced, Fan Forced + High Steam, Fan Forced + Low Steam, Fan Forced + Med Steam, Fan Grill, Grill, Pastry, Bake, Pizza Bake, Roast, Slow Cook, Sous Vide, Steam & More! |
| Oven Settings | Certified Sabbath Mode, Celsius/Fahrenheit Temperature, Automatic Cooking/Minute Timer, Audio Feedback, Adjustable Audio and Display Settings |
| Operating Modes | Guided Cooking By Food Type, Delay Start, Wireless Temperature Sensor Compatible |
| Grill Power | 3000W |
| Oven Feature |
|
Temperature
| Temperature Range (°C) | 35°C to 230°C |
|---|
Door
| Default Door Hinge | Bottom |
|---|---|
| Door Type | Pull-Down Door |
| Plumbed Water Supply Required | No |
| Door Handle Type | Bar Handle |
| Door Design | Double Glazed Glass Door, Removable Oven Door & Inner Glass |
Control Panel
| Control Panel Type | 5" Touchscreen Display |
|---|---|
| Location of Control Panel | Top Front of Oven |
Lighting
| Lighting Type | Halogen Lighting |
|---|---|
| Internal Lighting | Yes |
| Light Position | Rear |
| Number of Lights | 1 x Light |
| Number of Light Levels | 1 x Light Level |
| Lighting Power | 8W |
Cleaning
| Cleaning Type |
|
|---|---|
| Cleaning Feature | Acid Resistant Graphite Enamel, 1.4L Removable Water Tank |
Smart Features
| Display Type | 5" Touchscreen Interface |
|---|---|
| Wi-Fi Embedded | Yes |
| Connectivity Type | Wi-Fi |
| Smart Functions | Status View, Remote Start, Notifications, Energy Monitoring |
Software / App Compatibility
| App Enabled | Yes |
|---|---|
| Compatible App | SmartHQ App |
| Compatible Mobile Operating System | AppleiOS, Android OS, Windows Mobile |
| Regular Software Updates | Yes |
Installation
| Assembly Type | Installer Required |
|---|---|
| Installation Type | Built-In Install with Hardwiring - Qualified Electrician Required |
| Plumbing Requirements | Non-Plumbed Water Supply |
Electrical Connection
| Type of Connection | Hardwired |
|---|---|
| Power Cable Length | 1 m |
| Power Indicator | Yes |
| Wattage/Voltage | AC220-240V 50/60Hz |
| Fuse Rating | 20A |
Dimensions
| Height | 458 mm |
|---|---|
| Width | 757 mm |
| Depth | 575 mm |
| Product Weight | 40 kg |
Warranty
| Manufacturers | 24 Months |
|---|
