Schweigen 60cm Silent Undermount Rangehood with Twin External SP Motors - Stainless Steel (UM1170-6SP)

Schweigen 60cm Silent Undermount Rangehood with Twin External SP Motors - Stainless Steel (UM1170-6SP)

$3,089

Schweigen 60cm Silent Undermount Rangehood with Twin External SP Motors - Stainless Steel (UM1170-6SP)

UM1170-6SP

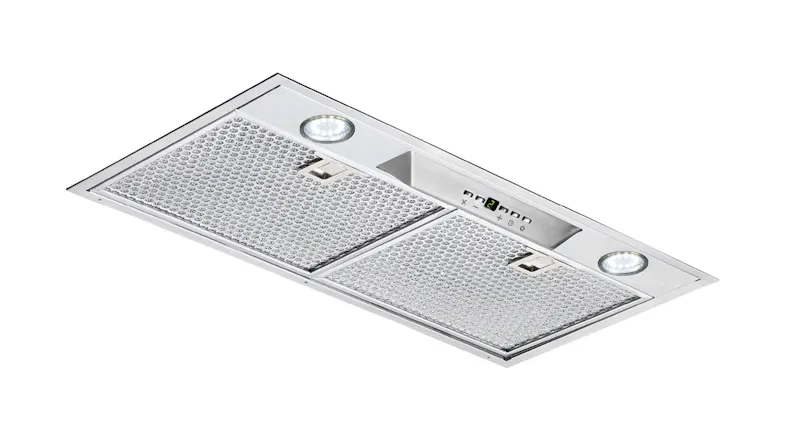

Angled view of the Schweigen 60cm Silent Undermount Rangehood with two mesh filters, two LED lights, and a control panel
New
$3,089

$51.48^ approximately

This section should always be read in conjunction with the Terms and Conditions for Product CareTM.

Find in store

Available on 60 months of equal Interest Free instalments:

approximately per month

^ Total repayments $3,089 (excluding fees). Min purchase of $1,500 applies. Offer ends 02/06/2026. Equal monthly payments required. Lending criteria, T&Cs & fees apply incl. a $55 estb. fee & $65 annual fee ($32.50 half yearly). Standard interest rate (currently 29.49% p.a.) applies after interest free term ends. Exclusions may apply. *Further information on rates and fees can be found at gemfinance.co.nz. Credit provided by Latitude Financial Services Ltd.

How it works
Description

Delivery

Extended Range Item | Available by Special Order Only

Delivery expectation: 2-4 weeks
This item is available by special order and may not be stocked in stores. Purchase online today to secure your product. For more information, please contact your local Harvey Norman store.

Enjoy a fresher and more hygienic kitchen environment with the Schweigen 60cm Undermount Integrated Rangehood. Delivering reliable extraction power, this appliance features a Schweigen Isodrive Motor that delivers an incredible 1600 m³/h maximum airflow while requiring just 57W of power to run. It also offers 5-speed levels and a 15-minute timer for convenient operations. Plus, this unit comes equipped with twin LED lights to provide added illumination to your cooktop.

Key Overview

  • 60cm Size
  • External Motor
  • 1600 m³/h Max Airflow
  • 70 dB Noise Level
  • Ducted Venting
  • Integrated Installation*
  • (W x D x H) - 598 x 295 x 288 mm

Product Highlights

  • Powerful Ventilation: Achieve a fresher and cleaner kitchen atmosphere using the Schweigen 60cm Undermount Integrated Rangehood. Engineered with an Isodrive Motor, this appliance reliably captures unwanted steam, smoke, and odours in your cooking space. It is also made energy efficient, using just about 57W of power to run.
  • Breezy Operations: This unit equips soft-touch controls, allowing you to adjust its 5-speed levels or set the 15-minute timer easily. Moreover, this unit supports multiple motor options, allowing you to customise it according to your needs*.
  • Enhanced Illumination: Thanks to its built-in LED lights, you can enjoy enhanced visibility for safer and more precise cooking.
  • Flush Fit: Seamlessly integrate this Schweigen Rangehood into your kitchen cabinetry for a discreet and modern look. Additionally, this unit comes with high-performance Schweigen SteelFlex™ safety ducting that’s fire, pest, and crush proof.
  • Hassle-Free Maintenance: Keep your rangehood working at its best! It utilises two mesh filters that you can effortlessly clean using your dishwasher.

*Please Note: Other motor options are sold separately.

**Qualified Cabinetry Maker & Installer Required.

Specifications
All Product Details
Brand Schweigen
Product Type Integrated Rangehood
Model Number UM1170-6SP
Colour Silver
Rangehood
Hood Type
  • Undermount Hood
Rangehood Feature
  • Edge-to-Edge Extraction
  • Fan Speed Display
  • Internal Blow Included
  • Removable Grease Filter
  • Timer Function
Control Panel
Control Panel Type Touch Control Panel
Location of Control Panel Front
Fan
Maximum Air Flow (Cubic Meter Per Hour) 1600 m³/h
Number of Fan Speeds 5 x Fan Speeds
Lighting
Lighting Type LED Lighting
Number of Lights 2 x Lights
Number of Light Levels 1 x Light Level
Lighting Power 2 x 3W
Motor
Motor Included Yes, Included
Filter
Filter Type MESH
Number of Filters 2 x Filters
Replacement Filter Yes
Filter Feature
  • Dishwasher-Safe Filter
Vent
Exhaust Vent Location Top
Vent Type Ducted
Ducting
Ducting Availability Available Separately
Duct Shape Round
Installation
Assembly Type Installer Required
Minimum Installation Height from Cooking Surface (Gas) 650 mm
Minimum Installation Height from Cooking Surface (Electric) 600 mm
Electrical Connection
Type of Connection 10A Plug & Lead
Power Cable Length 1.5 m
Power Indicator Yes
Wattage/Voltage AC220-240V 50/60Hz
Fuse Rating 10A
Current Consumption 700mA
Auto Power Off Yes
Dimensions
Height 288 mm
Width 295 mm
Depth 598 mm
Product Weight 6.5 kg
Packaged Dimensions
Packaged Width 32 cm
Packaged Depth 87 cm
Packaged Height 37 cm
Packaged Weight 8.5 kg
Warranty
Manufacturers 60 Months
Reviews
Schweigen 60cm Undermount Integrated Rangehood - Stainless Steel (UM1170-6SP) is rated 4.6 out of 5 by 28.
Rated 5 out of 5 by from Can’t wait to get another one We renovated a kitchen and put in the silent under mount range hood. I spent a long time researching before landing in this brand and model. I was so impressed that when guests came over, I’d take them to the stove and say “Listen to this!” and turn on the rangehood to show there was almost nothing to hear and we could continue a conversation despite having it on. Also put the silent exhaust fan in the bathroom and found this great for keeping the exhaust going longer to dry out the room well. Sadly, we had to move house and now facing another kitchen renovation - but at least I know what type of rangehood we will be installing!!
Date published: 2026-05-28
Rated 5 out of 5 by from Changed our lives Our previous pull out had no suction and sounded like a freight train. We are only in a small retirement village unit but still got the 1600m3 fan so that we could keep the cooking smells down. We love cooking. We were worried that the unit did not cover the stove top - but with the large motor it extracts everything that steams up and even things from beside it - like the rice cooker. No when we cook we don't have to yell - we don't have to turn the tv down and we don't have to open the windows. Yes the previous one was pretty bad. But we see this an investment in our sanity. Go for it.
Date published: 2023-12-07
Rated 5 out of 5 by from Best rangehood ever Have had this rangehood for two months now and it was the best decision we have made.Previously smells would permeate through the house and linger on the next day.Even on the lowest speed our new rangehood extracts odours and you can see the steam being sucked out.No longer do we have to put our TV on full volume as the noise level of our rangehood is quiet and we do not need to adjust TV volume.Easy to clean and great light coverage we are very happy with our choice.My wife enjoys cooking and this appliance has boosted her love and now enjoys the cooking experience more.
Date published: 2025-02-26
Rated 5 out of 5 by from Quiet, powerful, slim-line undermount range hood! This range hood was recommend to us from our Kitchen Designer whilst in the process of renovating our kitchen. He advised he uses this in all his new/renovated builds aswell as having the same one in his own kitchen at home. So glad we listened to his advice, this silent undermount range hood is perfection, it is so neatly tucked away under our white gloss cupboards, it has extremely powerful suction power and gets rid of any cooking fumes instantly and also no noise while operating it, it also comes with powerful lights which really help illuminate over my induction cooking space and my whole bench making it easy to see what is being cooked/chopped. Very impressed with the quality and power of this product and would definitely recommend!
Date published: 2023-09-23
Rated 5 out of 5 by from Sensationally Silent Range Hood We bought this for our kitchen renovation about 18 months ago and absolutely love it. Super quiet, especially using it on the highest speed over our induction cooktop, for which you require strong air extraction to minimise condensation forming on the cold filters of the range hood because they don’t heat up like they would over an electric or gas stove. At the time of purchasing, no other brand could come close to how quiet our Schweigen is. I can easily listen to the family room TV while cooking. Also love the super bright white LED lights.
Date published: 2022-10-07
Rated 3 out of 5 by from Great suction, but definitely NOT silent The Schweigen UM1170-6SP rangehood is great at removing steam, smoke, and cooking smells—no complaints there. It’s definitely quieter than most rangehoods I’ve used, but let’s be clear: it is not silent. Despite having a smooth, properly installed duct (no kinks or concertinaing), it’s still noticeably louder than our dishwasher. What bothers me most is the marketing. Schweigen heavily emphasizes the word silent across all their promotions, which set my expectations far too high—especially given the premium price point. I was expecting near silence, but in reality, it’s just quieter than average. If you’re looking for a truly silent rangehood, you may want to explore other options. This one performs well, but the “silent” label is definitely misleading.
Date published: 2025-04-20
Rated 5 out of 5 by from Silent rangehoods are the best This is the second time we have bought this rangehood, the first purchase was when we did a kitchen renovation in our previous home. This time it was for our new home and was one of the no compromise decisions when we were planning our kitchen with the builder. The fact that the rangehood can be on in an open plan kitchen living area without disturbing others is a bonus and ensures we use it every time we cook. This is a must have in any kitchen -as they say silence is golden.
Date published: 2025-05-04
Rated 3 out of 5 by from Average The 1600 motor is strong but the inside unit is pretty crap quality. It came with some tarnishing on the seen aluminum straight from the box, is very flimsy and the filters are difficult to remove. The unit works well but its definitely not silent. The noise created from the air flow is not obtrusive but still way more then the humm of a laptop which scwheigen claim. I am happy that it works but a little disappointed and expected more for the price.
Date published: 2024-11-19
  • y_2026, m_5, d_30, h_9
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_28
  • loc_en_NZ, sid_131677, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_harvey-norman-en_nz
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 297.07ms
  • REVIEWS, PRODUCT
Delivery
Delivery

We aim to dispatch orders within 2 days. Delivery costs are calculated based on your location and the size of your order. Furniture may take up to 8 weeks to deliver as most products are made specifically for your order. Some Customer Direct products are shipped from overseas and may take longer to arrive. Some goods may take longer to deliver if a product is currently not in stock. A staff member will contact you where this occurs.

Easy returns

If you feel your product has failed a Consumer Guarantee (as defined by New Zealand Consumer Law) then don't worry you can easily return it to your local Harvey Norman store. We'll even pay for the postage if you live in an area where there is no store. Our returns policy covers any purchased item ( conditions apply).

What's in the box
  • 1 x Rangehood Body
  • 2 x Filters
  • 2 x Lights
  • 1 x Motor
  • 1 x Ducting
  • 1 x Wall Bracket
