Schweigen 90cm Silent Undermount Rangehood with Twin External SP Motors - Stainless Steel (UM1170-9SP)

Schweigen 90cm Silent Undermount Rangehood with Twin External SP Motors - Stainless Steel (UM1170-9SP)

$3,019

Schweigen 90cm Silent Undermount Rangehood with Twin External SP Motors - Stainless Steel (UM1170-9SP)

UM1170-9SP

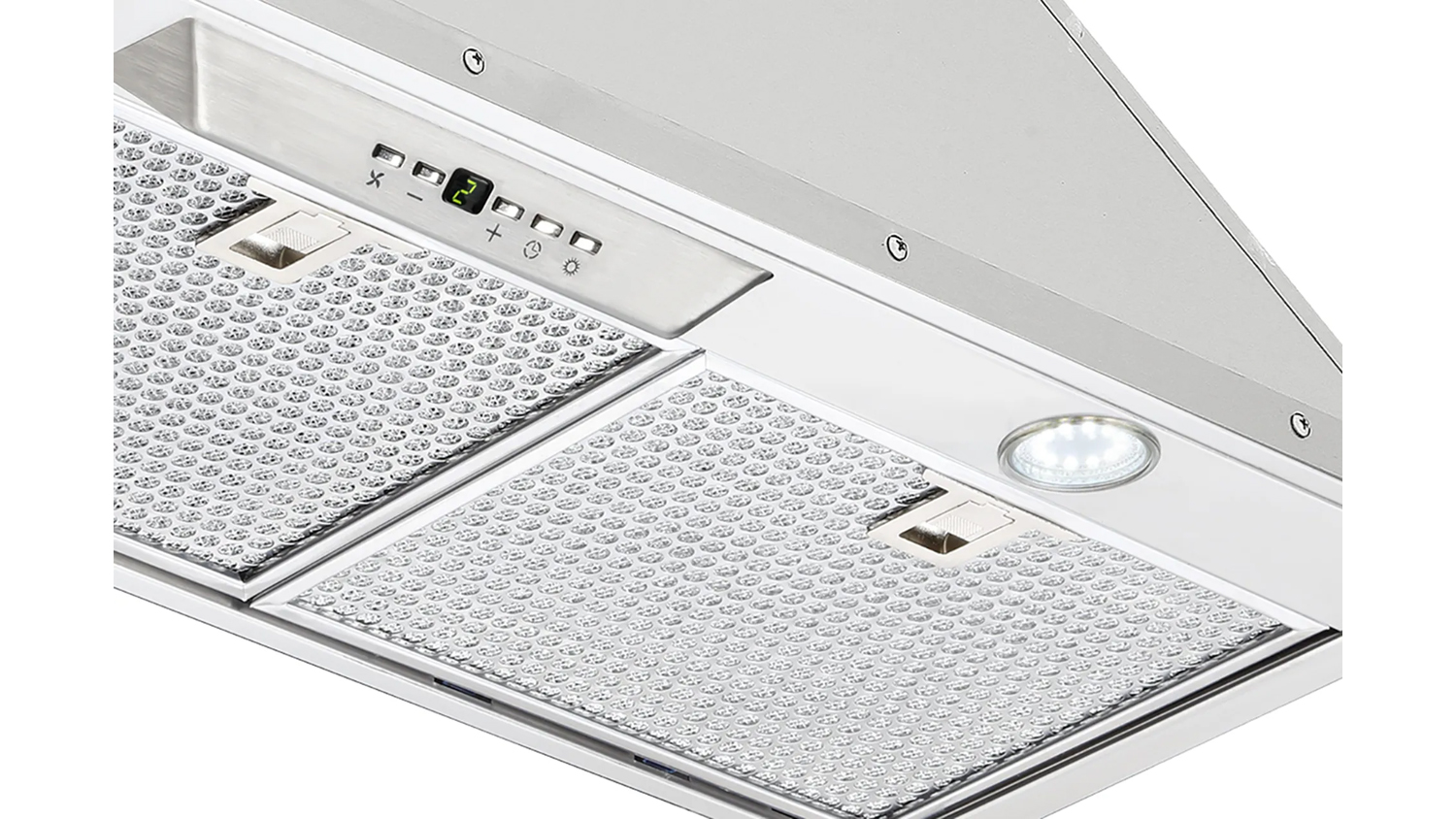

Angled view of the Schweigen 90cm Silent Undermount Rangehood with three mesh filters, two LED lights, and a control panel
New
$3,019

Details

$50.32^ approximately

This section should always be read in conjunction with the Terms and Conditions for Product CareTM.

Find in store

Available on 60 months of equal Interest Free instalments:

approximately per month

^ Total repayments $3,019 (excluding fees). Min purchase of $1,500 applies. Offer ends 02/06/2026. Equal monthly payments required. Lending criteria, T&Cs & fees apply incl. a $55 estb. fee & $65 annual fee ($32.50 half yearly). Standard interest rate (currently 29.49% p.a.) applies after interest free term ends. Exclusions may apply. *Further information on rates and fees can be found at gemfinance.co.nz. Credit provided by Latitude Financial Services Ltd.

How it works
Description

Delivery truck icon

Please note this product is not available in all stores but can be ordered.

Delivery expectation: 1-2 weeks
This item is available by special order and may not be stocked in stores. Purchase online today to secure your product. For more information, please contact your local Harvey Norman store.

Elevate your kitchen environment and enjoy fresher air with the Schweigen 90cm Insert Integrated Rangehood. Delivering reliable extraction power, this appliance features a Schweigen Isodrive Motor that delivers an incredible 1600 m³/h maximum airflow while requiring just 57W of power to run. It also offers 5-speed levels and a 15-minute timer for convenient operations. Plus, this unit comes equipped with twin LED lights to provide added illumination to your cooktop.

Key Overview

  • 90cm
  • External Motor
  • 1600 m³/h Max Airflow
  • Ducted Venting
  • Integrated Installation*
  • (W x D x H): 898 x 289 x 259 mm

Product Highlights

  • Streamlined Performance: Breathe fresher air by getting rid of steam, smoke, and odours in your kitchen with the Schweigen 90cm Insert Integrated Rangehood. Engineered with an energy-efficient Isodrive Motor, this appliance reliably uses just about 57W of power to run.
  • Breezy Operations: This unit equips soft-touch controls, allowing you to adjust its 5-speed levels or set the 15-minute timer easily. Moreover, this unit supports multiple motor options, allowing you to customise it according to your needs*.
  • Enhanced Illumination: Thanks to its built-in LED lights, you can enjoy enhanced visibility for safer and more precise cooking.

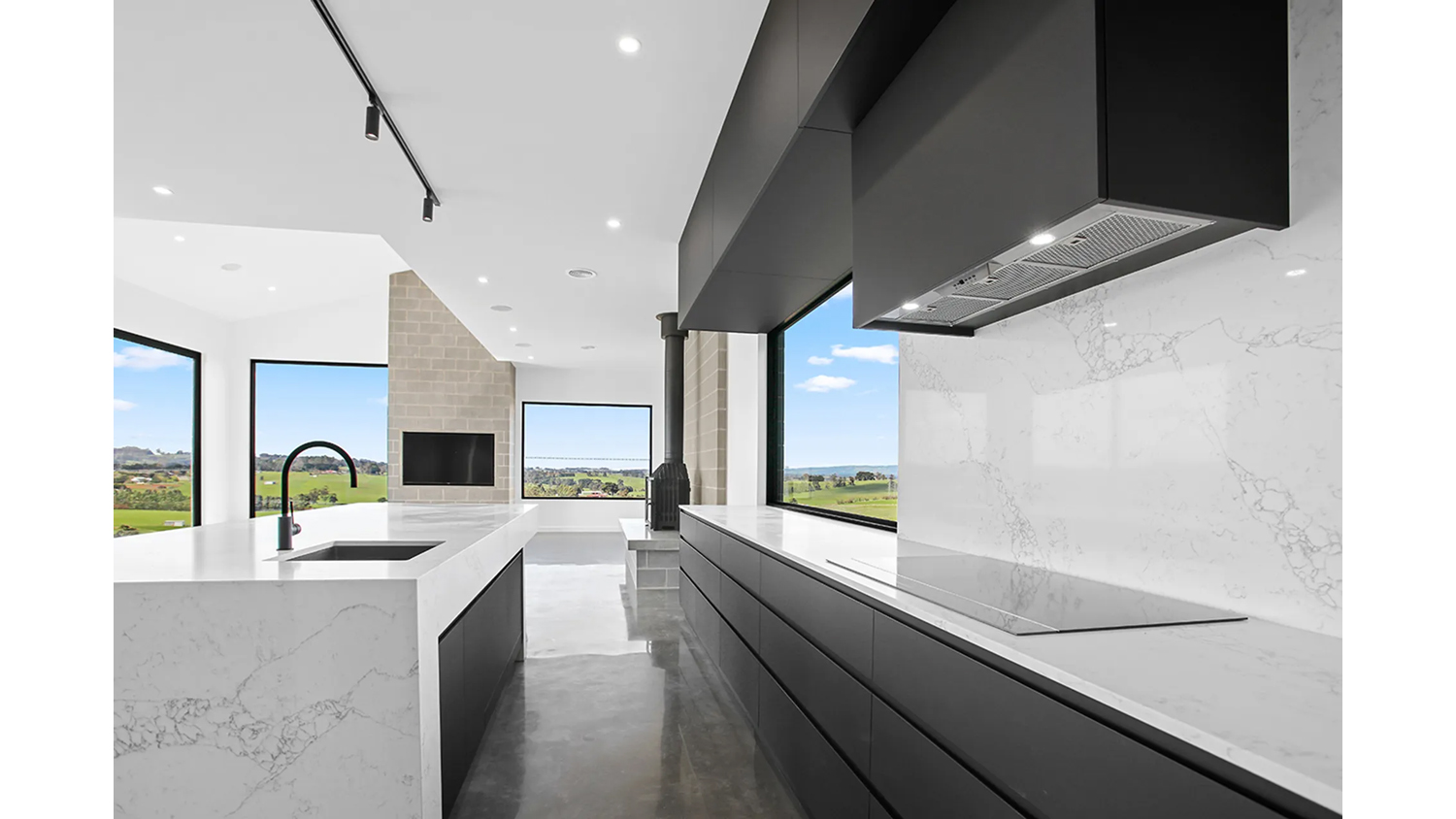

  • Flush Fit: Seamlessly integrate this Schweigen Rangehood into your kitchen cabinetry for a discreet and modern look. Additionally, this unit comes with high-performance Schweigen SteelFlex™ safety ducting that’s fire, pest, and crush proof.

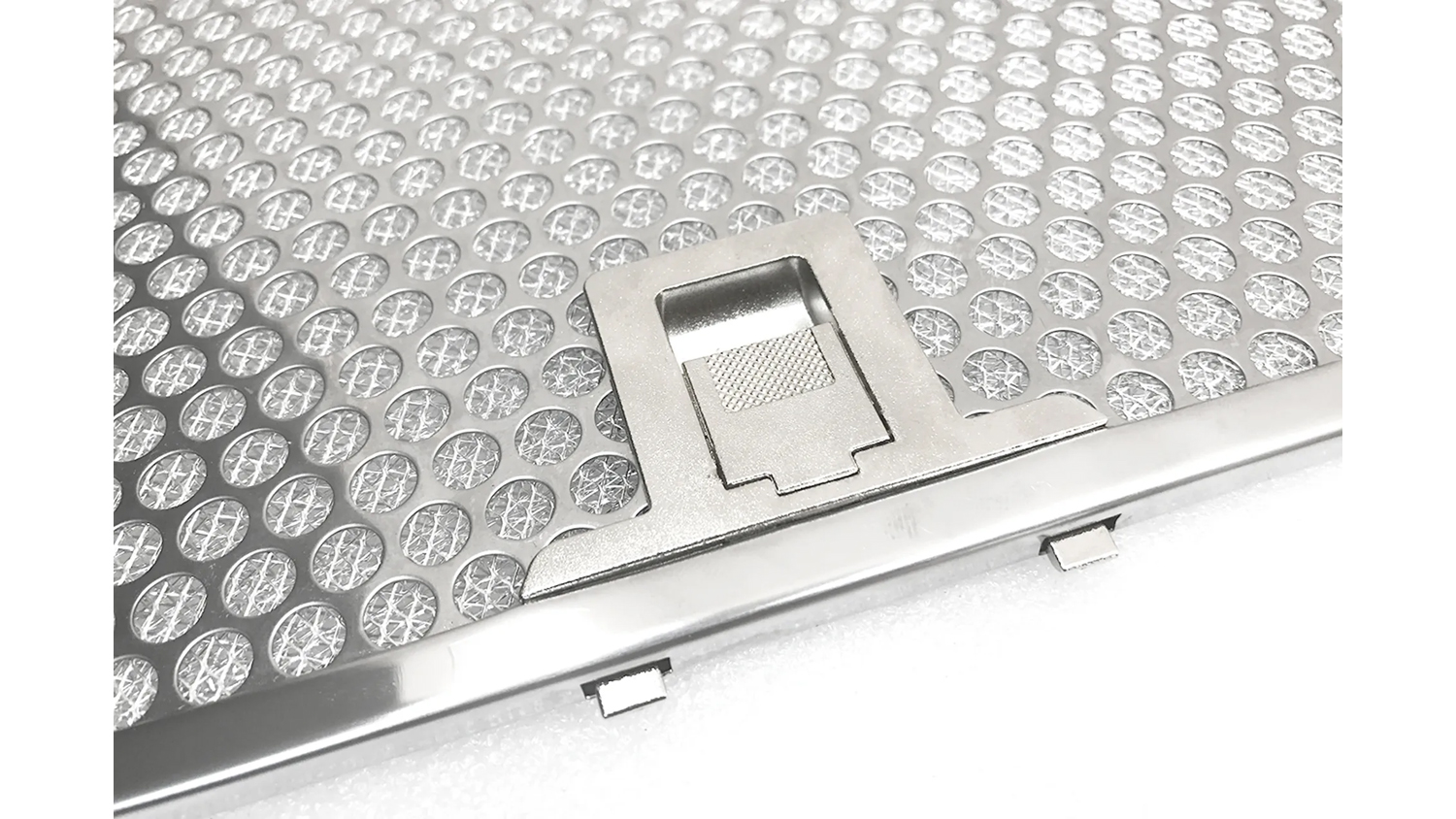

  • Hassle-Free Maintenance: Keep your rangehood working at its best! It utilises three mesh filters that you can effortlessly clean using your dishwasher.

*Please Note: Other motor options are sold separately.

**Qualified Cabinetry Maker & Installer Required.

Specifications
All Product Details
Brand Schweigen
Product Type Integrated Rangehood
Model Number UM1170-9SP
Colour Silver
Rangehood
Surface Material Stainless Steel
Hood Type
  • Undermount Hood
Rangehood Feature
  • Edge-to-Edge Extraction
  • Fan Speed Display
  • Internal Blow Included
  • Removable Grease Filter
  • Timer Function
Control Panel
Control Panel Type Touch Control Panel
Location of Control Panel Front
Fan
Maximum Air Flow (Cubic Meter Per Hour) 1600 m³/h
Number of Fan Speeds 5 x Fan Speeds
Lighting
Lighting Type LED Lighting
Number of Lights 2 x Lights
Number of Light Levels 1 x Light Level
Lighting Power 2 x 3W
Motor
Motor Included Yes, Included
Type of Motor External Motor
Filter
Filter Type MESH
Number of Filters 6 x Filters
Replacement Filter Yes
Filter Feature
  • Dishwasher-Safe Filter
Vent
Exhaust Vent Location Top
Vent Type Ducted
Ducting
Ducting Availability Included
Ducting Diameter 200 mm
Duct Shape Round
Installation
Assembly Type Installer Required
Minimum Installation Height from Cooking Surface (Gas) 650 mm
Minimum Installation Height from Cooking Surface (Electric) 600 mm
Electrical Connection
Type of Connection 10A Plug & Lead
Power Cable Length 1.5 m
Power Indicator Yes
Wattage/Voltage AC220-240V 50/60Hz
Fuse Rating 10A
Current Consumption 700mA
Auto Power Off Yes
Dimensions
Height 289 mm
Width 898 mm
Depth 295 mm
Product Weight 6.8 kg
Packaged Dimensions
Packaged Width 38 cm
Packaged Depth 98 cm
Packaged Height 38 cm
Packaged Weight 9 kg
Warranty
Manufacturers 60 Months
Reviews
Schweigen 90cm Insert Integrated Rangehood - Stainless Steel (UM1170-9SP) is rated 4.7 out of 5 by 3.
Rated 4 out of 5 by from As expected We got the extra power because we have our rangehood 1.1m above our cooktop rather than the recommended 750mm. It does a great job getting rid of smoke and steam even when frying steak. It is very quiet so we often forget to turn it off. The buttons and display are a bit cheap and clunky but they function fine. The install of the chimney was a bit of a mission as we have a concrete tile roof, but worked out fine. Overall we are happy after 2 months of use
Date published: 2017-06-07
Rated 5 out of 5 by from Outstanding We bought this for use in our open plan kitchen. It’s very quite and has amazing suction. I’d highly recommend this. The only thing not to love is the price, but money well spent!
Date published: 2018-02-24
  • y_2026, m_5, d_30, h_9
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_2
  • loc_en_NZ, sid_47721, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_harvey-norman-en_nz
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 315.06ms
  • REVIEWS, PRODUCT
Delivery
Delivery

We aim to dispatch orders within 2 days. Delivery costs are calculated based on your location and the size of your order. Furniture may take up to 8 weeks to deliver as most products are made specifically for your order. Some Customer Direct products are shipped from overseas and may take longer to arrive. Some goods may take longer to deliver if a product is currently not in stock. A staff member will contact you where this occurs.

Easy returns

If you feel your product has failed a Consumer Guarantee (as defined by New Zealand Consumer Law) then don't worry you can easily return it to your local Harvey Norman store. We'll even pay for the postage if you live in an area where there is no store. Our returns policy covers any purchased item ( conditions apply).

What's in the box
  • 1 x Rangehood Body
  • 3 x Filters
  • 2 x Lights
  • 1 x Motor
  • 1 x Ducting
  • 1 x Wall Bracket
Questions & Answers

Does this unit include motor?

Asked by: Dave
Thanks for your question. This Rangehood does include a motor, but it's important to note that it uses an external motor system called the Isodrive. This motor is installed outside your home (e.g., on the roof or wall), which significantly reduces noise in the kitchen.
Answered by: HN Customer Service
Date published: 2025-06-09

Hey. Just wondering how high above the stovetop the range hood is meant to be.

Asked by: Anonymous
Thanks for your question. The minimum height from the hob top surface to the underside face of the rangehood is 600mm for both electric and gas cooktops, unless otherwise specified by cooktop manufacturer instructions. Any installation above 800mm will compromise the extraction performance. Trust this helps! ^CO
Answered by: HN Customer Service
Date published: 2024-08-16

Power is on and everything is going except the actual bulbs aren''t lighting up. Can you please advise what may be the problem. It is brand new. Thanks

Asked by: Graeme
Great question Graeme! We have checked with our supplier, and they advise you can contact them directly as this is something they may need to arrange a service agent for. We will email you directly with the information.
Answered by: HN Customer Service
Date published: 2023-05-29
