Schweigen 90cm Silent Undermount Rangehood with Twin External SP Motors - Stainless Steel (UM1390-9SP/39cm Depth)

UM1390-9SP

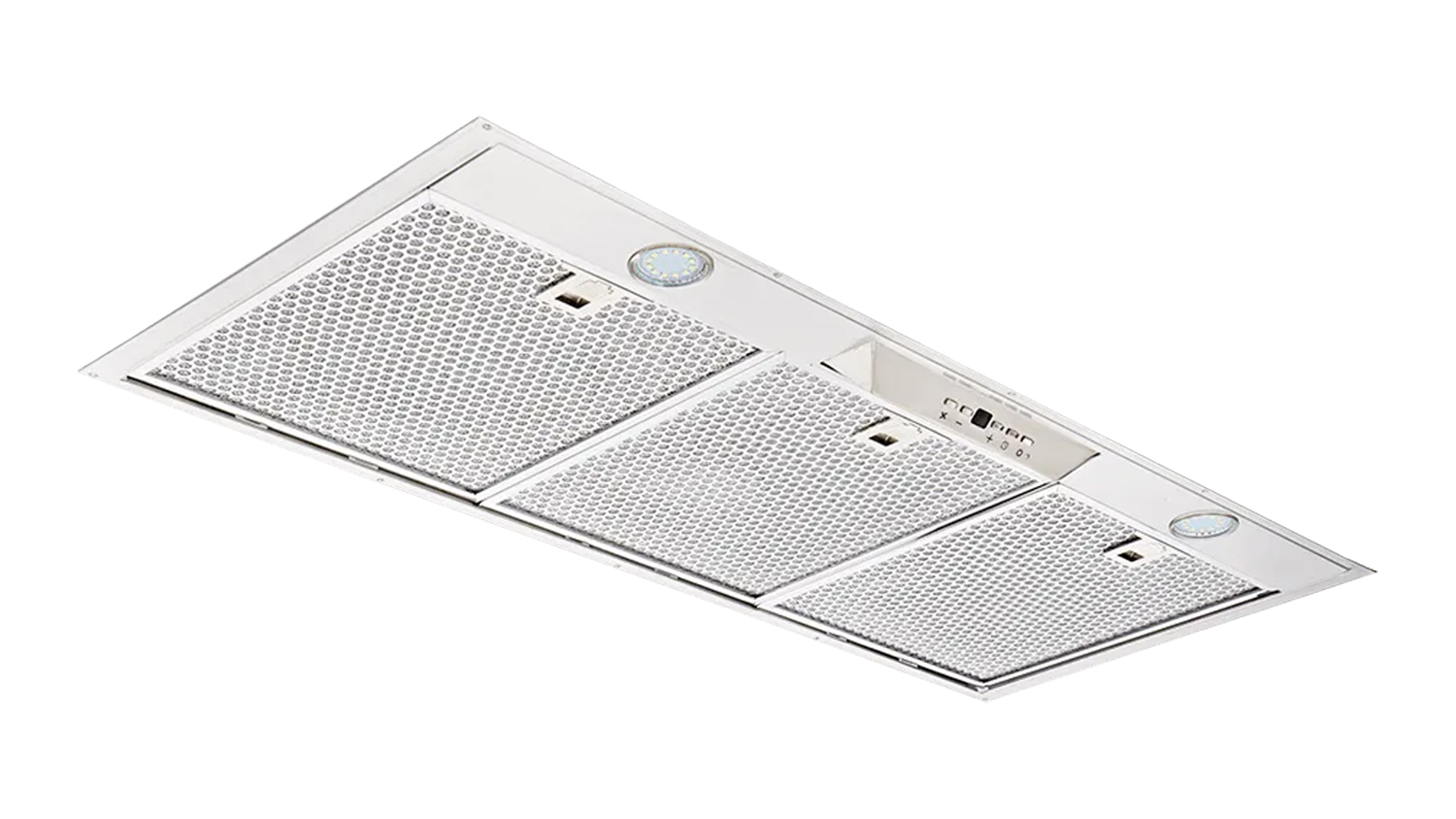

Angled underside view of a stainless steel 90cm undermount rangehood, showing three perforated metal grease filters
$4,399
$87.98^ approximately
NOT CURRENTLY AVAILABLE ONLINE
Find in store
Spend $500 or more on selected products and get 10% of your purchase price in Harvey Norman Bonus Gift Cards*
Bonus Gift Card amount is indicative only, and is subject to terms and conditions being met. Exclusions apply. Offer ends 11.59pm, Sunday 7 June 2026.
Click for full terms & conditions.
Spend $500 or more on selected products and get 10% of your purchase price in Harvey Norman Bonus Gift Cards*
✖

Excludes Miele whiteware/cookware, NEFF, mobile phone contracts, mobile phone prepay vouchers, gaming subscriptions, gaming card activations, gaming currency, delivery, installation, Ministry of Social Development (Fisher & Paykel) orders, replacement products under your Product Care or DeviceCover plan, Gift Cards & Commercial purchases.

Harvey Norman Bonus Gift Cards are issued on receipt of goods and expire 36 Months from date of issue. Bonus gift cards are not redeemable for cash and cannot be used in the transaction in which it is issued. If goods are refunded, then the gift card must be returned (if unused) or the value of the gift card will be deducted from the refunded amount. See www.harveynorman.co.nz/gift-card-terms-and-conditions.html or in store for terms, conditions and exclusions.

Offer ends 11.59pm, Sunday 7 June 2026.

Bonus Gift Card amount is indicative only, and is subject to terms and conditions being met.

Available on 50 months of equal Interest Free instalments:

approximately per month

^ Total repayments $4,399 (excluding fees). Min purchase of $1,500 applies. Offer ends 09/06/2026. Equal monthly payments required. Lending criteria, T&Cs & fees apply incl. a $55 estb. fee & $65 annual fee ($32.50 half yearly). Standard interest rate (currently 29.49% p.a.) applies after interest free term ends. Exclusions may apply. *Further information on rates and fees can be found at gemfinance.co.nz. Credit provided by Latitude Financial Services Ltd.

How it works
Description

Delivery

Extended Range Item | Available by Special Order Only

Delivery expectation: 1-2 weeks
This item is available by special order and may not be stocked in stores. Purchase online today to secure your product. For more information, please contact your local Harvey Norman store.

Keep kitchen odours at bay with the Schweigen 90cm Silent Undermount Rangehood with Twin External SP Motors. Delivering up to 3000 m³/h airflow with four fan speeds, this unit efficiently removes smoke, steam, and cooking smells. It features edge-to-edge perimeter extraction, dishwasher-safe baffle filters, three LED lights, and a remote control, effortlessly blending high-end functionality with a sleek, integrated stainless steel design.

Key Overview

  • 90cm Size
  • Undermount Rangehood
  • Twin External SP Motors
  • LED Lighting
  • Replacement Filter Included
  • Top Exhaust Vent
  • (W x D x H): 390 x 898 x 268 mm

Product Highlights

  • Efficient Kitchen Ventilation: The Schweigen 90cm Silent Undermount Integrated Rangehood helps maintain a fresh kitchen environment with ease. Featuring 3000 m³/h maximum airflow and four fan speed options, it effectively extracts smoke, steam, and odours during everyday cooking. It also combines edge-to-edge and perimeter extraction for enhanced airflow and efficient odour extraction.
  • Easy-Clean Baffle Filtration: The Schweigen Rangehood features three high-performance baffle filters that efficiently reduce airborne contaminants in your kitchen. Built for everyday convenience, the filters are dishwasher-safe for easy cleaning after use.
  • Bright LED Cooktop Lighting: Illuminate your cooking space with three LED lights featuring a dedicated light level setting and 3 x 2.1W lighting power for clear, energy-efficient visibility while preparing meals.
  • Convenient Operation: Designed for ease of use, this rangehood features a round duct design, an included motor, a timer function, and a remote control panel for convenient ventilation adjustments from anywhere in the kitchen.
  • Sleek Integrated Design: With its refined stainless steel finish and discreet undermount hood profile, this rangehood blends seamlessly into your cabinetry for a clean and modern kitchen aesthetic.

*Qualified installer recommended.

Specifications
All Product Details
Brand Schweigen
Product Type Undermount Rangehood
Model Number UM1390-9SP
Colour Stainless Steel
Rangehood
Hood Type
  • Undermount Hood
Rangehood Feature
  • Edge-to-Edge Extraction
  • Perimeter Extraction
  • Removable Grease Filter
  • Timer Function
  • Silent
Control Panel
Control Panel Type Remote
Location of Control Panel front
Fan
Maximum Air Flow (Cubic Meter Per Hour) 3000 m³/h
Number of Fan Speeds 4 x Fan Speeds
Lighting
Lighting Type LED
Number of Lights 3 x Lights
Number of Light Levels 1 x Light Level
Lighting Power 3 x 2.1W
Motor
Motor Included Yes, Included
Filter
Filter Type Baffle
Number of Filters 3 x Filters
Replacement Filter Yes
Filter Feature
  • Dishwasher-Safe Filter
Vent
Exhaust Vent Location Top
Ducting
Duct Shape Round
Installation
Assembly Type Installer Required
Minimum Installation Height from Cooking Surface (Gas) 1200 mm
Minimum Installation Height from Cooking Surface (Electric) 1200 mm
Electrical Connection
Type of Connection 10A plug & lead
Power Cable Length 1.5 m
Wattage/Voltage AC220-240V 50/60Hz
Fuse Rating 10A
Current Consumption 650mA
Auto Power Off Yes
Dimensions
Height 268 mm
Width 390 mm
Depth 898 mm
Product Weight 8 kg
Packaged Dimensions
Packaged Width 37.5 cm
Packaged Depth 98.5 cm
Packaged Height 47.5 cm
Packaged Weight 10 kg
Warranty
Manufacturers 60 Months
Reviews
Schweigen 90cm Silent Undermount Rangehood with Twin External SP Motors - Stainless Steel (UM1390-9SP/39cm Depth) is rated 4.7 out of 5 by 9.
Rated 5 out of 5 by from Best ever undermount rangehood!! Bought the silent Schweigen rangehood in July and since installation I have been in trouble with my wife! She was so used to hearing the old rangehood roaring she didnt think I had turned on the Schweigen while I was cooking! We love showing off the rangehood to our friends who are amazed when they dont hear a jet fighter about to take off even when it is turned up to level 5. The steam extraction is impressive and there are no discernible smells when cooking pungent food. Wife, friends and I are totally impressed with this product. Thanks Schweigen.
Date published: 2023-10-05
Rated 5 out of 5 by from Real quality and excellent performance I've had a Schweigen undermount range hood in our kitchen for about 18 months now. The stove sits in a fire place recess and the rangehood is ducted up an 8m chimney. Each component (range hood, lighting, attachment frame, external exhaust motor, motor housing, power and control cables) is of excellent quality. I'm a mechanical engineer and I notice this stuff. Also, I'm measuring about 60 dBa at the stove top. The claim of "silence" is legitimate. Schweigen's promise of quality and performance has been found to be true.
Date published: 2022-11-04
Rated 5 out of 5 by from Super quiet, reliable and unobtrusive We've had our Schweigen Silent for almost six years now and we love it! Super quiet, completely unobtrusive and very effective at removing cooking odour and steam. We never have to increase the volume of our TV when it's on and sometimes even forget to turn it off, it's so quiet! The built-in lights are plenty powerful for our cooking needs, and the filters are easily washed in the dishwasher. Our friends are very envious of our Schweigen and if we ever moved we would have to get another one as we can't live without it!
Date published: 2023-03-09
Rated 5 out of 5 by from Very quiet yet powerful Rangehood We are glad that our old wall mount Rangehood broken which gave us the opportunity to install a better Rangehood. We do heavy cooking everyday and delighted to have this Schweigen Rangehood in our kitchen. It has very powerful extraction and we hardly feel extra noise when its on. The 5 speeds, auto off function and built in LED which provides plenty of light are some of the superb features.
Date published: 2022-11-04
Rated 5 out of 5 by from Worth the money! I looked at every rangehood on the market and settled on this Schweigen. I have been so happy with it, it does an awesome job with the steam and the smells and I sometimes forget to turn it off becuase it is so silent I forget its on! everytime i turn it on i say im so glad i spent the extra on this model
Date published: 2023-08-03
Rated 2 out of 5 by from Older model and unable to purchase spare parts I've had this for 16 years now. I've had to replace the buttons twice as they break and now as it is an old model I can't purchase spare part to replace the buttons. I'm down to one button and will need to replace the whole unit which is an additional cost.
Date published: 2026-02-12
Rated 5 out of 5 by from Absolutely amazing quality I bought this rangehood for my new home back in 2018 and it's working fine till now. I called customer services couple of times and they have been wonderful assisting us with enquiries. I replaced filters in 2020 which I received free of cost.
Date published: 2023-06-21
Rated 5 out of 5 by from Best in the market Its unbelievably quite with such a great suction. Most of the guests and friends asked me about this brand and model to install in their homes. I highly recommend this !
Date published: 2022-11-04
  • y_2026, m_6, d_6, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_9
  • loc_en_NZ, sid_143972, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_harvey-norman-en_nz
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 313.95ms
  • REVIEWS, PRODUCT
Delivery
Delivery

We aim to dispatch orders within 2 days. Delivery costs are calculated based on your location and the size of your order. Furniture may take up to 8 weeks to deliver as most products are made specifically for your order. Some Customer Direct products are shipped from overseas and may take longer to arrive. Some goods may take longer to deliver if a product is currently not in stock. A staff member will contact you where this occurs.

Easy returns

If you feel your product has failed a Consumer Guarantee (as defined by New Zealand Consumer Law) then don't worry you can easily return it to your local Harvey Norman store. We'll even pay for the postage if you live in an area where there is no store. Our returns policy covers any purchased item ( conditions apply).

What's in the box
  • 1 x Rangehood Body
  • 3 x Filters
  • 2 x Lights
  • 1 x Motor
  • 1 x Ducting
  • 1 x Wall Bracket
