Neff 254L Integrated Bottom Mount Fridge Freezer - Panel Ready (KI7863D30A)
Neff 254L Integrated Bottom Mount Fridge Freezer - Panel Ready (KI7863D30A)
Customise with your own door panel and handle(s) to match your kitchen cabinetry.

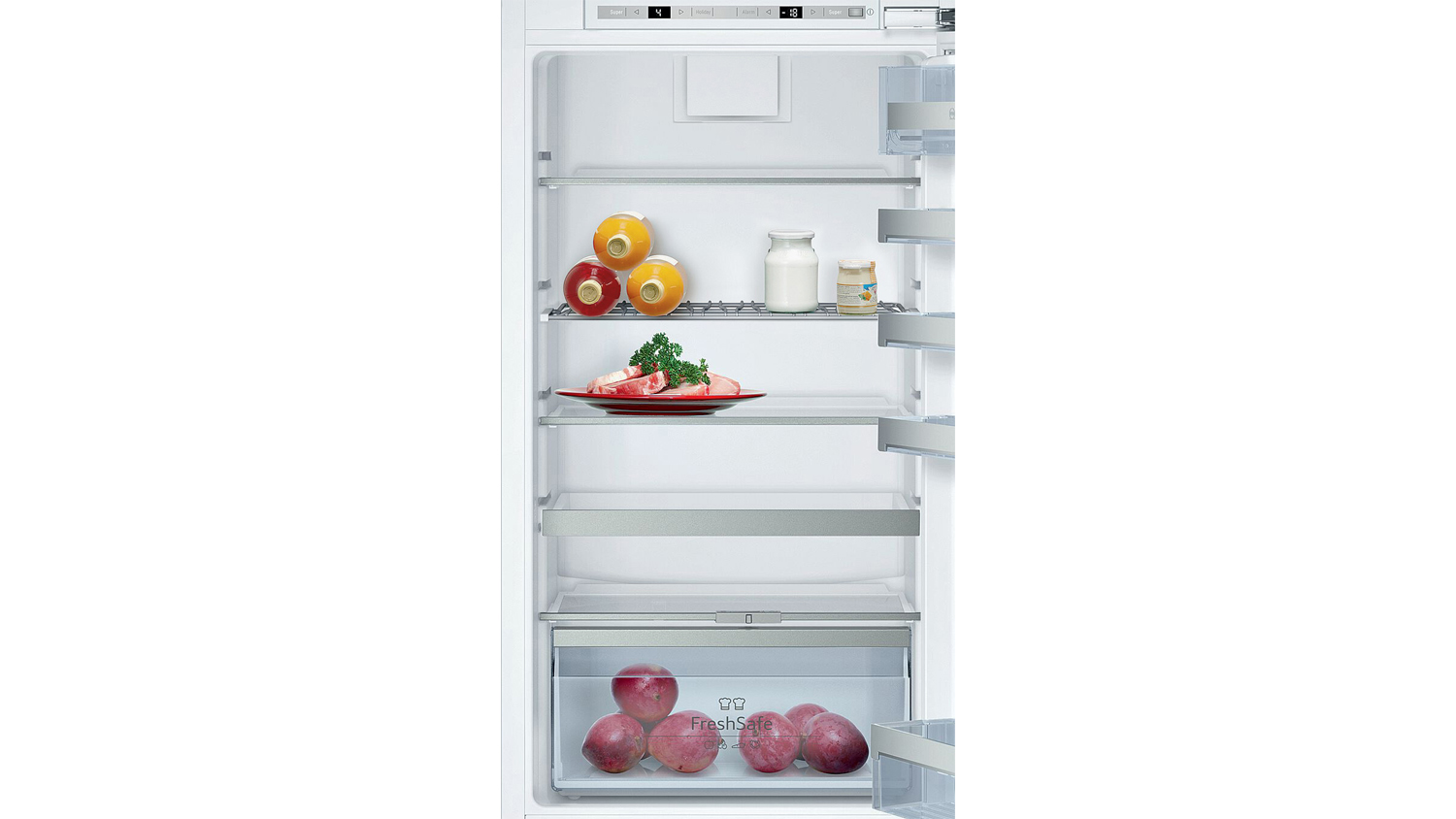

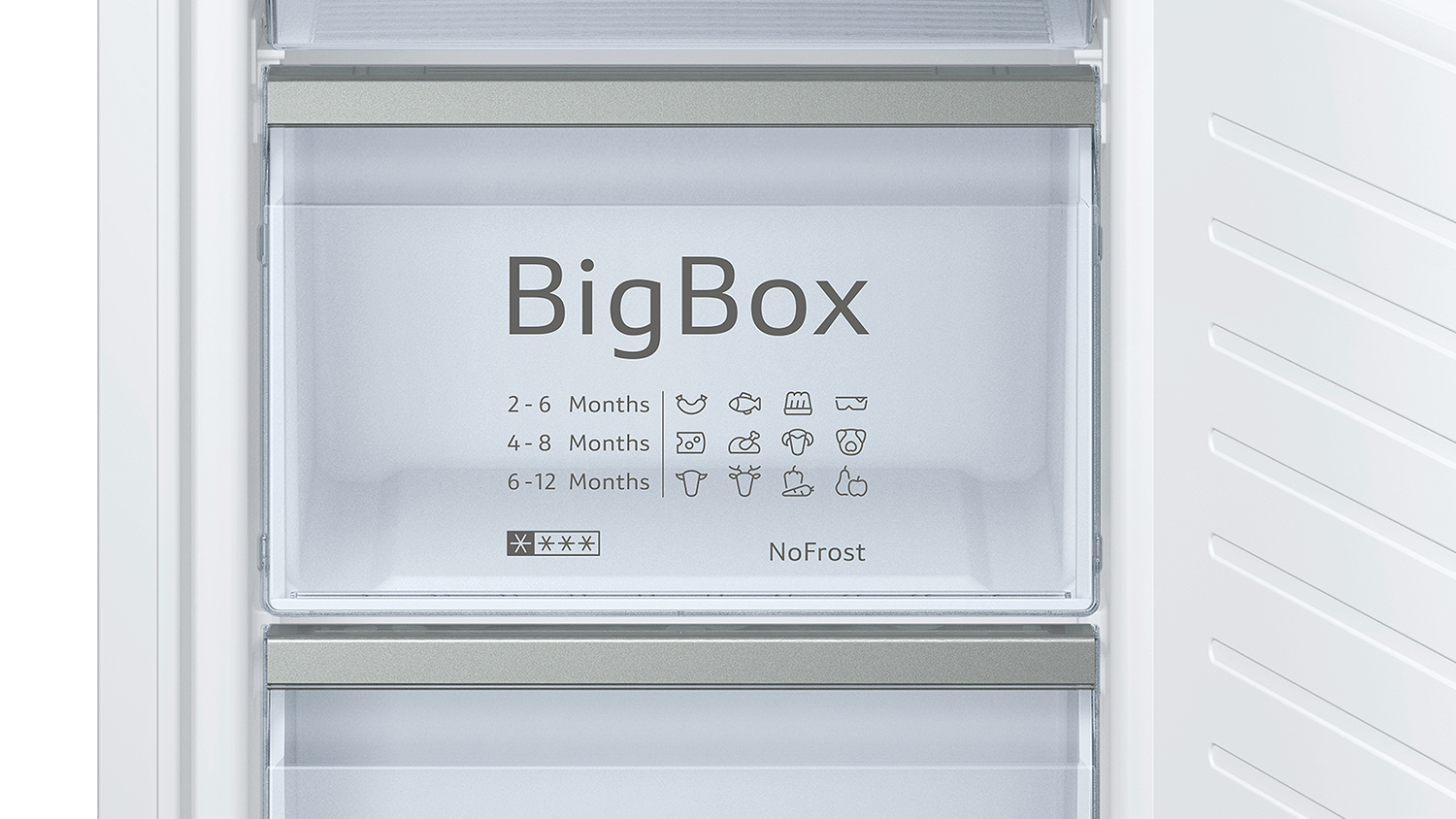

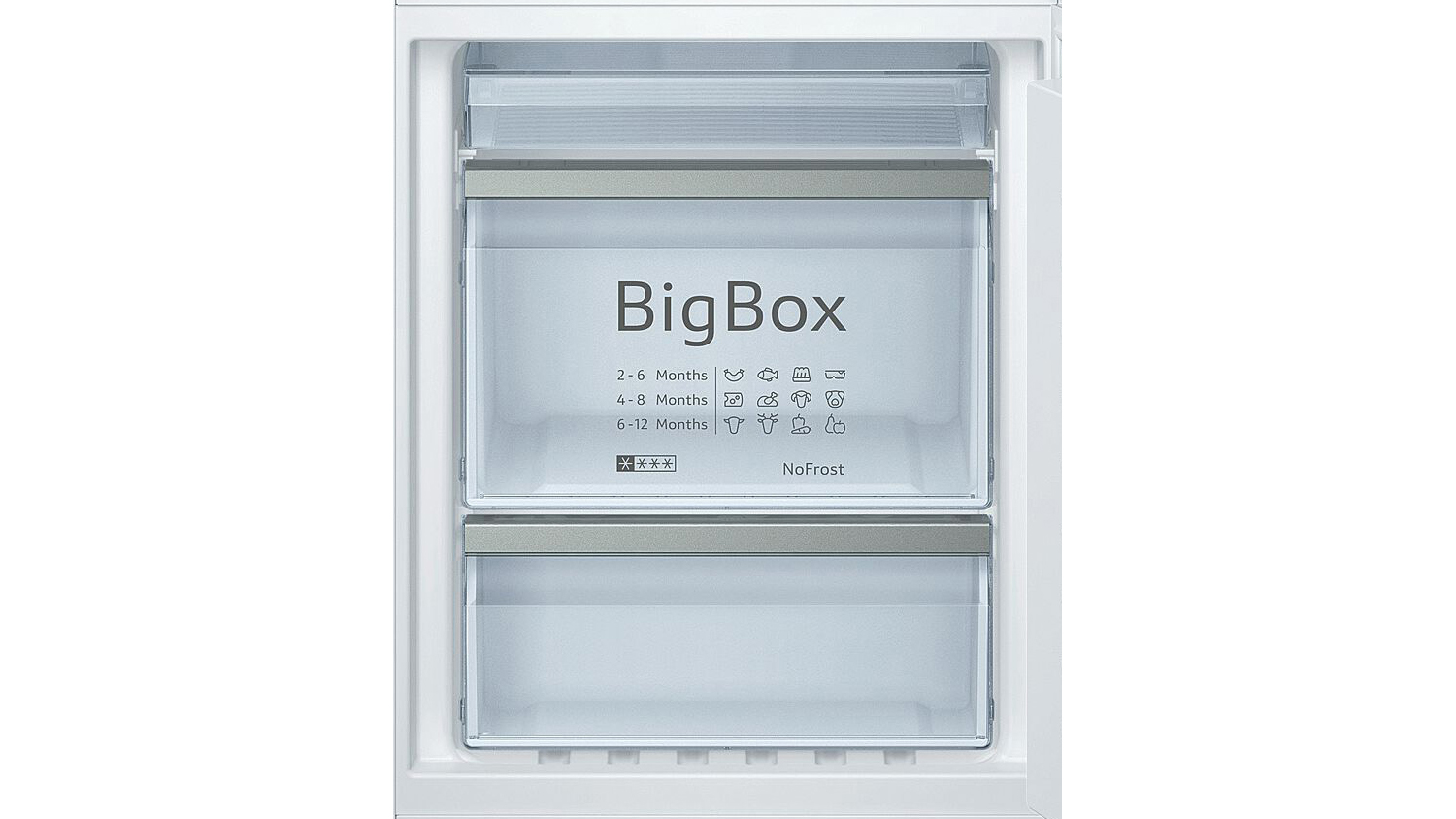

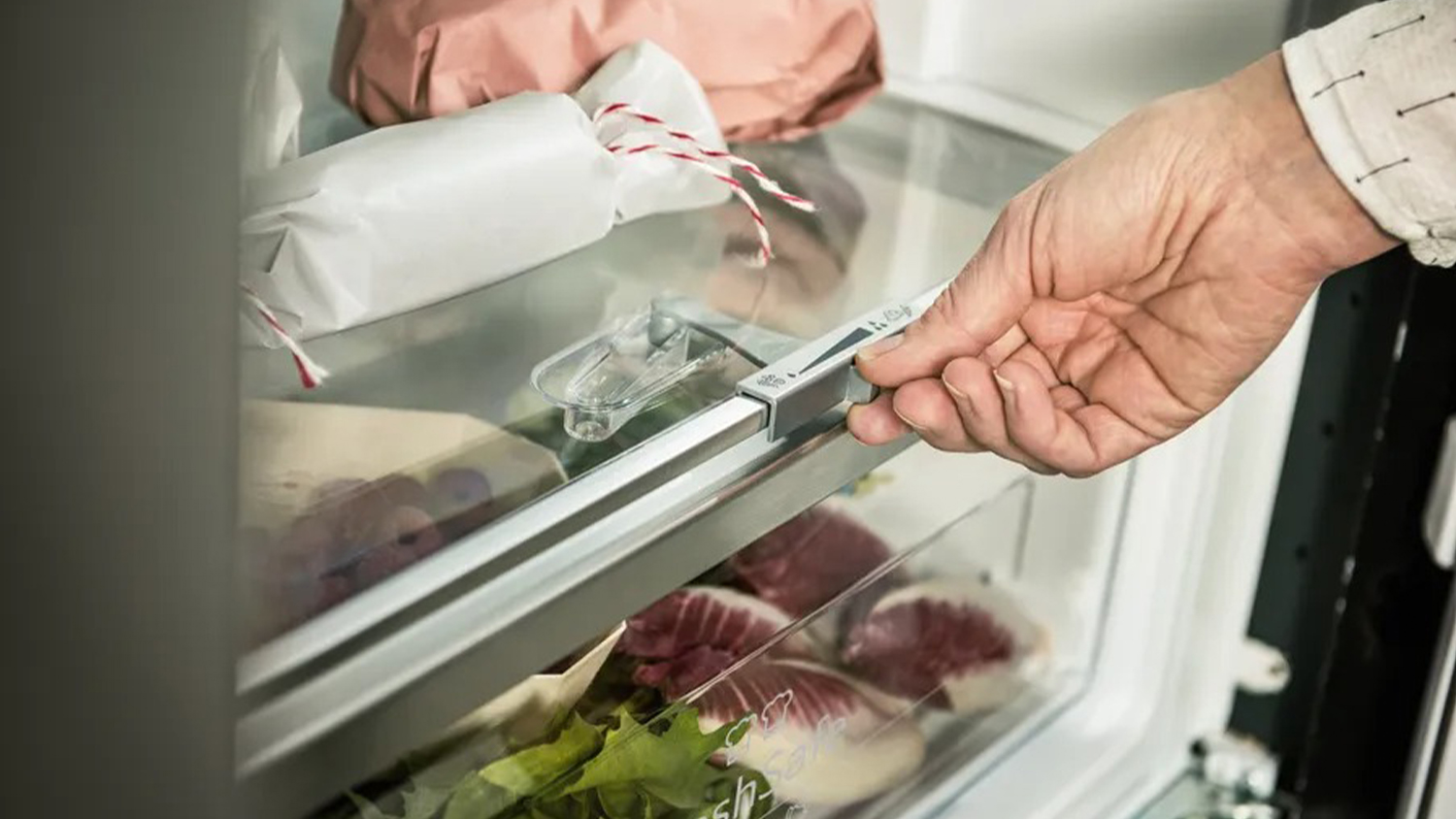

Enjoy top-quality food storage with the Neff 254L Integrated Bottom Mount Fridge Freezer. This appliance features a Fresh Safe flexible drawer that helps keep your produce fresh, while the Big Box storage accommodates larger food items. With Super Cooling and Super Freeze functions, your food stays fresher for longer. Its No Frost technology also eliminates the need for defrosting, making maintenance a breeze. Plus, the panel-ready design seamlessly blends with your kitchen decor for a sleek, modern look.
Key Overview
Product Highlights
*Please Note: This appliance requires a custom-made panel to be attached to its front to provide an integrated look with your kitchen cabinetry. This Item does not come with a door panel or handle to attach to the front.
| Brand | Neff |
|---|---|
| Product Type | Bottom Mount Fridge/Freezer |
| Model Number | KI7863D30A |
| Colour | Custom Panel Ready |
| Made in | Germany |
| Total Capacity | 254 L |
|---|---|
| Fridge Capacity | 187 L |
| Freezer Capacity | 67 L |
| Energy Star Rating | 3.5 Star |
|---|---|
| Energy Consumption | 276 kWh/year |
| Refrigerator Type | Fridge Freezer |
|---|---|
| Refrigerant Type | Isobutane Refrigerant |
| Internal / External Features |
|

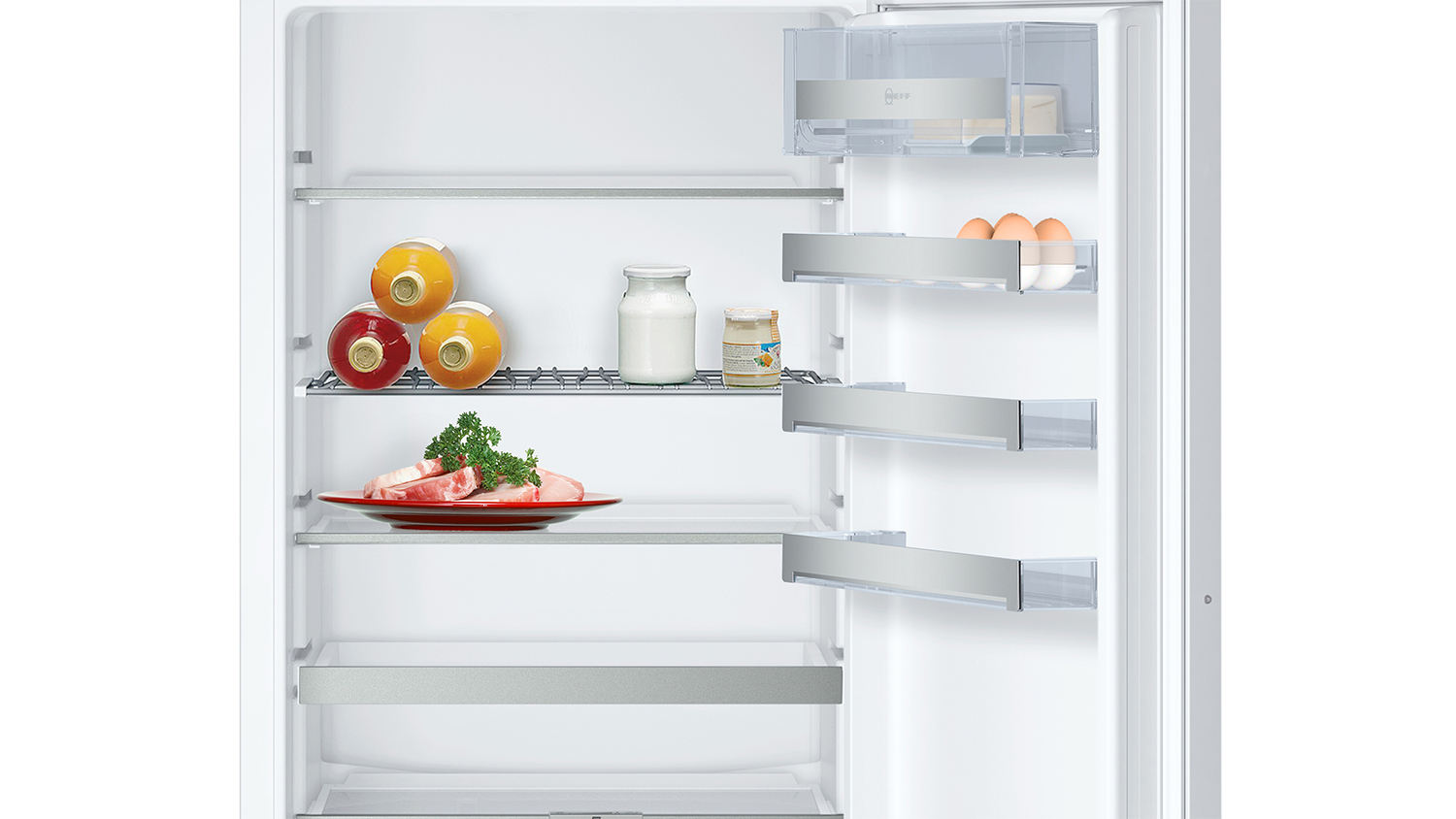

| Shelf Material | Glass Shelves |
|---|---|
| Number of Shelves | 5 x Fridge Shelves |
| Adjustable Shelves | Yes |
| Number of Door Shelves | 5 x Door Shelves |
|---|---|
| Number of Fruit and Vegetable Bins | 1 x Fruit and Vegetable Bin |
| Number of Freezer Baskets/Bins | 3 x Freezer Baskets/Bins |
| List of Included Accessories | 1 x Egg Tray, 1 x Ice Cube Tray, 1 x Bottle Holder, 2 x Cold Packs |
| Cooling System | NoFrost Multi Airflow System |
|---|---|
| Defrost Type | Automatic Defrost |
| Climate Class | SN-T |
| Temperature Features |
|
| Default Door Hinge | Right |
|---|---|
| Reversible Door | Yes |
| Door Type | Side-Swing Door |
| Open Door Alarm/Warning | Yes |
| Door Handle Type | Customizable Door Handles - Not Included |
| Door Design | Customizable Door Handles - Not Included |

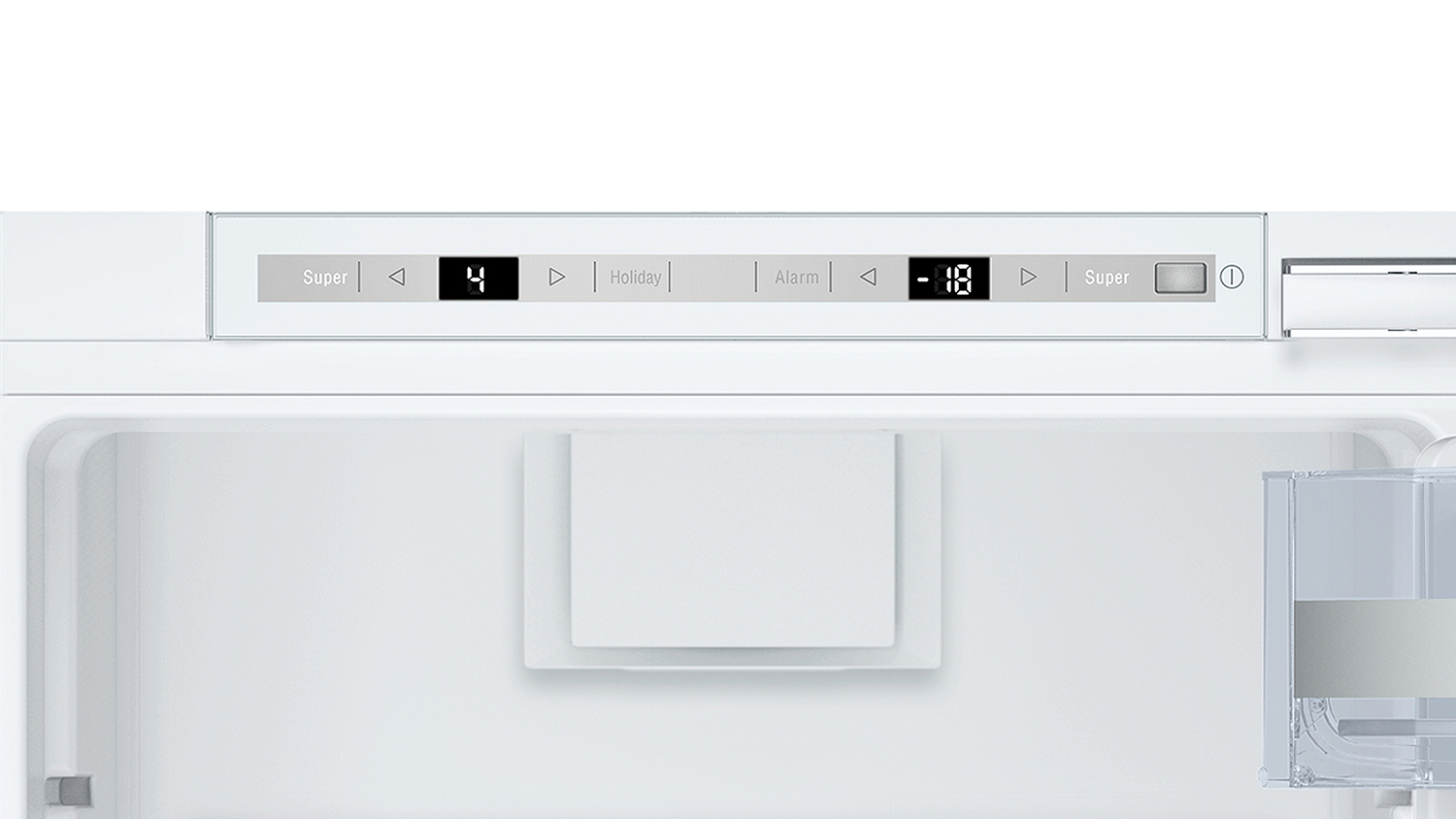

| Control Panel Type | Touch Button Panel |
|---|---|
| Location of Control Panel | Internal - Top Door Frame in Fridge Compartment |
| Lighting Type | LED Lighting |
|---|---|
| Internal Lighting | Yes |
| Light Position | Top |
| Number of Lights | 1 x Light |
| Number of Light Levels | 1 x Light Level |
| Cavity Dimensions (W x H x D) | Min. Required Niche Size - 560 x 1775 x 550 mm |
|---|
| Noise Level | 39 dB |
|---|
| Safety Feature | Acoustic Warning System |
|---|
| Display Type | LCD Display |
|---|
| Assembly Type | Kitchen Integration Required |
|---|---|
| Settling Period | 2-24 Hours (Refer to Manual) |
| Installation Type | Integrated into Cabinetry - Qualified Cabinetry Maker & Installer Required |
| Type of Connection | 10A plug & lead |
|---|---|
| Power Cable Length | 2.3 m |
| Power Indicator | Yes |
| Wattage/Voltage | AC220-240V 50Hz |
| Fuse Rating | 10A |
| Height | 1772 mm |
|---|---|
| Width | 558 mm |
| Depth | 545 mm |
| Product Weight | 69.2 kg |
| Manufacturers | 24 Months |
|---|
