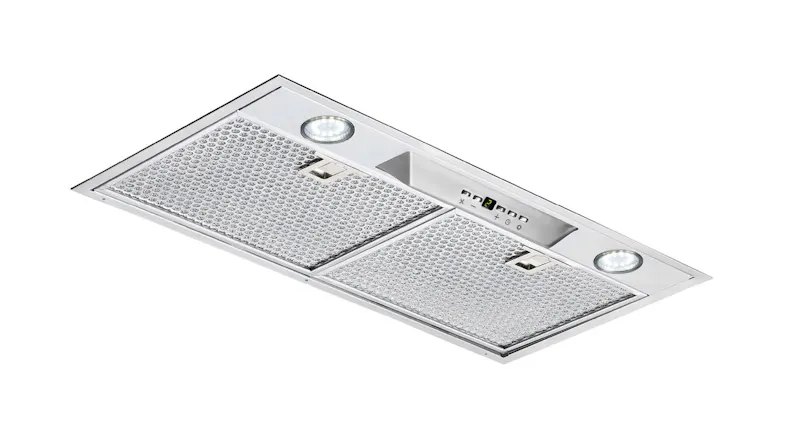

Schweigen 60cm Undermount Integrated Rangehood - Stainless Steel (UM1170-6S1)

Schweigen 60cm Undermount Integrated Rangehood - Stainless Steel (UM1170-6S1)

$1,409

Schweigen 60cm Undermount Integrated Rangehood - Stainless Steel (UM1170-6S1)

UM1170-6S1
Schweigen 60cm Undermount Integrated Rangehood - Stainless Steel (UM1170-6S1)
Shortlist Compare
$1,409
or 36 equal monthly interest free installments on a Gem Visa credit card of
$39.14^
GEM Finance Card
Total repayments $1,409 excluding fees.

This section should always be read in conjunction with the Terms and Conditions for Product CareTM.

Find in Store

For delivery estimate & stock availability


Available on 36 months of equal Interest Free instalments:

$39.14^
approximately
per month
^ Total repayments $1,409 (excluding fees). Min purchase of $500 applies. Offer ends 30/06/2026. Equal monthly payments required. Lending criteria, T&Cs & fees apply incl. a $55 estb. fee & $65 annual fee ($32.50 half yearly). Standard interest rate (currently 29.49% p.a.) applies after interest free term ends. Exclusions may apply. *Further information on rates and fees can be found at gemfinance.co.nz. Credit provided by Latitude Financial Services Ltd.
How it works
Description

  • Extended Range Item | Available by Special Order Only

    Delivery expectation: 2-4 weeks
    This item is available by special order and may not be stocked in stores. Purchase online today to secure your product. For more information, please contact your local Harvey Norman store.

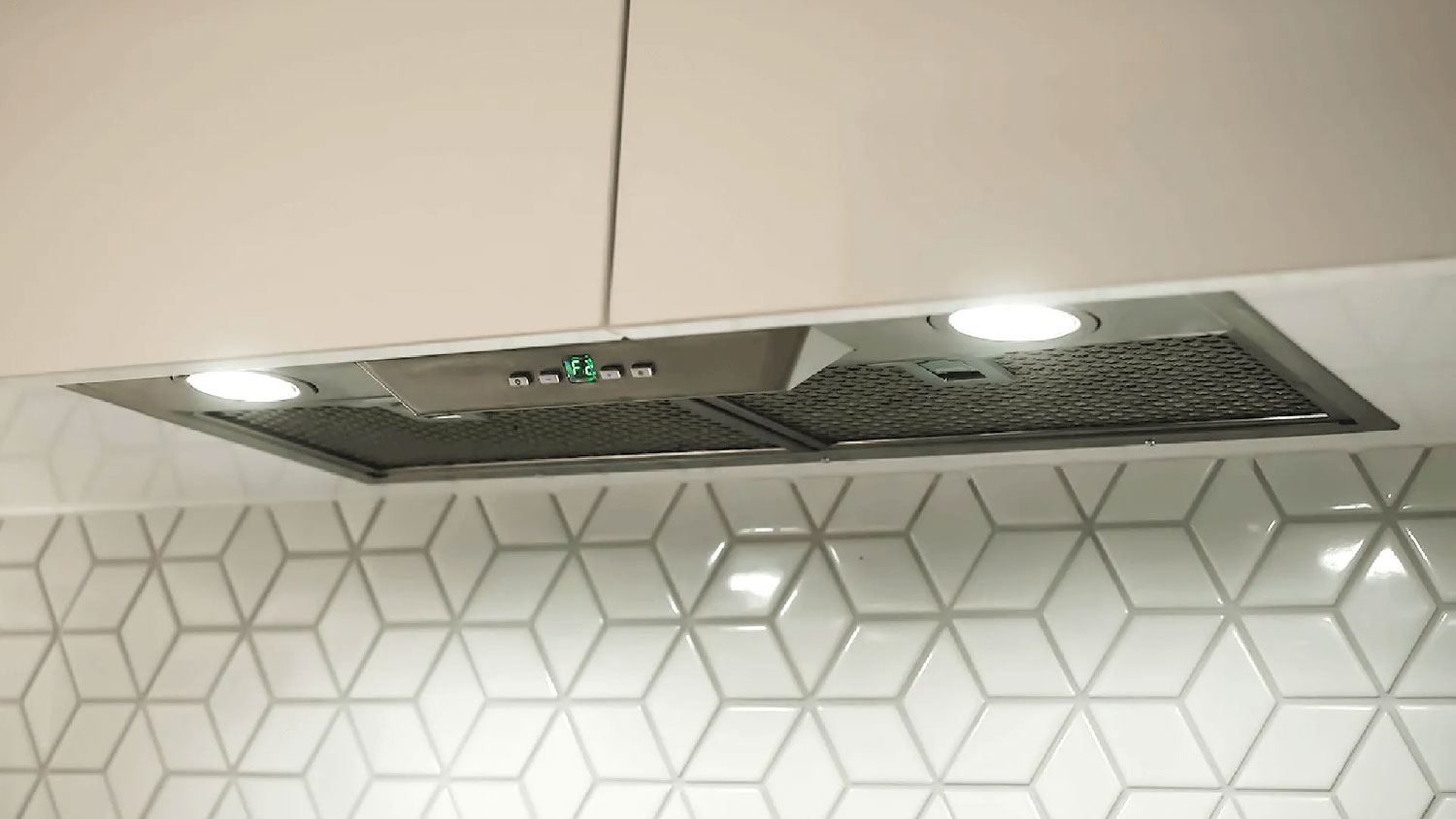

Improve ventilation in your kitchen with the Schweigen 60cm Undermount Integrated Rangehood. Delivering reliable extraction power, this appliance features an advanced Isodrive Motor that delivers a whopping 650 m³/h maximum airflow. It also offers 5-speed levels and a 15-minute timer for convenient operations. Plus, it comes equipped with twin LED lights to provide added illumination to your cooktop.

Key Overview

  • 60cm Size
  • Undermount Hood
  • External Motor
  • 650 m³/h Max Airflow
  • 68 dB Noise Level
  • Ducted Venting
  • Integrated Installation*
  • (W x D x H) - 598 x 295 x 288 mm

Product Highlights

  • Powerful Ventilation: Achieve a fresher and cleaner kitchen atmosphere using the Schweigen 60cm Undermount Integrated Rangehood. Engineered with an Isodrive motor, this appliance reliably captures unwanted steam, smoke, and odours in your cooking space.
  • Breezy Operations: This unit equips soft-touch controls, allowing you to easily adjust its 5-speed levels or set the 15-minute timer.
  • Enhanced Illumination: Thanks to its built-in LED lights, you can enjoy enhanced visibility for safer and more precise cooking.
  • Flush Fit: Seamlessly integrate this Schweigen Rangehood into your kitchen cabinetry for a neat and modern look. It also boasts a sleek stainless steel finish that blends well into any interior.
  • Hassle-Free Maintenance: Keep your rangehood working at its best! It utilises two mesh filters that you can effortlessly clean using your dishwasher.

*Qualified Cabinetry Maker & Installer Required.

Specifications
All Product Details
Brand Schweigen
Product Type Integrated Rangehood
Model Number UM1170-6S1
Colour Stainless Steel
Rangehood
Hood Type
  • Undermount Hood
Rangehood Feature
  • Damper Included
  • Fan Speed Display
  • Removable Grease Filter
  • Timer Function
Control Panel
Control Panel Type Electronic Push Button
Fan
Maximum Air Flow (Cubic Meter Per Hour) 650 m³/h
Lighting
Lighting Type LED Lighting
Integrated Light Yes
Number of Lights 2 x Lights
Number of Light Levels 1 x Light Level
Lighting Power 3 W
Motor
Motor Included Yes, Included
Type of Motor Centrifugal Motor
Noise Level 68 dB
Filter
Filter Type Mesh Filters
Number of Filters 2 x Filters Included
Replacement Filter SCSF1170-6SO
Vent
Exhaust Vent Location Top
Vent Type Ducted Venting
Ducting
Ducting Availability Included
Ducting Diameter 150 mm
Duct Shape Round Shape
Flue Cover Depth 30 mm
Flue Cover Width 200 mm
Recirculation
Recirculation Option No
Installation
Assembly Type Kitchen Integration Required
Installation Type Integrated into Cabinetry - Qualified Cabinetry Maker & Installer Required
Minimum Installation Height from Cooking Surface (Gas) 650 mm
Minimum Installation Height from Cooking Surface (Electric) 650 mm
Electrical Connection
Type of Connection 10A plug & lead
Power Cable Length 3 m
Power Indicator Yes
Wattage/Voltage 135W, 230V
Fuse Rating 10A
Current Consumption 1400 mA
Auto Power Off Yes
Dimensions
Height 288 mm
Width 598 mm
Depth 295 mm
Warranty
Manufacturers 36 Months
Reviews
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 293.48ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Delivery
Delivery

We aim to dispatch orders within 2 days. Delivery costs are calculated based on your location and the size of your order. Furniture may take up to 8 weeks to deliver as most products are made specifically for your order. Some Customer Direct products are shipped from overseas and may take longer to arrive. Some goods may take longer to deliver if a product is currently not in stock. A staff member will contact you where this occurs.

Easy returns

If you feel your product has failed a Consumer Guarantee (as defined by New Zealand Consumer Law) then don't worry you can easily return it to your local Harvey Norman store. We'll even pay for the postage if you live in an area where there is no store. Our returns policy covers any purchased item ( conditions apply).

What's in the box
  • 1 x Rangehood Body
  • 1 x Motor
  • 2 x Filters
  • 1 x Ductwork
  • 1 x Backdraft Shutter
  • 1 x Reducer
  • 1 x Mounting Hardware
  • 1 x User Guide
