Aqara Dual Relay Module T2 Home Automation Device

Embrace smart living with the Aqara Dual Relay Module T2 Home Automation Device. This compact, easy-to-install device lets you control ceiling lights, appliances, and motorised systems with smart automation. Compatible with Apple Home, Matter, Google Home, and Alexa (via Zigbee bridge), it provides seamless integration with your smart home setup.

Key Features

• Smart and Versatile Home Solution: The Dual Relay Module T2 is a truly flexible device, ideal for a wide range of home automation needs. It can be installed in ceiling lights for smart control or fitted into standard wall switches and sockets for convenient remote access. It’s also perfect for automating everyday appliances such as coffee machines, air fresheners, electric heaters, roller blinds, and even garage roller doors.
• Compatible with Apple Home and Matter via Bridge: The T2 works seamlessly with Apple Home, Matter, Google Home, and Amazon Alexa (via Zigbee bridge)¹, transforming traditional devices into smart ones. It integrates easily with third-party systems, enabling automation and effortless control across your smart home.
• Reliable Motor Control with Interlock Function: Easily and safely connect the T2 to bidirectional motors. It’s ideal for controlling tubular motors, roller blinds, or even serving as the central component in a smart motorised system.
• Energy Monitoring & Power Memory: The T2 includes built-in energy monitoring and provides real-time power usage statistics. It also features a power memory function, restoring the last on/off state in the event of a power cut.

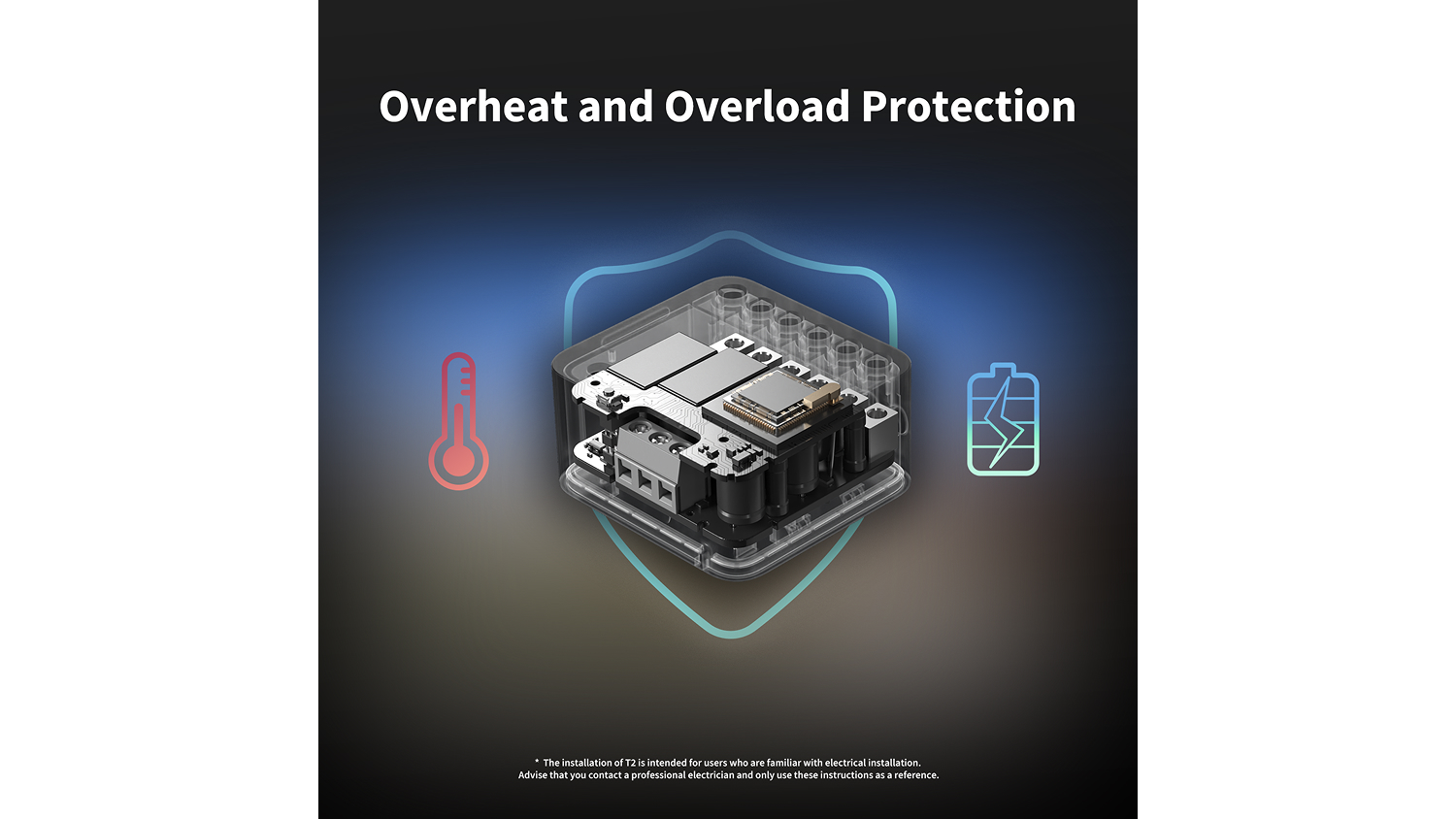

• Built-In Safety and Protection: Your safety is our top priority. The T2 offers advanced protection features, including adjustable limits for voltage, current, and power. If unusual conditions are detected, it will automatically cut off the power to prevent damage or hazards².
• Wireless Switch Mode: Convert your existing wired wall switches into smart scene controllers. With this mode, you can use your traditional switch to arm/disarm your security system, operate curtains, or control lighting—all without needing to replace the switch³.

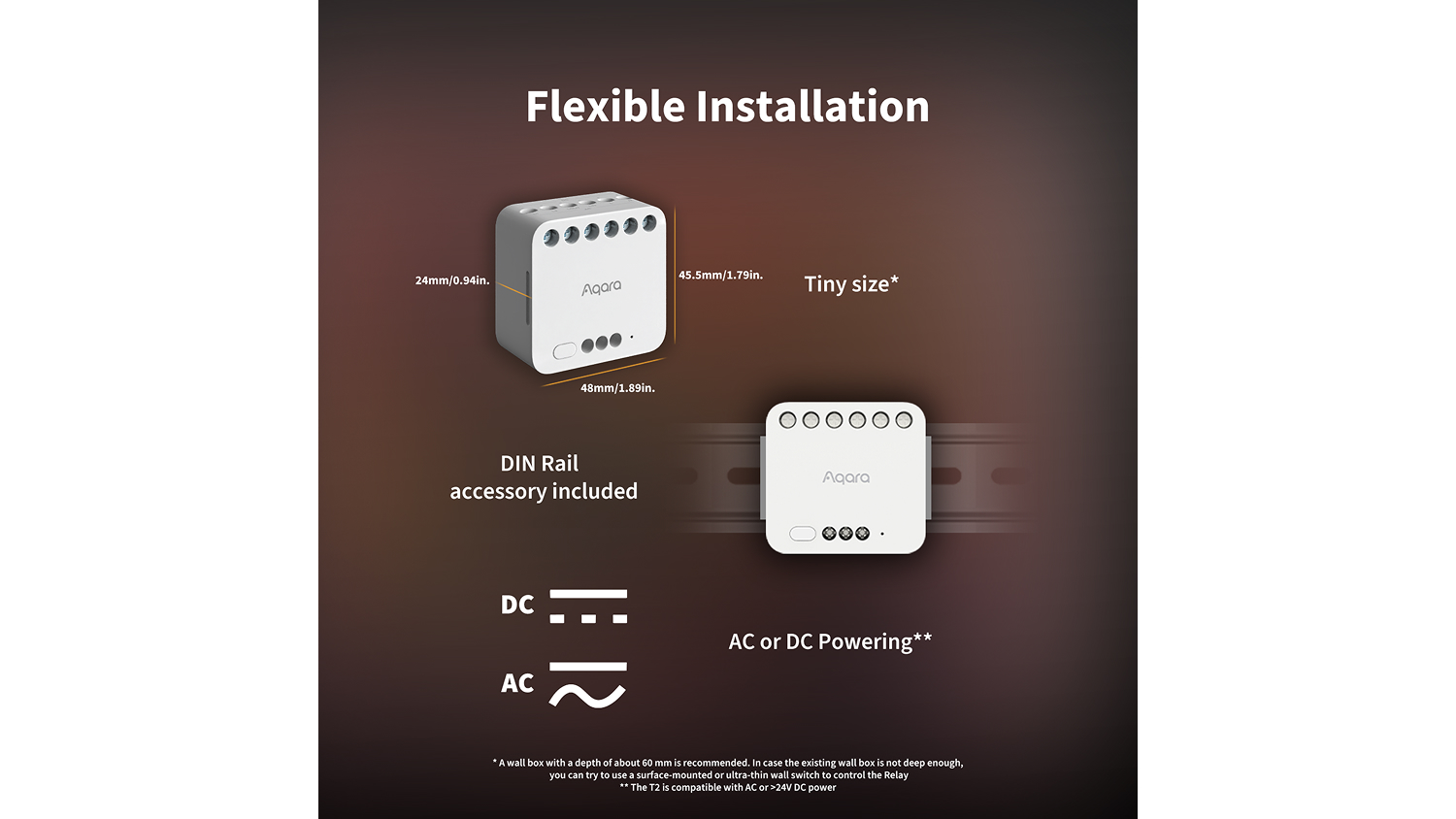

• Compact and Easy to Install: Designed for convenience, the T2 fits easily onto a DIN rail in your electrical cabinet or into standard wall boxes, including 86 mm and US-style enclosures. Its compact size makes installation quick and simple⁴.
• Power Specifications: ≤ 13 dBm maximum output power. Rated parameters include AC (100–250V, 50/60Hz). Max. 10A, Max. 2500W for incandescent lamps. Max. 1A, Max. 250W for LED and CFL fluorescent lamps. Max. 1A, Max. 1/4 HP for motors. For DC, 24–30V supports Max. 10A, Max. 300W (resistive load), while 30–60V supports Max. 1A, Max. 60W (resistive load).
• Product Details: This product measures 45.5 × 48 × 24 mm. -10 °C to 40 °C operating temperature and 0–95% RH, non-condensing operating humidity. 2405–2475 MHz Zigbee operation frequency.

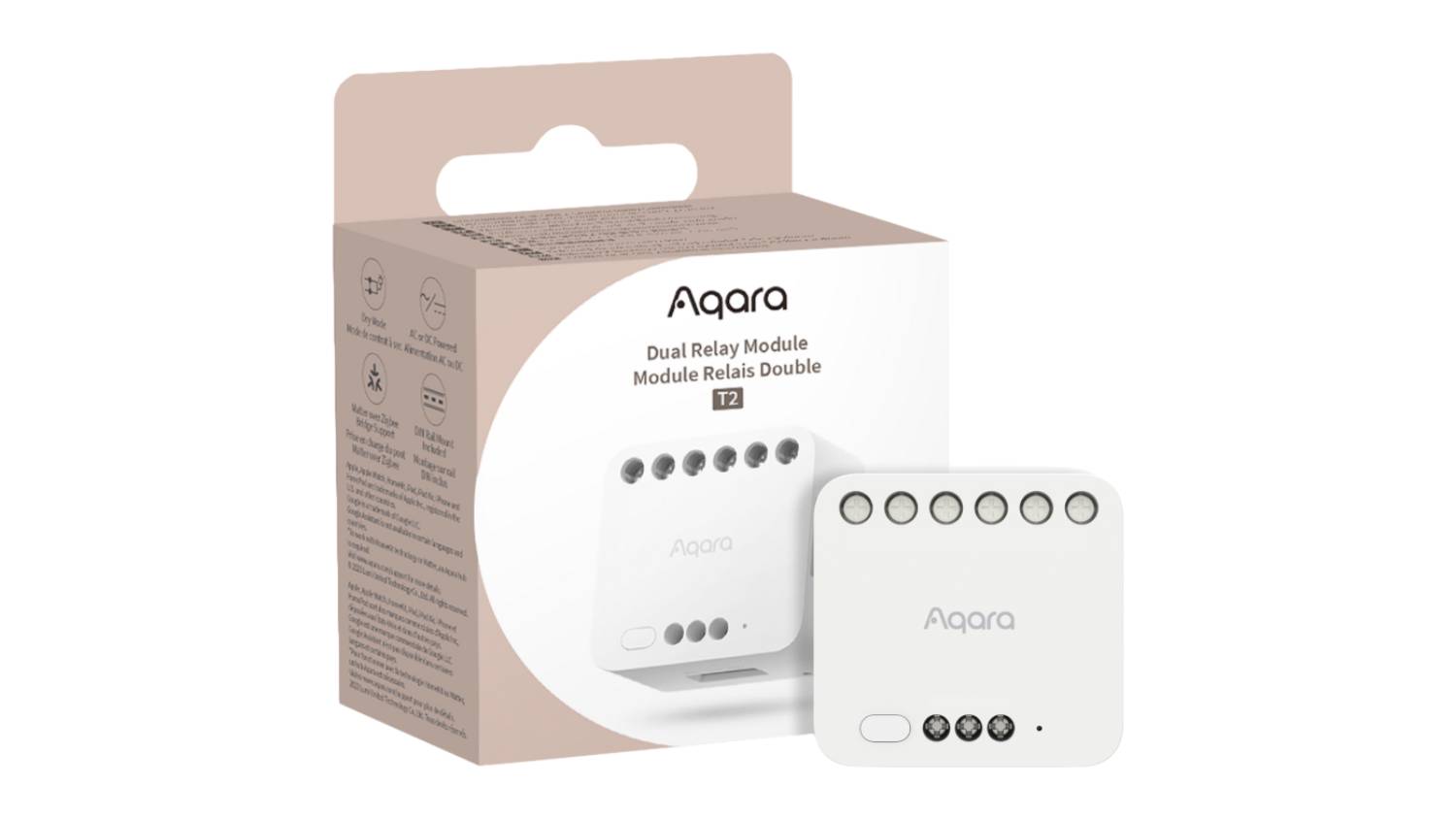

• Package Inclusions: This package includes 1 x dual relay module T2, 1 x user manual, 1 x DIN rail accessory, and 1 x jumper wire.

^*An Aqara Hub is required for automation and linking with other smart devices.

¹Apple Home, Google Home, Alexa, and Matter support is available via a Zigbee bridge.

²Installation should be carried out by users experienced with electrical systems. We strongly recommend consulting a qualified electrician and using this guide as a reference only.

³Any switch or sensor connected to the S1/S2/COM terminals must support the voltage provided to the relay.

⁴The T2 supports a maximum current of 10A. A wall box depth of approximately 60 mm is recommended. If your existing box isn’t deep enough, consider using a Wireless Remote Switch H₁ or an ultra-thin surface-mounted wall switch.
