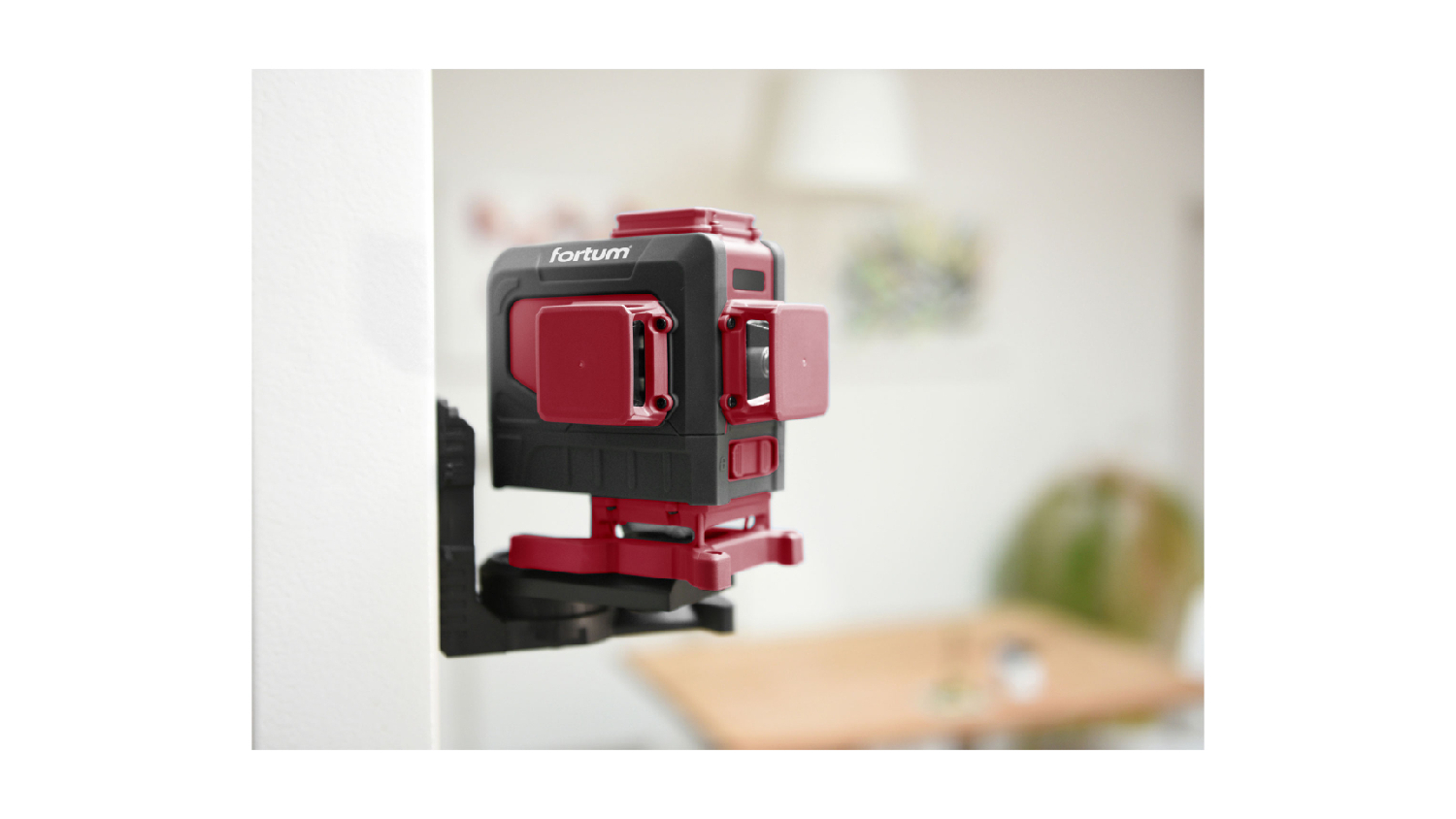

Fortum Cross Beam 3D Laser Level

Step into the world of ultimate precision with the Fortum Cross Beam 3D Laser Level. This cutting-edge laser level combines innovative technology with user-friendly features to deliver unmatched performance. The device projects either a whole horizontal plane and/or one or two whole vertical planes (meaning 3D indicating). From professional work to DIY projects, this laser level will empower you to achieve perfection.

Key Features

• The self-levelling, green light, cross-line 3D laser Fortum is designed to secure and control vertical and horizontal lines with respect to the projected laser lines, as well as entire planes.
• The device projects either one whole horizontal plane and/or one or two whole vertical planes (meaning 3D indicating). The principle of using a self-levelling laser is that if the laser device is within 3° from the horizontal plane, the device automatically defines the projected laser lines after self-levelling. If the position of the device exceeds 3° from the horizontal, the device will emit an intermittent beep and the laser lines will flash.
• The unit can be mounted on a 5/8 tripod or 1/4 thread.

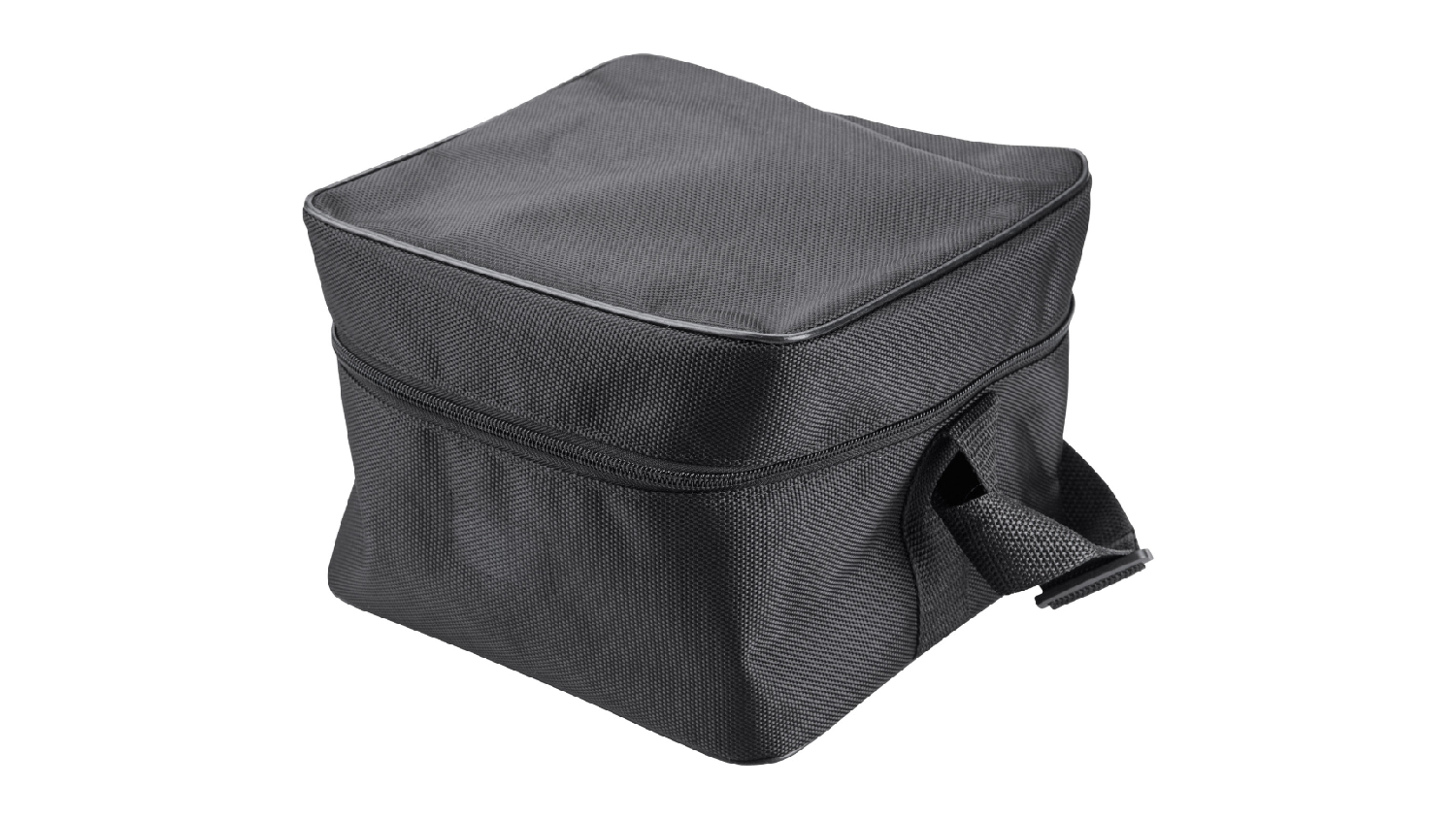

• The device is supplied in a practical bag with foam lining for handling protection.
• Max. recommended aiming distance 20m.
• Horizontal and vertical levelling accuracy (± 0.2 mm/m).
• Max. deviation of the inclination of the device for automatic levelling.
• Self-levelling time (≤5s). IP 54 protection.
• Ambient temperature for operation (-10° ~ + 40°C).
• Laser beam/wavelength (635/680nm). Laser beam power (<1mW).
• Laser class 2360° horizontal beam span angle (full plane). 360° vertical beam angle (full plane).
• Weight (without batteries 0.4kg).
• Dimensions (100 × 80 × 110mm).
• Degree of pollution according to EN 61010-1 2.

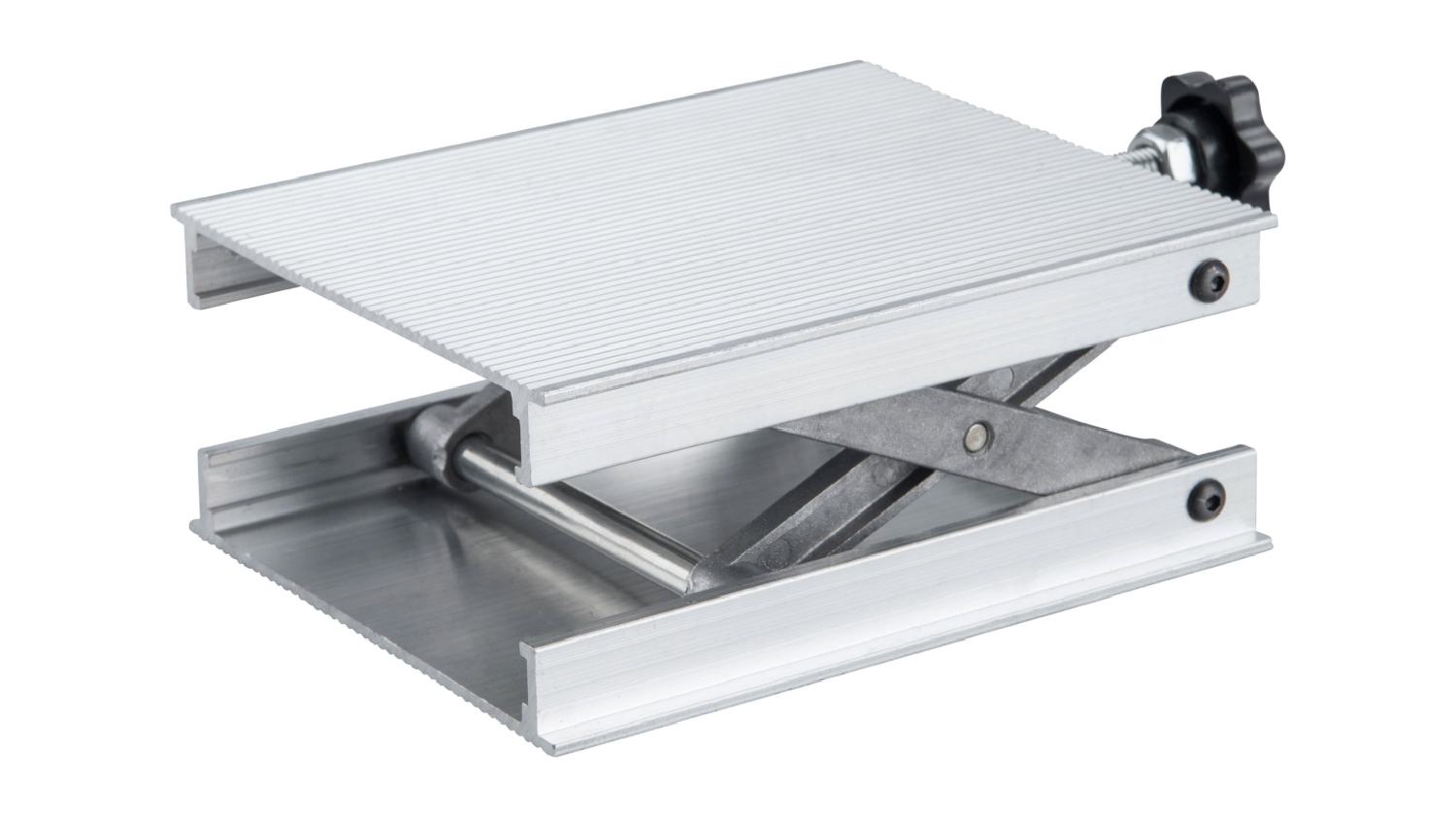

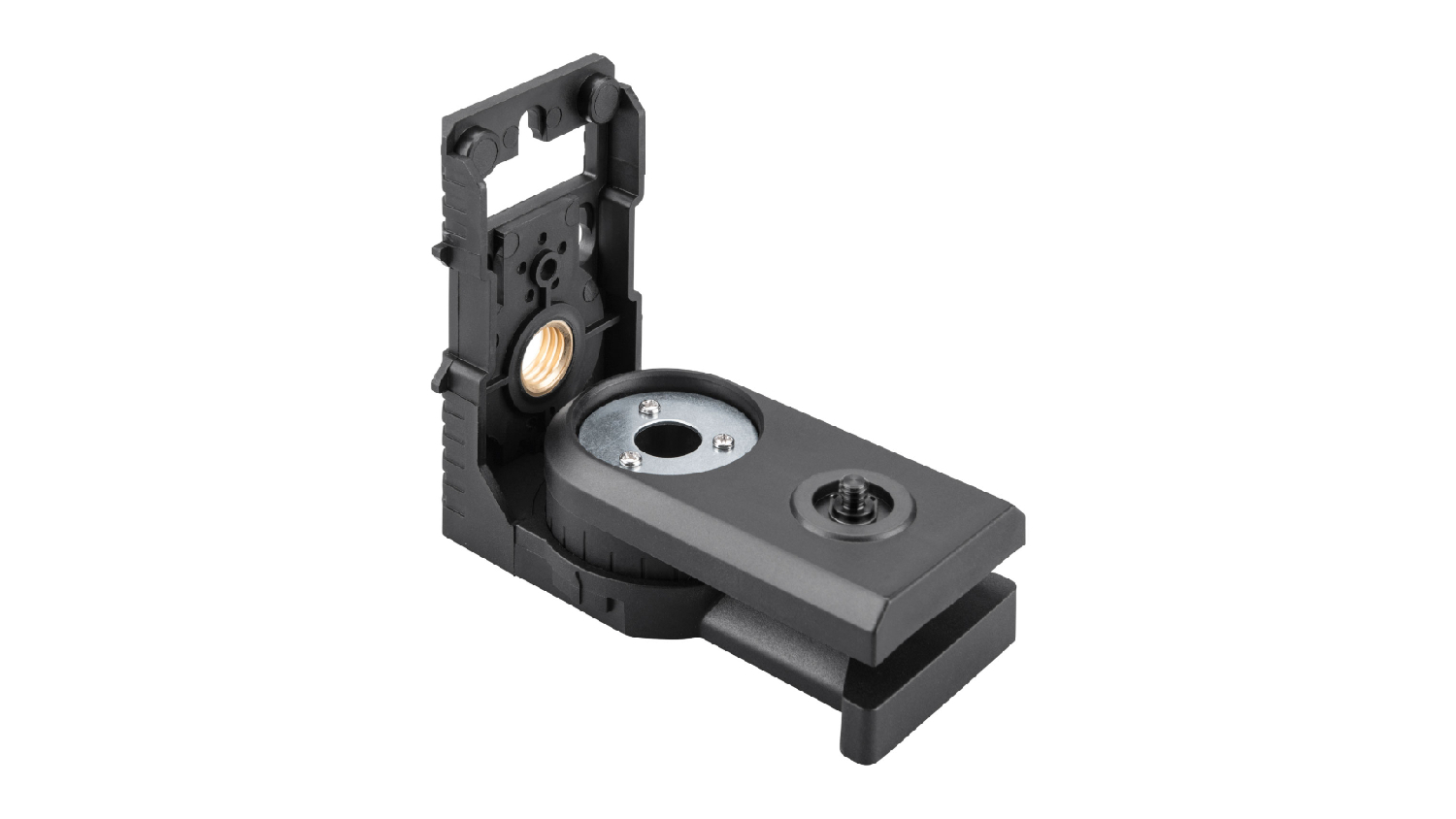

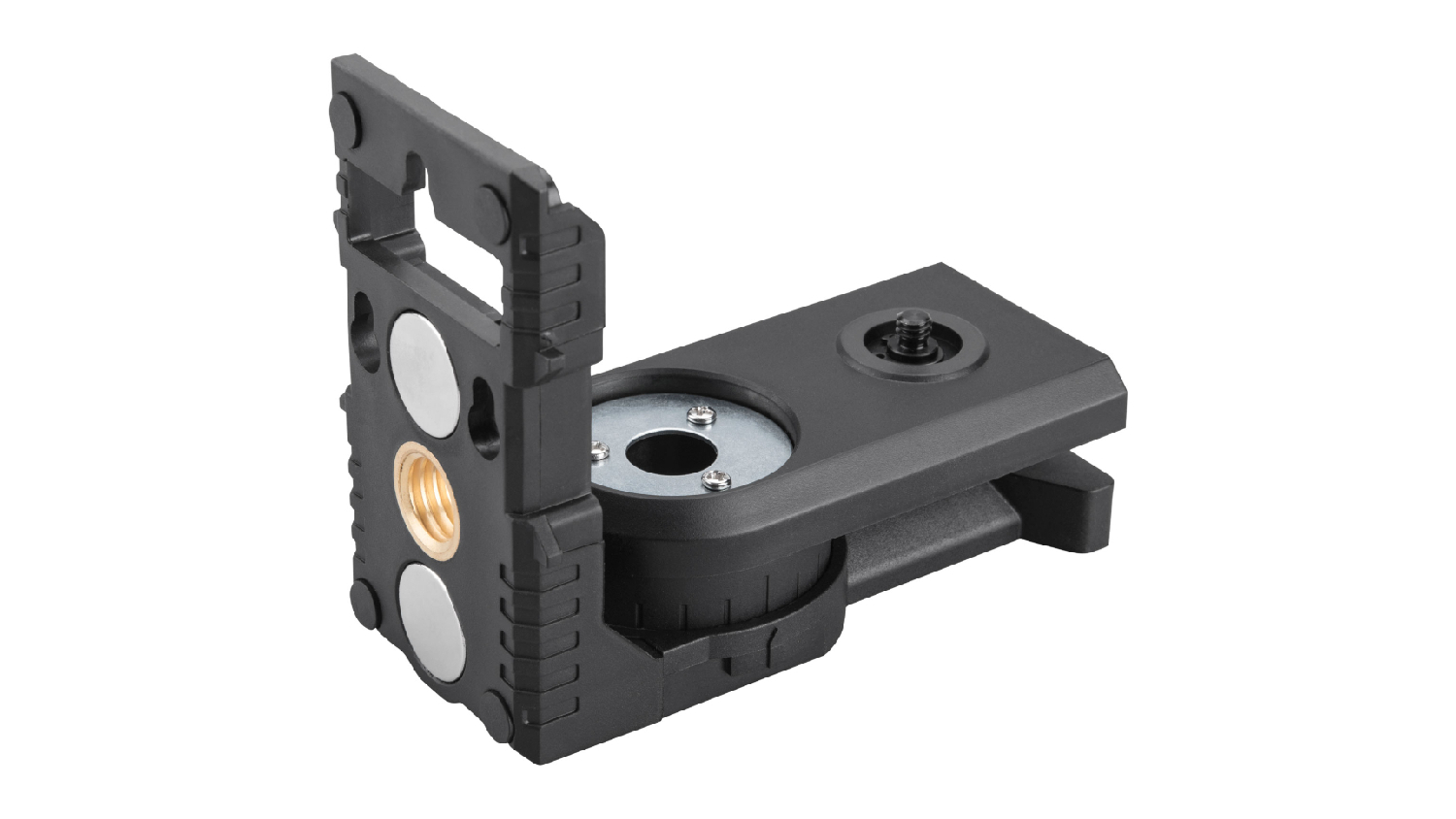

• Supplied with a magnetic rotating bracket and mini height adjustable platform. (as shown in photographs).

The Appliance can be powered in three following methods:

1. Directly by mains adaptor without batteries.
2. Three 1.2 V AA-size Ni-MH rechargeable pencil batteries.

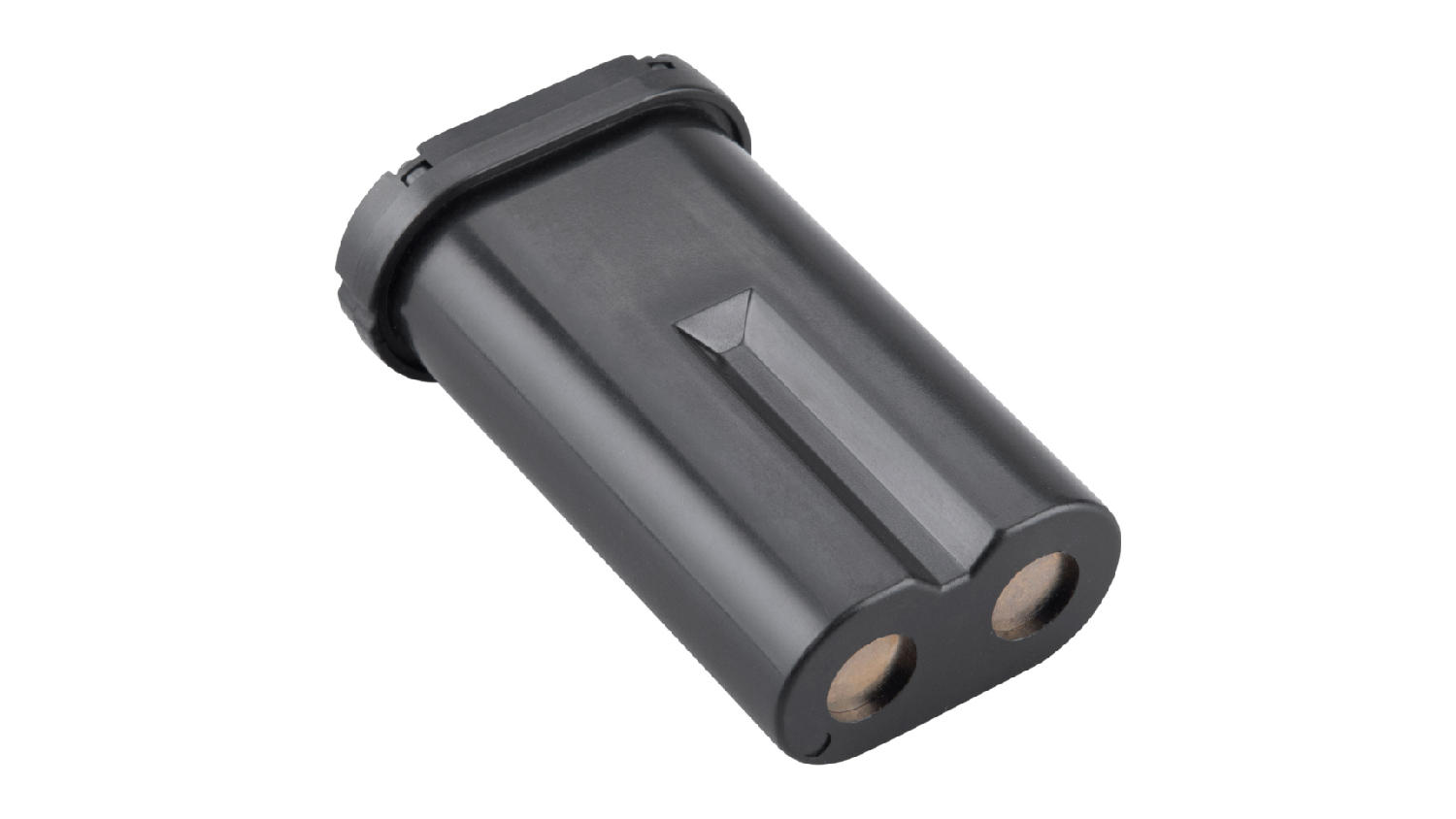

3. Supplied rechargeable Li-ion battery 3.7 V.
