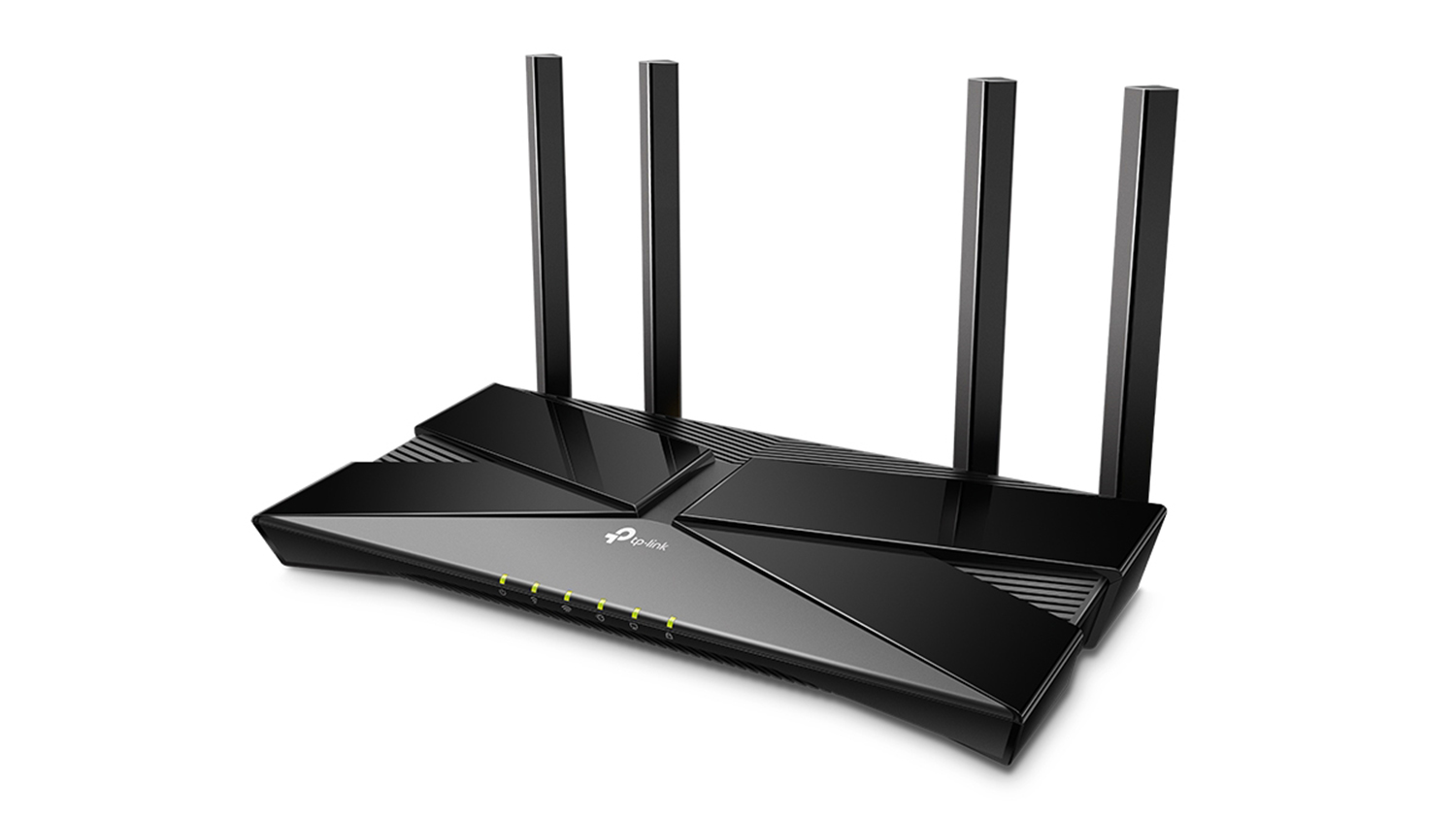

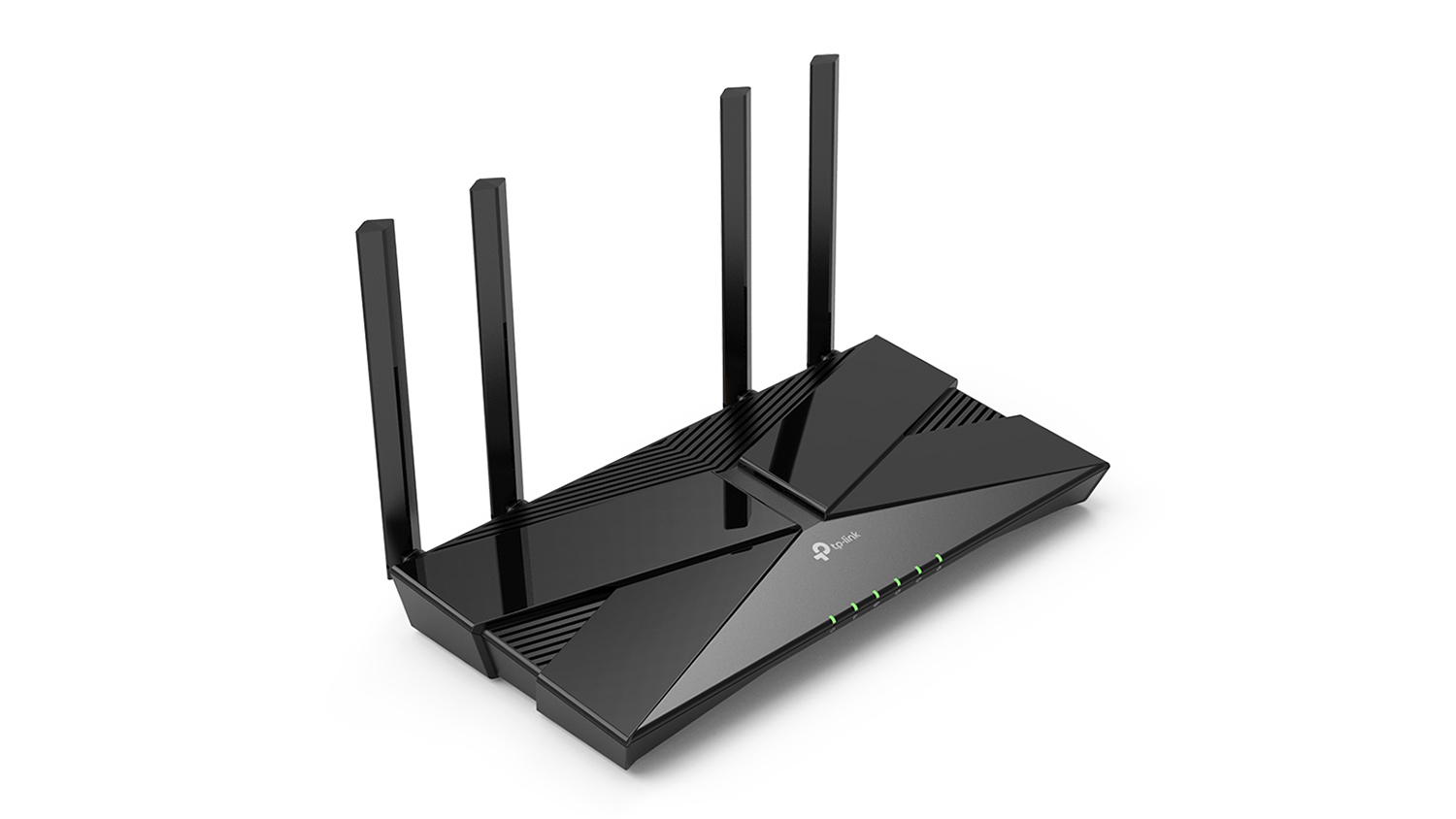

TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router
TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router
Harness blazing-fast connection and wider coverage with the TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router. A great addition to your modern home, this device features Wi-Fi speeds of 1.8Gbps, advanced Wi-Fi 6 technology, OFDMA, and Beamforming. It also incorporates 5 Gigabit ports, allowing you to have access to faster wired connections on demand. Additionally, this unit is EasyMesh compatible for seamless integration.
Key Features
- Super-fast Wi-Fi: Enjoy the smooth and reliable Wi-Fi connection offered by the TP-Link Archer AX23. This Wi-Fi 6 Router provides blazing-fast 1.8 Gbps speeds (574 Mbps for 2.4 GHz and 1201 Mbps for 5 GHz), allowing you to browse, download, stream, and play games without interruptions*.
- Broad Coverage: Thanks to its 4 high-performance antennas, you’ll be able to enhance Wi-Fi signals to reach different areas of your home. It also features Beamforming technology to help cover the challenging spots.
- Connect More Devices: The Archer AX23 comes equipped with the OFDMA feature, offering 4x more capacity while minimising latency and jitter*. Now every family member can enjoy a fast internet connection every time!

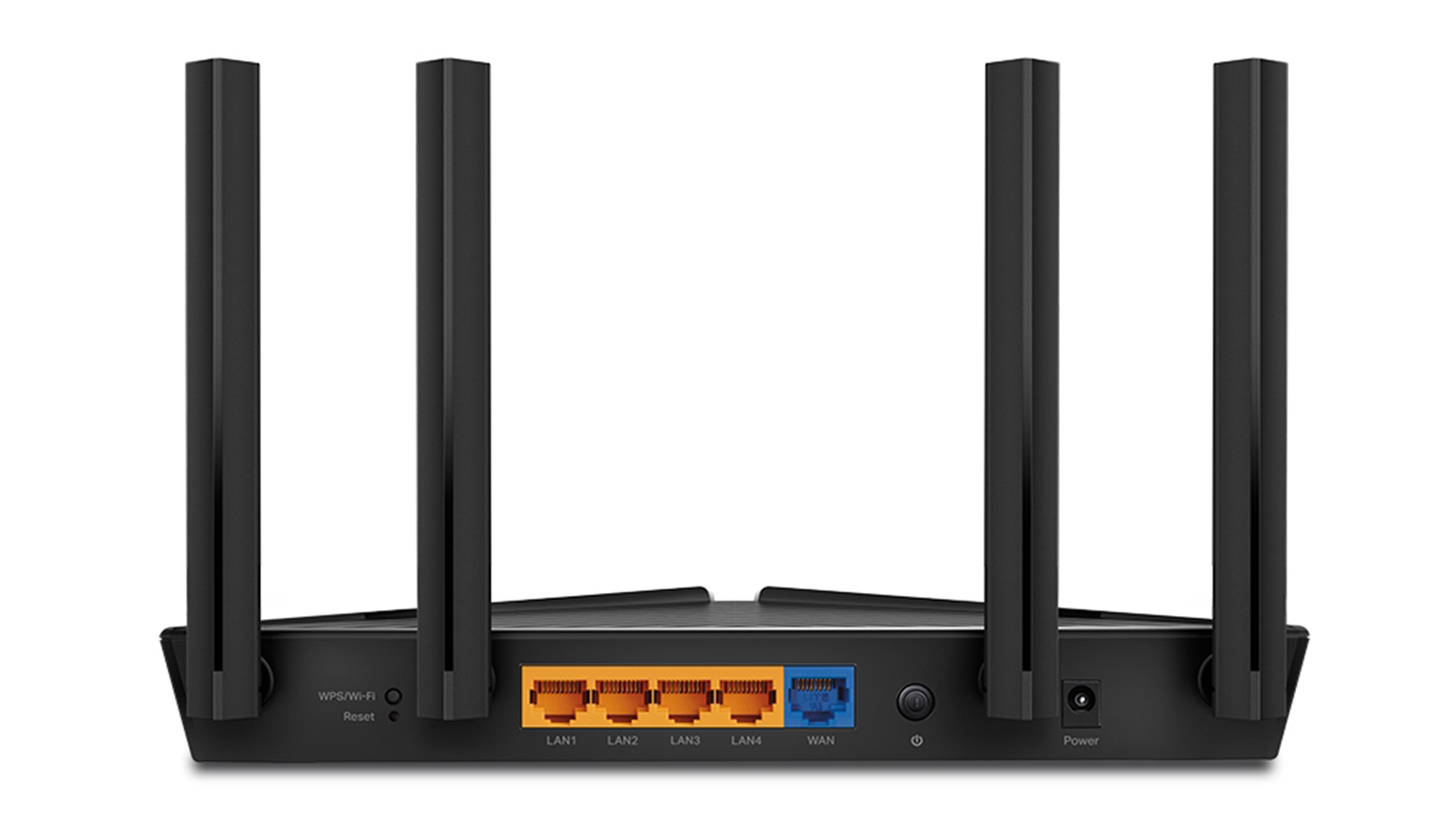

- Optimum Connections: For stable wired connections, this TP-Link Router comes equipped with four Gigabit LAN ports and one Gigabit WAN port. It also has Access Point (AP) Mode, Router Mode, and Wireless Router Mode for added versatility.
- Next Generation Platform: Conveniently save on power as the AX1800 Dual Band Wi-Fi 6 Router is engineered with the Next-Gen High-Efficiency Qualcomm Chipset**.
- Seamless Setups: By downloading the TP-Link Tether app, you’ll be able to set up and manage the TP-Link Archer AX23 Router with total ease. This app also offers handy connection notifications as well as firmware upgrades.
- EasyMesh-Compatible: Archer AX23 works with EasyMesh devices (sold separately), allowing you to enjoy fluid connections even as you move around your home. It also supports Smart Roaming and One Wi-Fi Name for ease of use.
- Family-Friendly Internet: Keep your child protected from inappropriate online content. Parental Controls lets you manage your profile, limit time online, and block URLs. You can also create a separate network for your guests for added security.
- Next Level Cybersecurity: To safeguard your home internet, this TP-Link Dual Band Router supports the WPA3 security protocol that enhances personal network cybersecurity and Wi-Fi password encryption.
- Universal Compatibility: TP-Link Archer AX23 Router is suitable for use with most internet service providers, including those that support L2TP, PPTP, and IPTV. Moreover, it is backwards compatible with the previous 802.11 standards Wi-Fi devices.
*Use of Wi-Fi 6 (802.11ax) and its features, including OFDMA and 1024-QAM requires clients to also support corresponding features.
**Power consumption compared with the Archer AX20.
***Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications are based upon test results under normal usage conditions. The actual wireless transmission rate and wireless coverage are not guaranteed and will vary.
| Brand | TP-Link |
|---|---|
| Product Type | Routers |
| Model Number | Archer AX23 |
| Colour | Black |
Processor
| Processor Type | Dual-Core |
|---|
Networking
| Operation Modes |
|
|---|---|
| Wi-Fi Speed (2.4 GHz) | 574 Mbps |
| Wi-Fi Speed (5 GHz) | 1201 Mbps |
| Antenna Placement | External |
| Number of External Antenna | 4 |
| Wi-Fi Encryption | WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
| VPN Support | Yes |
| VPN Throughput | OpenVPN, PPTP |
| Router Ports | 1 x Gigabit WAN Port, 4 x Gigabit LAN Ports |
| Supported Protocols | IPv4, IPv6 |
| Guest Network Support | Yes |
| Beamforming Support | Yes |
| WPS Support | Yes |
| Firewall Support | SPI Firewall, Access Control, IP & MAC Binding |
| Transmit Power | <30 dBm |
| WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Reset Button | Yes |
| Quality of Service (QoS) | Yes |
| Parental Control | Yes |
Connectivity
| Wireless Frequency Bands | 2.4 GHz & 5 GHz |
|---|---|
| Wi-Fi Generations | Wi-Fi 6 |
| Supported IEEE Standards | 802.11ax/ac/n/a, 802.11ax/n/b/g |
Additional Features
| Certifications | FCC, CE, RoHS |
|---|
Power
| Wattage/ Voltage | 12 V ⎓ 1 A |
|---|
Temperature / Humidity
| Operating Temperature | 0℃~40℃ (32℉ ~104℉) |
|---|---|
| Operating Humidity | 10%~90% non-condensing |
| Storage Temperature | -40℃~70℃ (-40℉ ~158℉) |
| Storage Humidity | 5%~90% non-condensing |
Dimensions
| Product Width | 41.5 cm |
|---|---|
| Product Depth | 26.5 cm |
| Product Height | 9 cm |
| Product Weight | 1.49 kg |
Warranty
| Manufacturers | 36 Months |
|---|
Expert Reviews
Customer Reviews
Delivery
We aim to dispatch orders within 2 days. Delivery costs are calculated based on your location and the size of your order. Furniture may take up to 8 weeks to deliver as most products are made specifically for your order. Some Customer Direct products are shipped from overseas and may take longer to arrive. Some goods may take longer to deliver if a product is currently not in stock. A staff member will contact you where this occurs.
Easy returns
If you feel your product has failed a Consumer Guarantee (as defined by New Zealand Consumer Law) then don't worry you can easily return it to your local Harvey Norman store. We'll even pay for the postage if you live in an area where there is no store. Our returns policy covers any purchased item ( conditions apply).
- 1 x TP-Link Archer AX23 AX1800 Dual Band Wi-Fi 6 Router
- 1 x Power Adapter
- 1 x RJ45 Ethernet Cable
- 1 x Quick Installation Guide
