Fisher & Paykel Series 9 60cm Built-In Smart Steam Oven - Black Glass (OS60SAMVUB5/Minimal)
Fisher & Paykel Series 9 60cm Built-In Smart Steam Oven - Black Glass (OS60SAMVUB5/Minimal)
$5,809
Fisher & Paykel Series 9 60cm Built-In Smart Steam Oven - Black Glass (OS60SAMVUB5/Minimal)
OS60SAMVUB5
Available on 36 months of equal Interest Free instalments:
approximately per month
^ Total repayments $5,809 (excluding fees). Min purchase of $500 applies. Offer ends 30/09/2026. Equal monthly payments required. Lending criteria, T&Cs & fees apply incl. a $55 estb. fee & $65 annual fee ($32.50 half yearly). Standard interest rate (currently 29.49% p.a.) applies after interest free term ends. Exclusions may apply. *Further information on rates and fees can be found at gemfinance.co.nz. Credit provided by Latitude Financial Services Ltd.
How it worksGem Finance Interest Free
Available on participating Gem credit cards.
New to Gem? Follow the steps below to apply for a Gem Visa now.
Apply Online
Complete your online application in just 10-15 minutes
Credit Check
Submit income, employment details, and expenses. Include proof of income by sharing your online statement or uploading income documents.
Provide Identification
All applicants must provide a form of identification, e.g., NZ driver's license, NZ Passport, or International Passport.
Extended Range Item | Available by Special Order Only
Delivery expectation: 2-4 weeks
This item is available by special order and may not be stocked in stores.
Purchase online today to secure your product. For more information, please
contact your local Harvey Norman store.

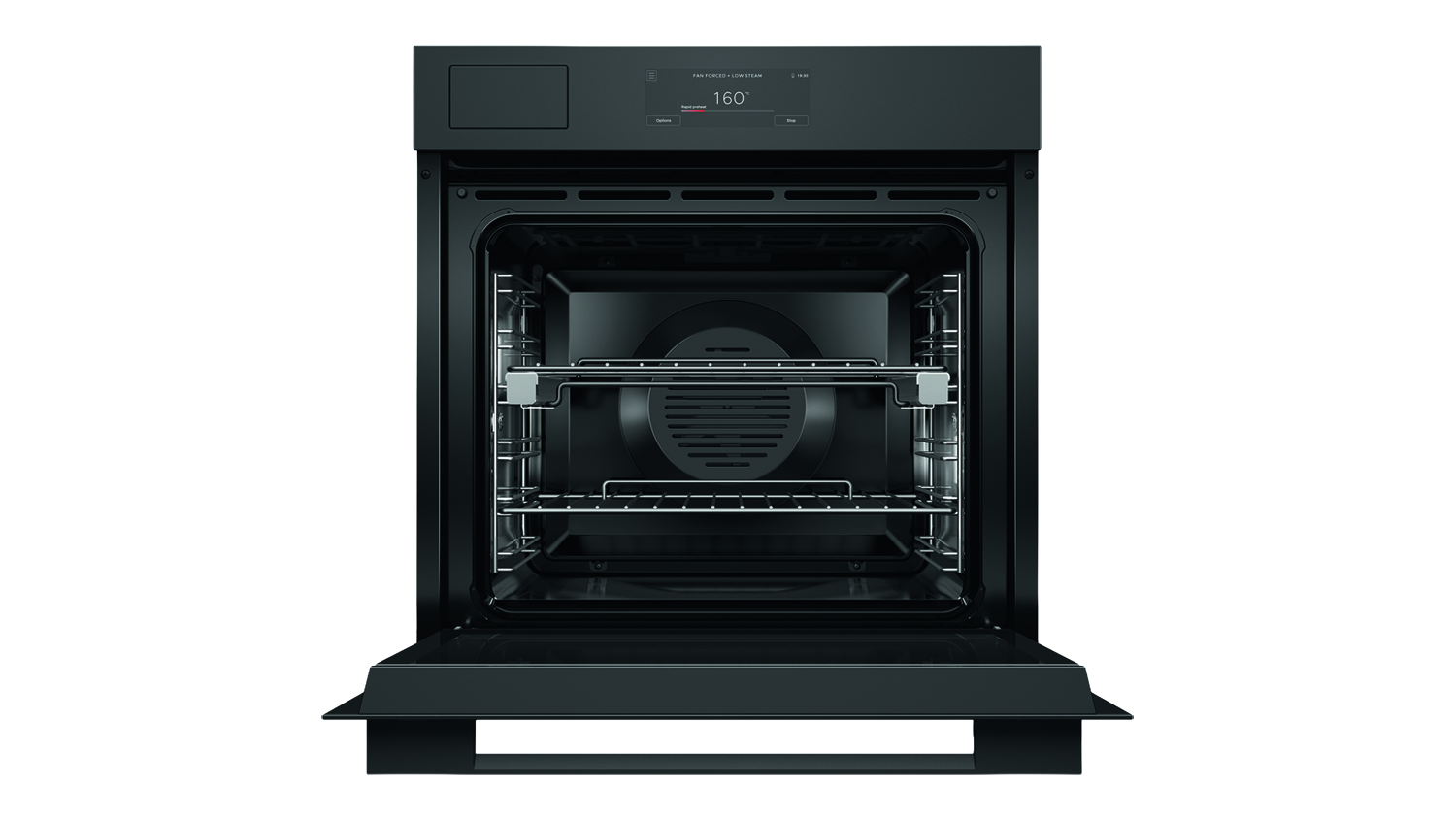

Redefine your daily cooking chores with the Fisher & Paykel Series 9 60cm Built-In Smart Steam Oven. Delivering ultimate kitchen versatility, this appliance boasts 19 functions and 12 cooking methods to ensure consistently delicious results for every recipe. It is also convenient to use, featuring SmartHQ app support, Google Assistant, and Dry Cycle. Plus, it even boasts a minimalist aesthetic to blend well into your cabinetry.
Key Overview
- 85L Gross Capacity
- 72L Net Capacity
- 35°C to 230°C Temperature Range
- 4 x Quick Touch Selections
- ActiveVent Technology
- Halogen Lighting
- Wi-Fi Embedded
- Built-In Installation
Product Highlights
- Healthy Meal Preparation: Upgrade your everyday meals with the Fisher & Paykel Series 9 60cm Built-In Smart Steam Oven. Made for health-conscious cooking, this unit creates a controlled environment to help enhance the flavour and preserve the nutrients of your dishes.
- Superb Culinary Versatility: Explore a variety of flavourful dishes, as this unit has 19 functions like Air Fry, Bake, Classic Bake, Classic Fan, Crisp Regenerate, Eco Slow Cook, Fan Bake, Fan Forced, Fan Forced+High Steam, Fan Forced+Low Steam, Fan Forced+Medium Steam, Fan Grill, Grill, Roast, Slow Cook, Sous Vide, Steam, Steam Regenerate, and Vent Bake.

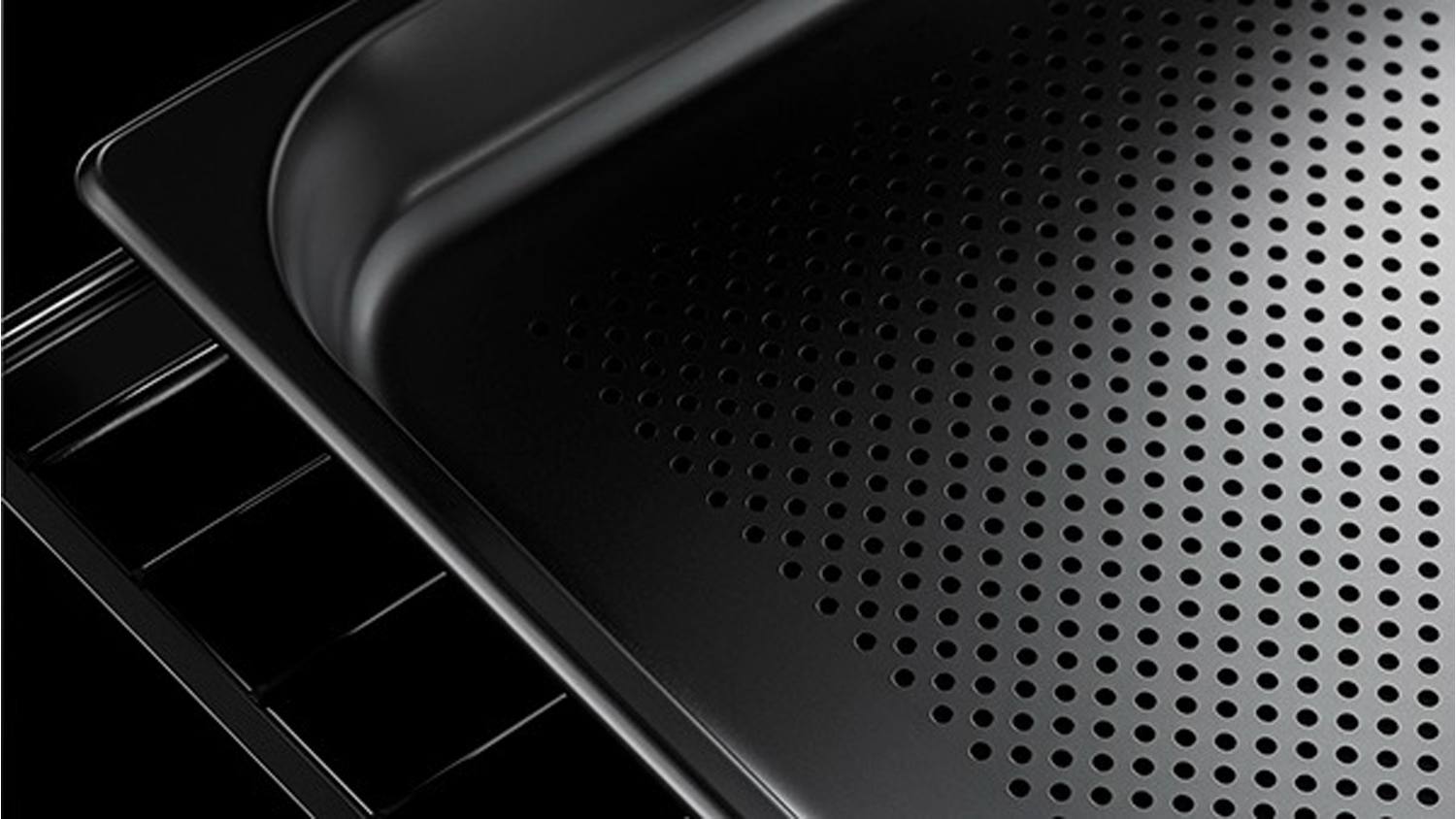

- Spacious Cooking: With its 85L capacity and six shelf positions, you can conveniently create large portions of meals for the whole family. It also has full-extension sliding shelves, so you can reach for your food easily. In addition, it packs more handy accessories like a Multi-Functional Air Fry Tray, Baking Tray, Roasting Dish, Wired Temperature Sensor, and a Steam Dish.

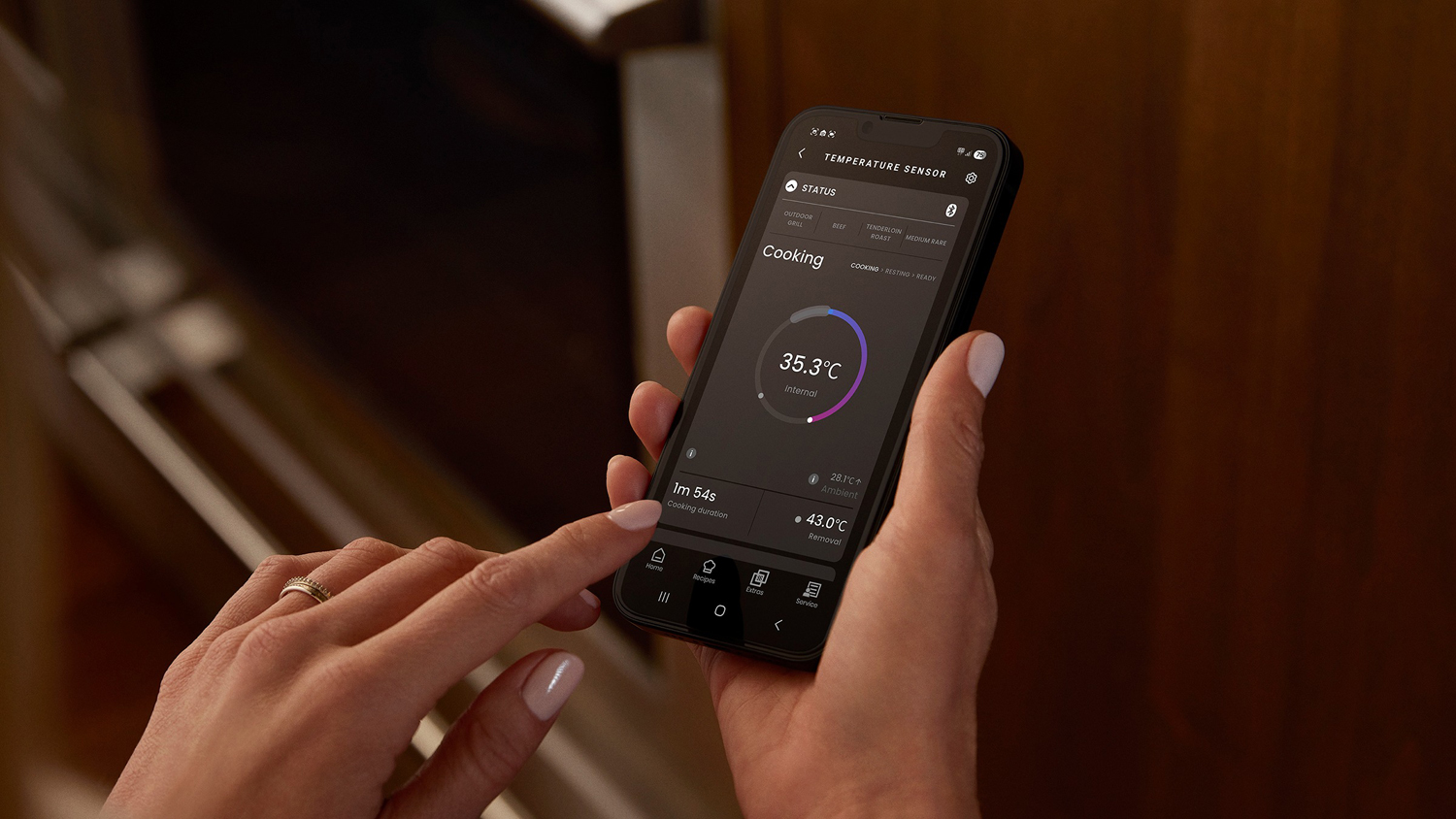

- Ease of Use: This Fisher & Paykel Oven integrates a 6.8-inch touchscreen, allowing you to quickly adjust various settings to suit your needs. It also supports the SmartHQ app for remote operations and Google Assistant for voice controls. Furthermore, it comes with Steam Clean and Dry Cycle features to make maintenance a breeze.

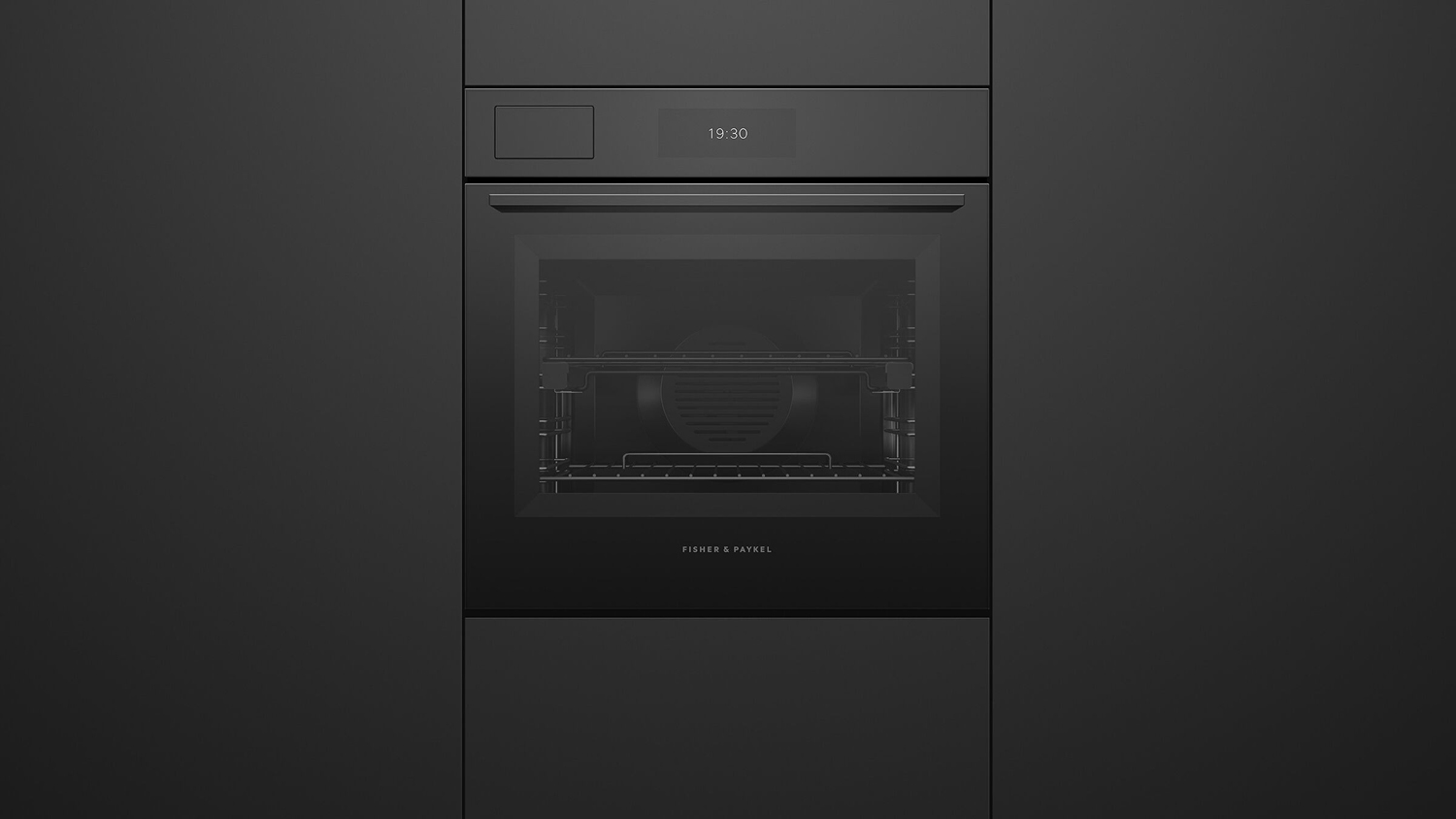

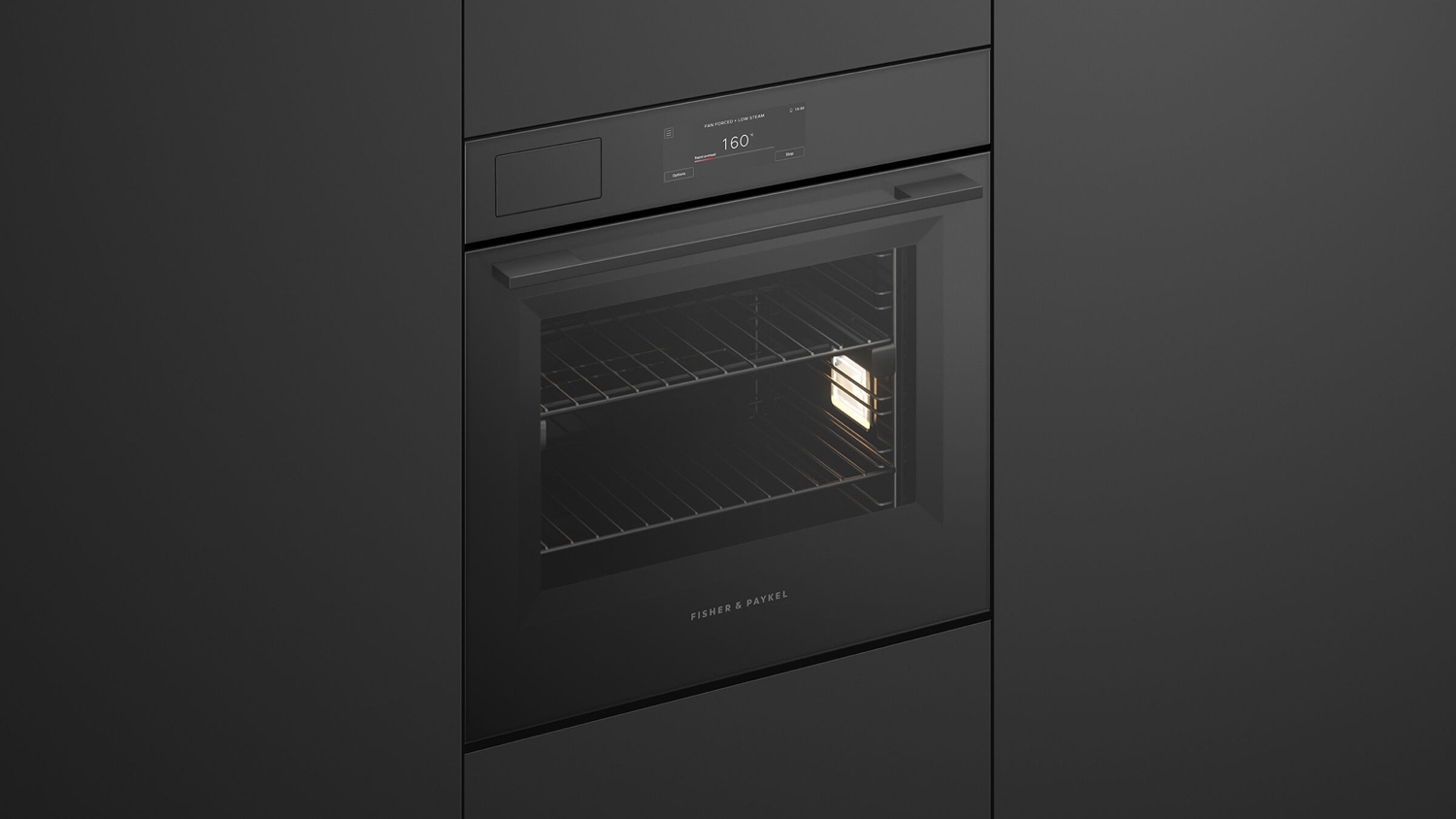

- Streamlined Visual Appeal: Flaunting a refined minimal design, the Series 9 Steam Oven brings a subtle, elegant look to your kitchen while also complementing other Fisher & Paykel appliances.
| Brand | Fisher & Paykel |
|---|---|
| Product Type | Built-In Ovens |
| Model Number | OS60SAMVUB5 |
| Colour | Black |
Product Specifications
| Series | Series 9 |
|---|
Whiteware Capacity
| Oven Capacity (Gross) | 85L |
|---|---|
| Oven Capacity (Net) | 72L |
Oven
| Oven Type | Built-In Oven |
|---|---|
| Convection Type | Fan with Heating Element, Steam Generator |
| Single/Double Oven | Single Oven |
| Broiler Location | Top |
| Number of Oven Rack Height Positions | 6 x Rack Height Positions |
| Number of Oven Functions | 19 x Oven Functions |
| Oven Cooking Modes | Air Fry, Bake, Classic Bake, Classic Fan, Crisp Regenerate, Eco Slow Cook, Fan Bake, Fan Forced, Fan Forced + Low/Medium/High Steam, Fan Grill, Grill, Roast, Slow Cook, Sous Vide, Steam, Steam Regenerate, Vent Bake |
| Oven Settings | Timer, Delayed Cook, Clean, Lock, Light, Dry, Remote, Multi Shelf, Sabbath Mode |
| Grill Power | 3000W |
| Oven Feature |
|
Temperature
| Temperature Range (°C) | 35°C to 230°C |
|---|
Door
| Default Door Hinge | Bottom |
|---|---|
| Door Type | Pull-Down Door |
| Open Door Alarm/Warning | Yes |
| Door Handle Type | Bar Handle |

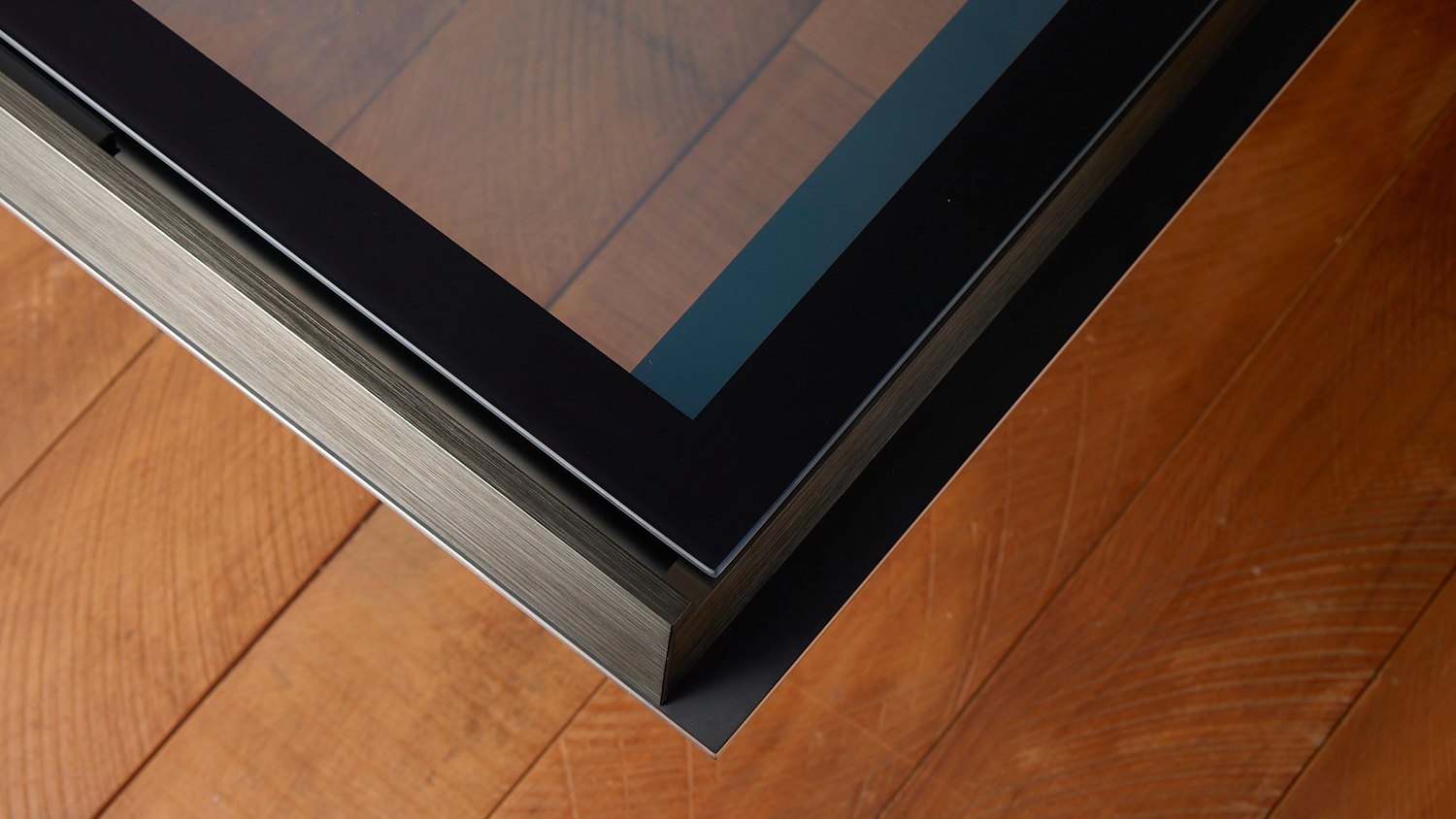

| Door Design | Triple Glazed Door |
| Door Lock | Yes |
Control Panel
| Control Panel Type | 6.8" Intuitive Touchscreen Control Panel |
|---|---|
| Location of Control Panel | Front of Oven |
| Number of Quick Touch Selections | 4 x Quick Touch Selections |
Fan
| Cooling Fan | Yes |
|---|
Lighting
| Lighting Type | Halogen Lighting |
|---|
Cavity
| Cavity Material | Acid Resistant Graphite Enamel |
|---|
Exterior
| External Cabinet Colour | Black |
|---|---|
| Number of External Vent | 1 x Vent |
Cleaning
| Cleaning Type |
|
|---|---|
| Cleaning Feature | Descale Cycle, Drying Cycle, Self-Cleaning Cycle, Steam Clean |
Safety
| Child Lock | Yes |
|---|---|
| Safety Cut Off | Yes |
| Safety Feature | Overheat Alert |
Smart Features
| Display Type | LCD Display |
|---|---|
| Wi-Fi Embedded | Yes |
| Connectivity Type | Wi-Fi |
| Smart Diagnosis | Yes |
| Smart Functions | Status View, Remote Operation, Notifications and Alerts, Monitoring, Multi-Language Option |
Voice / Virtual Assistant
| Compatible Voice Assistant |
|
|---|
Software / App Compatibility
| App Enabled | Yes |
|---|---|
| Compatible App | SmartHQ™ App |
| Compatible Operating System | Apple iOS, Android OS |
| Regular Software Updates | Yes |
Power
| Power Connection | Hardwired |
|---|---|
| Voltage | AC220-240V |
| Frequency | 50Hz |
| Fuse Rating | 16A |
| Power Feature |
|
Installation
| Assembly Type | Kitchen Integration Required |
|---|---|
| Installation Type | Built-In Installation |
Dimensions
| Height | 598 mm |
|---|---|
| Width | 596 mm |
| Depth | 565 mm |
| Product Weight | 43 kg |
Packaged Dimensions
| Packaged Width | 73 cm |
|---|---|
| Packaged Depth | 71.5 cm |
| Packaged Height | 75 cm |
| Packaged Weight | 65 kg |
Warranty
| Manufacturers | 24 Months |
|---|
Delivery
We aim to dispatch orders within 2 days. Delivery costs are calculated based on your location and the size of your order. Furniture may take up to 8 weeks to deliver as most products are made specifically for your order. Some Customer Direct products are shipped from overseas and may take longer to arrive. Some goods may take longer to deliver if a product is currently not in stock. A staff member will contact you where this occurs.
Easy returns
If you feel your product has failed a Consumer Guarantee (as defined by New Zealand Consumer Law) then don't worry you can easily return it to your local Harvey Norman store. We'll even pay for the postage if you live in an area where there is no store. Our returns policy covers any purchased item ( conditions apply).
- 1 x Oven
- 2 x Descale Solution Sachets (Part 580925)
- 1 x Flat Brushed Baking Tray
- 1 x Full Extension Sliding Shelves
- 1 x Large Steam Dish
- 1 x Multi-Functional Air Fry Tray
- 1 x Perforated Large Steam Dish
- 1 x Perforated Small Steam Dish
- 1 x Roasting Dish
- 1 x Wire Shelf
- 1 x Wired Temperature Sensor
