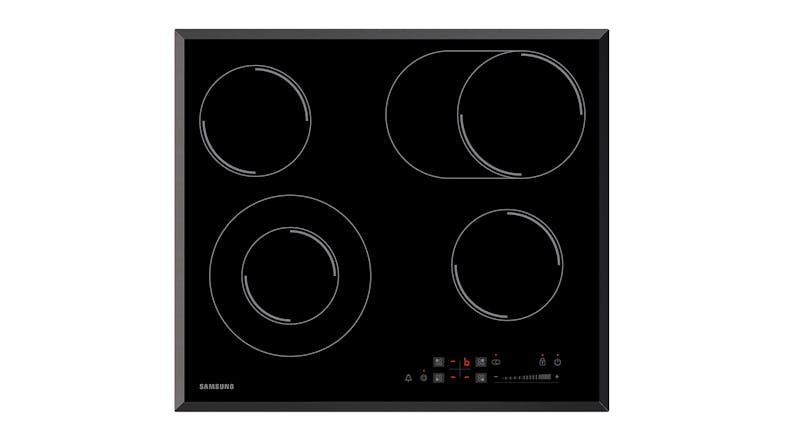

Samsung 60cm 4 Zone Ceramic Cooktop - Black Glass (CTR164NC01/XSA)
Samsung 60cm 4 Zone Ceramic Cooktop - Black Glass (CTR164NC01/XSA)
$899
Samsung 60cm 4 Zone Ceramic Cooktop - Black Glass (CTR164NC01/XSA)
CTR164NC01
Available on 36 months of equal Interest Free instalments:
approximately per month
^ Total repayments $899 (excluding fees). Min purchase of $500 applies. Offer ends 31/07/2026. Equal monthly payments required. Lending criteria, T&Cs & fees apply incl. a $55 estb. fee & $65 annual fee ($32.50 half yearly). Standard interest rate (currently 29.49% p.a.) applies after interest free term ends. Exclusions may apply. *Further information on rates and fees can be found at gemfinance.co.nz. Credit provided by Latitude Financial Services Ltd.
How it worksGem Finance Interest Free
Available on participating Gem credit cards.
New to Gem? Follow the steps below to apply for a Gem Visa now.
Apply Online
Complete your online application in just 10-15 minutes
Credit Check
Submit income, employment details, and expenses. Include proof of income by sharing your online statement or uploading income documents.
Provide Identification
All applicants must provide a form of identification, e.g., NZ driver's license, NZ Passport, or International Passport.
Extended Range Item | Available by Special Order Only
Delivery expectation: 2-4 weeks
This item is available by special order and may not be stocked in stores.
Purchase online today to secure your product. For more information, please
contact your local Harvey Norman store.
Enhance your culinary setup with the Samsung 60cm 4 Zone Ceramic Cooktop. Designed for ultimate versatility, this unit features a combination of single, double, and multi-purpose zones to suit all your cooking needs and accommodate various cookware. Plus, the sleek ceramic surface stays cooler to the touch, making cleanup quick and easy.
Key Overview
- Ceramic Cooktop
- 60cm Cooktop Size
- Zone 1 - 2.4 kW
- Zone 2 - 1.3 kW
- Zone 3 - 1.6 - 2.5 kW
- Zone 4 - 1.3 kW
- Countertop Installation with Hardwiring
- Qualified Electrician Required
- (W x D x H): 575 x 505 x 55 mm
Product Highlights
- Dynamic Cooking Functions: Simplify meal preparation with Samsung’s 4-Zone Ceramic Cooktop. This kitchen appliance boasts versatile cooking options, featuring two single zones, a double zone, and a multi-purpose zone, ensuring compatibility with any cookware size and shape.
- User-friendly Controls: This unit comes with easy-to-use touch + slider controls, enabling you to adjust heat settings with just a swipe of your finger.
- Easy Maintenance: With its sleek ceramic glass surface, cleaning spills and grease is a breeze—just wipe them away with a soft cloth. Additionally, the surface remains cooler, helping to prevent burnt-on spills.
- Cook with Confidence: For your peace of mind, this 4-zone cooktop features a safety cut-off function. It also equips residual heat indicators that show when the cooking zones are still hot. Additionally, a child-safety lock helps prevent unauthorised use, keeping little ones safe.
- Modern Design: Crafted with a black glass finish and ceramic surface, this cooktop adds an elegant, contemporary touch to your kitchen.
| Brand | Samsung |
|---|---|
| Product Type | Ceramic Cooktop |
| Model Number | CTR164NC01 |
| Colour | Black |
Whiteware Capacity
Cooktop
| Cooktop Size | 60 cm |
|---|---|
| Cooktop Surface Type | Ceramic Cooktop |
| Cooktop Surface Material | Ceramic Glass Material |
Cooking / Burner
| Specialty Cooking / Burner Zones | Flexi Zone |
|---|---|
| Number of Burners (Zones) | 4 x Cooking Zones |
| Cooking Zone 1 Power/Size | 2.4 kW / 129 - 215 mm |
| Cooking Zone 2 Power/Size | 1.3 kW / 148 mm |
| Cooking Zone 3 Power/Size | 1.6 - 2.5 kW / 170 - 260 mm |
| Cooking Zone 4 Power/Size | 1.3 kW / 148 mm |
Control Panel
| Control Panel Type | Touch + Slider Controls |
|---|
Safety
| Child Lock | Yes |
|---|---|
| Safety Cut Off | Yes |
Smart Features
| Display Type | Digital LED Display |
|---|
Installation
| Assembly Type | Installer Required |
|---|---|
| Installation Type | Countertop Install with Hardwiring - Qualified Electrician Required |
| Minimum Installation Height from Cooking Surface (Electric) | 650 mm |
Electrical Connection
| Type of Connection | Hardwired |
|---|---|
| Power Indicator | Yes |
Dimensions
| Height | 55 mm |
|---|---|
| Width | 575 mm |
| Depth | 505 mm |
| Product Weight | 8.2kg |
Warranty
| Manufacturers | 24 Months |
|---|
Samsung 60cm 4 Zone Ceramic Cooktop - Black Glass (CTR164NC01/XSA) is rated
out of
5 by
5.
Rated 2 out of
5
by
Darsal from
Easy Clean - Not
I bought this at the end of 2019 and although the functionality is great the cleaning is horrendous. I can not wipe it clean as advertised. I wipe and use the scraper then I still have to use a cooktop cleaning product to remove the marks. I even bought new cookware thinking it was the problem but no difference. I contacted the helpline and they said it is fine to use the cleaner daily - not really the issue. Will never buy one again. Really disappointing.
Date published: 2020-09-16
Rated 1 out of
5
by
Disappointing from
Disappointing cooktop
After 10 years one of our elements broke on our Samsung hob. It turned out that there wasn't a heap of difference buying a new cooktop instead of having it repaired. So we bought the same samsung model as we knew that it would just drop into the space. Our original hob was made on Thailand - this new one is made in china. The new one is thicker which necessitated deepening the fitting space. The new one automatically switches the child lock on after cooking - we don't have childs. The new one requires more pressure for longer to switch anything on. Best buy something else.
Date published: 2024-10-02
Rated 2 out of
5
by
KenC from
Great when it works properly
We’ve had one of these for 6 years, and when it works it does a great job, and the expansion elements are a great idea (if they operated properly). But it turns the expansion elements on by itself occasionally, which is very dangerous. I would never get one of these if there were children or pets around
Also, as someone else mentioned it takes a while to unlock, which while safe, can be annoying. I will buy something else next time.
Date published: 2026-02-16
Rated 5 out of
5
by
Possum from
Samsung Oven
[This review was collected as part of a promotion.] The oven is simple to use and just what we needed. Very attractive to the eye and very efficient
Date published: 2023-02-07
Rated 4 out of
5
by
Jgi3 from
Happy with purchase
Happy with this cooktop. Quick delivery and great comms.
Date published: 2025-07-01
Delivery
We aim to dispatch orders within 2 days. Delivery costs are calculated based on your location and the size of your order. Furniture may take up to 8 weeks to deliver as most products are made specifically for your order. Some Customer Direct products are shipped from overseas and may take longer to arrive. Some goods may take longer to deliver if a product is currently not in stock. A staff member will contact you where this occurs.
Easy returns
If you feel your product has failed a Consumer Guarantee (as defined by New Zealand Consumer Law) then don't worry you can easily return it to your local Harvey Norman store. We'll even pay for the postage if you live in an area where there is no store. Our returns policy covers any purchased item ( conditions apply).
- 1 x Cooktop
- 1 x Installation Accessories
- 1 x User Manual
- 1 x Warranty Documentation
What are the cutout dimensions on this?
Width: 560 mm
Depth: 490 mm
Date published: 2025-10-30
