Fisher & Paykel 14 Place Setting Double-Drawer Built-Under Smart Dishwasher - Stainless Steel (Series 9/ DD60D4NX9)

Fisher & Paykel 14 Place Setting Double-Drawer Built-Under Smart Dishwasher - Stainless Steel (Series 9/ DD60D4NX9)

$2,799

Fisher & Paykel 14 Place Setting Double-Drawer Built-Under Smart Dishwasher - Stainless Steel (Series 9/ DD60D4NX9)

DD60D4NX9
Fisher & Paykel 14 Place Setting Double-Drawer Built-Under Dishwasher - Stainless Steel (DD60D4NX9)
Shortlist Compare
$2,799
or 50 months of equal Gem Visa Interest Free Installments of
$55.98^
approximately
GEM Finance Card
Total repayments $2,799 excluding fees.

This section should always be read in conjunction with the Terms and Conditions for Product CareTM.

Find in Store

For delivery estimate & stock availability


Available on 50 months of equal Interest Free instalments:

$55.98^
approximately
per month
^ Total repayments $2,799 (excluding fees). Payment is required monthly. Min purchase applies. Offer ends 24/12/2025. Exclusions, T&Cs & fees apply incl. a $55 Gem Visa estb. fee & annual fees ($65 Gem Visa (charged $32.50 half yearly)/$65 Gem CreditLine (charged $32.50 half yearly)). Interest rate (currently Gem Visa 29.49% p.a./CreditLine 29.95% p.a.) applies after any interest free term ends. Credit provided by Latitude Financial Services Ltd. For cash advances, an interest rate of 29.95% p.a. and fees of $2 Gem Visa/$6 Gem CreditLine applies. Further information on rates and fees can be found at gemfinance.co.nz.
How it works
Description

  • Extended Range Item | Available by Special Order Only

    Delivery expectation: 2-4 weeks
    This item is available by special order and may not be stocked in stores. Purchase online today to secure your product. For more information, please contact your local Harvey Norman store.

Streamline your post-meal cleanup with the Fisher & Paykel 14 Place Setting Double-Drawer Built-Under Dishwasher. This intuitive appliance features dual independent drawers, flexible racks, and multiple wash cycles to make dish-cleaning a breeze. It also works with the Smart HQ app for effortless control and monitoring straight from your smartphone.

Key Overview

  • 14 Place Setting Capacity
  • Double DishDrawer
  • Built Under Dishwasher
  • 3.5 Star Energy Rating
  • 4.5 Star Water Rating
  • Cold Water Supply Required
  • 6 x Wash Programs
  • 42 dB Noise Level
  • (H x W x D) - 820-880 x 599 x 573 mm

Product Highlights

  • Say Goodbye to Piled-Up Sinks: Fisher & Paykel’s 14 Place Setting Double-Drawer Built-Under Dishwasher features two independent drawers, allowing you to choose different wash programs for each load—whether it’s delicate glassware or dirty cookware. It also incorporates two spray arms for enhanced cleaning performance, so it can tackle every dish with ease.
  • Feature Packed: The unit boasts multiple wash programs like Delicate, Fast, Heavy, Medium, and Rinse to make post-meal clean-up a breeze. You can also use its four wash modifier options, such as Sanitise mode to kill up to 99.9% of bacteria*, Extra Dry for drying plastic dishes, Quick for swift cleans, and Half Load for use on partial dish load.
  • Convenient Features: The quiet BLDC motor delivers powerful performance, while the Eco Wash program ensures efficient energy and water usage. Plus, the Delay Start option lets you choose when to start the cycle for added convenience.

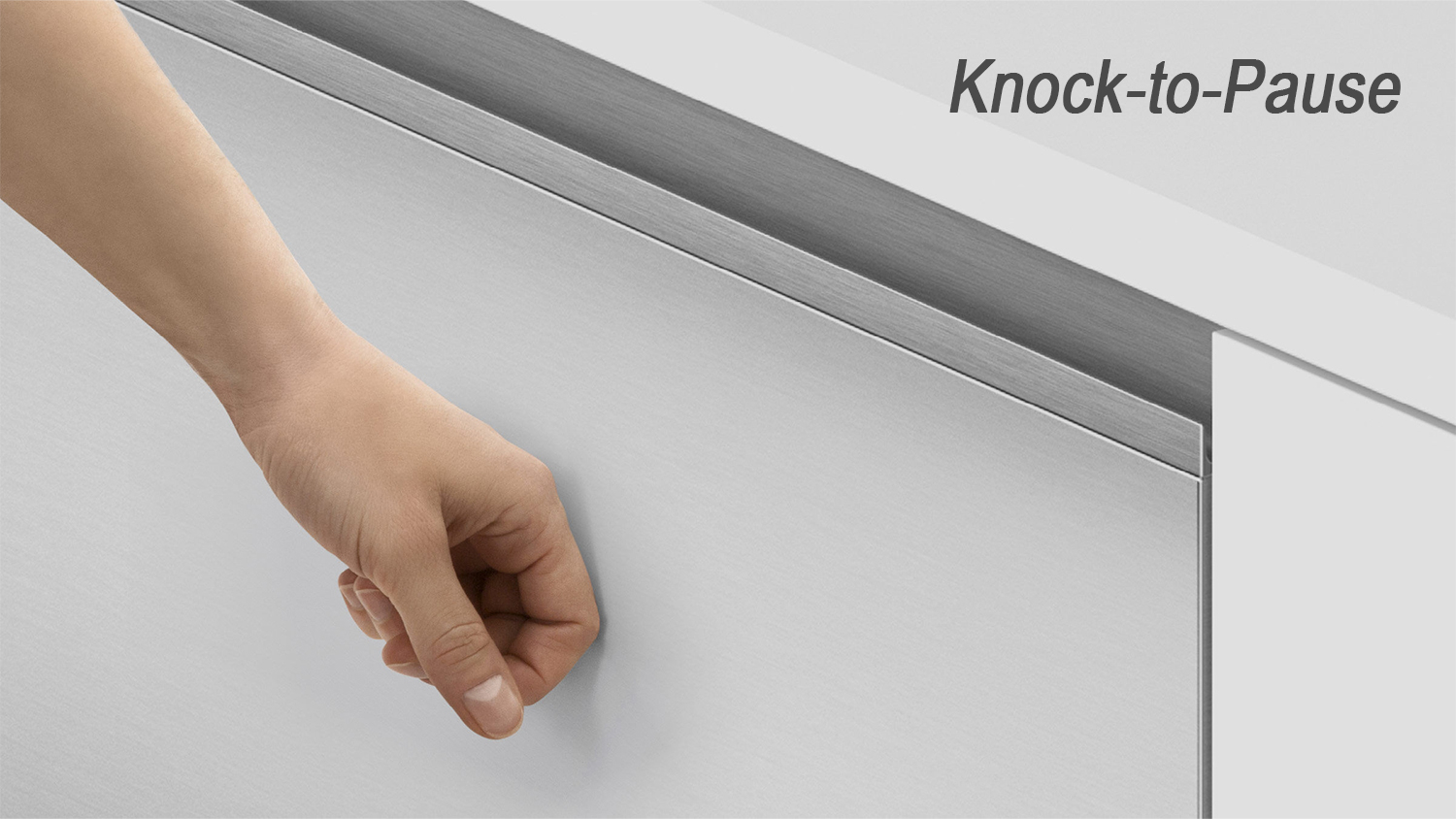

  • Intuitive Controls: Experience breezy operations, as this innovative dishwasher integrates a capacitive touch control panel. You can also utilise its “knock to pause” function to halt the cycle and restart it again using the start button. Plus, it connects to the Smart HQ App, allowing you to control the unit and receive cycle notifications on your smartphone.

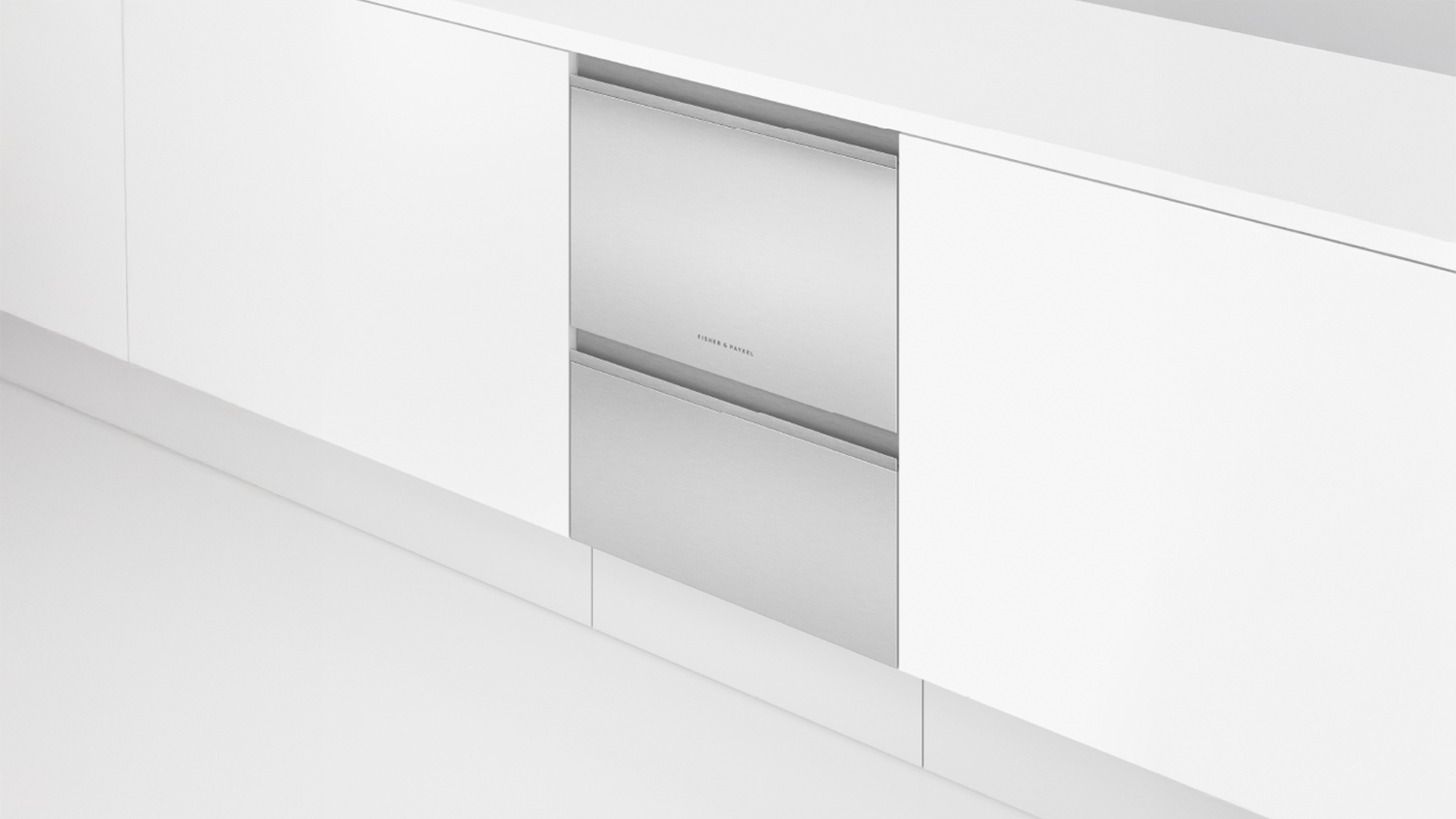

  • Sleek, Stylish, and Convenient: Featuring a timeless Stainless Steel exterior, this dual dishwasher enhances your kitchen’s aesthetics. Its built-under design ensures easy integration under your countertops, while the pull-out door with recessed handles provides effortless access to your dishes.

*Certified to NSF/ANSI Standard 184.

Specifications
All Product Details
Brand Fisher & Paykel
Product Type Dishwashers
Model Number DD60D4NX9
Colour Stainless Steel
Product Specifications
Series Series 9
Whiteware Capacity
Dishdrawer Capacity 14 Place Setting
Energy
Energy Star Rating 3.5 Star
Energy Consumption 136 kWh/year
Water Efficiency
Water Rating (WELS: Water Efficiency Labelling and Standards) 4.5 Star
Water Consumption 6.9 L per wash
Water Pressure 30 kPa - 1000 kPa
Water Supply Cold Water Supply Required
Water Valves 3⁄4" BSP 20mm Connector Water Inlet Hose
Dishwasher
Dishwasher Type Drawer Dishwashers
Dishwashing Option
  • Sanitise
  • Express
  • Extra Dry
Number of Spray Arm 2
Dispensers Tablet. Powdered Detergent & Rinse Aid
Dishwasher Feature
  • Adjustable Rack Height
  • End-of-Cycle Signal
  • Fan Assisted Drying
  • Flood Protection
  • Fold Down Tines
  • Foldable Cup Racks
  • Kickstrip
  • Knock to Pause
  • Quiet Operation
  • Rinse Aid Indicator Light
  • Time Delay Start
Rack / Basket Design
Number of Racks 2 x Racks

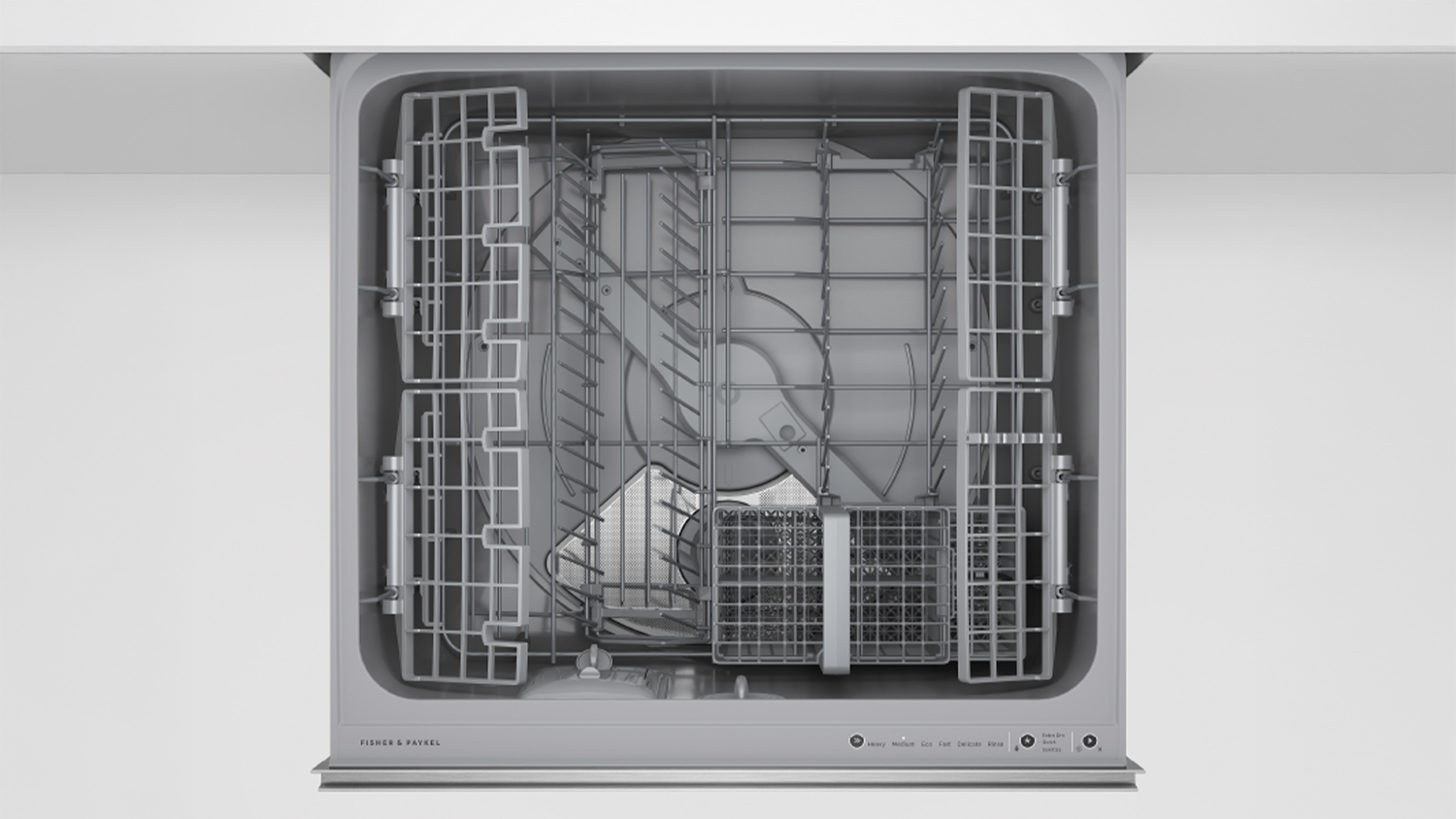

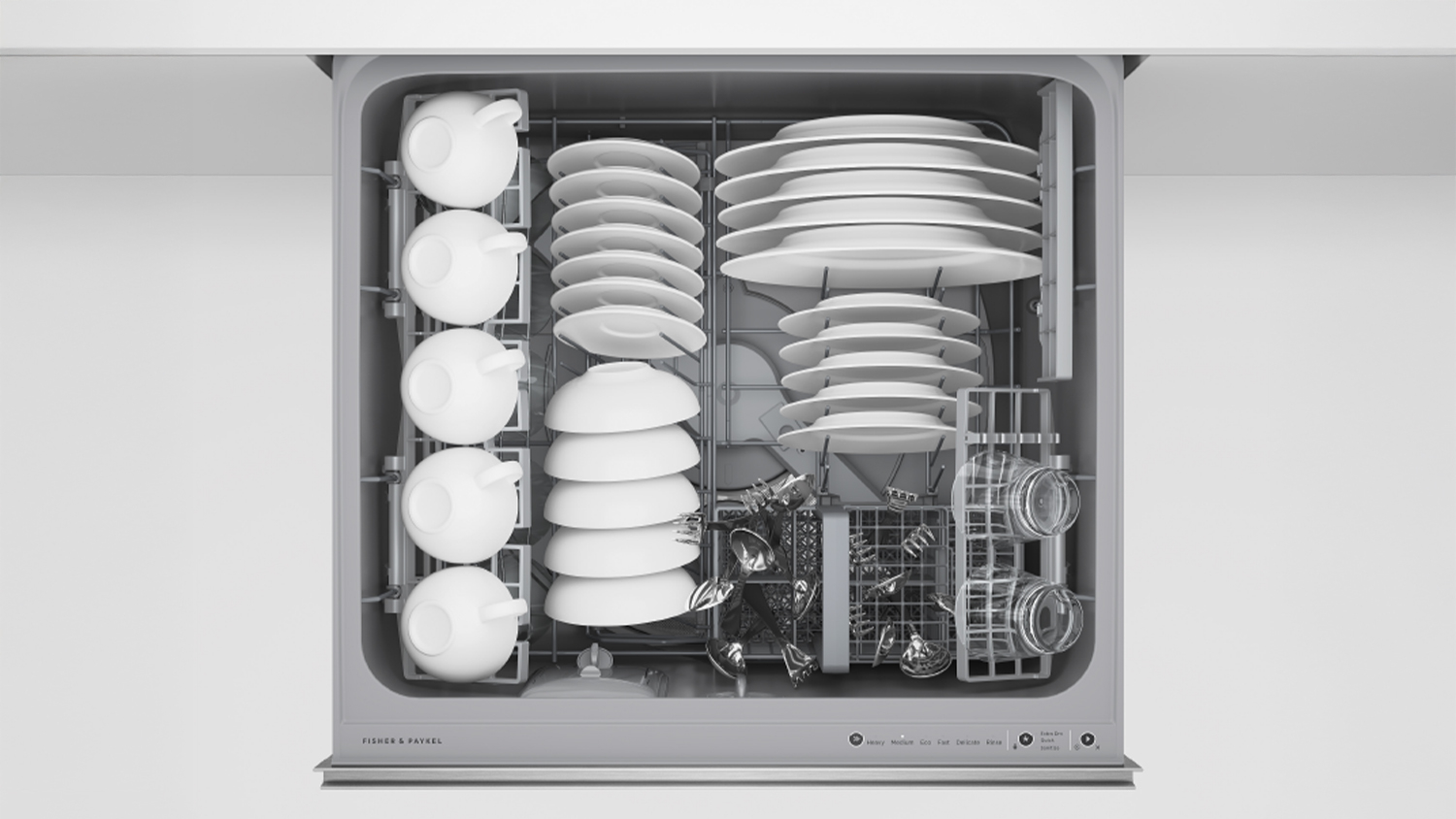

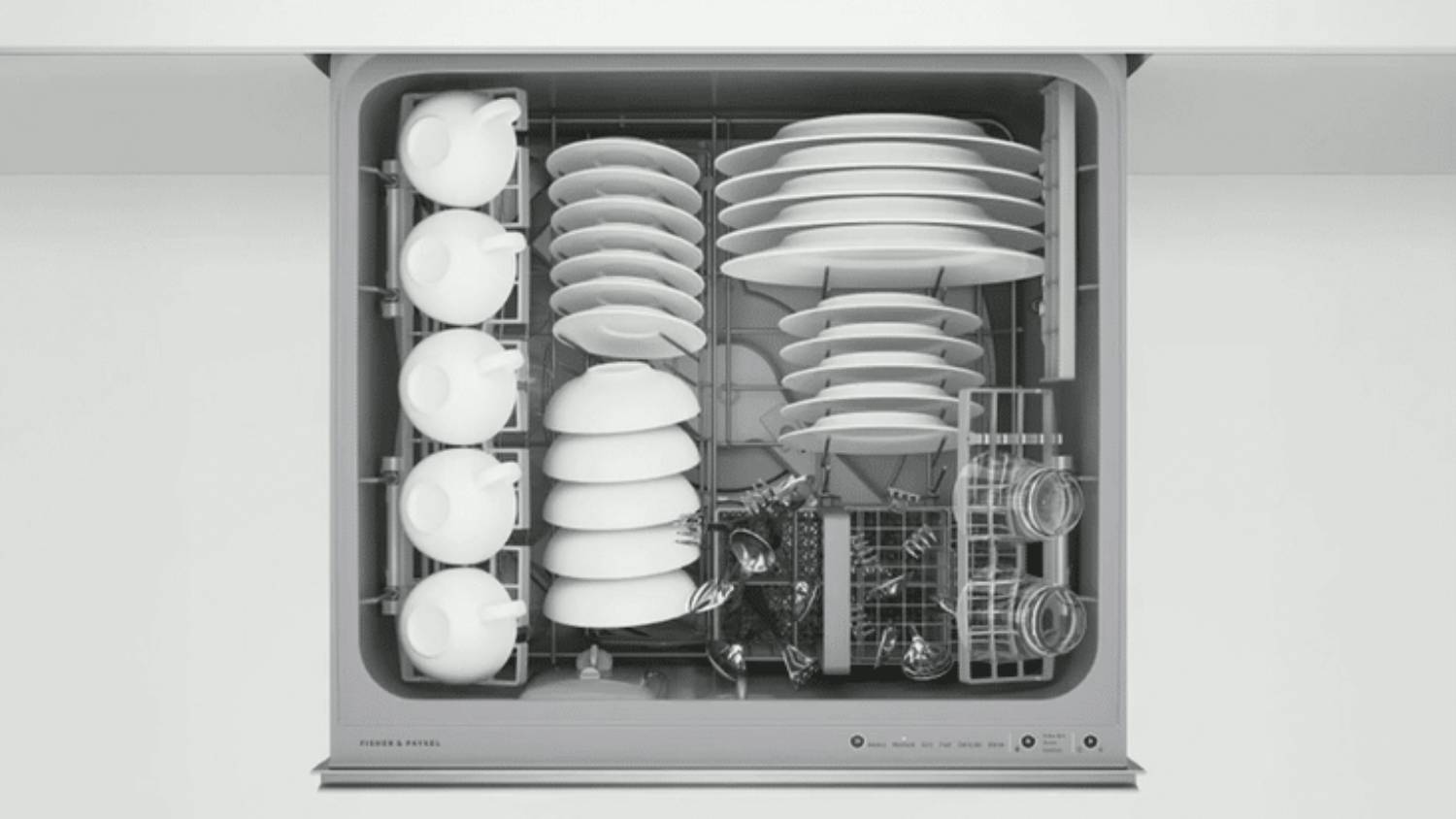

Upper Rack Feature Accommodates 280mm Plates. Adjustable Height. Foldable Cupracks. Fold Down Tines. Pitch Adjustable Tines
Lower Rack Feature Accommodates 280mm Plates. Adjustable Height. Foldable Cupracks. Fold Down Tines. Pitch Adjustable Tines
Cutlery Basket Included
Drying
Drying Method Fan Assisted Drying
Door
Default Door Hinge Pull-Out
Door Type Drawers
Door Handle Type Recessed Handle
Control Panel
Control Panel Type Button Panel
Location of Control Panel Internal - Top Drawer & Bottom Drawer
Motor
Type of Motor BLDC Motor
Noise Level 42 dB
Filter
Number of Filters Drain Filter
Filter Feature
  • Removable Filter
  • Filter Cleaning Reminder
  • Hand-Washable
Filter Maintenance We recommend that the drain filter and filter plate are removed and cleaned once a month or whenever there is evidence of food particles.
Cycle
Number of Wash Programs 6 x Wash Programs
Wash Programs Delicate, Eco, Fast, Heavy, Medium, Rinse
Extras Programs Extra Dry, Quick, Sanitise
Safety
Safety Feature Keylock
Smart Features
Wi-Fi Embedded Yes
Connectivity Type Wi-Fi
Smart Diagnosis Yes
Software / App Compatibility
App Enabled Yes
Compatible App SmartHQ App
Compatible Mobile Operating System Apple iOS, Android OS, Windows Mobile
Regular Software Updates Yes
Installation
Assembly Type Installer Required
Installation Type Built-In Install - Qualified Installer & Plumber Required
Plumbing Requirements Cold Water Supply Required
Electrical Connection
Type of Connection 10A plug & lead
Power Cable Length 2.4 m
Power Indicator Yes
Wattage/Voltage 230 VAC, 50 Hz
Dimensions
Height 880 mm
Width 599 mm
Depth 573 mm
Product Weight 52 kg
Warranty
Manufacturers 24 Months
Reviews
Fisher & Paykel 14 Place Setting Double-Drawer Built-Under Smart Dishwasher - Stainless Steel (Series 9/ DD60D4NX9) is rated 4.1 out of 5 by 92.
Rated 5 out of 5 by from Exceptional dishwasher [This review was collected as part of a promotion.] The Series 9 has a sleek, modern design that blends well with my kitchen. The stainless-steel finish gives it a premium look, and the build quality feels solid and durable. The interior is spacious, and versatile for different dish sizes. The dishwasher delivers excellent cleaning performance, even on tough stains. It handles both delicate and heavily soiled dishes efficiently, leaving dishes spotless. It offers several eco-friendly wash cycles that consume less water and power! I love that the Fisher & Paykel Series 9 is so quiet in operation, which means it can be run anytime of the day or night.
Date published: 2025-02-18
Rated 5 out of 5 by from Awesome - As Usual! [This review was collected as part of a promotion.] We have had F&P DishDrawers for over 25 years, including our rental properties. As usual, this one has some developments over the previous one we had. We like the discrete handle that matches the nearby F&P fridge and having no controls on the front gives it a sleek look that matches our handle-less kitchen drawers and doors. The knock to pause is a cool feature, although we have only needed to use it a coupls of times to add another item. This one is the quietest model we have experienced. It washes and dries really well. The ap is very handy to see exactly what it's up to and make setting changes.
Date published: 2025-05-19
Rated 3 out of 5 by from The importance of an outside display [This review was collected as part of a promotion.] We were so disappointed that the dishwasher didn’t come with a display on the outside like our previous one. The showroom we visited only had integrated machines on display and we assumed the new models would be the same as the double draw one we had. I did not realise how important a display is to us - feel like we’re working in the dark. Don’t know the length of the cycles, plastics don’t dry as well. We asked for a metal interior but the machine came with a plastic interior. Not sure how we got it all so wrong but when it comes time to replace, we’ll be doing much better research and asking many more questions.
Date published: 2025-08-02
Rated 5 out of 5 by from User Manual? [This review was collected as part of a promotion.] The F&P double drawer dishwasher is excellent, and we have had them for over 10 years. The latest unit looks good and is even quieter than previous models. However.....I have some suggestions for improvement. (1) The most recent model has no extenal controls which enhances appearance, BUT you cannot tell at a glance how long the cycle will take. Nor are cycle times mentioned in the user manual. (2) There is no hard copy/printed user manual with the unit, and the on-line manual when printed is in very small typeface, making reading difficult. And as mentioned at (1) I cannot find the duration times for selected cycles.
Date published: 2025-11-05
Rated 4 out of 5 by from Still the best choice for me This is my third dish drawer. I so wanted to give a 5 star review as I purchased this one without considering any other brand and had been extremely happy with my earlier versions. However, several things have persuaded me to lower my score. Firstly, plastic instead of stainless steel!! Disappointing to say the least. The kick strip snapped off within several weeks and so far I have refused to purchase a new one and stuck it back on with duct tape. Utensil basket is smaller despite there being space for previous size. An effort has been made to allow for extra smaller plates. Best cycle is quite long but all things considered, dishes are clean and the dish drawer still suits me best.
Date published: 2024-11-28
Rated 3 out of 5 by from Double Dishwasher Dishwasher, Sanitise I am disappointed with the latest Double DishDrawer Sanitise model. Having been very happy with 2 previous models I find this model seem to be more about looks than ‘usability’. The pullout drawer handle is a long strip across the front of the machine and faces upwards which catches any food or rubbish. ALL the dials button etc are on the inside of the machine. The instruction manual is not very clear, I am still struggling to work out how to change the amount of Rinse Aid as I am having to dry dishes and there is quite a lot of water left in the machine. There is no indication on the machine of approx know long each cycle takes or in the manual. I would not recommend this model.
Date published: 2023-11-15
Rated 3 out of 5 by from New design not as user friendly as old model [This review was collected as part of a promotion.] I have had several dish drawers before purchasing this one. Unfortunately, I don't like the functionality of the new design. The hidden buttons inside the draw are good but it isn't really intuitive about how to open the draw to access them. The handle can make it tricky to open the draw especially if you are older and not as dexterous. To pause and open the drawer once it has been started, requires a knock on the front of the draw but exactly where to knock is problematic. No problems so far with the clean and efficiency of the dish washing.
Date published: 2025-04-21
Rated 5 out of 5 by from Double Dishdrawer [This review was collected as part of a promotion.] This is my first time owning a dishwasher. After quzzing lots of family members the concensus was that a double dishdrawer was the way to go. I couldnt be happier! This is fantastic. The kitchen always looks tidy with no dishes on the bench and best of all if you only have a small load, then just use one drawer - perfect! Its super quiet (sometimes i have to check its really on 😆). Does a brilliant job of cleaning, even glassware. I usually use the extra dry option. Cant say enough good things about this product. NO CONS at all, not even one. Fisher & Paykel have outdone themselves with their dishdrawer model. Thanks F & P!
Date published: 2024-07-07
  • y_2025, m_12, d_4, h_7
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_92
  • loc_en_NZ, sid_115738, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_harvey-norman-en_nz
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 95.78ms
  • REVIEWS, PRODUCT
Delivery
Delivery

We aim to dispatch orders within 2 days. Delivery costs are calculated based on your location and the size of your order. Furniture may take up to 8 weeks to deliver as most products are made specifically for your order. Some Customer Direct products are shipped from overseas and may take longer to arrive. Some goods may take longer to deliver if a product is currently not in stock. A staff member will contact you where this occurs.

Easy returns

If you feel your product has failed a Consumer Guarantee (as defined by New Zealand Consumer Law) then don't worry you can easily return it to your local Harvey Norman store. We'll even pay for the postage if you live in an area where there is no store. Our returns policy covers any purchased item ( conditions apply).

What's in the box
  • Fisher & Paykel Dishwasher
  • Power Cable
  • Washer Drain Hose
  • New Water Intake Hoses
  • Screws
  • Spacers
