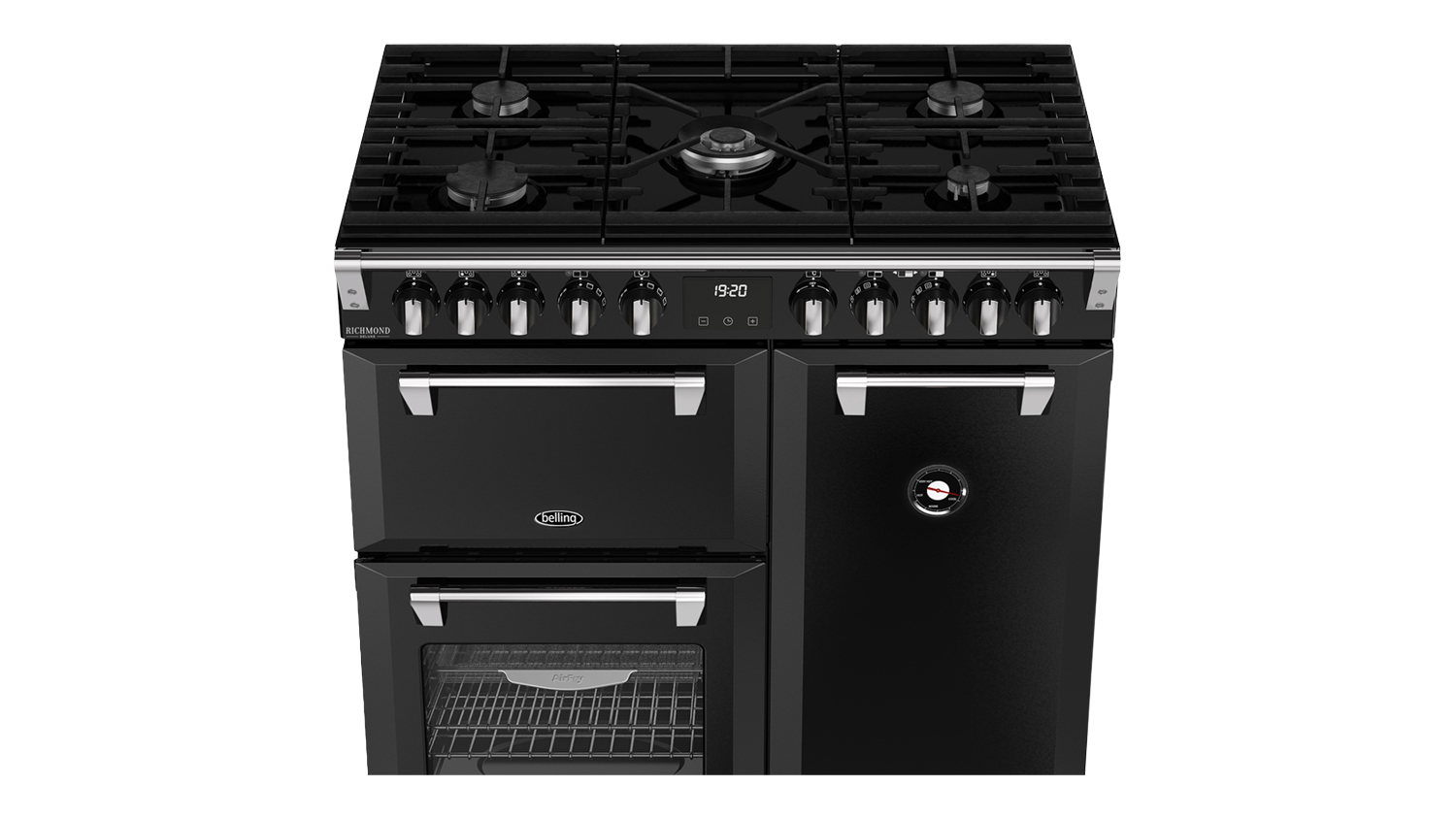

Belling 90cm Dual Fuel Freestanding Oven with 5 Burner Gas Cooktop - Black (Richmond Deluxe Series/ BRDX90DFBL)

Introducing the Belling 90cm Dual Fuel Freestanding Oven with 5 Burner Gas Cooktop—your all-in-one stylish culinary hub! This versatile appliance lets you prepare a wide range of dishes, from delicate pastries to sizzling stir-fries. It also integrates three oven cavities and five cooking zones with a specialty wok burner, allowing you to prepare multiple delicious meals simultaneously. Whether you’re whipping up scrumptious meals for the whole family or entertaining guests, this oven is sure to enhance your culinary experience with precision and style.

Key Overview

• Freestanding Oven with Gas Cooktop
• 215L Oven Capacity (Gross)
• 18 x Oven Functions
• 60°C to 260°C Temperature Range
• True Temp Digital Thermostat
• Equiflow™ Fan Technology
• 90cm Cooktop Size
• Zone 1 - 7.0MJ/h
• Zone 2 - 11.9MJ/h
• Zone 3 - 15.9MJ/h
• Zone 4 - 7.0MJ/h
• Zone 5 - 4.0MJ/h
• (W x H x D): 896 x 930 x 600 mm

Product Highlights

• Ultimate Culinary Command Centre: Effortlessly handle any feasts, from intimate dinners to grand celebrations, with the Belling Dual Fuel Freestanding Oven with Gas Cooktop. This freestanding unit features various compartments, including a 45L Conventional Oven & Maxi-Grill™, a 73L Multifunction Oven, and a 97L Titan™ Tall Twin Fanned Oven with PROFLEX™ Splitter. It also integrates a 90cm cooktop featuring 5 gas burners, a 15.9MJ/h wok burner, and durable cast-iron trivets to accommodate all your open-flame cooking needs.
• Multi-Functional Use: This Belling appliance equips specialised cooking modes, including Fan Forced, Steam Assist, Conventional, Pizza, Air Fry, Defrost, Fan Assist, Top Heat, Base Heat with Fan, Fan Grill, Dual Grill, Light, Slow Cook, Keep Warm, Dough Proving, High Grill, Medium Grill, and Low Grill. It also features Rapid Pre-Heat and Steam Cleanse to make cooking preparation and post-clean-up easier.
• Intuitive Design: Take control of your cooking experience with the touch control panel, offering straightforward adjustments for each oven and burner. It also features a fully programmable timer, enabling you to schedule cooking times effortlessly. Additionally, it features four 25W Halogen lights that provide optimal lighting for monitoring your cooking dishes.
• Safety Features: Enjoy added peace of mind, as this Belling Oven with Gas Cooktop is fitted with a triple-glazed glass door, child lock, safety cut-off, residual heat indicators, pan overheat sensor, key lock, door limiter, anti-tip shelves, and cool-touch doors.
• Modern Craftsmanship: Make a statement in your kitchen with the Belling Richmond Deluxe. The range is available in sleek Black, Cream, and Anthracite* finishes to complement your space perfectly.

*Please note: Other colour options are sold separately.

All Product Details

Brand	Belling
Product Type	Dual Fuel Freestanding Oven
Model Number	BRDX90DFBL
Colour	Black

Product Specifications

Series	Richmond Deluxe Series

Whiteware Capacity

Oven Capacity (Gross)	215L
Oven Capacity (Net)	178L

Oven

Oven Type	Dual Fuel Freestanding Oven
Convection Type	3 x Fans with Heating Elements
Single/Double Oven	Double Oven
Broiler Location	Top Broiler
Number of Oven Trays	7
Number of Oven Rack Height Positions	9 x Rack Height Positions
Number of Oven Functions	18 x Oven Functions
Oven Cooking Modes	Fan Forced, Steam Assist, Conventional, Pizza, Air Fry, Defrost, Fan Assist, Top Heat, Base Heat with Fan, Fan Grill, Dual Grill, Light, Slow Cook, Keep Warm, Dough Proving, High Grill, Medium Grill, Low Grill
Oven Settings	Rapid Pre-Heat, Cooking Duration, Cooking End-Time, Timer, Multi-Function Grill, Keep Warm
Operating Modes	Defrost, Steam Assist, Steam Cleanse, Grill, Slow Cook
Grill Power	2750W
Oven Feature	Clock / Timer Keeping Warm Pre-Heating Rapid Heat-Up

Oven Cavity

Cavity 1 - Position	Top Left
Cavity 1 - Function Type	Grill & Oven
Cavity 1 - Number of Functions	2 x Functions
Cavity 1 - Gross/Net Capacity	45L Gross, 37L Net
Cavity 2 - Position	Bottom Left
Cavity 2 - Function Type	Multifunction Oven
Cavity 2 - Number of Functions	13 x Functions
Cavity 2 - Gross/Net Capacity	73L Gross, 60L Net
Cavity 3 - Position	Top Right
Cavity 3 - Function Type	Fan Forced Oven
Cavity 3 - Number of Functions	5 x Functions
Cavity 3 - Gross/Net Capacity	97L Gross, 81L Net

Cooktop

Cooktop Gas Type	Natural Gas or LPG Gas
Cooktop Ignition Type	Electronic
Cooktop Size	90 cm
Cooktop Surface Type	Cast-Iron
Cooktop Surface Material	Enamel
Griddle	Included

Cooking / Burner

Specialty Cooking / Burner Zones	Wok Burner
Sealed Burners	Yes
Burner Spreader Type	Aluminium Burner Spreader
Number of Burners (Zones)	5 x Cooking Zones
Maximum Burner Power	15.9MJ/h
Cooking Zone 1 Power/Size	Medium: 7.0MJ/h
Cooking Zone 2 Power/Size	Large: 11.9MJ/h
Cooking Zone 3 Power/Size	Wok: 15.9MJ/h
Cooking Zone 4 Power/Size	Medium: 7.0MJ/h
Cooking Zone 5 Power/Size	Small: 4.0MJ/h

Temperature

Temperature Range (°C)	60°C to 260°C
Number of Temperature Settings	40 x Temperature Settings
Heat Up Time	10 - 12 Minutes to Preheat to 180°C

Door

Door Type	Double Oven with Two Types of Door
Door Handle Type	Bar Handle
Door Design	Triple Glazed Glass Door

Control Panel

Control Panel Type	Touch Control Panel
Location of Control Panel	Front of Oven
Number of Quick Touch Selections	3 x Quick Touch Selections

Fan

Number of Fan	3 x Fans
Number of Fan Speeds	1 x Fan Speed
Cooling Fan	Yes

Lighting

Lighting Type	Halogen Lighting
Light Position	Rear
Number of Lights	4 x Lights
Number of Light Levels	1 x Light Level
Lighting Power	25W

Cavity

Cavity Material	Enamel
Internal Cavity Dimensions	(W x H x D) - 423 x 340 x 413mm

Exterior

External Cabinet Colour	Black
Trim Colour	Black
Number of External Vent	2 x External Vents
Vent Location	Top

Cleaning

Cleaning Type	Steam Clean
Cleaning Feature	Steam Cleanse

Safety

Child Lock	Yes
Safety Cut Off	Yes
Safety Feature	Residual Heat Indicators, Pan Overheat Sensor, Key Lock, Door Limiter, Anti-Tip Shelves, Cool-Touch Doors

Smart Features

Display Type	Touch Control LED Display
Smart Functions	True Temp Digital Thermostat

Installation

Assembly Type	Professional Installer Recommended
Installation Type	Freestanding
Minimum Installation Height from Cooking Surface (Gas)	650 mm
Minimum Installation Height from Cooking Surface (Electric)	650 mm

Electrical Connection

Type of Connection	Hardwired
Wattage/Voltage	AC220-240V, 50-60Hz
Fuse Rating	37.7A

Dimensions

Height	930 mm
Width	896 mm
Depth	600 mm
Product Weight	103 kg

Packaged Dimensions

Packaged Width	96.7 cm
Packaged Depth	71.5 cm
Packaged Height	97.2 cm
Packaged Weight	118 kg

Warranty

Manufacturers	60 Months
