Schweigen 120cm Silent Undermount Rangehood with Single External Inline Motor - Stainless Steel (UM1170-12SINL)

Schweigen 120cm Silent Undermount Rangehood with Single External Inline Motor - Stainless Steel (UM1170-12SINL)

$3,699

Schweigen 120cm Silent Undermount Rangehood with Single External Inline Motor - Stainless Steel (UM1170-12SINL)

UM1170-12SINL

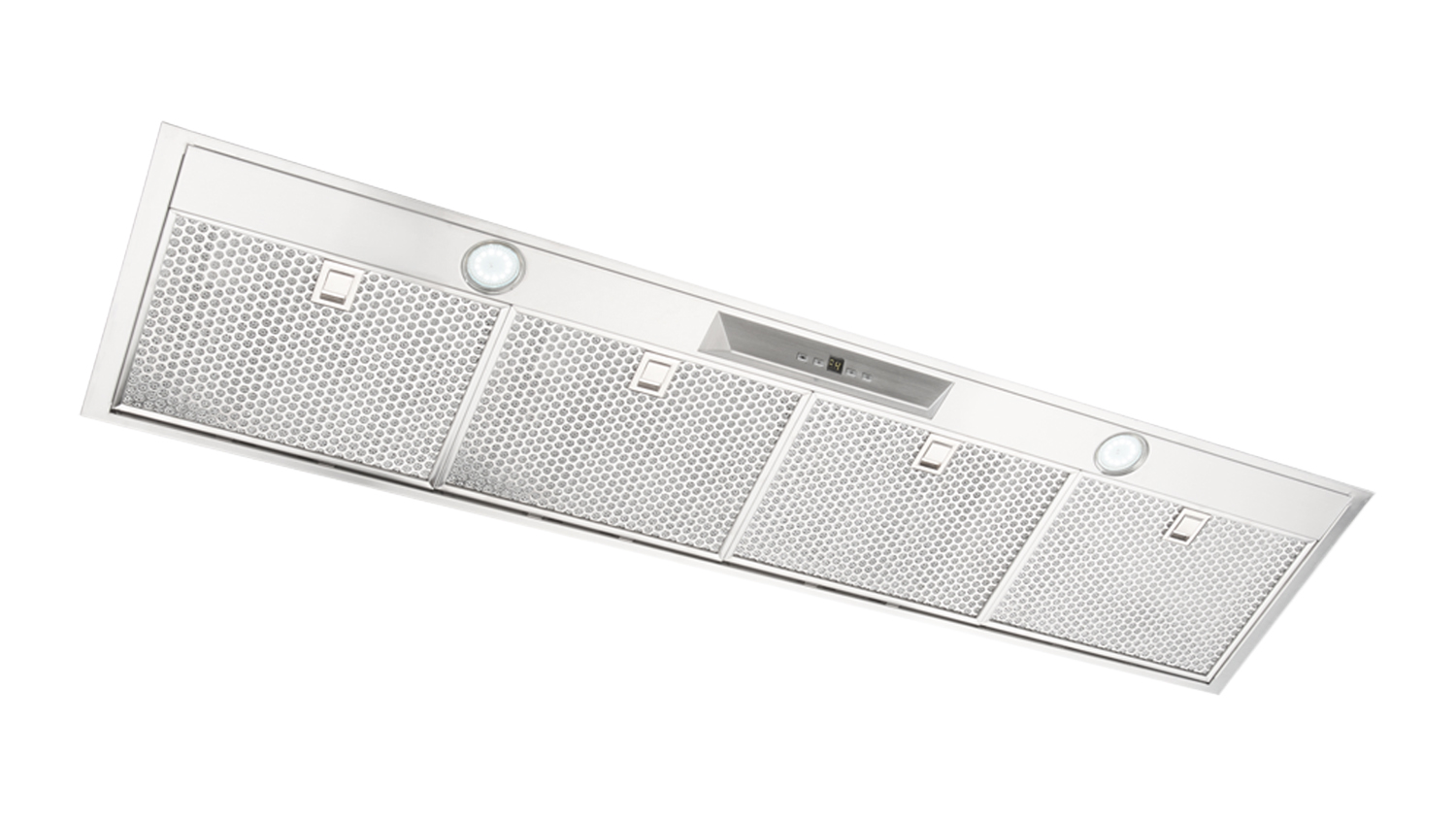

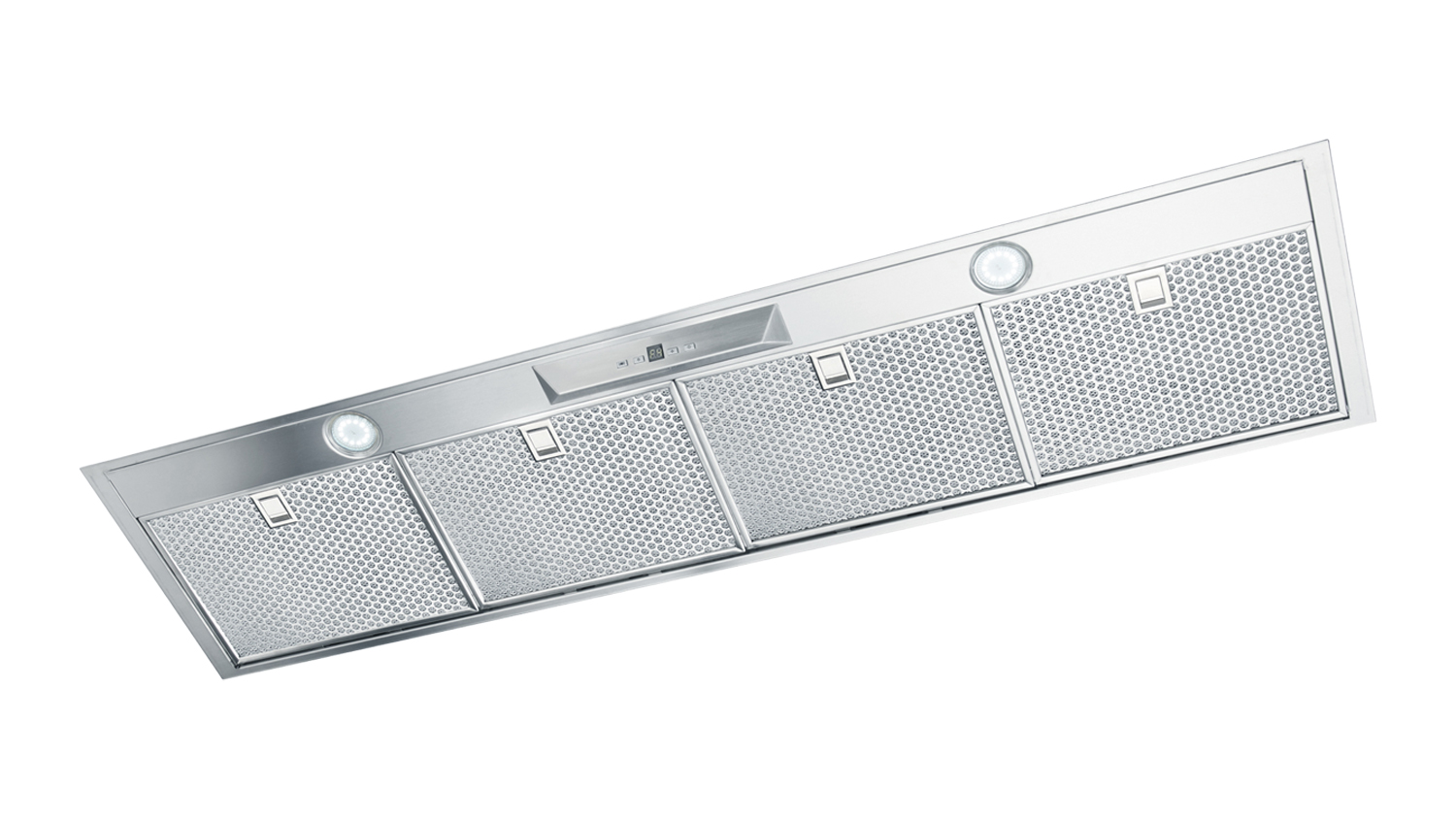

Front view of the Stainless steel Schweigen 120cm Silent Undermount Rangehood with Single External Inline Motor with four mesh filters, two lights, and centre control panel
New
$3,699

$73.98^ approximately
Find in store

Available on 50 months of equal Interest Free instalments:

approximately per month

^ Total repayments $3,699 (excluding fees). Min purchase of $1,500 applies. Offer ends 09/06/2026. Equal monthly payments required. Lending criteria, T&Cs & fees apply incl. a $55 estb. fee & $65 annual fee ($32.50 half yearly). Standard interest rate (currently 29.49% p.a.) applies after interest free term ends. Exclusions may apply. *Further information on rates and fees can be found at gemfinance.co.nz. Credit provided by Latitude Financial Services Ltd.

How it works
Description

Delivery

Extended Range Item | Available by Special Order Only

Delivery expectation: 1-2 Weeks weeks
This item is available by special order and may not be stocked in stores. Purchase online today to secure your product. For more information, please contact your local Harvey Norman store.

Transform your culinary space into a fresh and tranquil haven with the Schweigen 120cm Silent Undermount Rangehood. This appliance boasts a single external Isodrive® inline motor, a maximum airflow of 1600 m³/h, and mesh filters, ready to efficiently extract steam, smoke, and odours in your cooking area. It also highlights five fan speeds and a timer function. Plus, this unit features an undermount design for a sleek, discreet ventilation setup.

Key Overview

  • 120cm Size
  • Undermount Hood
  • Powerful Maximum Airflow of 1600 m³/h
  • Inline Motor

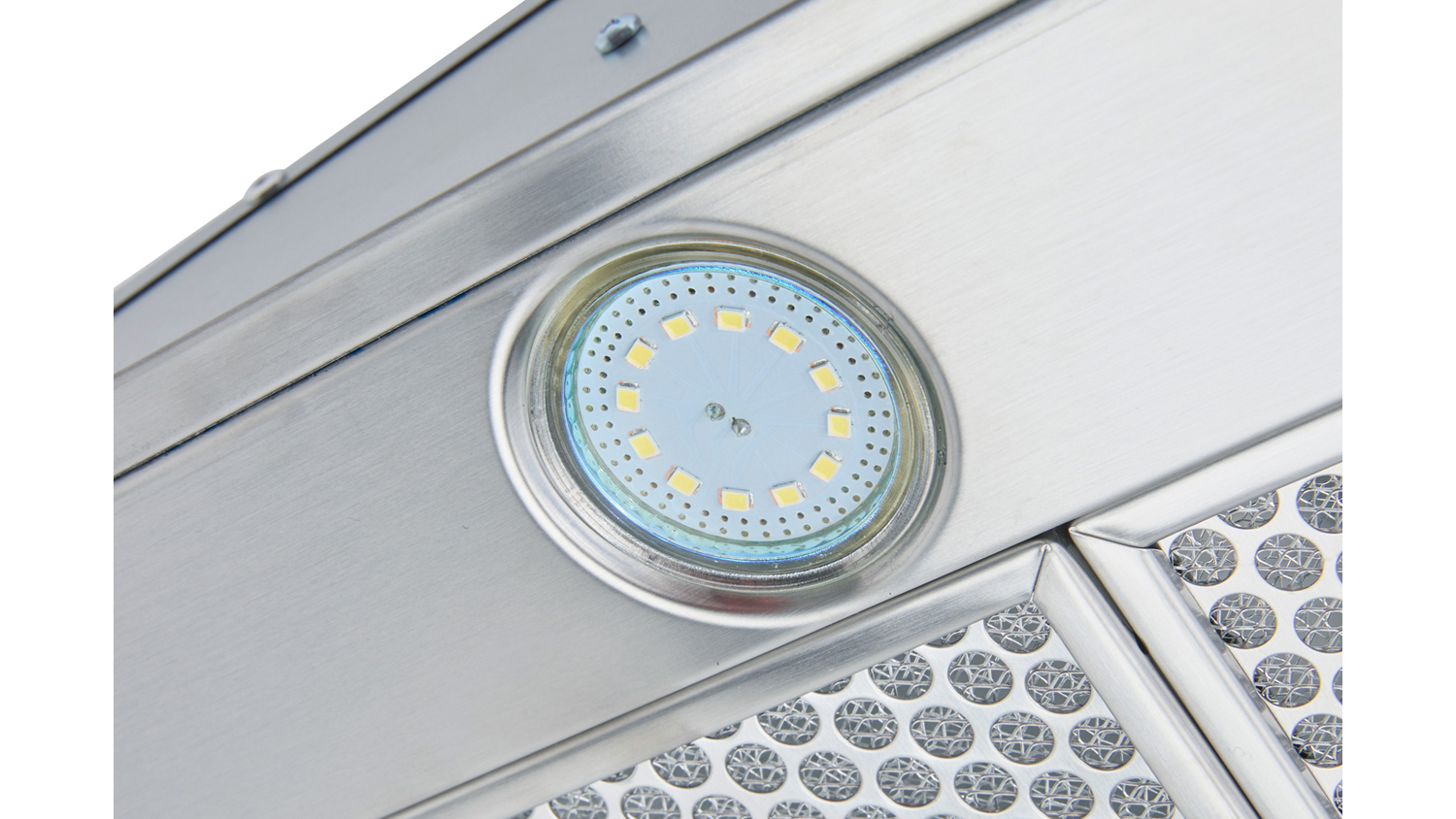

  • 2 x LED Lights
  • Round Ducted Vent
  • Edge-To-Edge Extraction
  • (W x D x H): 1180 x 295 x 285 mm

Product Highlights

  • Streamlined Performance: Say goodbye to trapped steam, smoke, and odours in your kitchen, thanks to the Schweigen 120cm Silent Undermount Rangehood. A must-have for modern homes, this powerful appliance features a 1600 m³/h maximum airflow and five fan speeds. It is also made near-silent and energy-efficient, using just about 57W of power.

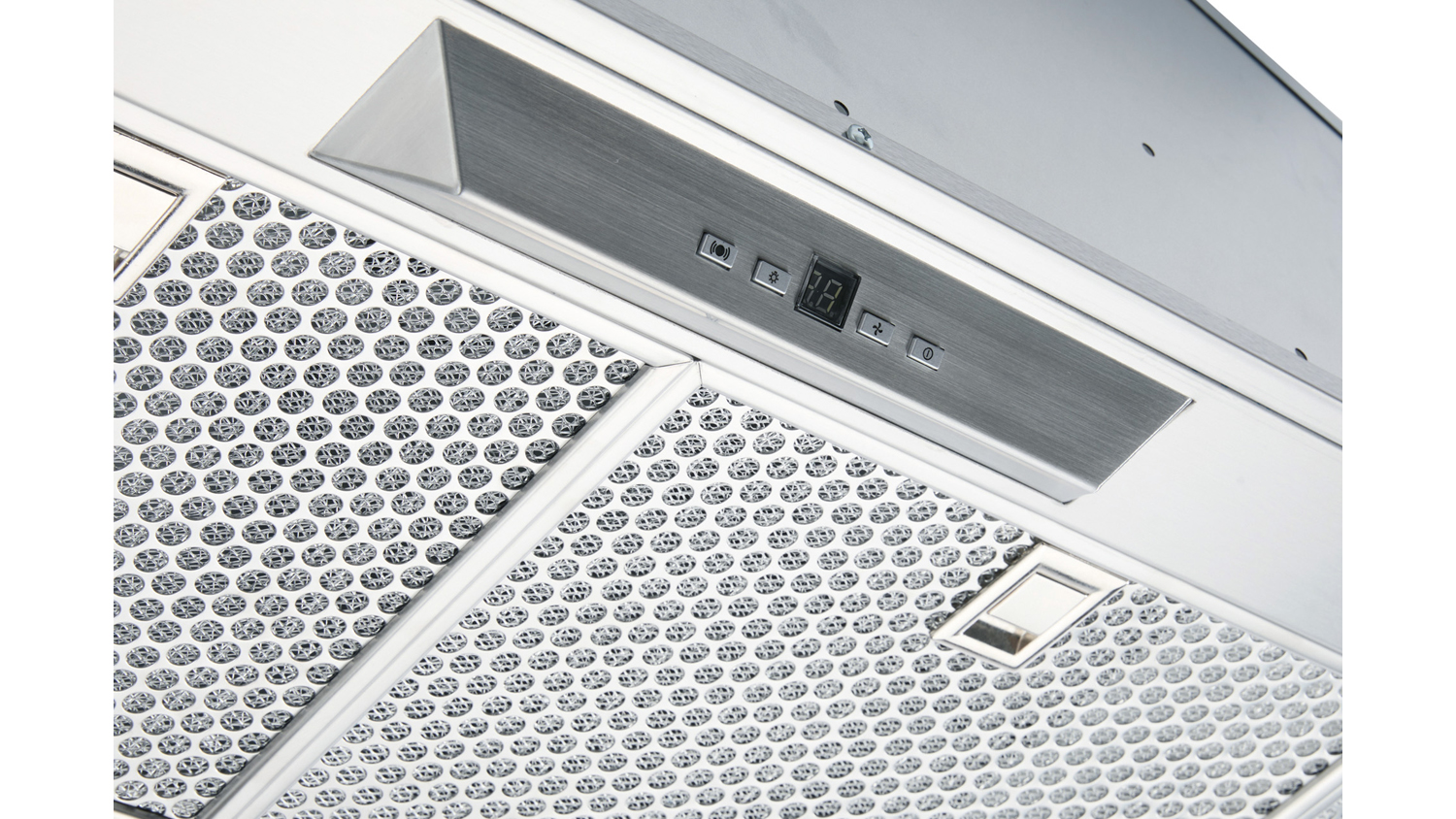

  • Breezy Operations: This unit equips touch controls, allowing you to adjust its speed level or set a timer easily. Moreover, this unit supports multiple motor options, so you can easily customise it according to your needs*.

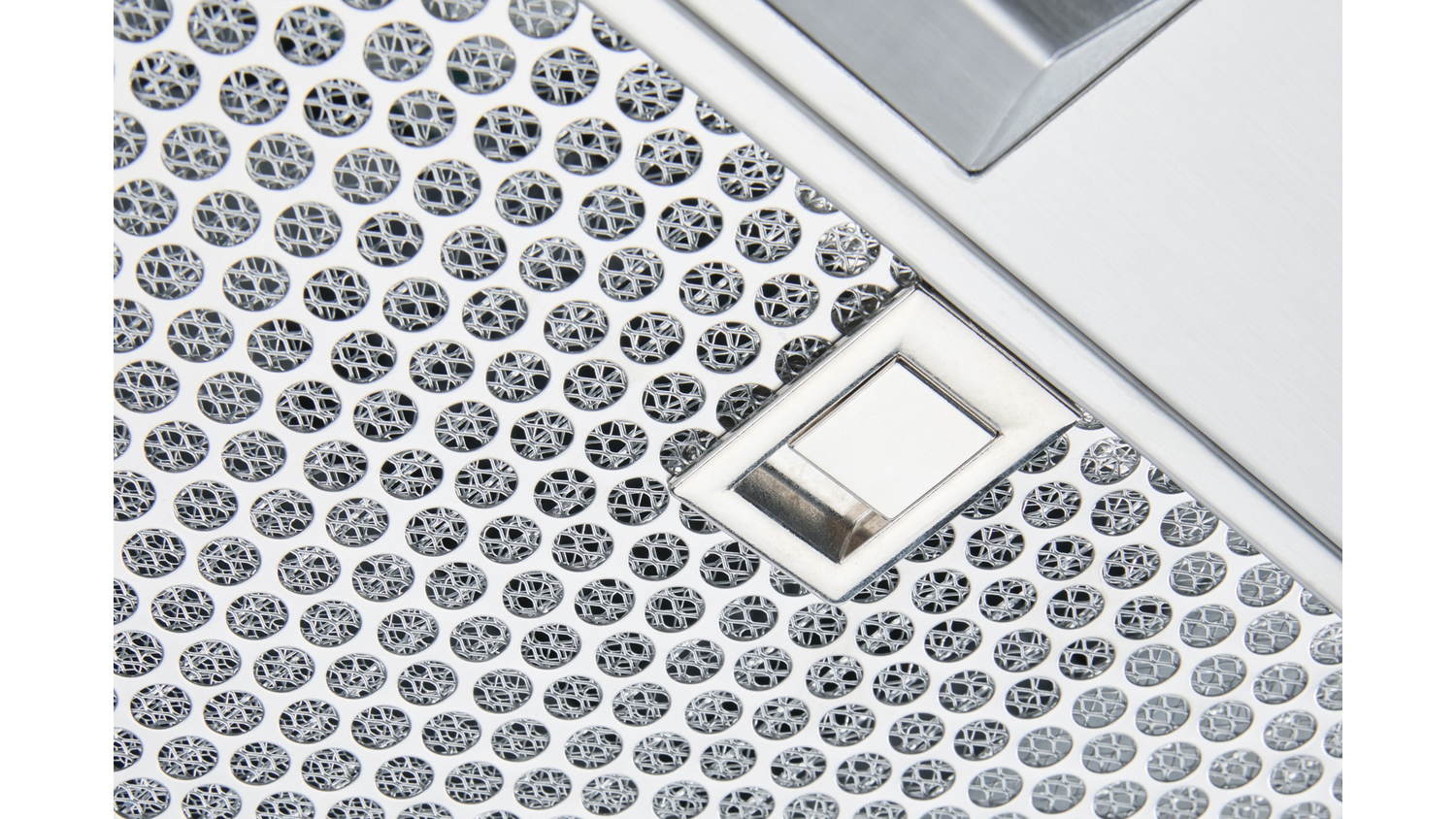

  • Convenient to Use: This Schweigen Rangehood features three removable mesh filters that can trap various air contaminants in your kitchen. Additionally, the filter is made dishwasher-safe for breezy clean-ups.
  • Seamless Setups: Designed with an elegant stainless steel fascia and a discreet undermount design, this rangehood is built to blend into your kitchen cabinetry effortlessly. Moreover, it comes with high-performance Schweigen SteelFlex™ safety ducting that’s fire, pest, and crush proof.

*Please Note: Other motor options are sold separately.

**Qualified installer required.

Specifications
All Product Details
Brand Schweigen
Product Type Undermount Rangehood
Model Number UM1170-12SINL
Colour Stainless Steel
Rangehood
Hood Type
  • Undermount Hood
Rangehood Feature
  • Edge-to-Edge Extraction
  • Fan Speed Display
  • Internal Blow Included
  • Removable Grease Filter
  • Timer Function
  • Silent
Control Panel
Control Panel Type Touch
Location of Control Panel Front
Fan
Maximum Air Flow (Cubic Meter Per Hour) 1600 m³/h
Number of Fan Speeds 5 x Fan Speeds
Lighting
Lighting Type LED Lighting
Number of Lights 2 x Lights
Number of Light Levels 1 x Light Level
Lighting Power 2 x 3W
Motor
Motor Included Yes, Included
Type of Motor Inline Motor
Filter
Filter Type Mesh
Number of Filters 4 x Filters
Replacement Filter Yes
Filter Feature
  • Dishwasher-Safe Filter
Vent
Exhaust Vent Location Top
Vent Type Ducted
Ducting
Ducting Availability Included
Ducting Diameter 200 mm
Duct Shape Round
Installation
Assembly Type Installer Required
Minimum Installation Height from Cooking Surface (Gas) 650 mm
Minimum Installation Height from Cooking Surface (Electric) 600 mm
Electrical Connection
Type of Connection 10A Plug & Lead
Power Cable Length 1.5 m
Power Indicator Yes
Wattage/Voltage AC220-240V 50/60Hz
Fuse Rating 10A
Current Consumption 700mA
Auto Power Off Yes
Dimensions
Height 285 mm
Width 1180 mm
Depth 295 mm
Product Weight 7.2 kg
Packaged Dimensions
Packaged Width 37 cm
Packaged Depth 132 cm
Packaged Height 38.5 cm
Packaged Weight 14.4 kg
Warranty
Manufacturers 60 Months
Reviews
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 87.85ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Delivery
Delivery

We aim to dispatch orders within 2 days. Delivery costs are calculated based on your location and the size of your order. Furniture may take up to 8 weeks to deliver as most products are made specifically for your order. Some Customer Direct products are shipped from overseas and may take longer to arrive. Some goods may take longer to deliver if a product is currently not in stock. A staff member will contact you where this occurs.

Easy returns

If you feel your product has failed a Consumer Guarantee (as defined by New Zealand Consumer Law) then don't worry you can easily return it to your local Harvey Norman store. We'll even pay for the postage if you live in an area where there is no store. Our returns policy covers any purchased item ( conditions apply).

What's in the box
  • 1 x Rangehood Body
  • 4 x Filters
  • 2 x Lights
  • 1 x Motor
  • 1 x Ducting
  • 1 x Wall Bracket
