Schweigen 60cm Silent Undermount Rangehood with Single External Inline Motor - Stainless Steel (UM1390-6SINL/39cm Depth)

Schweigen 60cm Silent Undermount Rangehood with Single External Inline Motor - Stainless Steel (UM1390-6SINL/39cm Depth)

$4,199

Schweigen 60cm Silent Undermount Rangehood with Single External Inline Motor - Stainless Steel (UM1390-6SINL/39cm Depth)

UM1390-6SINL

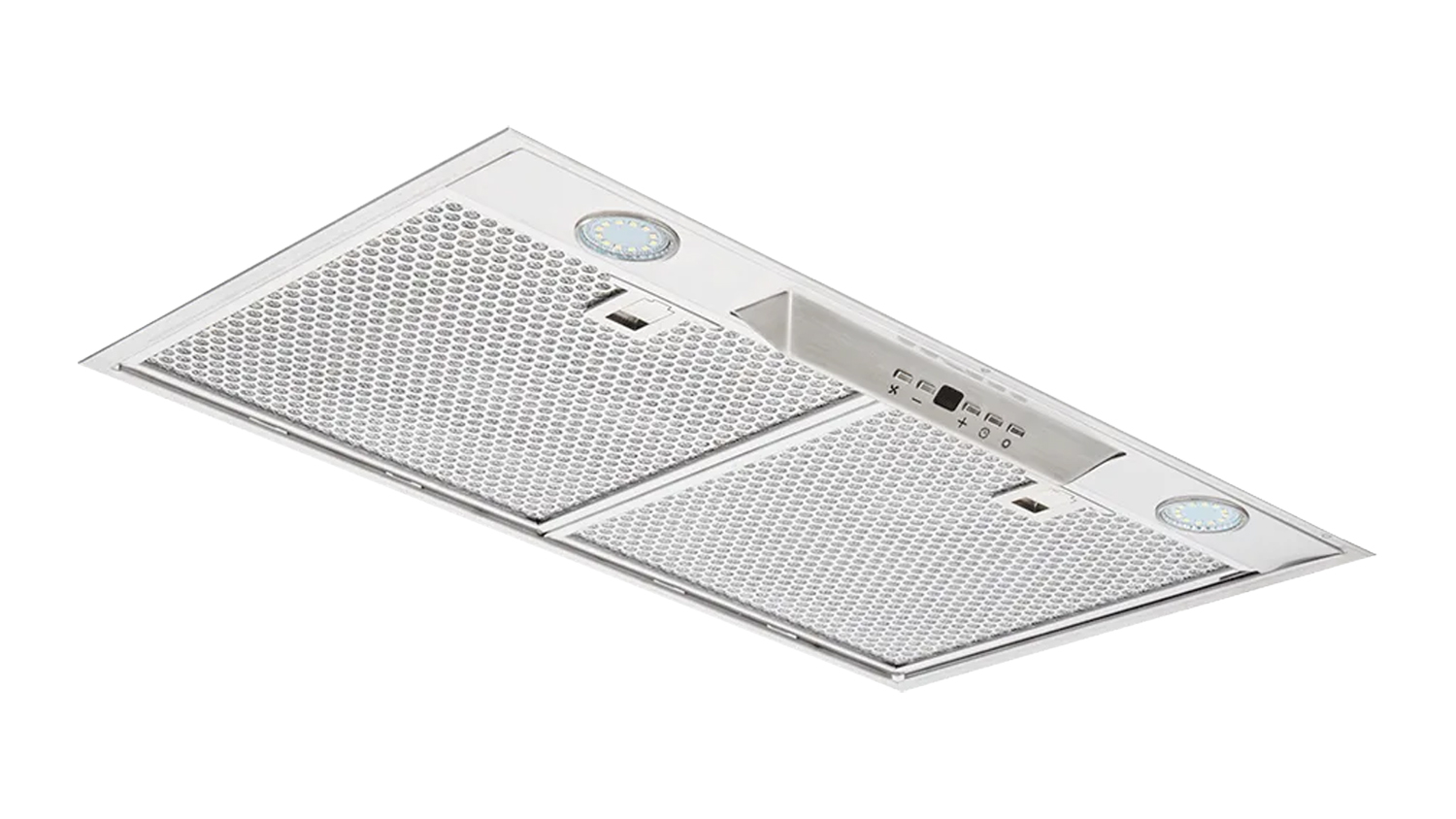

Underside view of a Schweigen 60cm undermount rangehood in stainless steel, featuring two circular LED lights
New
$4,199

$83.98^ approximately
Find in store
Spend $500 or more on selected products and get 10% of your purchase price in Harvey Norman Bonus Gift Cards*
Bonus Gift Card amount is indicative only, and is subject to terms and conditions being met. Exclusions apply. Offer ends 11.59pm, Sunday 7 June 2026.
Click for full terms & conditions.
Spend $500 or more on selected products and get 10% of your purchase price in Harvey Norman Bonus Gift Cards*
✖

Excludes Miele whiteware/cookware, NEFF, mobile phone contracts, mobile phone prepay vouchers, gaming subscriptions, gaming card activations, gaming currency, delivery, installation, Ministry of Social Development (Fisher & Paykel) orders, replacement products under your Product Care or DeviceCover plan, Gift Cards & Commercial purchases.

Harvey Norman Bonus Gift Cards are issued on receipt of goods and expire 36 Months from date of issue. Bonus gift cards are not redeemable for cash and cannot be used in the transaction in which it is issued. If goods are refunded, then the gift card must be returned (if unused) or the value of the gift card will be deducted from the refunded amount. See www.harveynorman.co.nz/gift-card-terms-and-conditions.html or in store for terms, conditions and exclusions.

Offer ends 11.59pm, Sunday 7 June 2026.

Bonus Gift Card amount is indicative only, and is subject to terms and conditions being met.

Available on 50 months of equal Interest Free instalments:

approximately per month

^ Total repayments $4,199 (excluding fees). Min purchase of $1,500 applies. Offer ends 09/06/2026. Equal monthly payments required. Lending criteria, T&Cs & fees apply incl. a $55 estb. fee & $65 annual fee ($32.50 half yearly). Standard interest rate (currently 29.49% p.a.) applies after interest free term ends. Exclusions may apply. *Further information on rates and fees can be found at gemfinance.co.nz. Credit provided by Latitude Financial Services Ltd.

How it works
Description

Delivery

Extended Range Item | Available by Special Order Only

Delivery expectation: 1-2 weeks
This item is available by special order and may not be stocked in stores. Purchase online today to secure your product. For more information, please contact your local Harvey Norman store.

Keep kitchen odours at bay with the Schweigen 60cm Silent Undermount Rangehood with Single External Inline Motor. Delivering up to 1600 m³/h airflow with five fan speeds, this unit efficiently removes smoke, steam, and cooking smells. It features edge-to-edge perimeter extraction, dishwasher-safe mesh filters, and 2 LED lights, effortlessly blending high-end functionality with a sleek, integrated stainless-steel design.

Key Overview

  • 60cm Size
  • Undermount Rangehood
  • Single External Inline Motor
  • LED Lighting
  • Replacement Filter Included
  • Top Exhaust Vent
  • (W x D x H): 598 x 390 x 268 mm

Product Highlights

  • Efficient Kitchen Ventilation: The Schweigen 60cm Silent Undermount Integrated Rangehood helps maintain a fresh kitchen environment with ease. Featuring a maximum airflow of 1600 m³/h and five fan speed options, it effectively extracts smoke, steam, and odours during everyday cooking. It also combines edge-to-edge and perimeter extraction for enhanced airflow and efficient odour extraction.
  • Easy-Clean Mesh Filtration: The Schweigen Rangehood features two high-performance mesh filters that efficiently reduce airborne contaminants in your kitchen. Built for everyday convenience, the filters are dishwasher-safe for easy cleaning after use.
  • Bright LED Cooktop Lighting: Illuminate your cooking space with two LED lights. Enjoy clear, energy-efficient visibility while preparing meals.
  • Convenient Operation: Designed for ease of use, this rangehood features a round duct design, an included motor, and a timer function.
  • Sleek Integrated Design: With its refined stainless-steel finish and discreet undermount hood profile, this rangehood blends seamlessly into your cabinetry for a clean and modern kitchen aesthetic.

*Qualified installer recommended.

Specifications
All Product Details
Brand Schweigen
Product Type Undermount Rangehood
Model Number UM1390-6SINL
Colour Stainless Steel
Rangehood
Hood Type
  • Undermount Hood
Rangehood Feature
  • Edge-to-Edge Extraction
  • Internal Blow Included
  • Removable Grease Filter
  • Timer Function
  • Silent
Control Panel
Control Panel Type Touch Control
Location of Control Panel Front
Fan
Maximum Air Flow (Cubic Meter Per Hour) 1600 m³/h
Number of Fan Speeds 5 x Fan Speeds
Lighting
Lighting Type LED
Number of Lights 2 x Lights
Number of Light Levels 1 x Light Level
Lighting Power 2 x 3W
Motor
Motor Included Yes, Included
Filter
Filter Type Mesh
Number of Filters 2 x Filters
Replacement Filter Yes
Filter Feature
  • Dishwasher-Safe Filter
Vent
Exhaust Vent Location Top
Ducting
Duct Shape Round
Installation
Assembly Type Installer Required
Minimum Installation Height from Cooking Surface (Gas) 600 mm
Minimum Installation Height from Cooking Surface (Electric) 650 mm
Electrical Connection
Type of Connection 10A Plug & Lead
Power Cable Length 1.5 m
Power Indicator Yes
Wattage/Voltage AC220-240V 50Hz
Fuse Rating 10A
Current Consumption 700mA
Auto Power Off Yes
Dimensions
Height 268 mm
Width 598 mm
Depth 390 mm
Product Weight 6 kg
Packaged Dimensions
Packaged Width 68.5 cm
Packaged Depth 47.5 cm
Packaged Height 37.5 cm
Packaged Weight 7 kg
Warranty
Manufacturers 60 Months
Reviews
Schweigen 60cm Silent Undermount Rangehood with Single External Inline Motor - Stainless Steel (UM1390-6SINL/39cm Depth) is rated 4.9 out of 5 by 10.
Rated 5 out of 5 by from Silent range hood worth the extra money I was initially hesitant spending too much on a range hood, but having converted our kitchen & living to an open plan, it was super important to have a quiet fan. It is an absolute game changer having the motor separate & being installed up in the roof. Sometimes I forget it is on! Luckily there is a light that lets you know it’s on, plus an automatic switch off if you forgot altogether. Do yourself a favour & invest in a quality range hood. It’s one of those things that you don’t think is important, until it drives you crazy on the daily!
Date published: 2022-09-16
Rated 5 out of 5 by from Shh… truely silent This tiny home design project asked for an extraction solution that worked effectively at removing cooking smells, yet due to the small space avoided excessive noise. This product achieved that, and more. Additionally, given the off-grid nature of this residence, this rangehood achieved extraction using a modest power draw. Undoubtedly the best rangehood I’ve had the pleasure of using, and perfectly suited to this design brief.
Date published: 2024-04-09
Rated 5 out of 5 by from Great and simple Some one has design this well. Looks great and expensive fro the front and from the bottom. The material used is easy to wipe clean, but I notice it does not get dirty fast after repeated cooking over a a few weeks. Something to do with the air flow into the unit and out. I cany say be comfortable in lookinh and getting this unit. There is the light and button layout. Could be better, but you get use to it after regular use.
Date published: 2022-11-04
Rated 5 out of 5 by from Best hoods ever I am retired now for a few years but I have advised many people over the years to install a schwagen hood and without exception they have all been happier with the product than they thought possible. They are super quiet and super efficient
Date published: 2023-02-10
Rated 5 out of 5 by from Schweigen best in the market We bought our second Schweigen 2 years ago, after loving our first one on our previous reno. We just love how quiet it is, as you don't even realise it's on. It also looks great! We would never consider buying any other brand.
Date published: 2022-12-08
Rated 5 out of 5 by from It really is silent! Incredible! Bought this about 3 months ago for a new kitchen (renovation). Beyond happy with how powerful it is and how silent it is. Probably the item in my kitchen I am happiest about as I can use it on maximum all the time!
Date published: 2022-12-09
Rated 5 out of 5 by from Silent exhaust system Very happy with the unit. So quiet that sometimes I forget to turn it off. Can have a conversation while cooking and suction is excellent as there is no smell at all.
Date published: 2024-03-11
Rated 4 out of 5 by from Value for money Bought 2 years agi as part of a full kitchen reno. The unit simply does what is should. It is quieter than most and has been reliable to date. Cleaning is simple
Date published: 2024-05-02
  • y_2026, m_6, d_6, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_10
  • loc_en_NZ, sid_143964, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_harvey-norman-en_nz
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 86.25ms
  • REVIEWS, PRODUCT
Delivery
Delivery

We aim to dispatch orders within 2 days. Delivery costs are calculated based on your location and the size of your order. Furniture may take up to 8 weeks to deliver as most products are made specifically for your order. Some Customer Direct products are shipped from overseas and may take longer to arrive. Some goods may take longer to deliver if a product is currently not in stock. A staff member will contact you where this occurs.

Easy returns

If you feel your product has failed a Consumer Guarantee (as defined by New Zealand Consumer Law) then don't worry you can easily return it to your local Harvey Norman store. We'll even pay for the postage if you live in an area where there is no store. Our returns policy covers any purchased item ( conditions apply).

What's in the box
  • 1 x Rangehood Body
  • 2 x Filters
  • 2 x Lights
  • 1 x Motor
  • 1 x Ducting
  • 1 x Wall Vent
