Schweigen 60cm Silent Undermount Rangehood with Twin External SP Motors - Matte Black (UM1170-6BSP)

Schweigen 60cm Silent Undermount Rangehood with Twin External SP Motors - Matte Black (UM1170-6BSP)

$3,899

Schweigen 60cm Silent Undermount Rangehood with Twin External SP Motors - Matte Black (UM1170-6BSP)

UM1170-6BSP

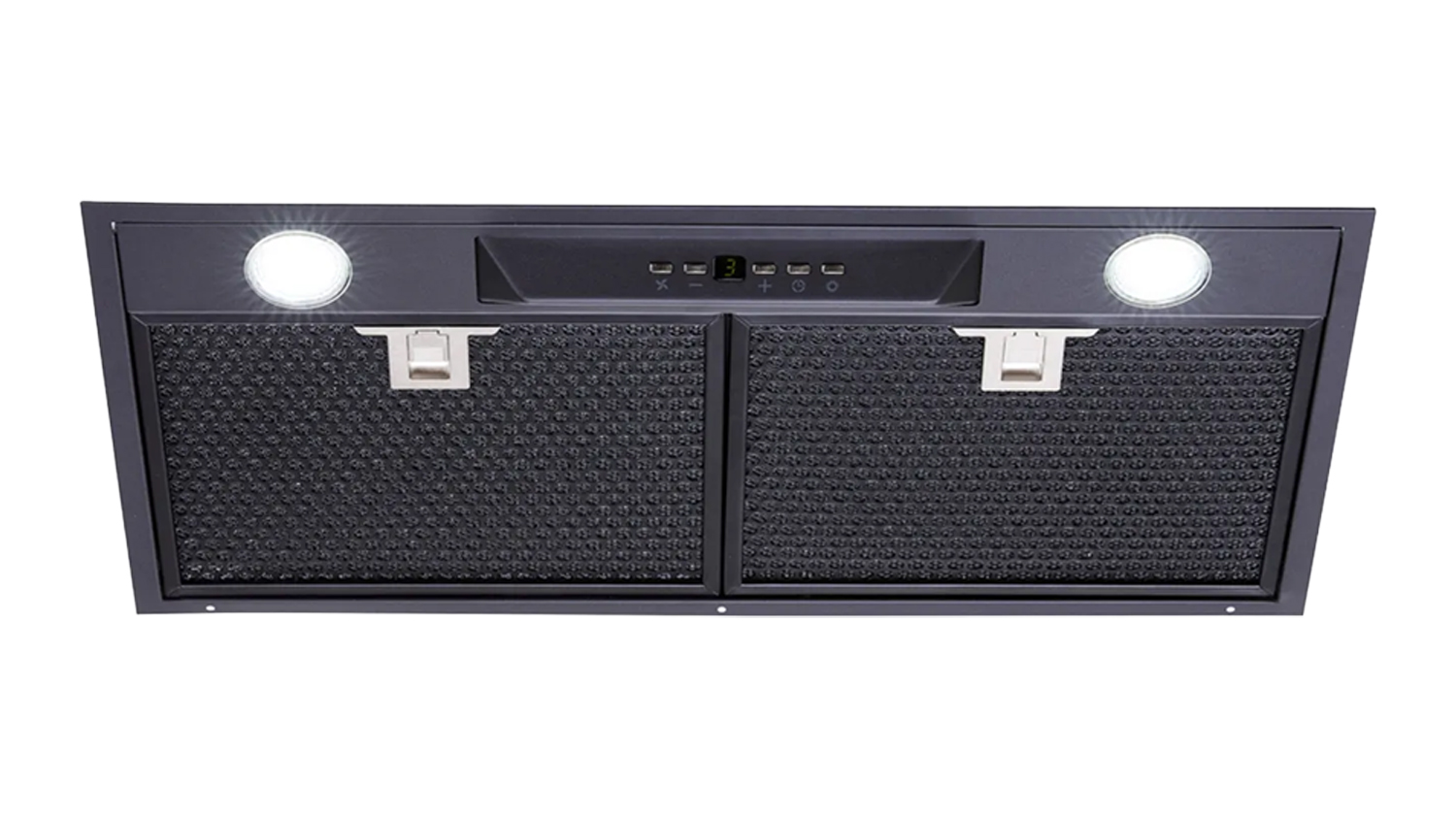

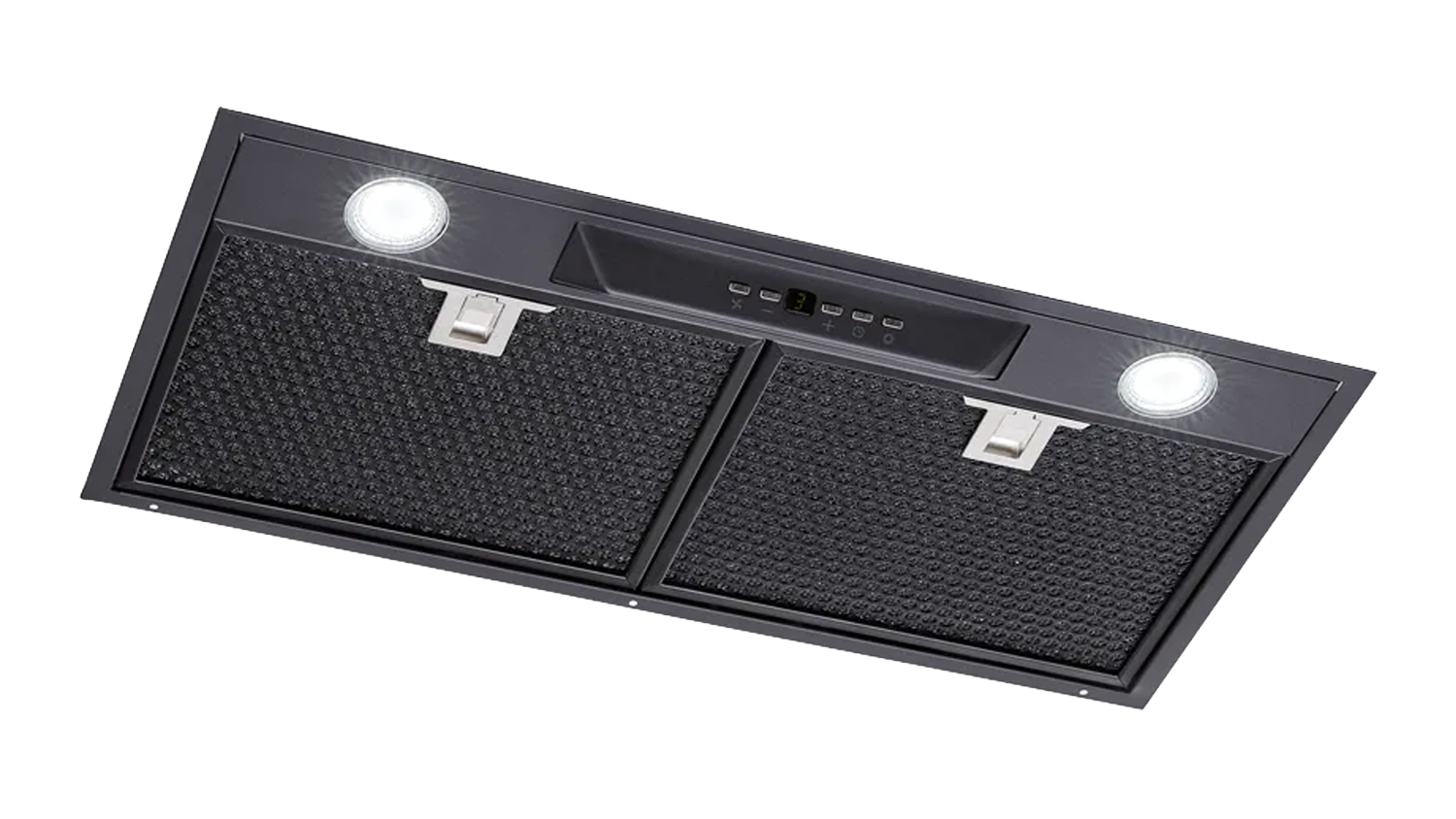

Front view of the Schweigen 60cm Silent Undermount Rangehood with two lights, control panel, and dual mesh grease filters
New
$3,899

$77.98^ approximately
Find in store
Spend $500 or more on selected products and get 10% of your purchase price in Harvey Norman Bonus Gift Cards*
Bonus Gift Card amount is indicative only, and is subject to terms and conditions being met. Exclusions apply. Offer ends 11.59pm, Sunday 7 June 2026.
Click for full terms & conditions.
Spend $500 or more on selected products and get 10% of your purchase price in Harvey Norman Bonus Gift Cards*
✖

Excludes Miele whiteware/cookware, NEFF, mobile phone contracts, mobile phone prepay vouchers, gaming subscriptions, gaming card activations, gaming currency, delivery, installation, Ministry of Social Development (Fisher & Paykel) orders, replacement products under your Product Care or DeviceCover plan, Gift Cards & Commercial purchases.

Harvey Norman Bonus Gift Cards are issued on receipt of goods and expire 36 Months from date of issue. Bonus gift cards are not redeemable for cash and cannot be used in the transaction in which it is issued. If goods are refunded, then the gift card must be returned (if unused) or the value of the gift card will be deducted from the refunded amount. See www.harveynorman.co.nz/gift-card-terms-and-conditions.html or in store for terms, conditions and exclusions.

Offer ends 11.59pm, Sunday 7 June 2026.

Bonus Gift Card amount is indicative only, and is subject to terms and conditions being met.

Available on 50 months of equal Interest Free instalments:

approximately per month

^ Total repayments $3,899 (excluding fees). Min purchase of $1,500 applies. Offer ends 09/06/2026. Equal monthly payments required. Lending criteria, T&Cs & fees apply incl. a $55 estb. fee & $65 annual fee ($32.50 half yearly). Standard interest rate (currently 29.49% p.a.) applies after interest free term ends. Exclusions may apply. *Further information on rates and fees can be found at gemfinance.co.nz. Credit provided by Latitude Financial Services Ltd.

How it works
Description

Delivery

Extended Range Item | Available by Special Order Only

Delivery expectation: 1-2 weeks
This item is available by special order and may not be stocked in stores. Purchase online today to secure your product. For more information, please contact your local Harvey Norman store.

Upgrade to powerful yet silent kitchen ventilation with the Schweigen 60cm Silent Undermount Rangehood with Twin External SP Motors. Engineered for high-performance extraction, this unit features an impressive 1600 m³/h airflow, Schweigen Isodrive® motor technology, and edge-to-edge extraction to remove steam, smoke, and odours efficiently. It also offers a removable grease filter, LED lighting for clear visibility, and a sleek undermount design for seamless kitchen integration.

Key Overview

  • Maximum Airflow of 1600 m³/h
  • Schweigen Isodrive® motors
  • Schweigen SteelFlex™ Ducting

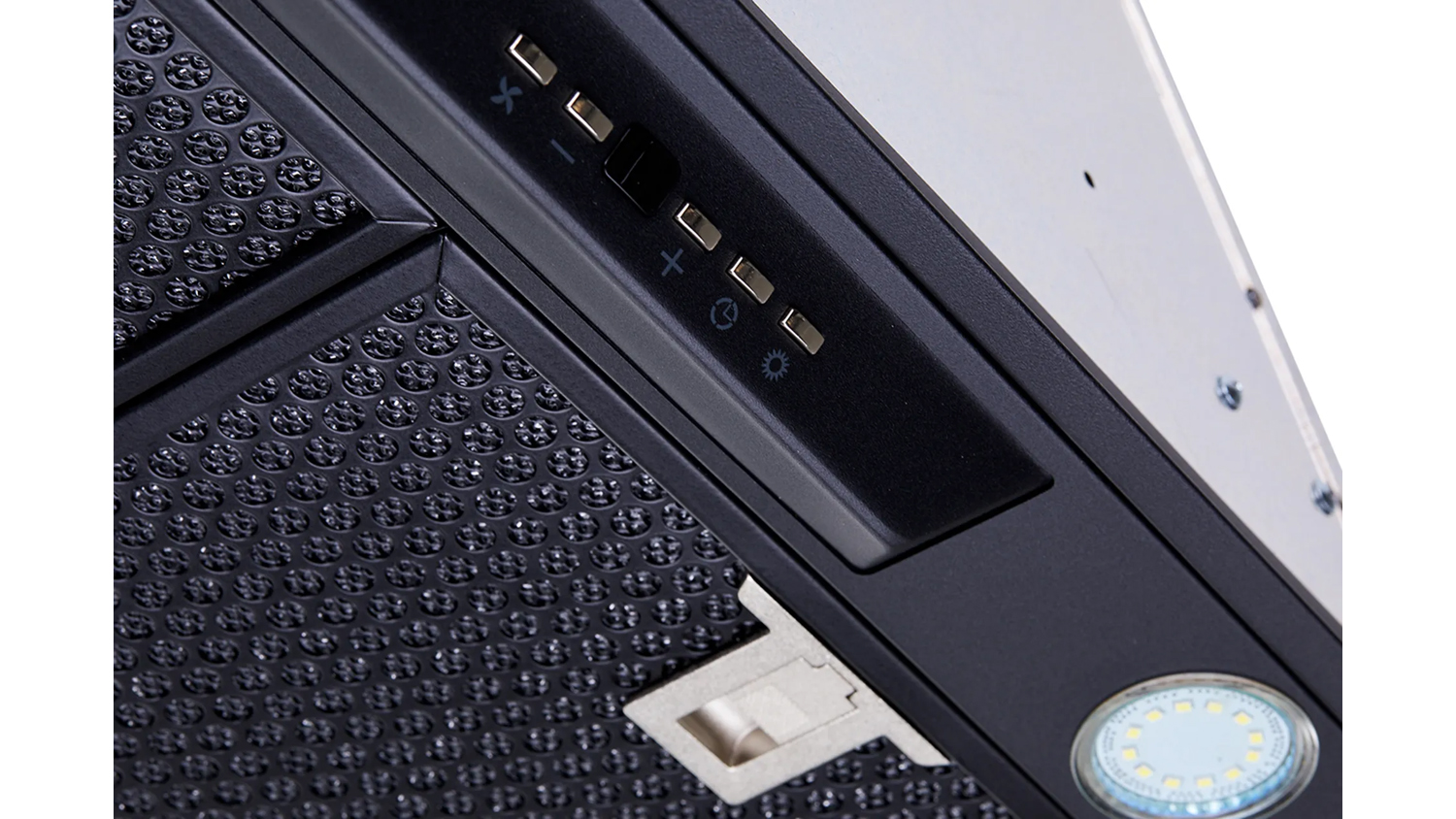

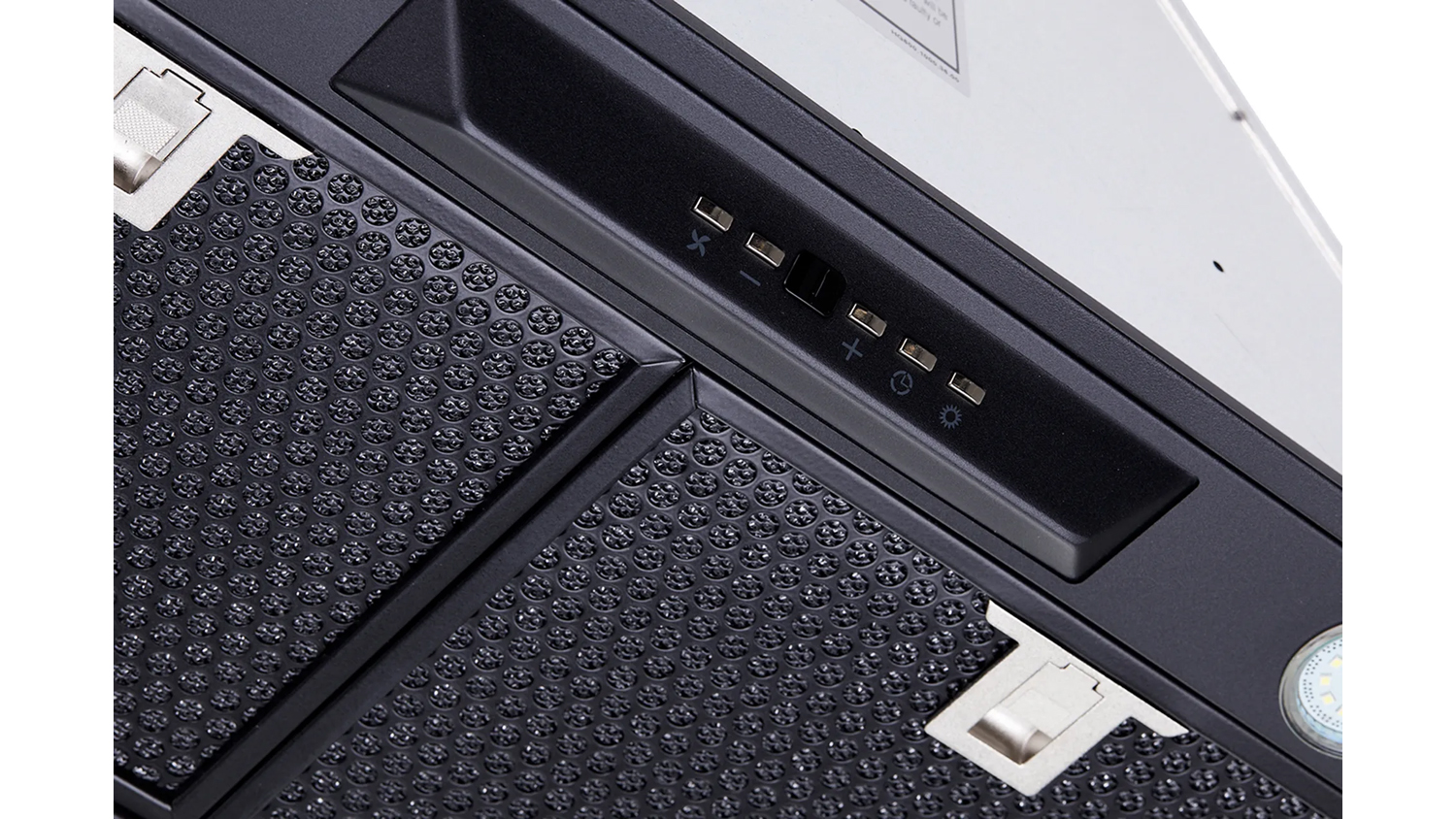

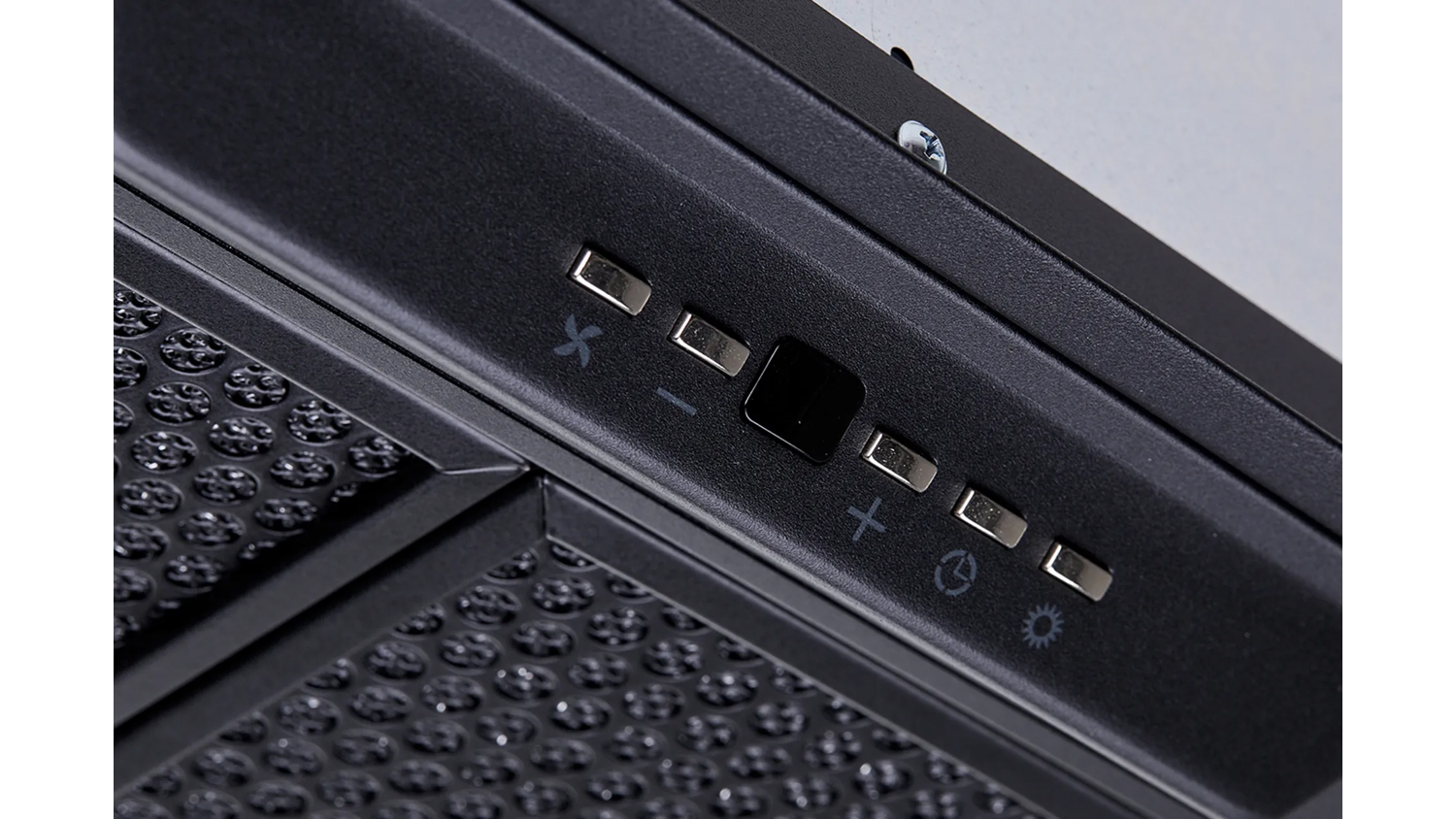

  • Soft-Touch Controls With Digital Display

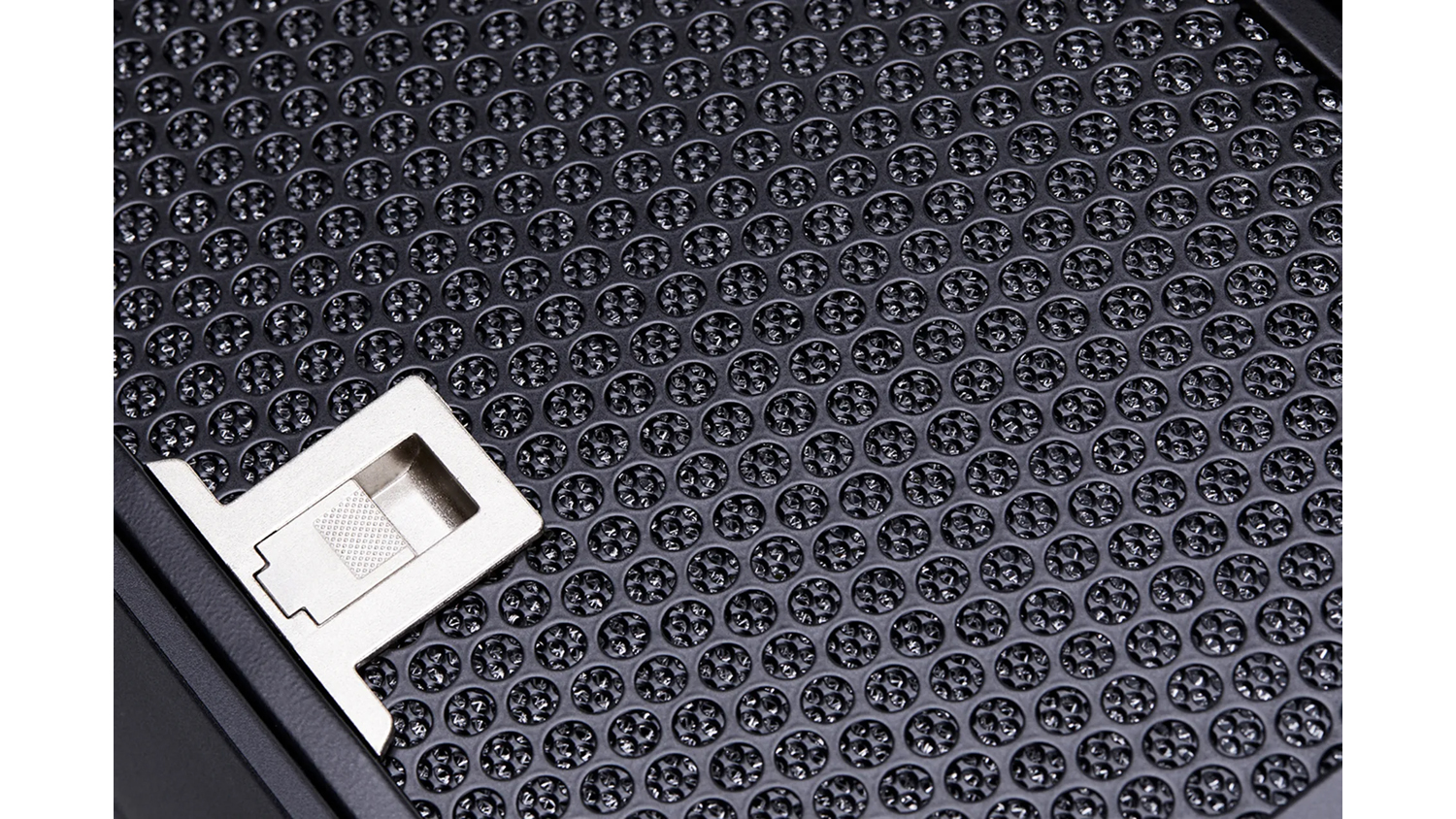

  • Removable & Dishwasher-Safe Grease Filter
  • LED Lighting

Product Highlights

  • High-Performance Ventilation: Enjoy a more inviting kitchen with the Schweigen 60cm Silent Undermount Rangehood. Featuring a Schweigen Isodrive® external motor, this unit delivers powerful extraction to remove smoke, steam, and cooking odours with ease.
  • Powerful Yet Efficient: Engineered for powerful performance, this range hood delivers up to 1600 m³/h of airflow while maintaining a 700 mA current draw for efficient operation.
  • Superior Extraction: Featuring edge-to-edge extraction, timer function, and fan speed display, this rangehood effectively draws in airborne grease and cooking fumes for enhanced performance.
  • Secure Ventilation Path: The unit comes with Schweigen SteelFlex™ high-performance ducting, designed to be fire, pest, and crush-proof for long-term reliability.

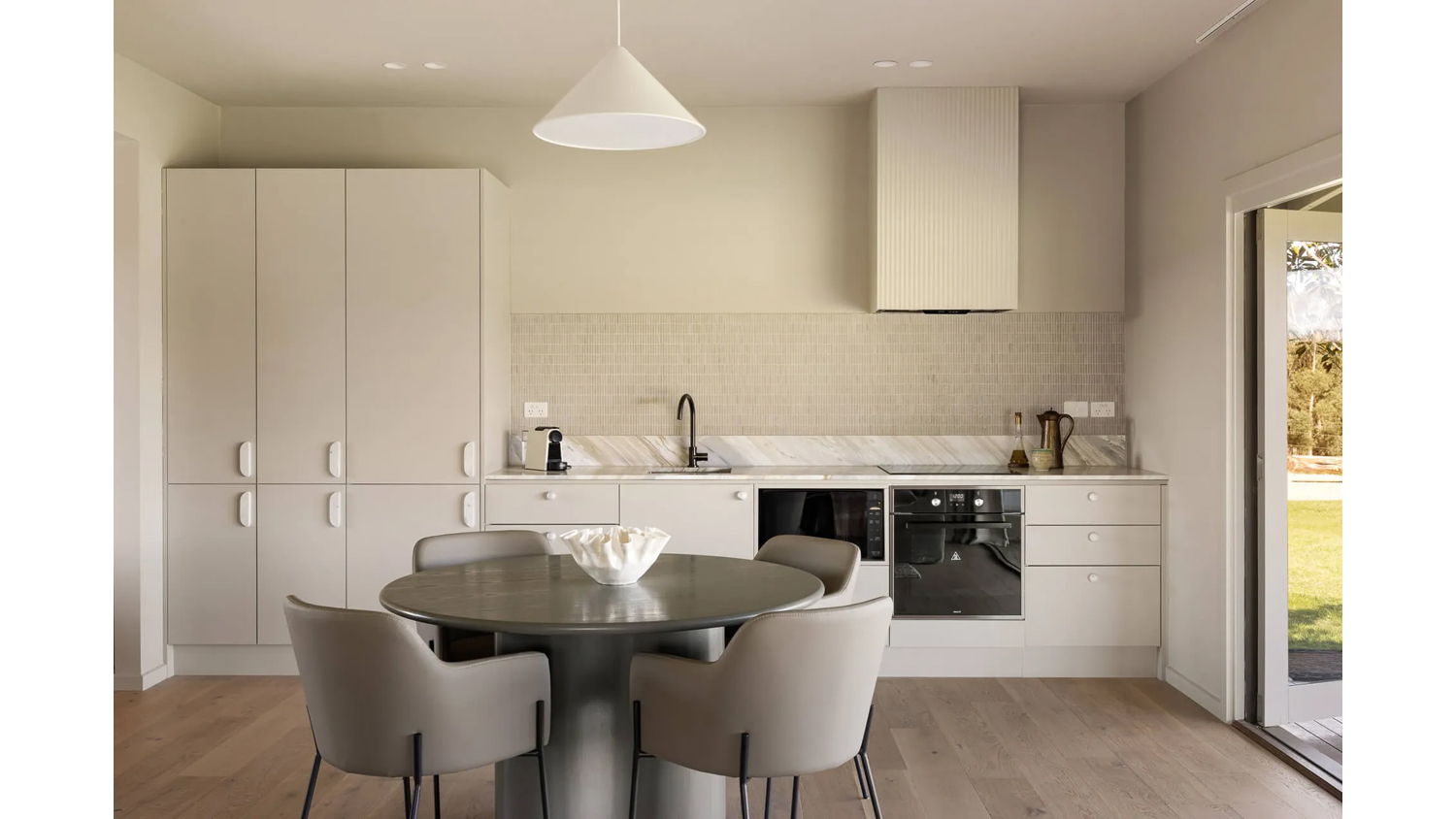

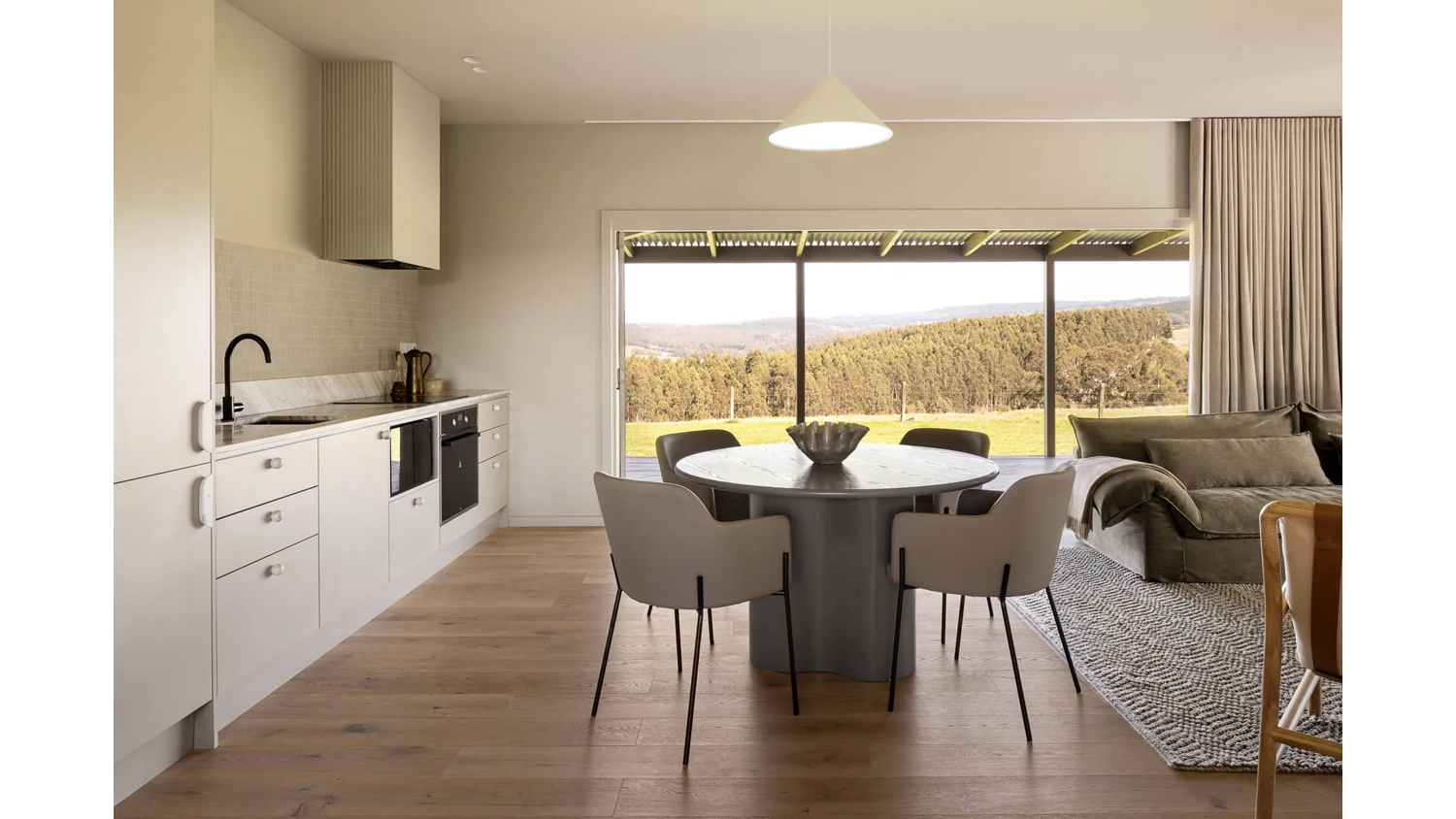

  • Modern Concealed Fit: Designed for seamless undermount installation, it blends discreetly into modern kitchen cabinetry.

*Note: A professional installer is recommended.

Specifications
All Product Details
Brand Schweigen
Product Type Undermount Rangehood
Model Number UM1170-6BSP
Colour Matte Black
Rangehood
Hood Type
  • Undermount Hood
Rangehood Feature
  • Edge-to-Edge Extraction
  • Fan Speed Display
  • Internal Blow Included
  • Removable Grease Filter
  • Timer Function
Control Panel
Control Panel Type Touch
Location of Control Panel Front
Fan
Maximum Air Flow (Cubic Meter Per Hour) 1600 m³/h
Number of Fan Speeds 5 x Fan Speeds
Lighting

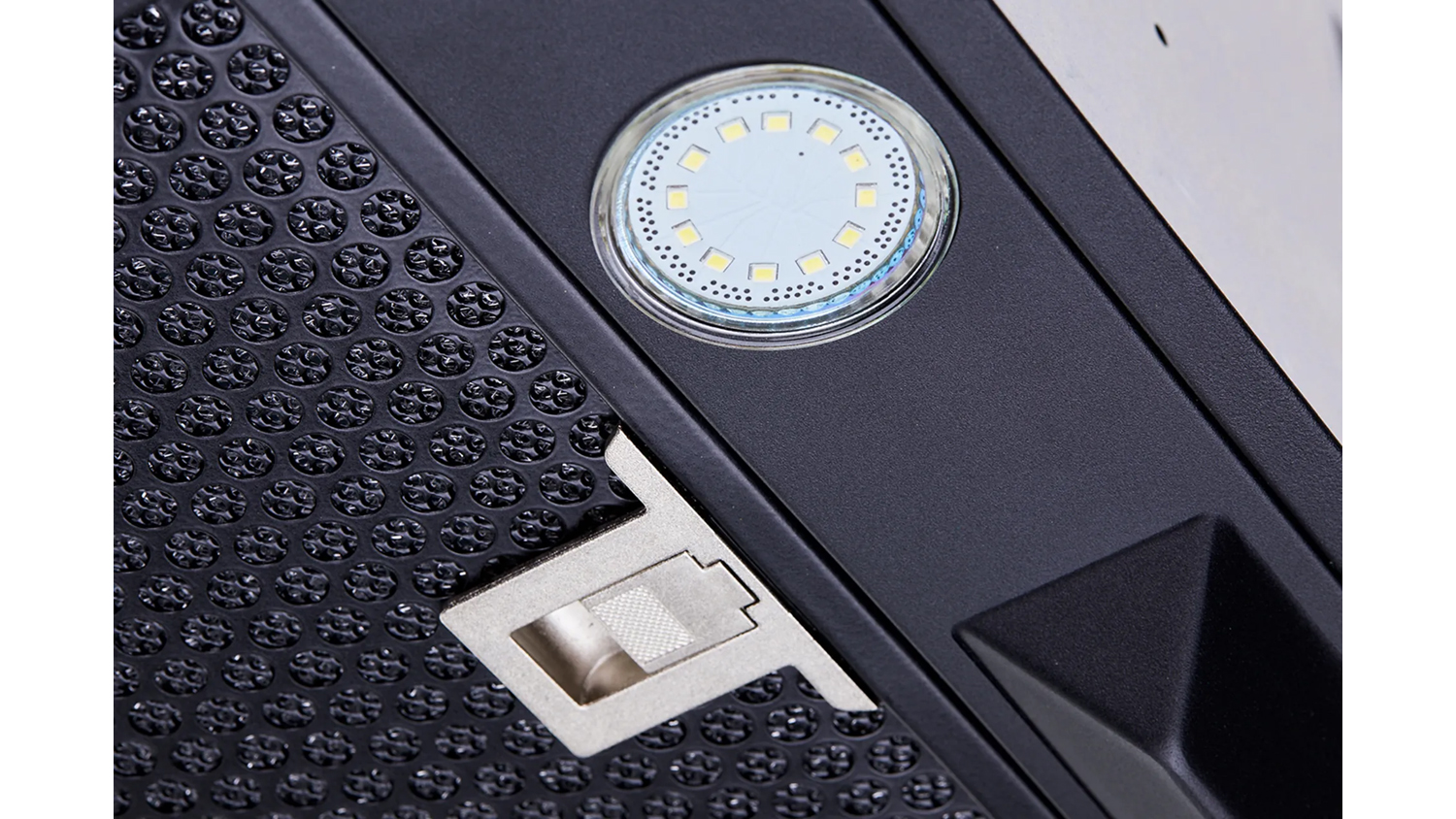

Lighting Type LED Lighting
Number of Lights 2 x Lights
Number of Light Levels 1 x Light Level
Lighting Power 2 x 3W
Motor
Motor Included Yes, Included
Type of Motor External Motor
Filter

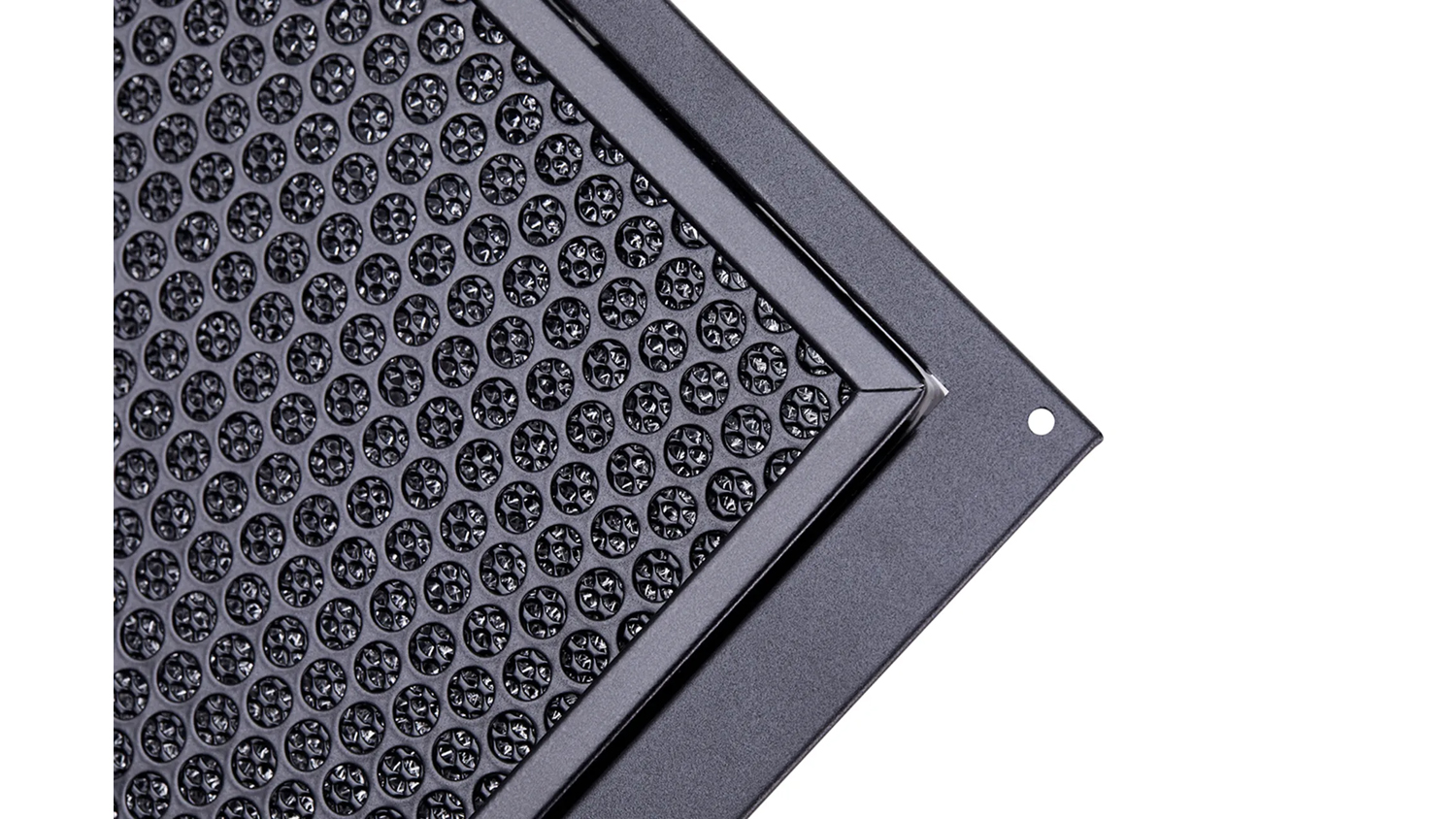

Filter Type Mesh
Number of Filters 2 x Filters
Replacement Filter Yes
Filter Feature
  • Dishwasher-Safe Filter
Vent
Exhaust Vent Location Top
Vent Type Ducted
Ducting
Ducting Availability Included
Ducting Diameter 200 mm
Duct Shape Round
Installation
Assembly Type Installer Required
Minimum Installation Height from Cooking Surface (Gas) 650 mm
Minimum Installation Height from Cooking Surface (Electric) 600 mm
Electrical Connection
Type of Connection 10A Plug & Lead
Power Cable Length 1.5 m
Power Indicator Yes
Wattage/Voltage AC220-240V 50/60Hz
Fuse Rating 10A
Current Consumption 700mA
Auto Power Off Yes
Dimensions
Height 288 mm
Width 598 mm
Depth 295 mm
Product Weight 4.4 kg
Packaged Dimensions
Packaged Width 32 cm
Packaged Depth 87 cm
Packaged Height 37 cm
Packaged Weight 8.5 kg
Warranty
Manufacturers 60 Months
Reviews
Schweigen 60cm Silent Undermount Rangehood with Twin External SP Motors - Matte Black (UM1170-6BSP) is rated 5.0 out of 5 by 5.
Rated 5 out of 5 by from Excellent product Very happy with this silent rangehood. Although a small motor noise (as I was limited by the length of the 200mm duct), it's much better than my previous rangehood. It's much quieter, but the best bit is the volume that it extract if incredible. I swapped out the GU10 globes to warm colour LEDs as it came standard with cool colour LED, but this was very easy to do.
Date published: 2025-10-09
Rated 5 out of 5 by from The best rangehood system I’ve ever purchased I bought the rangehood not really knowing the Schweigen brand. I have found it to be the most competent unit I have ever purchased. It is extremely silent while being very powerful & does exactly as illustrated in the product brochure. Quiet, efficient, sleek & user friendly. Schweigen, in my opinion setting the bar in rangehood technology
Date published: 2023-10-05
Rated 5 out of 5 by from Incredible and beautiful This is truly a state of the art appliance. Besides it’s sleek construction and beauty, it works like a dream. It’s powerful and quiet. I would only recommend Schweigen to anyone looking at replacing their rangehood. You will not be disappointed. I give it a million star rating !
Date published: 2023-10-19
Rated 5 out of 5 by from It works a charm I could not stand using rangehoods until i purchased this product no i have no problems standing next to it as it removes cooking's smells effortlessly and without any deafing noise. Just a hint though, go for the larger size motor.
Date published: 2022-09-15
Rated 5 out of 5 by from Very quite with great suction The rangehood is very quite while operating and still have excellent suction power. Great for asian cooking.
Date published: 2025-02-27
  • y_2026, m_6, d_5, h_14
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_5
  • loc_en_NZ, sid_143942, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_harvey-norman-en_nz
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 71.4ms
  • REVIEWS, PRODUCT
Delivery
Delivery

We aim to dispatch orders within 2 days. Delivery costs are calculated based on your location and the size of your order. Furniture may take up to 8 weeks to deliver as most products are made specifically for your order. Some Customer Direct products are shipped from overseas and may take longer to arrive. Some goods may take longer to deliver if a product is currently not in stock. A staff member will contact you where this occurs.

Easy returns

If you feel your product has failed a Consumer Guarantee (as defined by New Zealand Consumer Law) then don't worry you can easily return it to your local Harvey Norman store. We'll even pay for the postage if you live in an area where there is no store. Our returns policy covers any purchased item ( conditions apply).

What's in the box
  • 1 x Rangehood Body
  • 2 x Filters
  • 2 x Lights
  • 1 x Motor
  • 1 x Ducting
  • 1 x Wall Bracket
