Schweigen 90cm Silent Undermount Rangehood with Single External SP Motor - Stainless Steel (UM-PA9SP)
Schweigen 90cm Silent Undermount Rangehood with Single External SP Motor - Stainless Steel (UM-PA9SP)
$5,399
Schweigen 90cm Silent Undermount Rangehood with Single External SP Motor - Stainless Steel (UM-PA9SP)
UM-PA9SP
Available on 36 months of equal Interest Free instalments:
approximately per month
^ Total repayments $5,399 (excluding fees). Min purchase of $500 applies. Offer ends 30/09/2026. Equal monthly payments required. Lending criteria, T&Cs & fees apply incl. a $55 estb. fee & $65 annual fee ($32.50 half yearly). Standard interest rate (currently 29.49% p.a.) applies after interest free term ends. Exclusions may apply. *Further information on rates and fees can be found at gemfinance.co.nz. Credit provided by Latitude Financial Services Ltd.
How it worksGem Finance Interest Free
Available on participating Gem credit cards.
New to Gem? Follow the steps below to apply for a Gem Visa now.
Apply Online
Complete your online application in just 10-15 minutes
Credit Check
Submit income, employment details, and expenses. Include proof of income by sharing your online statement or uploading income documents.
Provide Identification
All applicants must provide a form of identification, e.g., NZ driver's license, NZ Passport, or International Passport.
Extended Range Item | Available by Special Order Only
Delivery expectation: 1-2 weeks
This item is available by special order and may not be stocked in stores.
Purchase online today to secure your product. For more information, please
contact your local Harvey Norman store.
Up to $400 CASHBACK* via redemption on eligible Schweigen Rangehoods

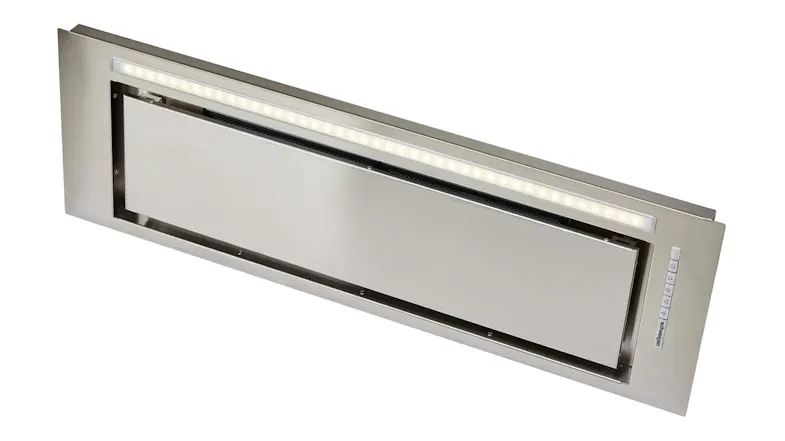

Keep your culinary environment fresh and stylish using the Schweigen 90cm Silent Undermount Rangehood with Single External SP Motor. Made for modern kitchens, this appliance delivers efficient ventilation without interrupting your interior’s clean lines. It also uses an external SP motor for a quiet yet reliable 1600 m³/h airflow. Plus, this unit comes with an ambient LED light, letting you enhance the mood in your culinary space.
Key Overview
- 90cm Size
- Undermount Hood
- Edge-to-Edge Extraction
- 4 Fan Speeds
- Touch Control Panel
- Internal Blow Included
- Product Dimensions: W 895 x D 295 mm
Product Highlights
- Your Kitchen Sidekick: Easily maintain a fresh workspace for your daily meal prep! This rangehood helps keep your indoor air clean by venting out smoke, grease, and odours.
- Quiet Steady Suction: The included external SP motor provides 1600 m³/h airflow, while keeping noise to a minimum. Meanwhile, its integrated extra panel renders a Venturi effect along the edges for superb perimeter aspiration.
- Elegant Built-In Aesthetic: Beautifully integrate the Schweigen Rangehood under your cabinetry for a polished and sleek look. It flaunts an entirely concealed design and stainless steel finish that blends well into your modern kitchen.

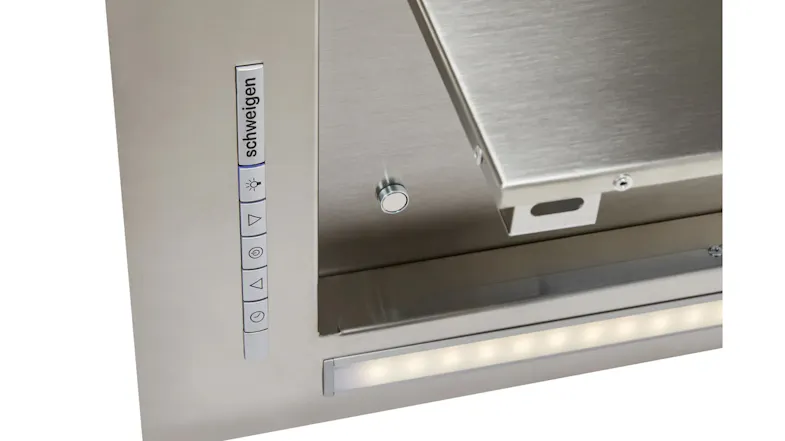

- Convenient to Use: Thanks to its touch controls and fan speed display, you’ll be able to easily adjust your rangehood’s settings to accommodate your ventilation needs. It also has an ambient LED light for optimal visibility.
- Cleaning Convenience: Effortlessly maintain your rangehood in tip-top shape, as it utilises high-quality filters that help lessen grease and oil buildup along the edges. It is also removable and dishwasher-safe for total ease.
| Brand | Schweigen |
|---|---|
| Product Type | Undermount Rangehood |
| Model Number | UM-PA9SP |
| Colour | Stainless Steel |
Rangehood
| Hood Type |
|
|---|---|
| Rangehood Feature/s |
|
Control Panel
| Control Panel Type | Touch Control Panel |
|---|
Fan
| Maximum Air Flow (Cubic Meter Per Hour) | 1600 m³/h |
|---|---|
| Number of Fan Speeds | 4 x Fan Speeds |
Lighting
| Number of Lights | 1 x Lights |
|---|---|
| Lighting Power | 3.36W |
Motor
| Motor Included | Yes, Included |
|---|
Filter
| Filter Type | Mesh Filter |
|---|---|
| Number of Filters | 2 x Filters |
Vent
| Exhaust Vent Location | Top |
|---|
Ducting
| Duct Shape | Round |
|---|
Power
| Power Source | Corded |
|---|---|
| Power Cable Length | 1.5m |
| Power Connection | 10A Plug & Lead |
| Power Consumption | 700mA |
| Voltage | 220-240V |
| Frequency | 50Hz |
| Fuse Rating | 10A |
Installation
| Assembly Type | Installer Required |
|---|---|
| Minimum Installation Height from Cooking Surface (Gas) | 650 mm |
| Minimum Installation Height from Cooking Surface (Electric) | 600 mm |
Dimensions
| Height | 348 mm |
|---|---|
| Width | 895 mm |
| Depth | 295 mm |
| Product Weight | 11 kg |
Packaged Dimensions
| Packaged Width | 47 cm |
|---|---|
| Packaged Depth | 93 cm |
| Packaged Height | 35 cm |
| Packaged Weight | 15 kg |
Warranty
| Manufacturer | 60 Months |
|---|
Delivery
We aim to dispatch orders within 2 days. Delivery costs are calculated based on your location and the size of your order. Furniture may take up to 8 weeks to deliver as most products are made specifically for your order. Some Customer Direct products are shipped from overseas and may take longer to arrive. Some goods may take longer to deliver if a product is currently not in stock. A staff member will contact you where this occurs.
Easy returns
If you feel your product has failed a Consumer Guarantee (as defined by New Zealand Consumer Law) then don't worry you can easily return it to your local Harvey Norman store. We'll even pay for the postage if you live in an area where there is no store. Our returns policy covers any purchased item ( conditions apply).
- 1 x Rangehood Body
- 2 x Filters
- 1 x Light
- 1 x Motor
- 1 x Ducting
- 1 x Wall Bracket
