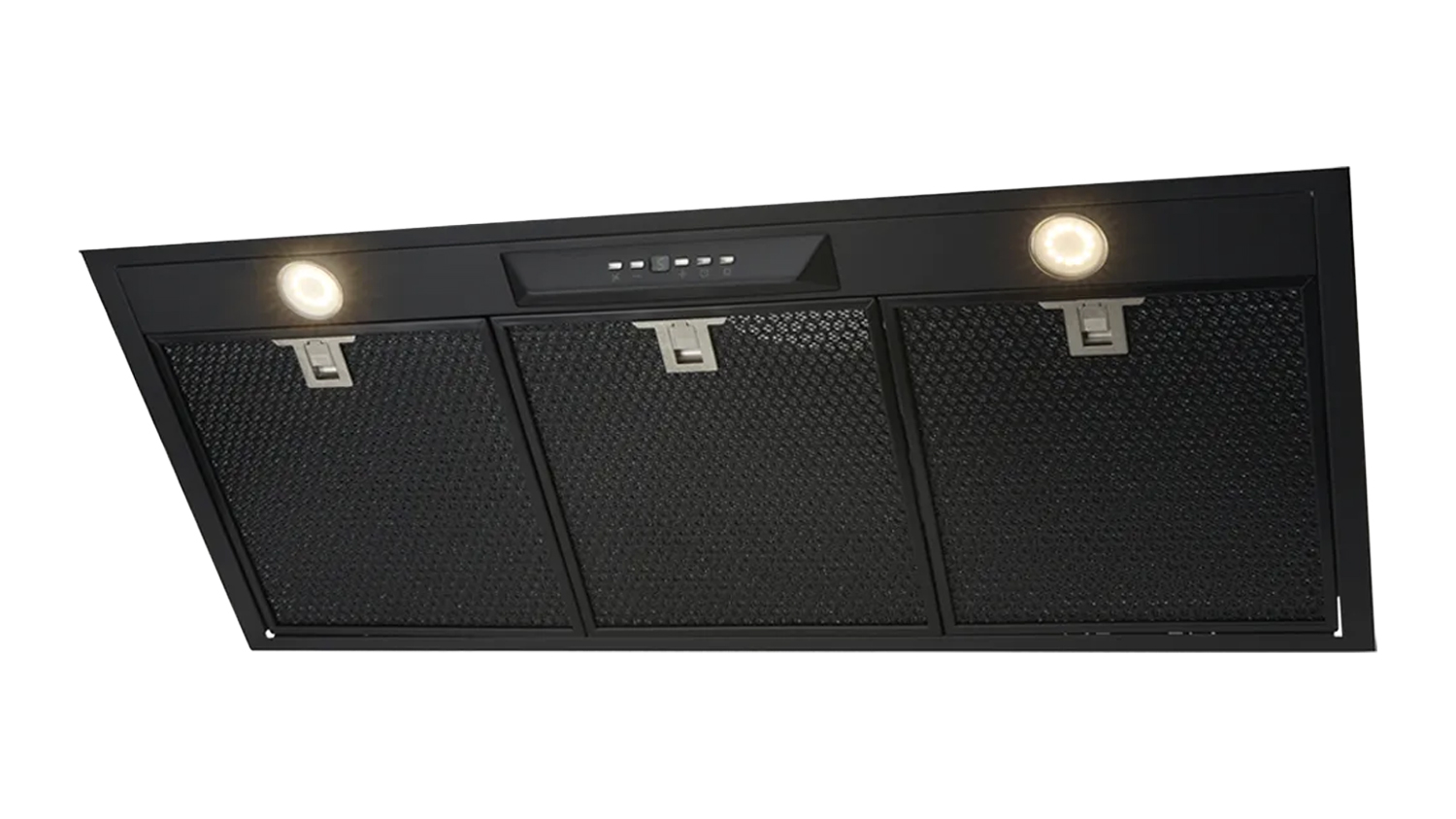

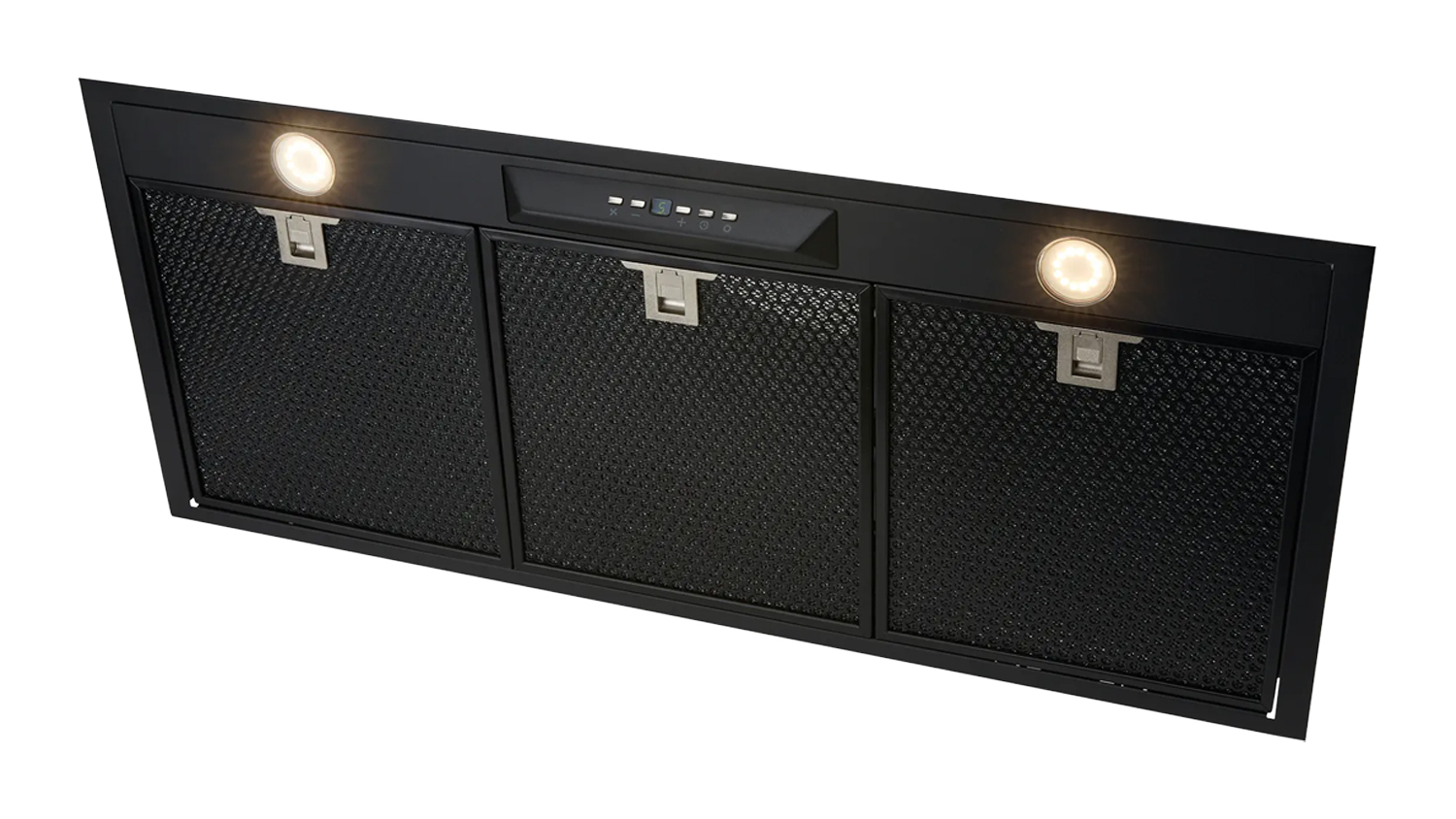

Schweigen 90cm Silent Undermount Rangehood with Single External SP Motors - Matte Black (UM1390-9BSP/39cm Depth)
Schweigen 90cm Silent Undermount Rangehood with Single External SP Motors - Matte Black (UM1390-9BSP/39cm Depth)
$4,399
Schweigen 90cm Silent Undermount Rangehood with Single External SP Motors - Matte Black (UM1390-9BSP/39cm Depth)
UM1390-9BSP
Available on 36 months of equal Interest Free instalments:
approximately per month
^ Total repayments $4,399 (excluding fees). Min purchase of $500 applies. Offer ends 30/09/2026. Equal monthly payments required. Lending criteria, T&Cs & fees apply incl. a $55 estb. fee & $65 annual fee ($32.50 half yearly). Standard interest rate (currently 29.49% p.a.) applies after interest free term ends. Exclusions may apply. *Further information on rates and fees can be found at gemfinance.co.nz. Credit provided by Latitude Financial Services Ltd.
How it worksGem Finance Interest Free
Available on participating Gem credit cards.
New to Gem? Follow the steps below to apply for a Gem Visa now.
Apply Online
Complete your online application in just 10-15 minutes
Credit Check
Submit income, employment details, and expenses. Include proof of income by sharing your online statement or uploading income documents.
Provide Identification
All applicants must provide a form of identification, e.g., NZ driver's license, NZ Passport, or International Passport.
Extended Range Item | Available by Special Order Only
Delivery expectation: 1-2 weeks
This item is available by special order and may not be stocked in stores.
Purchase online today to secure your product. For more information, please
contact your local Harvey Norman store.
Create a clean, comfortable ambience in your cooking area using the Schweigen 90cm Silent Undermount Rangehood with Single External SP Motors. Built to improve your kitchen’s ventilation, this appliance combines edge-to-edge extraction and maximum 1600 m³/h air flow to remove fumes effectively. It is also easy to use, featuring a touch control panel, mesh filters, internal blow, and lighting.
Key Overview
- Maximum Air Flow of 1600 m³/h
- Edge-to-Edge Extraction
- Internal Blow Included
- Timer Function
- Fan Speed Display
- Removable Grease Filter
- Top Exhaust Vent
- (W x D x H): 898 x 390 x 268 mm
Product Highlights
- Kitchen Ventilation Solution: With its 1600 m³/h airflow, the Schweigen 90cm Undermount Rangehood helps you keep your kitchen smelling fresh and clean during your day-to-day cooking sessions.
- External Extraction Power: This appliance utilises a single external SP motor, providing strong and consistent airflow without disturbing the whole household.
- Triple Mesh Filtration: To help maintain optimal ventilation, this appliance utilises three mesh filters that capture airborne cooking particles. It is also dishwasher-safe, making it easy to maintain.

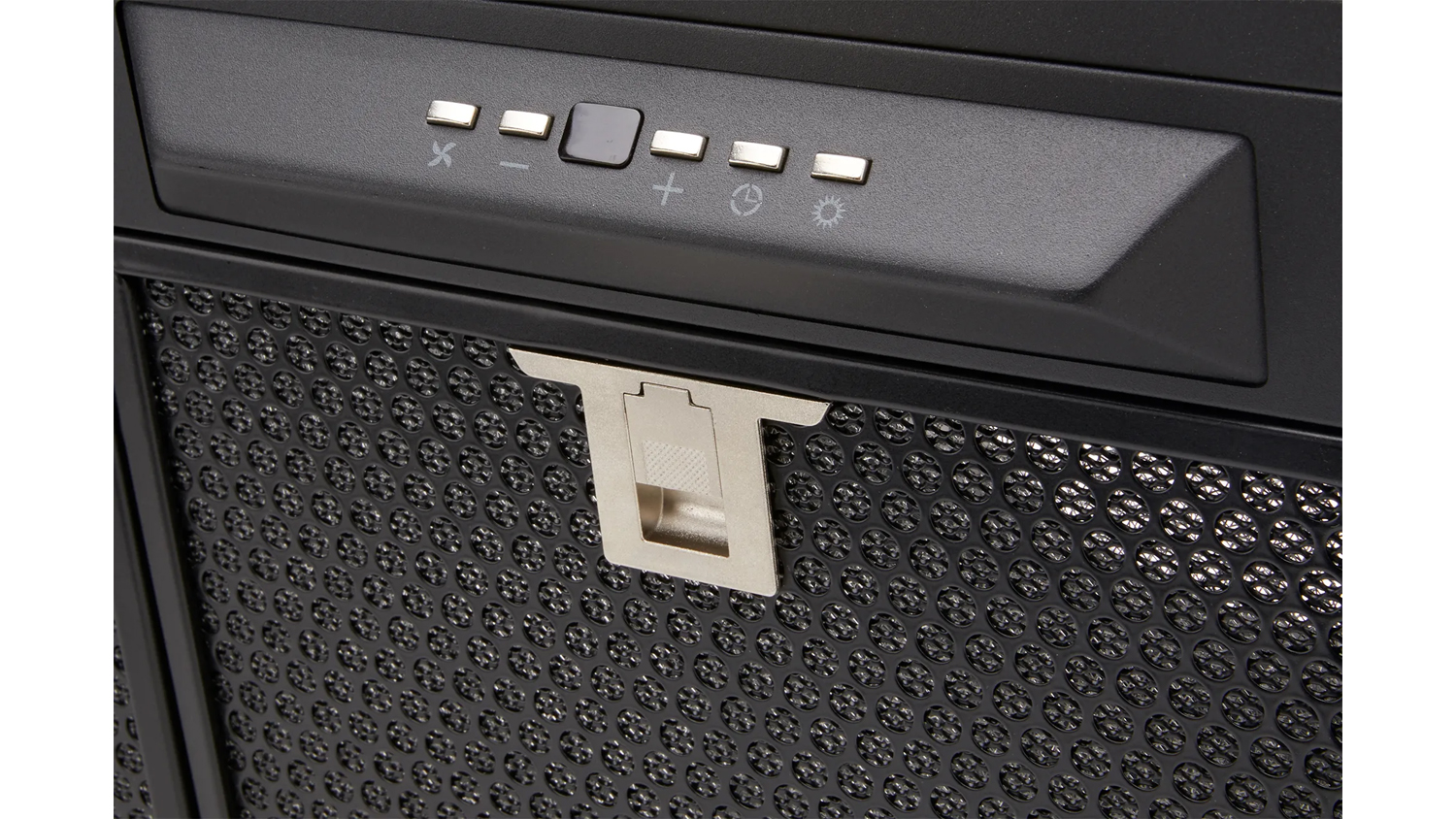

- Convenient Operations: Quickly adjust your rangehood’s settings, thanks to the built-in touch control panel. In addition, it has two 3W lights to provide added illumination while you’re cooking.
- Sleek Minimalist Fit: Achieve a clean, streamlined look in your kitchen! This Schweigen Silent Rangehood flaunts a discreet undermount hood profile that integrates seamlessly into your cabinetry.
*Qualified installer recommended.
| Brand | Schweigen |
|---|---|
| Product Type | Undermount Rangehood |
| Model Number | UM1390-9BSP |
| Colour | Matte Black |
Rangehood
| Hood Type |
|
|---|---|
| Rangehood Feature |
|
Control Panel
| Control Panel Type | Touch Control Panel |
|---|---|
| Location of Control Panel | Front |
Fan
| Maximum Air Flow (Cubic Meter Per Hour) | 1600 m³/h |
|---|---|
| Number of Fan Speeds | 5 x Fan Speeds |
Lighting
| Lighting Type | LED |
|---|---|
| Number of Lights | 2 x Lights |
| Number of Light Levels | 1 x Light Level |
| Lighting Power | 2 x 3 W |
Motor
| Motor Included | Yes, Included |
|---|
Filter
| Filter Type | Mesh Filter |
|---|---|
| Number of Filters | 3 x Filters |
| Replacement Filter | Yes |
| Filter Feature |
|
Vent
| Exhaust Vent Location | Top |
|---|
Ducting
| Duct Shape | Round |
|---|
Power
| Power Source | Corded |
|---|---|
| Power Cable Length | 1.5m |
| Power Connection | 10A plug & lead |
| Power Consumption | 700 mA |
| Voltage | 220-240V |
| Frequency | 50-60Hz |
| Fuse Rating | 10A |
| Power Feature |
|
Installation
| Assembly Type | Installer Required |
|---|---|
| Minimum Installation Height from Cooking Surface (Gas) | 650 mm |
| Minimum Installation Height from Cooking Surface (Electric) | 600 mm |
Dimensions
| Height | 268 mm |
|---|---|
| Width | 898 mm |
| Depth | 390 mm |
| Product Weight | 6.5 kg |
Packaged Dimensions
| Packaged Width | 37.5 cm |
|---|---|
| Packaged Depth | 98.5 cm |
| Packaged Height | 47.5 cm |
| Packaged Weight | 10 kg |
Warranty
| Manufacturers | 60 Months |
|---|
Delivery
We aim to dispatch orders within 2 days. Delivery costs are calculated based on your location and the size of your order. Furniture may take up to 8 weeks to deliver as most products are made specifically for your order. Some Customer Direct products are shipped from overseas and may take longer to arrive. Some goods may take longer to deliver if a product is currently not in stock. A staff member will contact you where this occurs.
Easy returns
If you feel your product has failed a Consumer Guarantee (as defined by New Zealand Consumer Law) then don't worry you can easily return it to your local Harvey Norman store. We'll even pay for the postage if you live in an area where there is no store. Our returns policy covers any purchased item ( conditions apply).
- 1 x Rangehood Body
- 3 x Filters
- 2 x Lights
- 1 x Motor
- 1 x Ducting
- 1 x Wall Bracket
