Schweigen 90cm Silent Undermount Rangehood with Single External ST Motor - Stainless Steel (UM1170-9ST)
UM1170-9ST
Available on 60 months of equal Interest Free instalments:
approximately per month
^ Total repayments $3,199 (excluding fees). Min purchase of $1,500 applies. Offer ends 28/07/2026. Equal monthly payments required. Lending criteria, T&Cs & fees apply incl. a $55 estb. fee & $65 annual fee ($32.50 half yearly). Standard interest rate (currently 29.49% p.a.) applies after interest free term ends. Exclusions may apply. *Further information on rates and fees can be found at gemfinance.co.nz. Credit provided by Latitude Financial Services Ltd.
How it worksGem Finance Interest Free
Available on participating Gem credit cards.
New to Gem? Follow the steps below to apply for a Gem Visa now.
Apply Online
Complete your online application in just 10-15 minutes
Credit Check
Submit income, employment details, and expenses. Include proof of income by sharing your online statement or uploading income documents.
Provide Identification
All applicants must provide a form of identification, e.g., NZ driver's license, NZ Passport, or International Passport.
Extended Range Item | Available by Special Order Only
Delivery expectation: 1-2 Weeks weeks
This item is available by special order and may not be stocked in stores.
Purchase online today to secure your product. For more information, please
contact your local Harvey Norman store.
Refine your kitchen’s air quality using the Schweigen 90cm Silent Undermount Rangehood. Packed with a single external ST motor, this unit lets you enjoy efficient yet quiet ventilation with up to 900 m³/h airflow. It also seamlessly installs under your cabinetry to provide a polished look. Plus, it is a breeze to use, featuring 5-speed settings, dishwasher-safe filters, and LED lighting.
Key Overview
- 90cm Size
- Undermount Hood
- Edge-to-Edge Extraction
- Ducted Vent Type
- Round Duct Shape
- Front Control Panel
Product Highlights
- Everyday Fresh Cooking: Say goodbye to a stuffy kitchen ambience with the help of the Schweigen 90cm Silent Undermount Rangehood. It is a practical addition in your household, reliably catching steam, smoke, and odours to keep your culinary space smelling clean at all times.
- Steady Extraction Strength: Thanks to its single external ST motor, you’ll be able to take advantage of a reliable 900 m³/h maximum airflow while also keeping your indoor space serene at all times.
- Modern Minimal Presence: Maintain a seamless kitchen layout! This Schweigen 90cm Rangehood flaunts an undermount design and a stainless steel finish, which beautifully blends into your deep contemporary cabinetry.

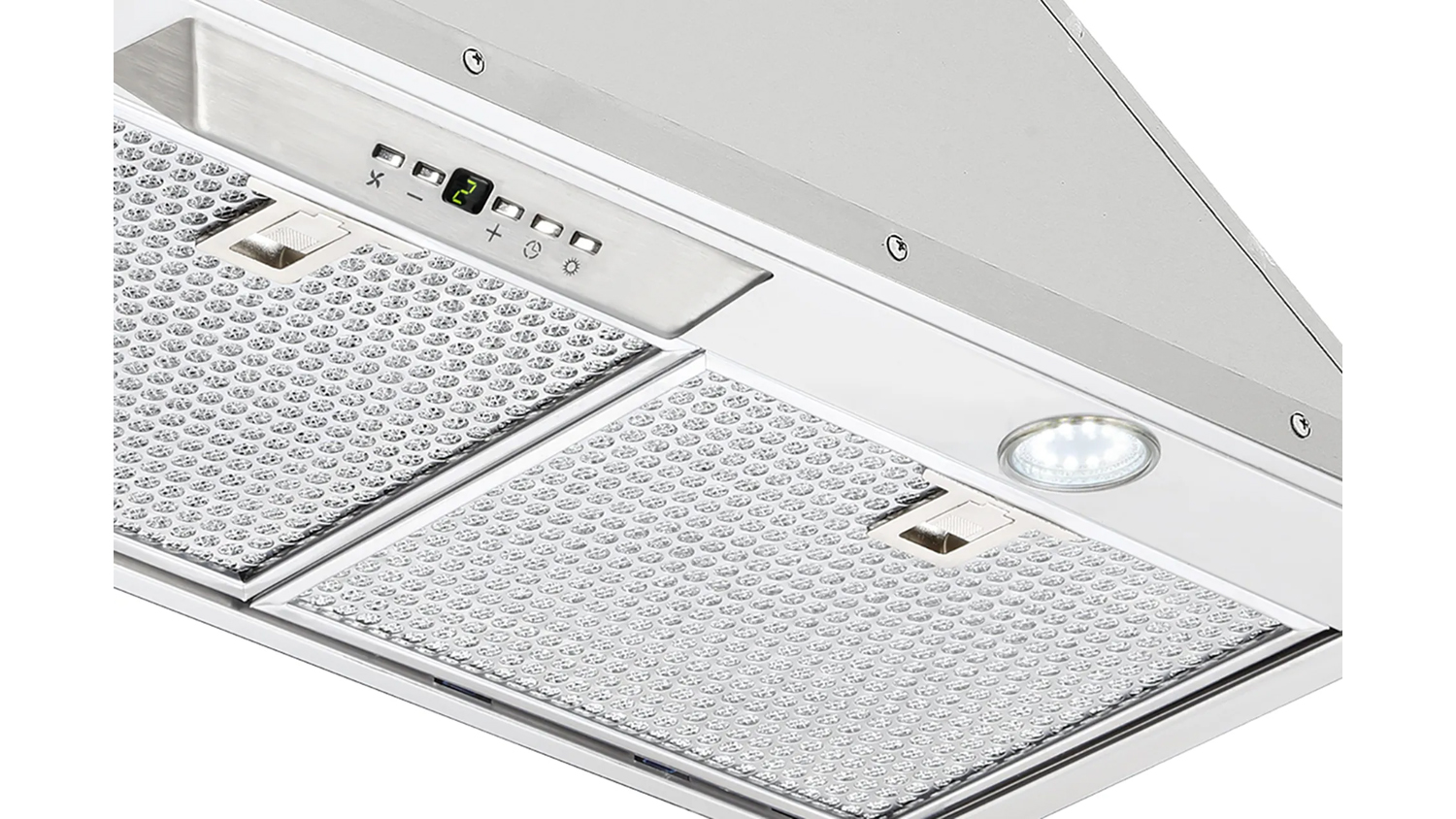

- Convenient Operations: Thanks to its soft-touch controls and digital display, you’ll be able to easily adjust its 5 speed levels and set the 15-minute auto shut-off timer to suit your needs. It also has an LED lighting to provide added visibility while you’re cooking.

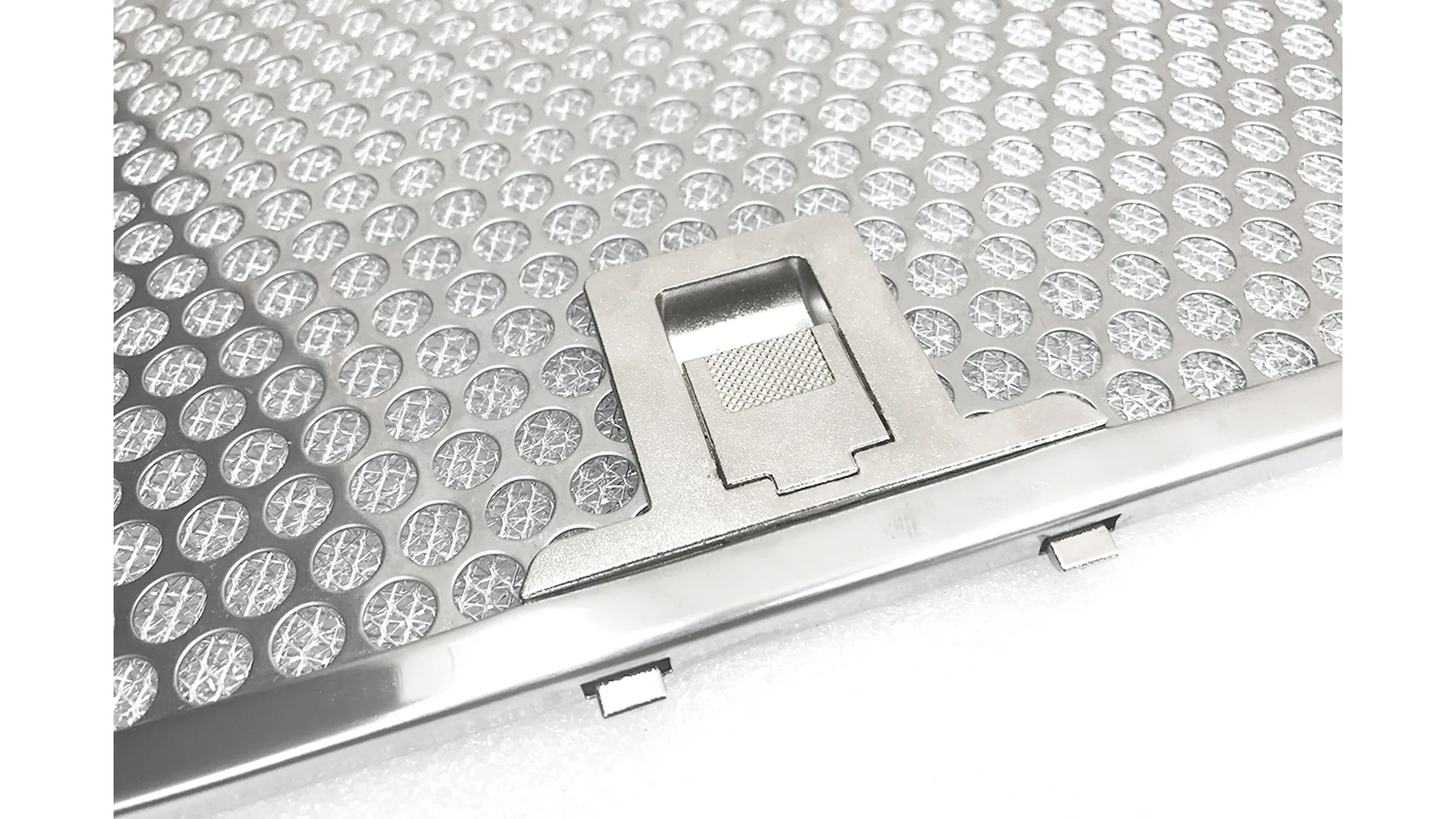

- Convenient Maintenance: Keep your rangehood working at its best! The three high-quality filters help prevent grease buildup inside the unit, while also being dishwasher-safe.
| Brand | Schweigen |
|---|---|
| Product Type | Undermount Rangehood |
| Model Number | UM1170-9ST |
| Colour | Stainless Steel |
Rangehood
| Hood Type |
|
|---|---|
| Rangehood Feature |
|
Control Panel
| Control Panel Type | Touch |
|---|---|
| Location of Control Panel | Front |
Fan
| Maximum Air Flow (Cubic Meter Per Hour) | 900 m³/h |
|---|---|
| Number of Fan Speeds | 5 x Fan Speeds |
Lighting
| Lighting Type | LED Lighting |
|---|---|
| Number of Lights | 2 x Lights |
| Number of Light Levels | 1 x Light Level |
| Lighting Power | 2 x 3W |
Motor
| Motor Included | Yes, Included |
|---|
Filter
| Filter Type | Mesh |
|---|---|
| Number of Filters | 3 x Filters |
Vent
| Exhaust Vent Location | Top |
|---|
Ducting
| Duct Shape | Round |
|---|
Installation
| Assembly Type | Installer Required |
|---|---|
| Minimum Installation Height from Cooking Surface (Gas) | 650 mm |
| Minimum Installation Height from Cooking Surface (Electric) | 600 mm |
Electrical Connection
| Type of Connection | 10A Plug & Lead |
|---|---|
| Power Cable Length | 1.5 m |
| Power Indicator | Yes |
| Wattage/Voltage | AC220-240V 50/60Hz |
| Fuse Rating | 10A |
| Current Consumption | 260mA |
| Auto Power Off | Yes |
Dimensions
| Height | 289 mm |
|---|---|
| Width | 898 mm |
| Depth | 295 mm |
| Product Weight | 5.8 kg |
Packaged Dimensions
| Packaged Width | 38 cm |
|---|---|
| Packaged Depth | 98 cm |
| Packaged Height | 38 cm |
| Packaged Weight | 9 kg |
Warranty
| Manufacturers | 60 Months |
|---|
Schweigen 90cm Silent Undermount Rangehood with Single External ST Motor - Stainless Steel (UM1170-9ST) is rated
out of
5 by
38.
Rated 5 out of
5
by
Shadz from
Great product easy install start to finish.
I bought this rangehood 11 months ago during my major renovation. I installed it myself which was quite easy with well explained instructions. Due to my house configuration the only way I could install the ducting was vertically through my ceiling space and travelled 6mtrs in length. To be honest I was very worried that at that distance the rangehood motor won't be powerful enough to vent the air outside. But it does it with easy no more cooking smell travelling through the house. The internal rangehood is very quite as the motor is installed externally.
Overall I'm very very satisfied with this product and cannot fault it.
Date published: 2023-02-09
Rated 5 out of
5
by
Kelly from
Rangehood doesn't detract from our ambience
As someone who is still learning to cook, I need two things in my kitchen: ambience and a powerful rangehood.
We purchased the Schweigen 900mm undermount rangehood for our new custom home build and are loving how silent it is which means I can listen to music, watch the TV or better yet, be in complete silence while cooking, and not be distracted by the loud and overwhelming noises of other rangehoods.
Previously when I cooked, I would set off the smoke alarms (yes, I’m that good). Now, thanks to the powerful suction of the rangehood, our neighbours don’t come running over thinking that our house is burning down. Plus whoever designed the filters to be dishwasher safe needs a promotion!
Date published: 2024-03-14
Rated 5 out of
5
by
Anonymous from
Schweigen Silent Stovetop Steam and Smoke Sucker
Funny title but works and looks great. Can talk and hear the TV while cooking now. Worth the extra money for an effective but peaceful rangehood solution. The warranties are good too.
Date published: 2023-06-15
Rated 5 out of
5
by
Lola J from
Awesome range hood!
Have had our silent undermount range hood for 2 years now. Highly efficient and can highly recommend for those who love cooking with spices. Extremely strong motor suction makes the cooking process a breeze as all vapours escape the kitchen area. I could not be happier with the product, and I must say, I love entertaining with this quiet range hood, I can actually talk and cook at the same time without having to yell hehe!
Date published: 2025-10-09
Rated 5 out of
5
by
Pkay from
Wow. It is amazing.
This Schweigen Rangehood has exceeded my high expectations, not only in effectiveness and appearance but it is virtually silent.
I initially thought it hadn’t been connected!!
We got the mid-size motor (roof top) and it sucks up steam and smell no worries. Pan frying or boiling, no worries. And virtually silent. Previous home had a dual motor qasair and this is better.
The timer and lights are great too.
Date published: 2023-11-29
Rated 5 out of
5
by
ZofiaD from
Love my rangehood + Excellent post sale service
We bought our rangehood a few years ago. We love it - it's silent and works wonders - in fact it's so silent sometimes I forget and leave it on. We have recommended it a number of people. However, we recently had an issue. I was so nervous that I would end up in a consumer battle. I am absolutely delighted that the team dealt with the issue efficiently and promptly. Love Schweigen even more now.
Date published: 2023-05-01
Rated 4 out of
5
by
Anonymous from
A quiet well made range hood
I was looking for a quality range hood that had a better airflow without the noise that comes from higher fan speeds. Schweigen has the benefit of the externally mounted fan, but having larger diameter ducting, a bigger surface area and getting the basic design right has made all the difference.
I would hose your new unit in a cabinet as the traditional hoods attract dust. Check my photo
Date published: 2023-04-06
Rated 5 out of
5
by
Allele from
Best appliance I have ever owned
My home is 2 years old and the standard builder install was air craft carrier and ineffective. I have replaced that unit with Schweigen and it is worth every cent! My home is open plan, i can now have a conversation while i cook, the house does not need to opened up in all weather to extract smells and cooking... the Schweigen does everything ive asked of it and more! 10/10
Date published: 2024-06-08
Delivery
We aim to dispatch orders within 2 days. Delivery costs are calculated based on your location and the size of your order. Furniture may take up to 8 weeks to deliver as most products are made specifically for your order. Some Customer Direct products are shipped from overseas and may take longer to arrive. Some goods may take longer to deliver if a product is currently not in stock. A staff member will contact you where this occurs.
Easy returns
If you feel your product has failed a Consumer Guarantee (as defined by New Zealand Consumer Law) then don't worry you can easily return it to your local Harvey Norman store. We'll even pay for the postage if you live in an area where there is no store. Our returns policy covers any purchased item ( conditions apply).
- 1 x Rangehood Body
- 3 x Filters
- 2 x Lights
- 1 x Motor
- 1 x Ducting
- 1 x Wall Bracket
