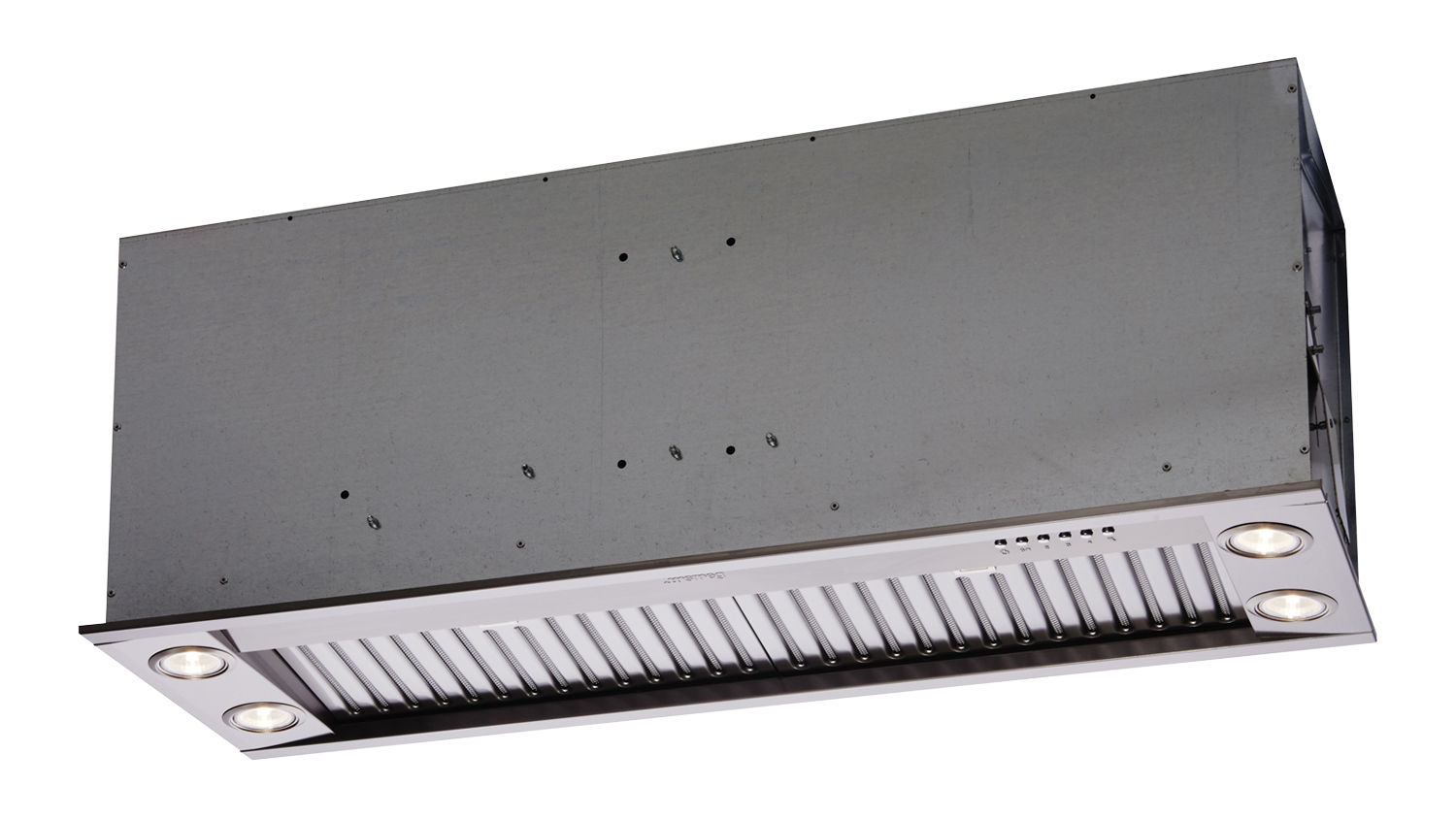

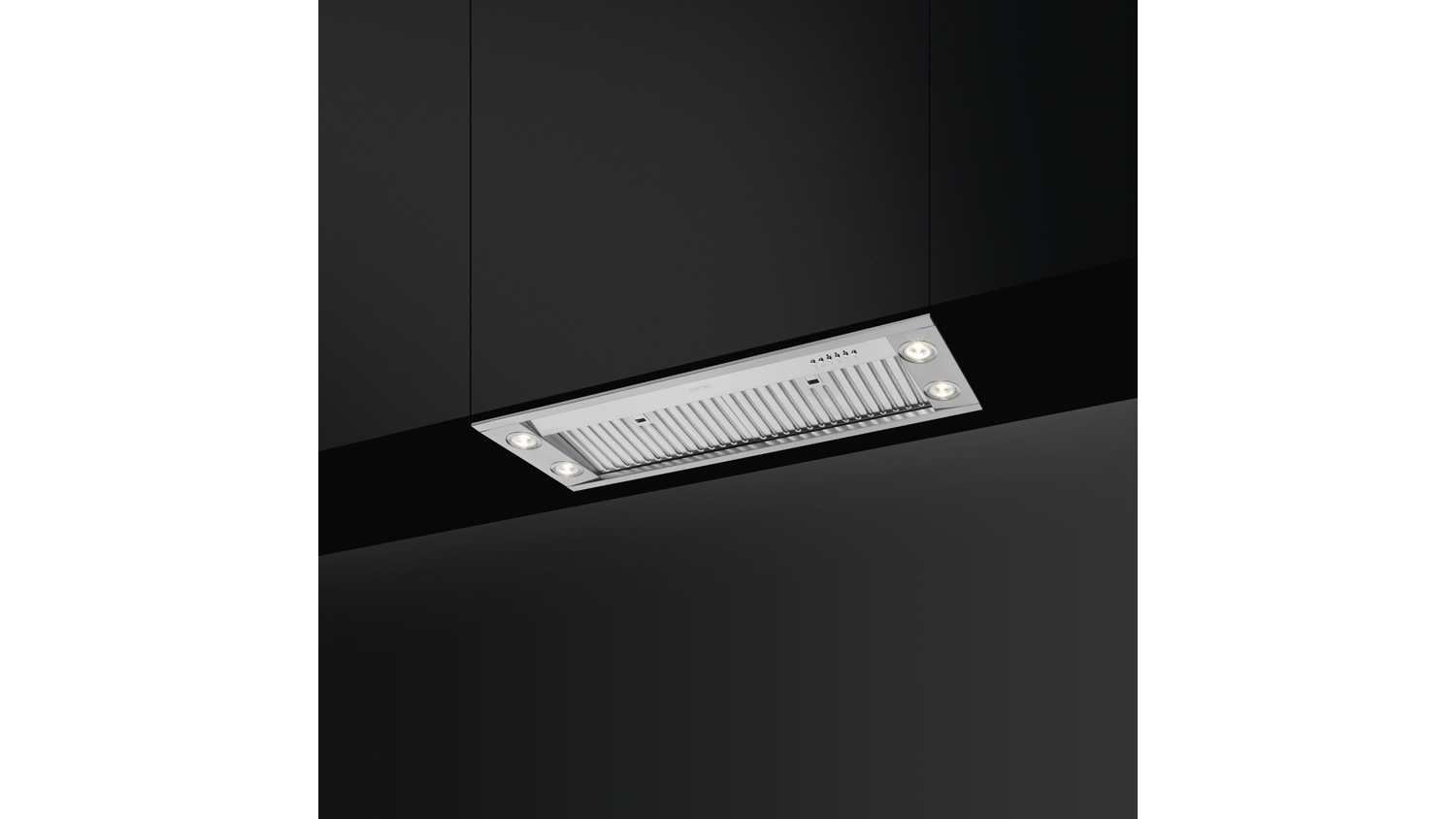

Smeg 90cm Non-Silent Undermount Rangehood with Onboard Motor - Stainless Steel (KDIAM90AX)
Smeg 90cm Non-Silent Undermount Rangehood with Onboard Motor - Stainless Steel (KDIAM90AX)
$2,799
Smeg 90cm Non-Silent Undermount Rangehood with Onboard Motor - Stainless Steel (KDIAM90AX)
KDIAM90AX
Available on 60 months of equal Interest Free instalments:
approximately per month
^ Total repayments $2,799 (excluding fees). Min purchase of $1,500 applies. Offer ends 28/07/2026. Equal monthly payments required. Lending criteria, T&Cs & fees apply incl. a $55 estb. fee & $65 annual fee ($32.50 half yearly). Standard interest rate (currently 29.49% p.a.) applies after interest free term ends. Exclusions may apply. *Further information on rates and fees can be found at gemfinance.co.nz. Credit provided by Latitude Financial Services Ltd.
How it worksGem Finance Interest Free
Available on participating Gem credit cards.
New to Gem? Follow the steps below to apply for a Gem Visa now.
Apply Online
Complete your online application in just 10-15 minutes
Credit Check
Submit income, employment details, and expenses. Include proof of income by sharing your online statement or uploading income documents.
Provide Identification
All applicants must provide a form of identification, e.g., NZ driver's license, NZ Passport, or International Passport.
Extended Range Item | Available by Special Order Only
Delivery expectation: 2-4 weeks
This item is available by special order and may not be stocked in stores.
Purchase online today to secure your product. For more information, please
contact your local Harvey Norman store.
Keep your cooking area fresh with the Smeg 90cm Non-Silent Undermount Rangehood with Onboard Motor. Featuring two powerful 275W onboard motors, 1555 m³/h airflow, and a removable grease filter, this appliance is built to remove smoke and odours with ease. Its button controls, fan speed display, dishwasher-safe filters, and LED lighting deliver everyday convenience—all with a clean, contemporary look.
Key Overview
- 90cm Size Undermount Rangehood
- 2 x 275W Onboard Motors
- 46-74 dBA Noise Level
- LED Lighting
- Stainless Steel Baffle Filters
- Automatic Safety Cut Off
- Top Exhaust Vent
- (W x D x H): 900 x 295 x 315 mm
Product Highlights
- Efficient Ventilation: Designed for cooking spaces, the Smeg Undermount Rangehood features two 275W onboard motors, a powerful 1555 m³/h airflow, and four adjustable fan speeds to quickly clear smoke and cooking odours. It also delivers a 46-74 dBA noise level.
- Easy-Clean Filters: This Smeg rangehood features two removable stainless steel baffle filters that capture grease and airborne particles. The filters are dishwasher-safe, making cleaning quick and convenient.
- Optimised Ventilation System: Featuring a perimeter extraction design, this rangehood offers both recirculating and ducted installation options, complemented by a top exhaust vent and electronic button controls for reliable ventilation and a fresher cooking environment.
- Convenient Controls: Enjoy effortless operation with a fan-speed indicator, complemented by an integrated internal blower, timer function, and automatic safety cut-off for powerful performance, added convenience, and enhanced safety.
- Optimum Visibility: Equipped with four LED lights, this rangehood brightly illuminates your cooking space for safer and more precise meal preparation.
- Modern Style: With its sleek profile and polished stainless steel finish, this rangehood enhances your kitchen with a stylish and streamlined look.
Manufacturer’s Warranty
- 5 years
*Qualified installer required.
| Brand | Smeg |
|---|---|
| Product Type | Undermount Rangehood |
| Model Number | KDIAM90AX |
| Colour | Silver |
Rangehood
| Hood Type |
|
|---|---|
| Rangehood Feature |
|
Control Panel
| Control Panel Type | Electronic Button Control |
|---|---|
| Location of Control Panel | Front |
Fan
| Maximum Air Flow (Cubic Meter Per Hour) | Max Airflow (IEC 60704‑3): 1555 m³/h |
|---|---|
| Number of Fan Speeds | 4 x Fan Speeds |
Lighting
| Lighting Type | LED |
|---|---|
| Number of Lights | 4 x Lights |
| Lighting Power | 4 x 1W |
Motor
| Motor Included | Yes, Included |
|---|---|
| Type of Motor | 2 x 275W Onboard Motors |
| Noise Level | 46-74 dBA Maximum |
Filter
| Filter Type | Stainless Steel Baffle Filters |
|---|---|
| Number of Filters | 2 x Filters |
| Replacement Filter | KITALLFC |
| Filter Feature |
|
Vent
| Exhaust Vent Location | Top |
|---|---|
| Vent Type | Recirculating or Ducted |
| Vent Style | Perimeter Extraction |
| Compatible Venting Kit | 150mm Diameter Ducting Kit |
Ducting
| Ducting Availability | Available Separately |
|---|---|
| Ducting Diameter | 150 mm |
| Duct Shape | Round |
Recirculation
| Recirculation Option | Top Extraction |
|---|---|
| Recirculation Kit | Available Separately |
Smart Features
| Display Type | Buttons |
|---|
Installation
| Assembly Type | Installer Required |
|---|---|
| Installation Type | Undermount |
| Minimum Installation Height from Cooking Surface (Gas) | 750 mm |
| Minimum Installation Height from Cooking Surface (Electric) | 650 mm |
Electrical Connection
| Type of Connection | 10A Plug & Lead |
|---|---|
| Wattage/Voltage | 220-240V, 50/60Hz |
| Fuse Rating | 10A |
| Auto Power Off | Yes |
Dimensions
| Height | 315 mm |
|---|---|
| Width | 900 mm |
| Depth | 295 mm |
| Product Weight | 20 kg |
Packaged Dimensions
| Packaged Width | 100.5 cm |
|---|---|
| Packaged Depth | 40.5 cm |
| Packaged Height | 47.5 cm |
| Packaged Weight | 24.55 kg |
Warranty
| Manufacturers | 60 Months |
|---|
Delivery
We aim to dispatch orders within 2 days. Delivery costs are calculated based on your location and the size of your order. Furniture may take up to 8 weeks to deliver as most products are made specifically for your order. Some Customer Direct products are shipped from overseas and may take longer to arrive. Some goods may take longer to deliver if a product is currently not in stock. A staff member will contact you where this occurs.
Easy returns
If you feel your product has failed a Consumer Guarantee (as defined by New Zealand Consumer Law) then don't worry you can easily return it to your local Harvey Norman store. We'll even pay for the postage if you live in an area where there is no store. Our returns policy covers any purchased item ( conditions apply).
- 1 x Rangehood
- 2 x Stainless Steel Baffle Filters
- 4 x 1W Built-In LED Lights
- 1 x User Manual and Installation Instructions
