Whirlpool 90cm Box Chimney Wall Mounted Rangehood - Stainless Steel (WT9BTAXA)
Whirlpool 90cm Box Chimney Wall Mounted Rangehood - Stainless Steel (WT9BTAXA)
$1,359
Whirlpool 90cm Box Chimney Wall Mounted Rangehood - Stainless Steel (WT9BTAXA)
WT9BTAXA
Available on 36 months of equal Interest Free instalments:
approximately per month
^ Total repayments $1,359 (excluding fees). Min purchase of $500 applies. Offer ends 31/07/2026. Equal monthly payments required. Lending criteria, T&Cs & fees apply incl. a $55 estb. fee & $65 annual fee ($32.50 half yearly). Standard interest rate (currently 29.49% p.a.) applies after interest free term ends. Exclusions may apply. *Further information on rates and fees can be found at gemfinance.co.nz. Credit provided by Latitude Financial Services Ltd.
How it worksGem Finance Interest Free
Available on participating Gem credit cards.
New to Gem? Follow the steps below to apply for a Gem Visa now.
Apply Online
Complete your online application in just 10-15 minutes
Credit Check
Submit income, employment details, and expenses. Include proof of income by sharing your online statement or uploading income documents.
Provide Identification
All applicants must provide a form of identification, e.g., NZ driver's license, NZ Passport, or International Passport.
Extended Range Item | Available by Special Order Only
Delivery expectation: 2-4 weeks
This item is available by special order and may not be stocked in stores.
Purchase online today to secure your product. For more information, please
contact your local Harvey Norman store.

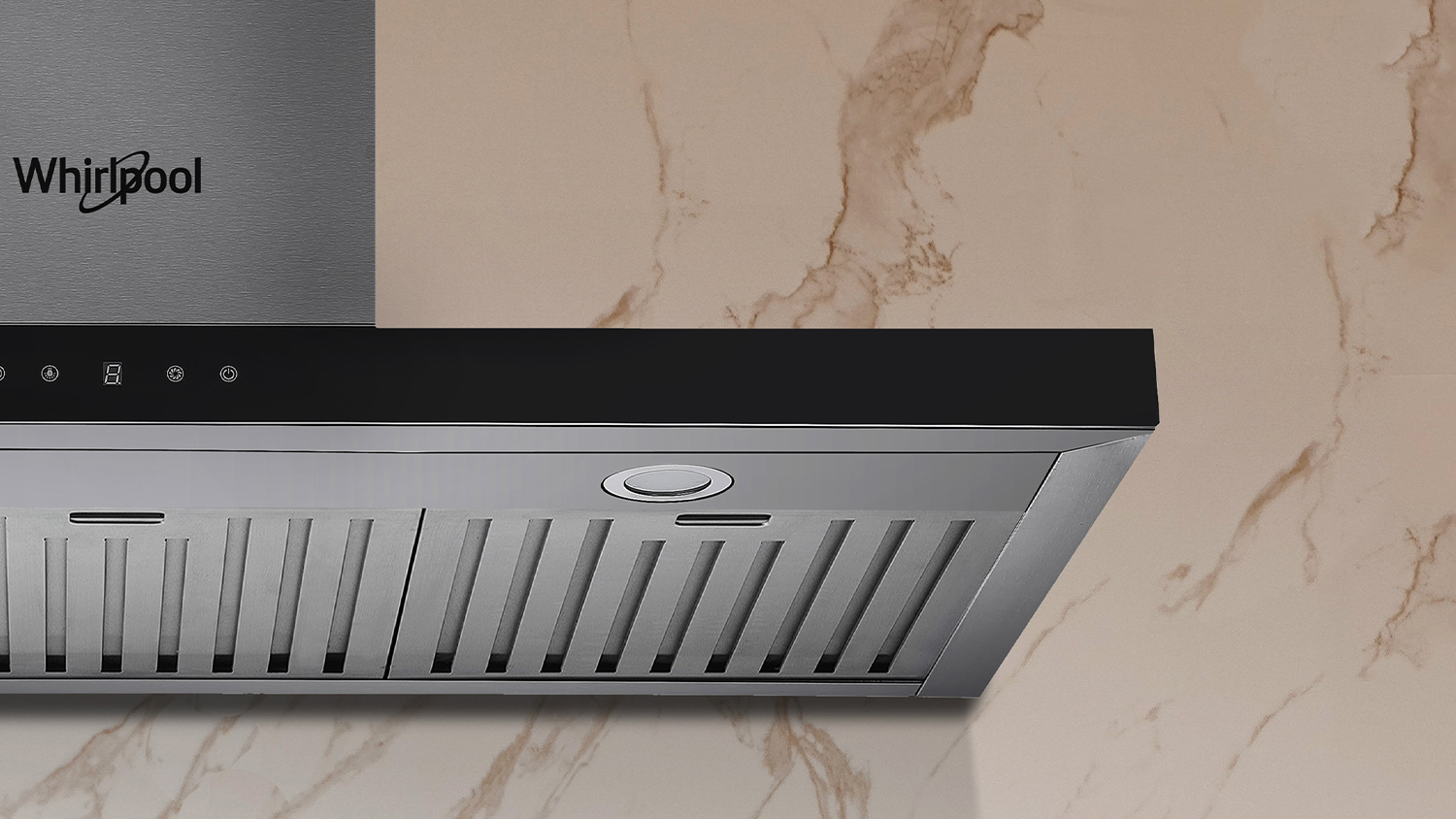

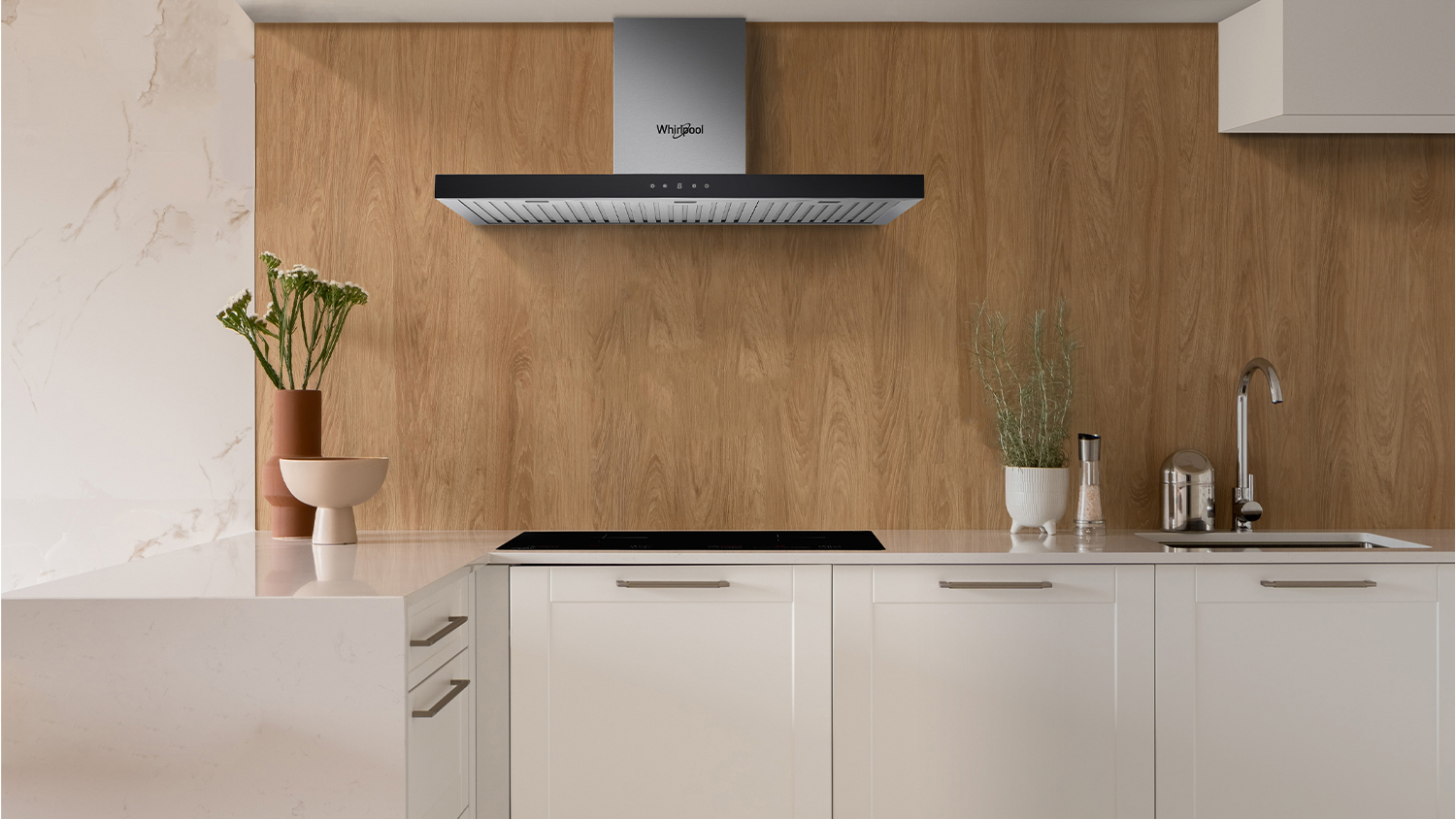

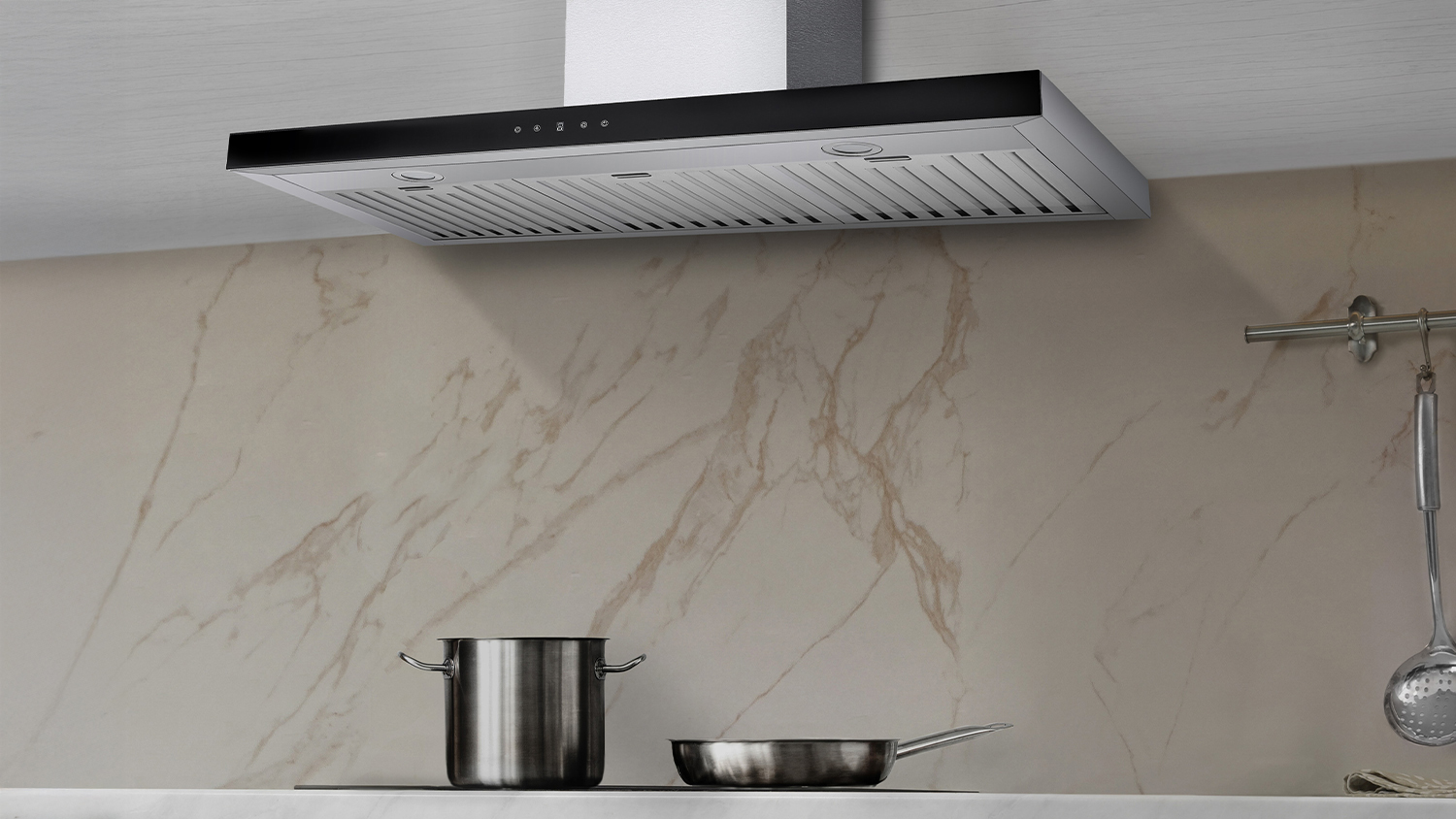

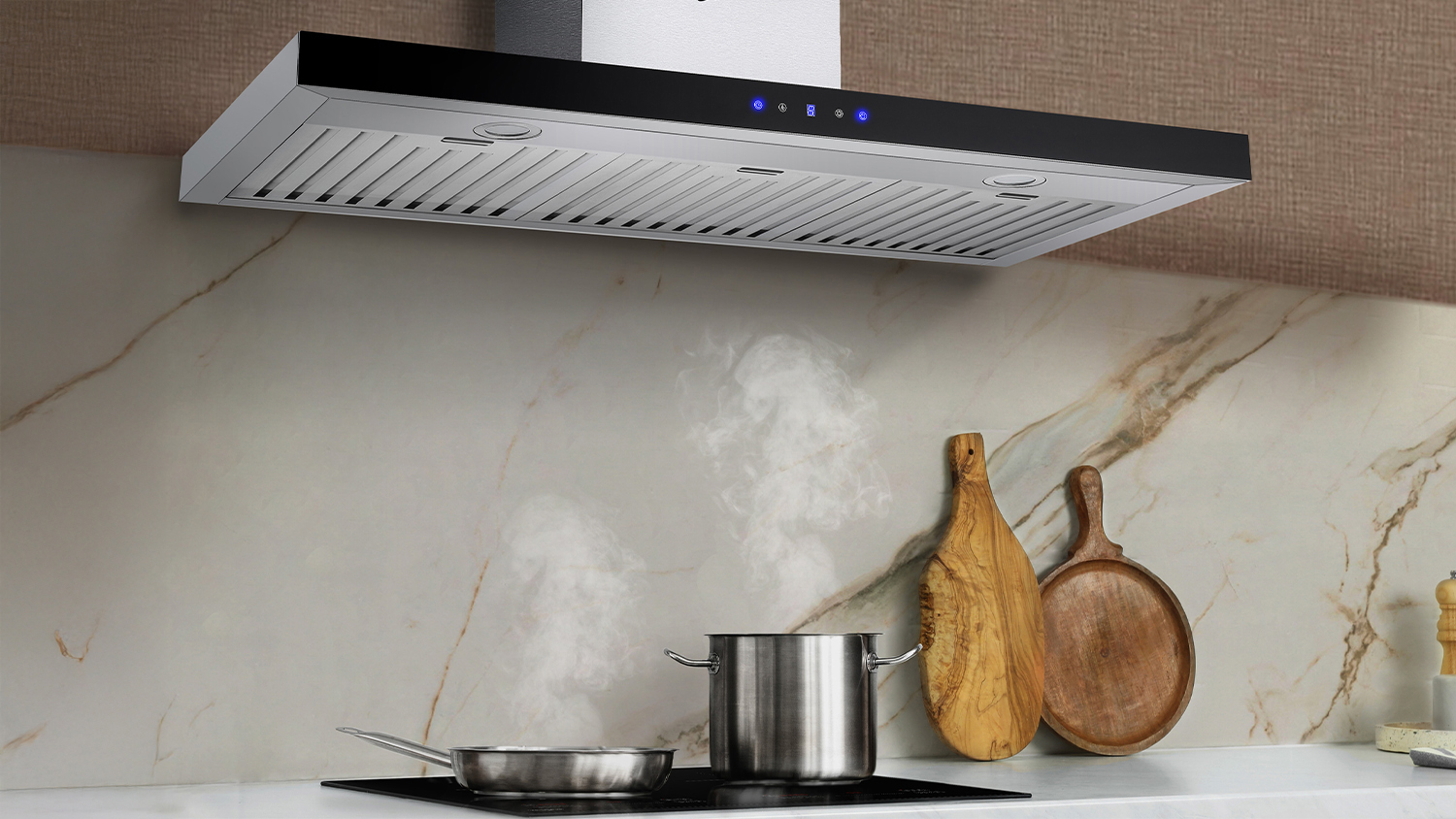

Get rid of lingering smells effortlessly and keep your kitchen environment clean with the Whirlpool 90cm Box Chimney Wall Mounted Rangehood. Your suitable companion for day-to-day cooking, this appliance boasts a 1200 m³/h maximum airflow and a noise level as low as 68.7dB. It also provides superb extraction with three fan speed options. In addition, this unit showcases a sophisticated wall-mounted design and a stainless steel finish, so it can seamlessly blend into your modern home.
Key Overview
- 90cm Size
- Wall Mounted Canopy Hood
- Box Chimney Design
- 1200 m³/h Max Airflow
- 3 x Filters
- LED Lighting
- Adjustable Fan Speed
- Ducted or Recirculating Option
- (H x W x D) - 550-1030 x 896 x 505 mm
Product Highlights
- Powerful Kitchen Companion: Enjoy a cleaner, fresher kitchen environment with the Whirlpool 90cm Box Chimney Wall-Mounted Rangehood. This brilliant appliance features a 1200 m³/h maximum airflow, high extraction power, and three fan speeds to remove smoke, grease, heat, steam, and other nasty airborne particles in your cooking area.
- Quiet Operations: This product highlights noise levels ranging from 68.7 to 73.5 dB, so you can enjoy whisper-quiet power while you cook.
- Streamlined Filters: This Whirlpool Rangehood utilises three steel baffle filters to trap grease, oil, and other contaminants effectively. These filters are also removable, so they’re easy to upkeep.

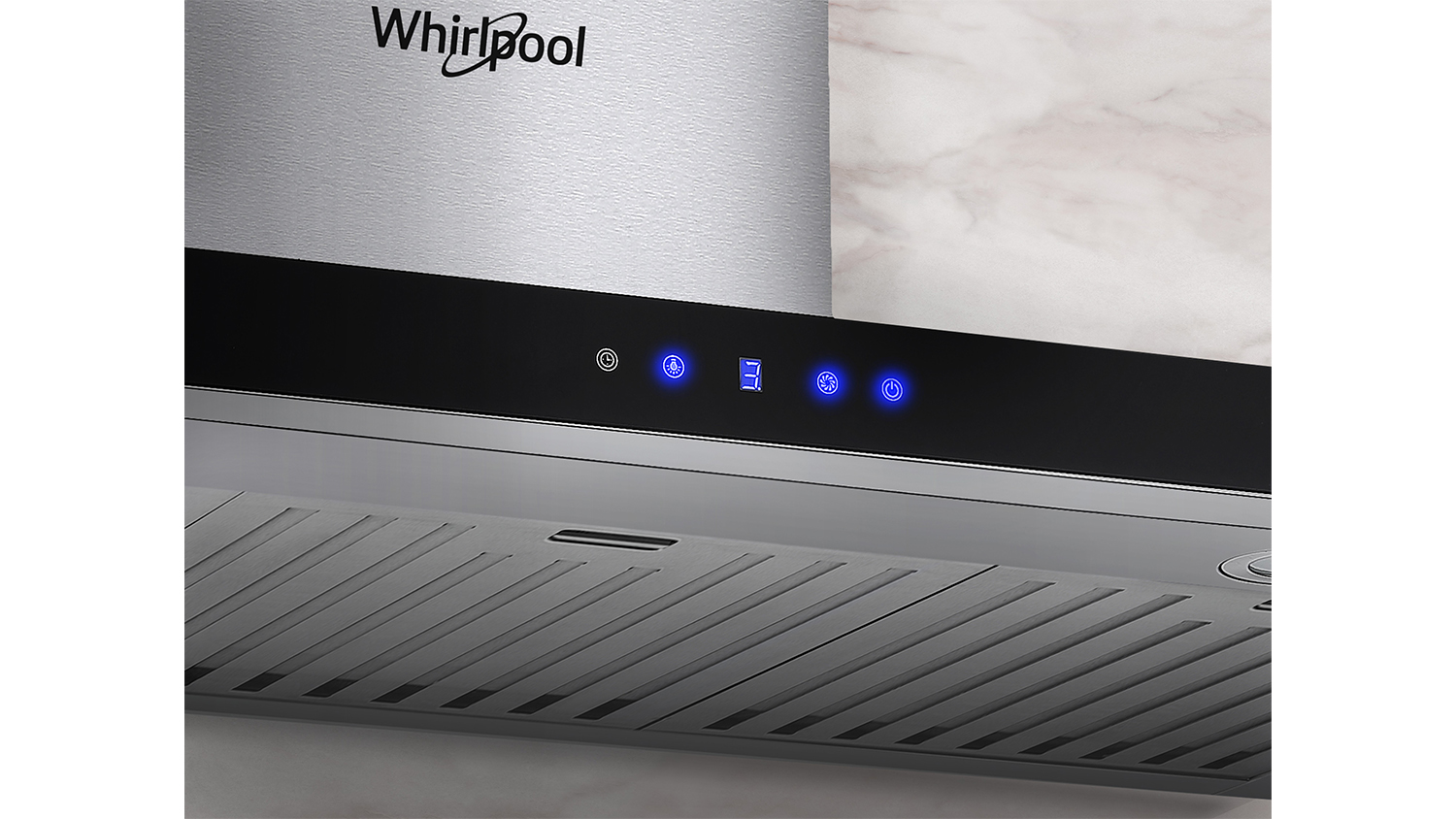

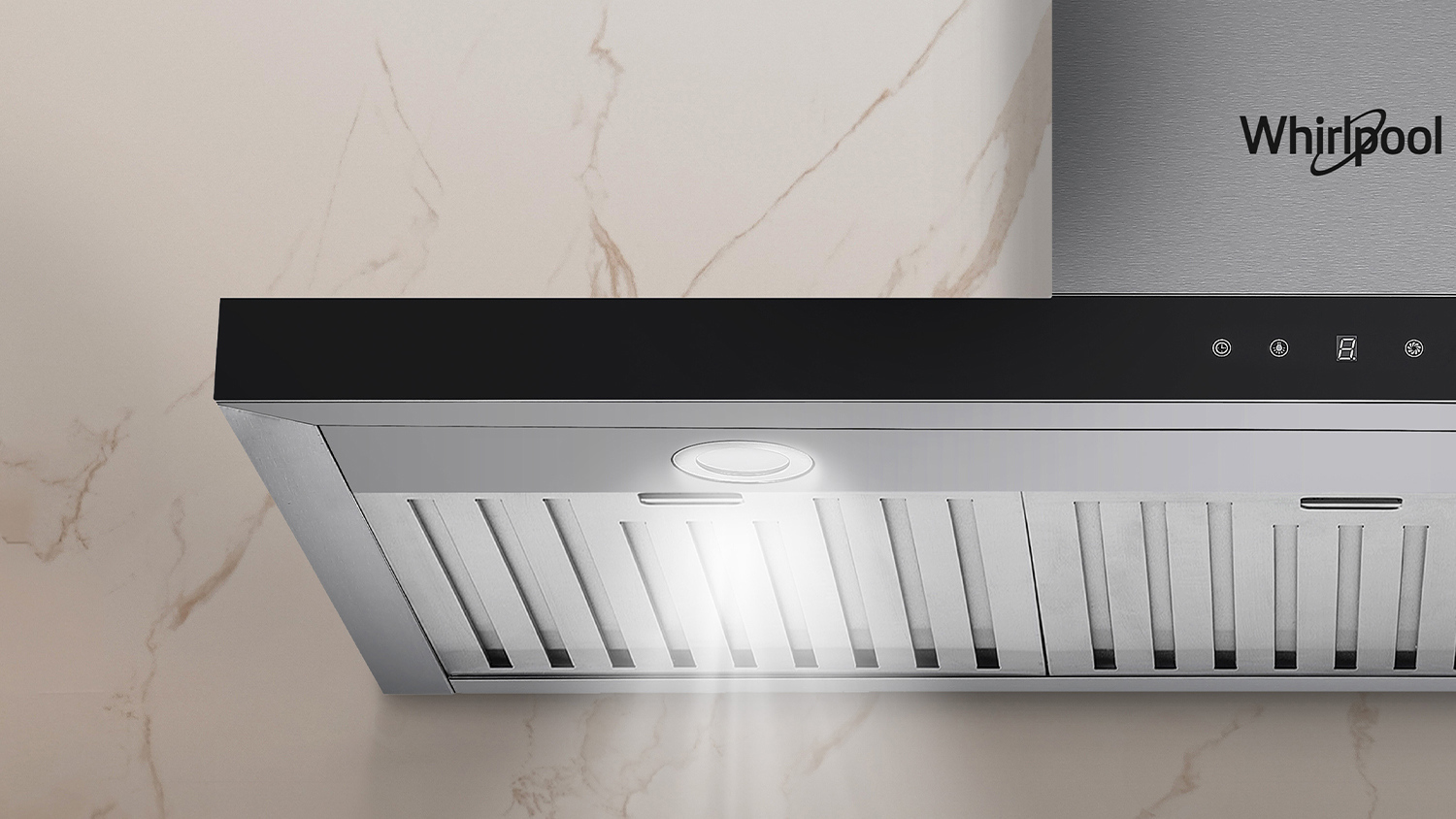

- Seamless Operations: Thanks to its user-friendly touch control panel, you can adjust its settings effortlessly. This unit also includes a 9-minute delay timer function and two LED lights for ease of use. Plus, it equips an Induction Countdown Control and a Fan Speed Display, allowing you to see your rangehood’s progress while in use.
- Modern Structure: Here to add a touch of elegance to your kitchen, this Whirlpool Box Chimney Wall Mounted Rangehood flaunts a stainless steel finish matched with a glass panel.
- Easy Maintenance: Always make sure your rangehood is working at its best, thanks to its unique Heat Auto Clean technology and Invisible Oil Cup. This feature intuitively dissolves residual oil from your rangehood’s blower and collects it straight into the cup. Now you can spend less time tidying up your appliance after each use.
| Brand | Whirlpool |
|---|---|
| Product Type | Wall Mounted Rangehood |
| Model Number | WT9BTAXA |
| Colour | Stainless Steel |
| Made in | Asia |
Rangehood
| Hood Type |
|
|---|---|
| Rangehood Feature |
|
Control Panel
| Control Panel Type | Touch Panel |
|---|---|
| Location of Control Panel | Front of Rangehood |
Fan
| Maximum Air Flow (Cubic Meter Per Hour) | 1200 m³/h |
|---|
Lighting
| Lighting Type | LED Lighting |
|---|---|
| Integrated Light | Yes |
| Number of Lights | 2 x Lights |
| Lighting Power | 1W |
Motor
| Motor Included | Yes, Included |
|---|
Filter
| Filter Type | Steel Baffle Filters |
|---|---|
| Number of Filters | 3 x Filters |
| Filter Feature |
|
Vent
| Exhaust Vent Location | Top Vent |
|---|---|
| Vent Type | Ducted or Recirculating |
Ducting
| Ducting Availability | Available Separately |
|---|---|
| Ducting Diameter | 150 mm |
| Duct Shape | Round Shape |
| Flue Cover Depth | 275 mm |
| Flue Cover Width | 303 mm |
Recirculation
| Recirculation Option | Yes - Top Extraction |
|---|---|
| Recirculation Kit | Available Separately |
Installation
| Assembly Type | Professional Installer Recommended |
|---|---|
| Installation Type | Wall Mounted |
| Minimum Installation Height from Cooking Surface (Gas) | 750 mm |
| Minimum Installation Height from Cooking Surface (Electric) | 650 mm |
Electrical Connection
| Type of Connection | 10A plug & lead |
|---|---|
| Power Cable Length | 1.8 m |
| Power Indicator | Yes |
| Wattage/Voltage | AC220-240V 50Hz |
| Fuse Rating | 10A |
| Auto Power Off | Yes |
Dimensions
| Height | 550 mm |
|---|---|
| Width | 896 mm |
| Depth | 505 mm |
| Product Weight | 16.5 kg |
Packaged Dimensions
| Packaged Width | 95.5 cm |
|---|---|
| Packaged Depth | 60.0 cm |
| Packaged Height | 46.5 cm |
| Packaged Weight | 23.6 kg |
Warranty
| Manufacturers | 60 Months |
|---|
Whirlpool 90cm Box Chimney Wall Mounted Rangehood - Stainless Steel (WT9BTAXA) is rated
out of
5 by
2.
Rated 4 out of
5
by
TONY S from
Rangehood review
[This review was collected as part of a promotion.] We recently bought this and we love its suction power. Its bit loud but the suction is great. We also love its filter mesh design. So easy to clean it.
Date published: 2025-09-11
Rated 5 out of
5
by
Anonymous from
Rangehood
Very happy with the quality and the suction system
Date published: 2026-05-05
Delivery
We aim to dispatch orders within 2 days. Delivery costs are calculated based on your location and the size of your order. Furniture may take up to 8 weeks to deliver as most products are made specifically for your order. Some Customer Direct products are shipped from overseas and may take longer to arrive. Some goods may take longer to deliver if a product is currently not in stock. A staff member will contact you where this occurs.
Easy returns
If you feel your product has failed a Consumer Guarantee (as defined by New Zealand Consumer Law) then don't worry you can easily return it to your local Harvey Norman store. We'll even pay for the postage if you live in an area where there is no store. Our returns policy covers any purchased item ( conditions apply).
- 1 x Rangehood
- 1 x Flue
- 3 x Filters
- 1 x Outlet Flap
- 1 x Oil Cup
- 1 x Mounting Bracket Set
- 1 x Instruction Manual
