Extended Range Item | Available by Special Order Only
Delivery expectation: 2-4 weeks This item is available by special order and may not be stocked in stores. Purchase online today to secure your product. For more information, please contact your local Harvey Norman store.

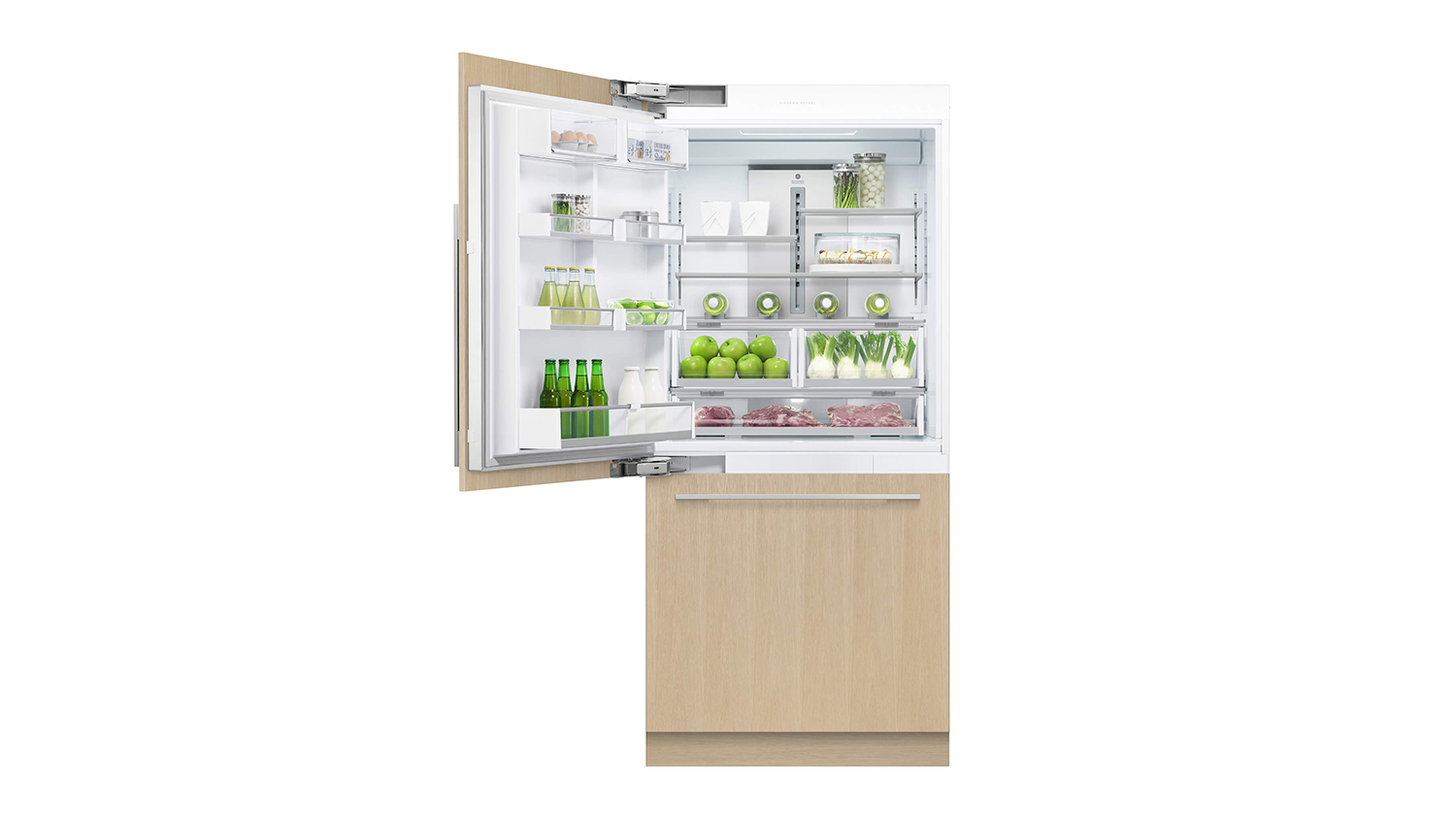

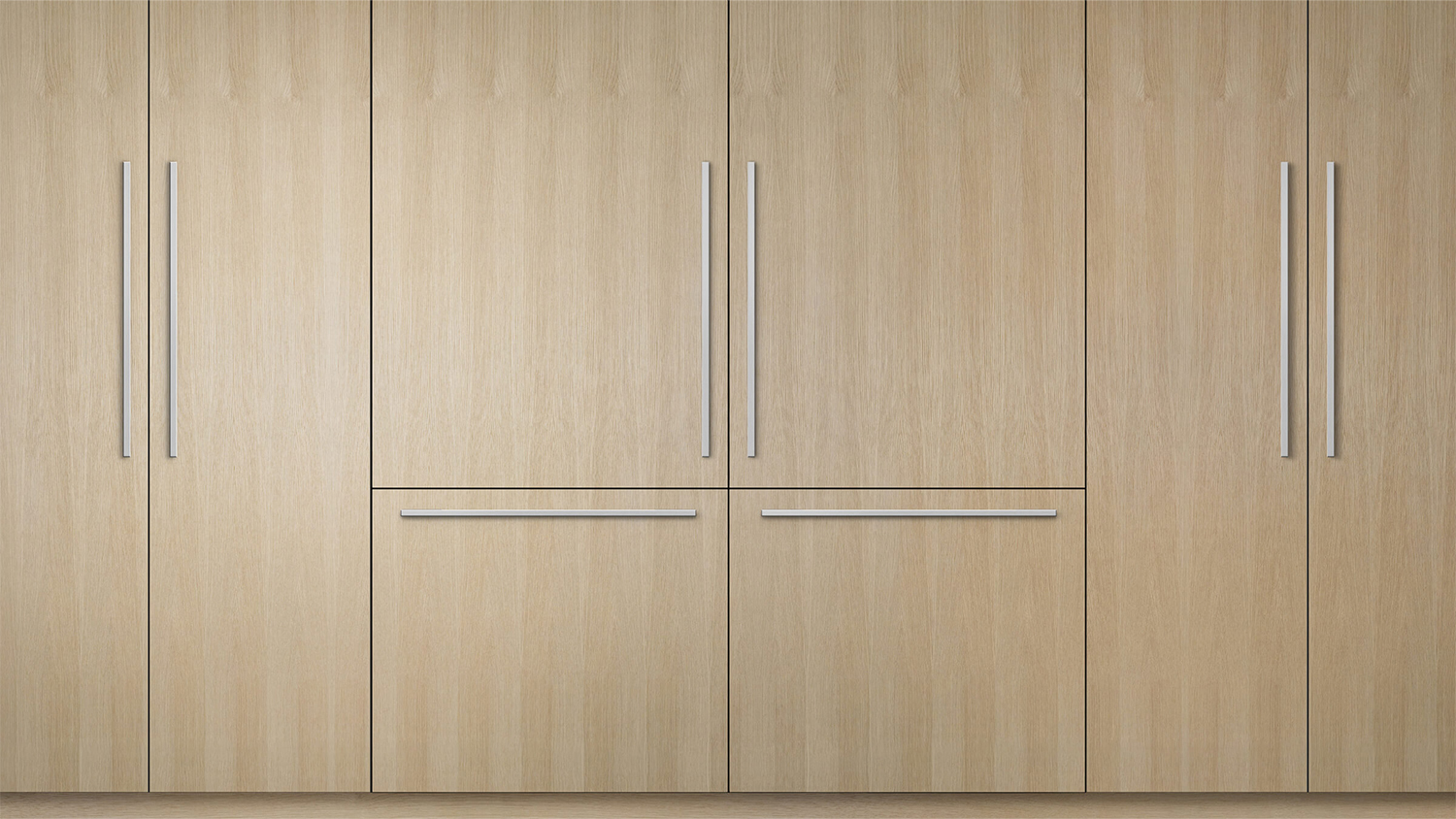

Customise with your own kitchen cabinetry and handles, or purchase the Fisher & Paykel door panel and handles sold separately.

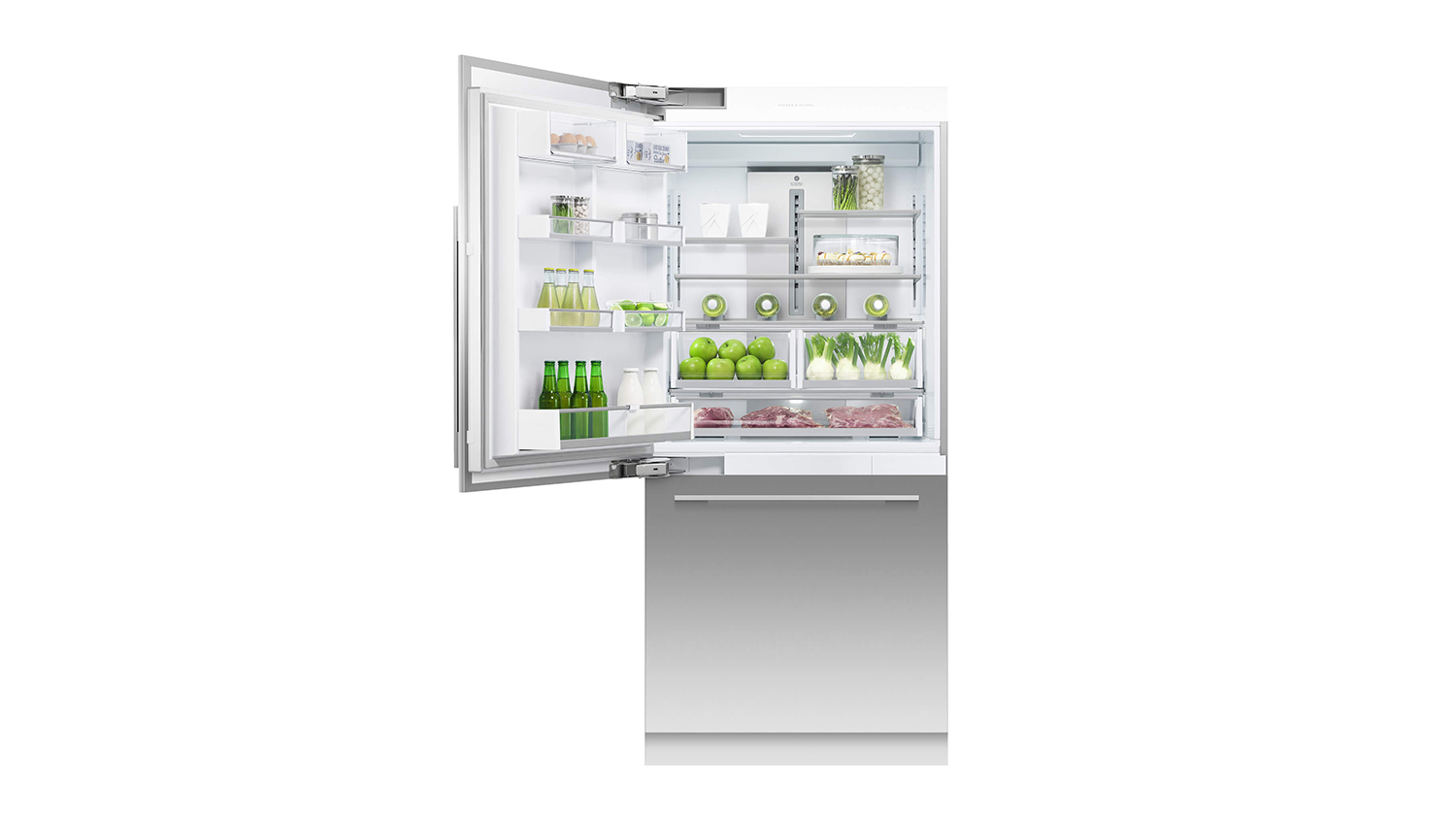

Say hello to smarter refrigeration with the Fisher & Paykel 477L Integrated Bottom Mount Fridge Freezer. This innovative appliance features ActiveSmart™ Foodcare, Humidity Control, and Frost Free technology. It also includes a built-in ice maker with a boost function, perfect for quick chilling. Plus, its panel-ready design lets you customise the doors to match your kitchen interior.
Key Overview
Bottom Mount Fridge Freezer
477L Total Capacity
332L Fridge Capacity
145L Freezer Capacity
3.5 Star Energy Rating
Internal LED Lighting
Plumbed Water Supply Required
(H x W x D) - 2030 x 910 x 602 mm
Product Highlight

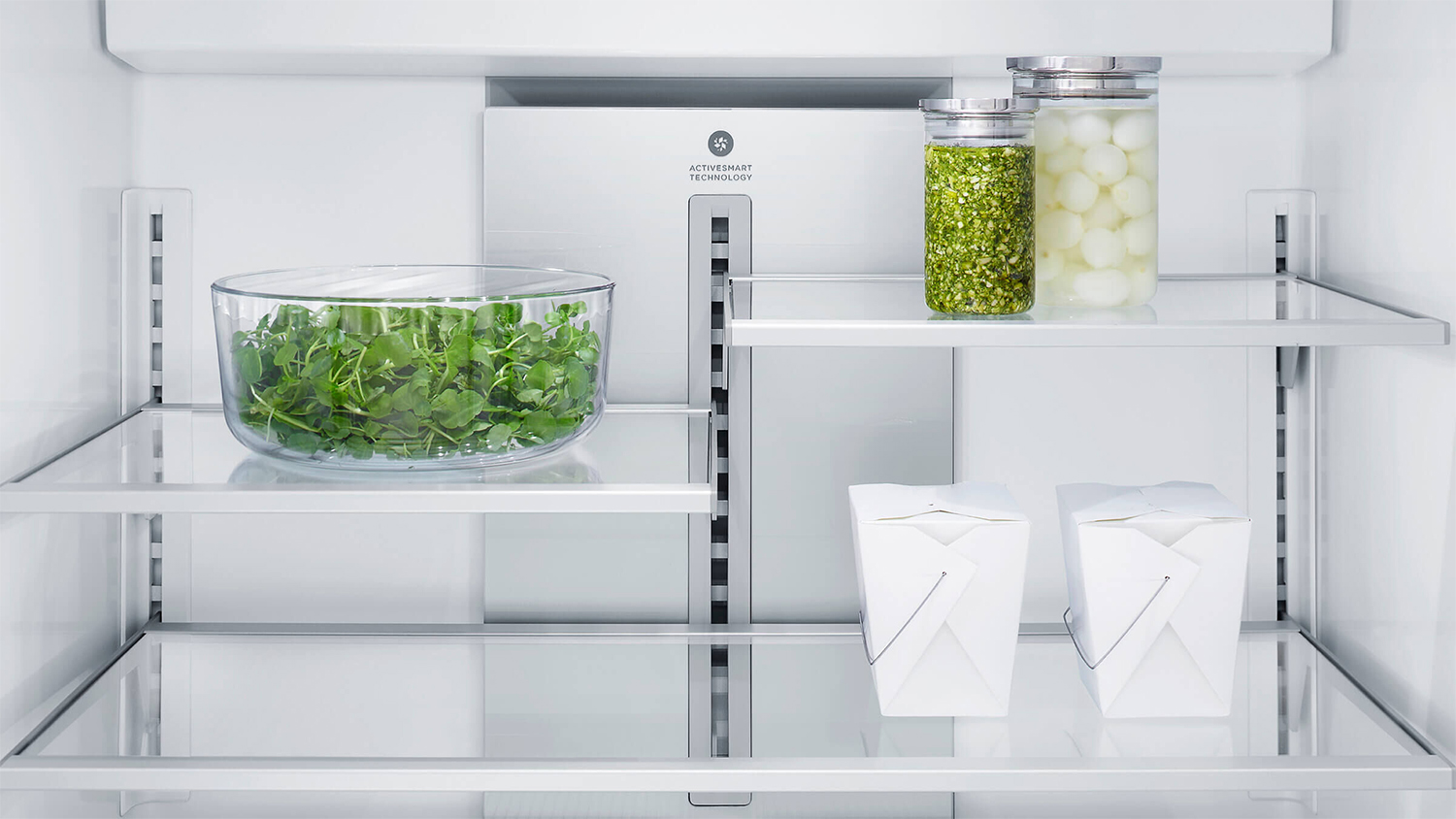

Optimum Food Storage: Keep food items at their best for longer with the Fisher & Paykel Series 7 Integrated Refrigerator! This appliance employs advanced ActiveSmart Foodcare technology, optimally regulating the temperature, airflow, and humidity according to your usage.

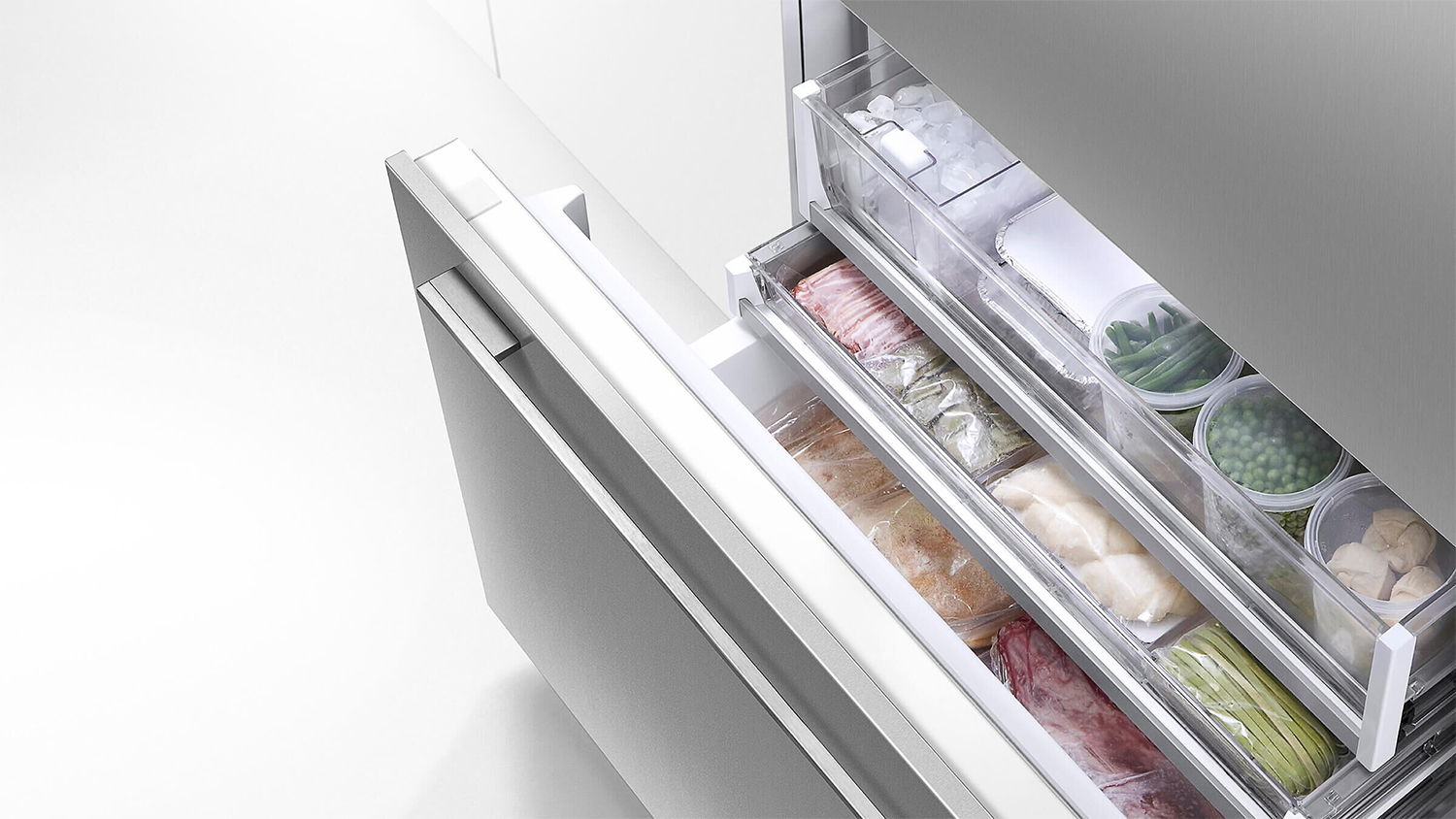

Chill & Freeze: Rapidly cool newly loaded goods, as this innovative appliance features a Fast Freeze function that quickly lowers the temperature to ensure optimal freezing conditions. It also has a dedicated freezer bin for fresh ice and a 30% boost mode to increase ice production, perfect for keeping drinks cold.

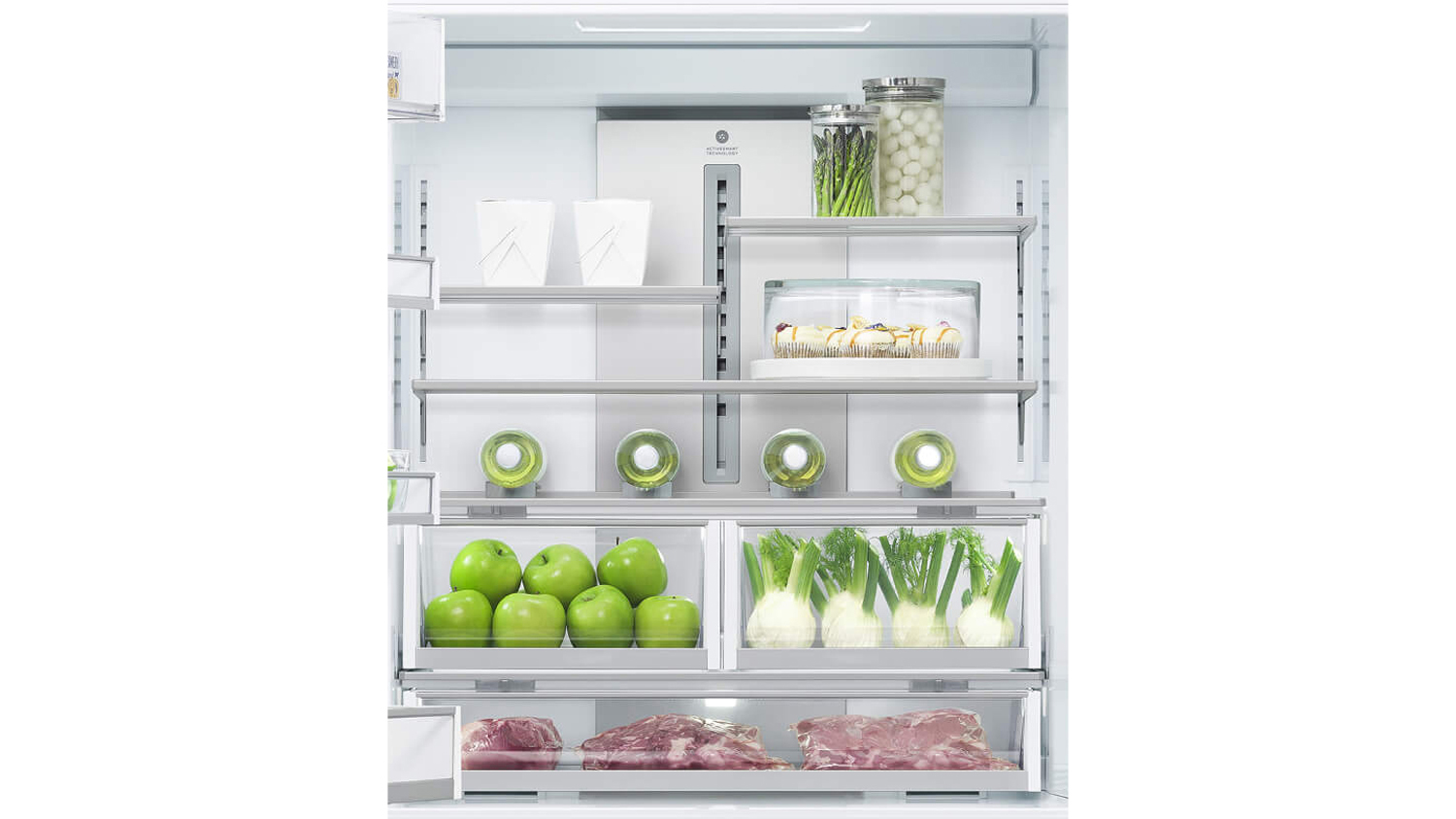

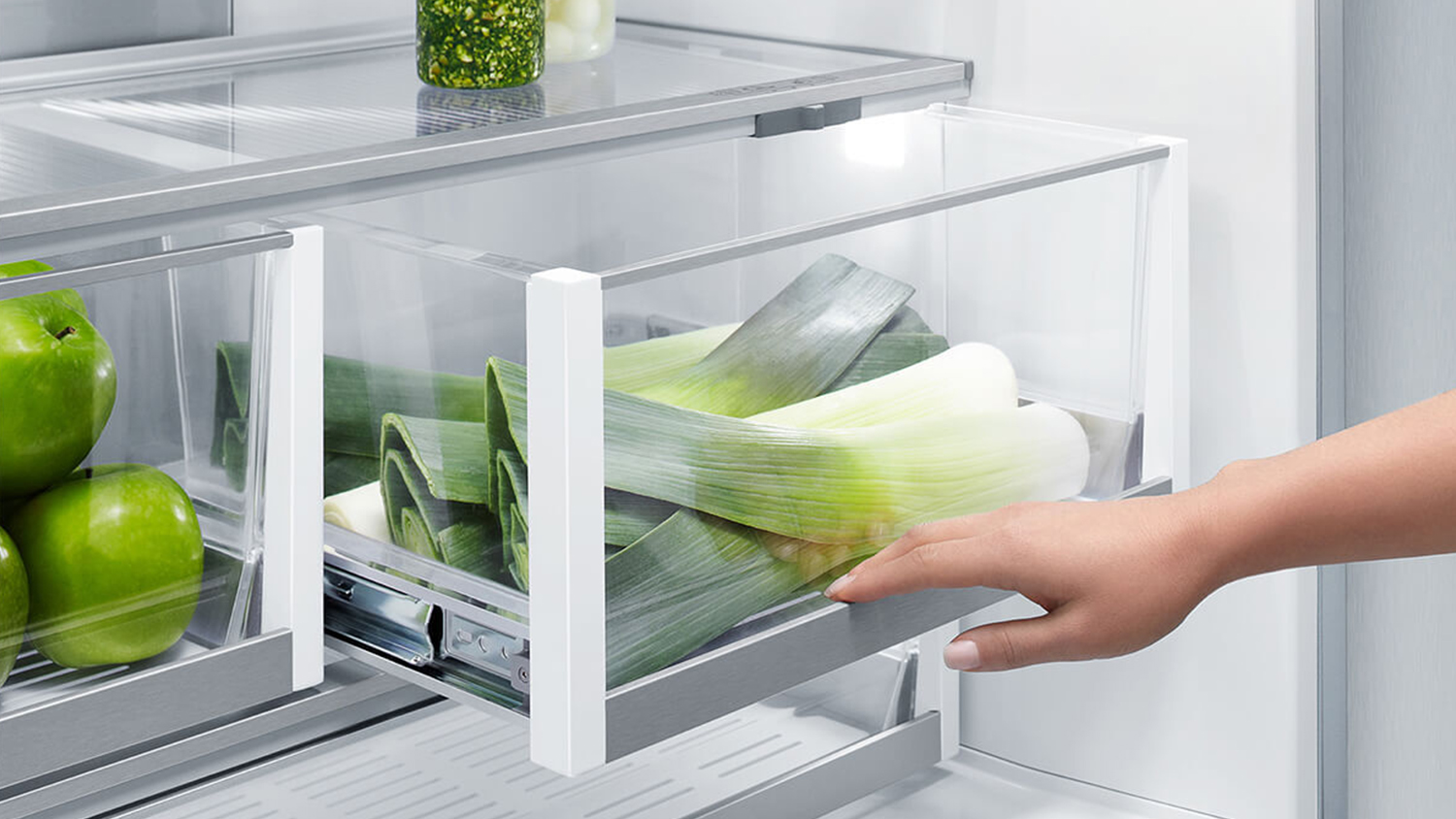

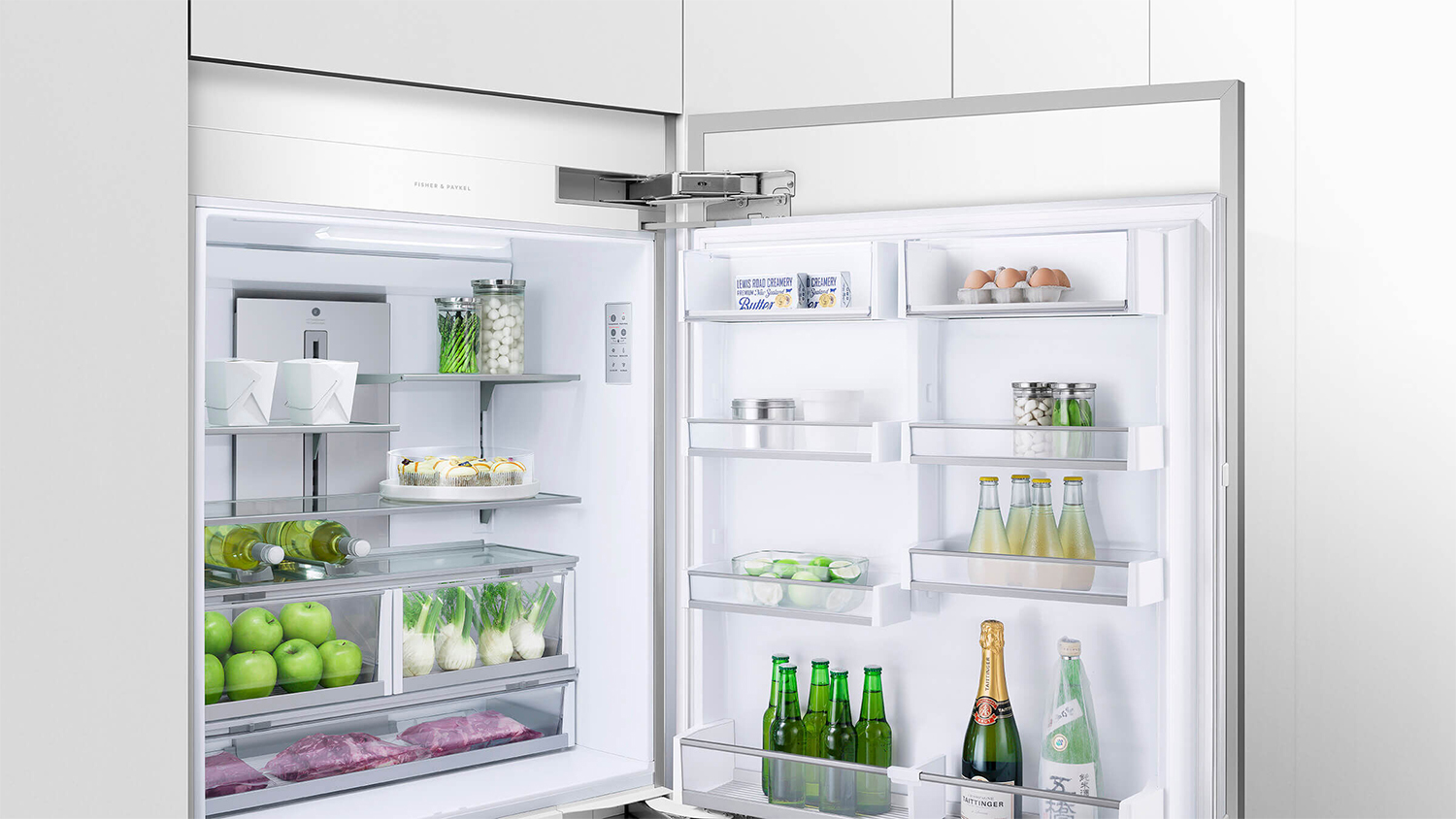

Optimised Storage: Easily organise your stock with versatile storage options, including four adjustable spill-safe shelves, five door shelves, two produce bins, four bottle holders, and a deli bin. Meanwhile, its spacious pull-out freezer compartment equips a freezer bin and two slide-out pastry trays.
User-Friendly Controls: Using the integrated SmartTouch control panel, you’ll be able to easily recalibrate your appliance’s settings as needed. It also features a Humidity Control to effectively preserve your fruits, vegetables, and other produce.

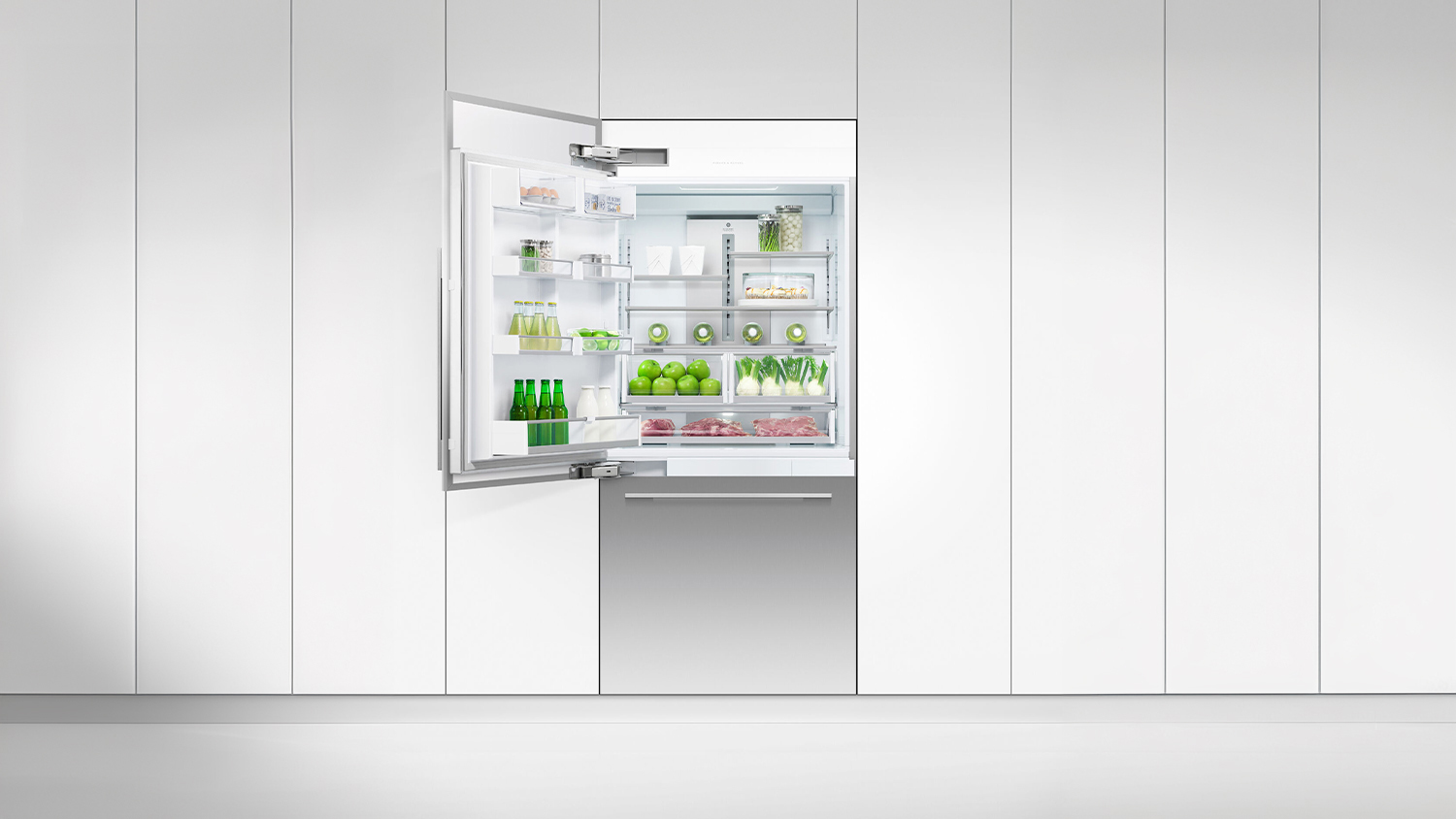

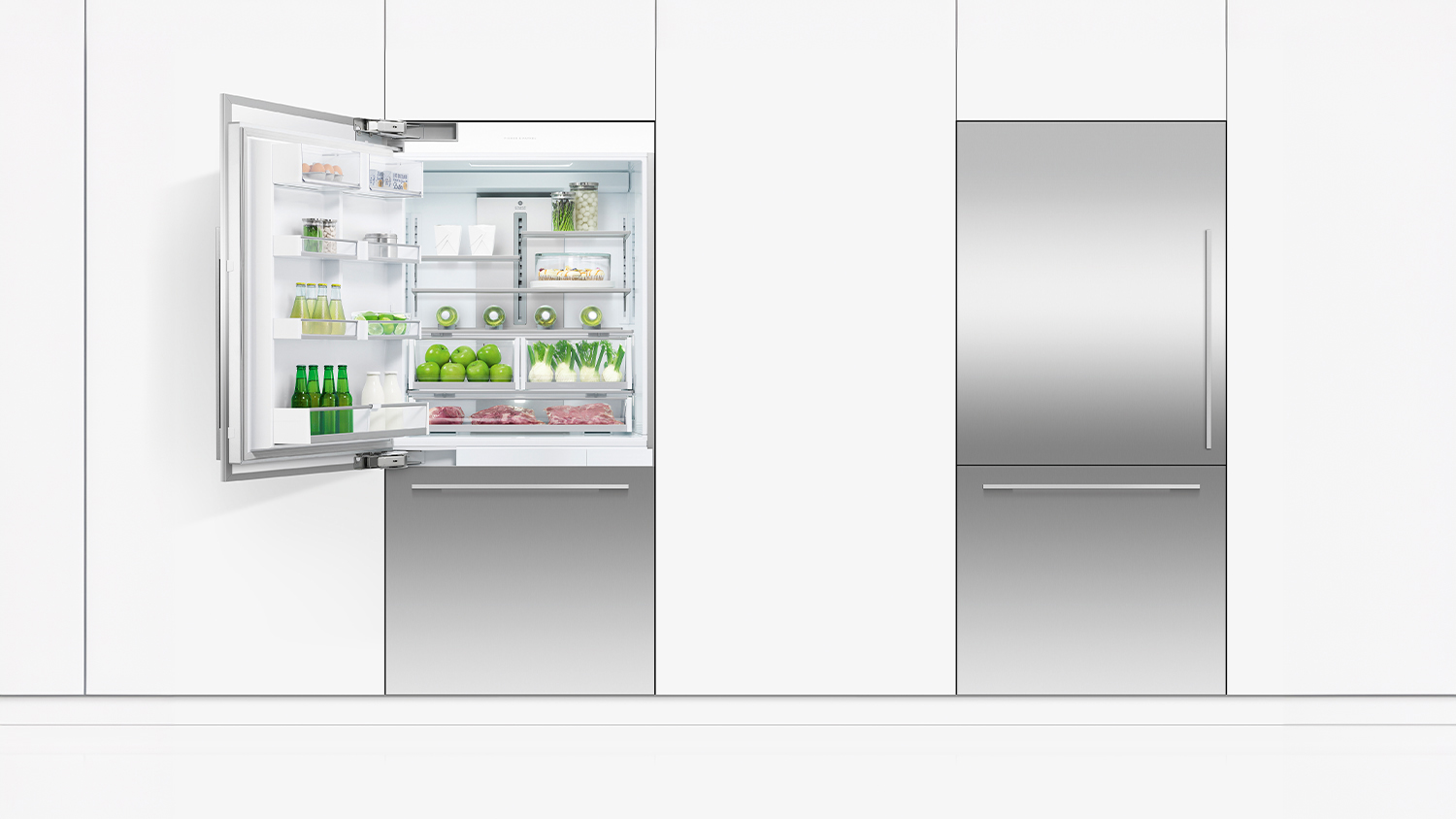

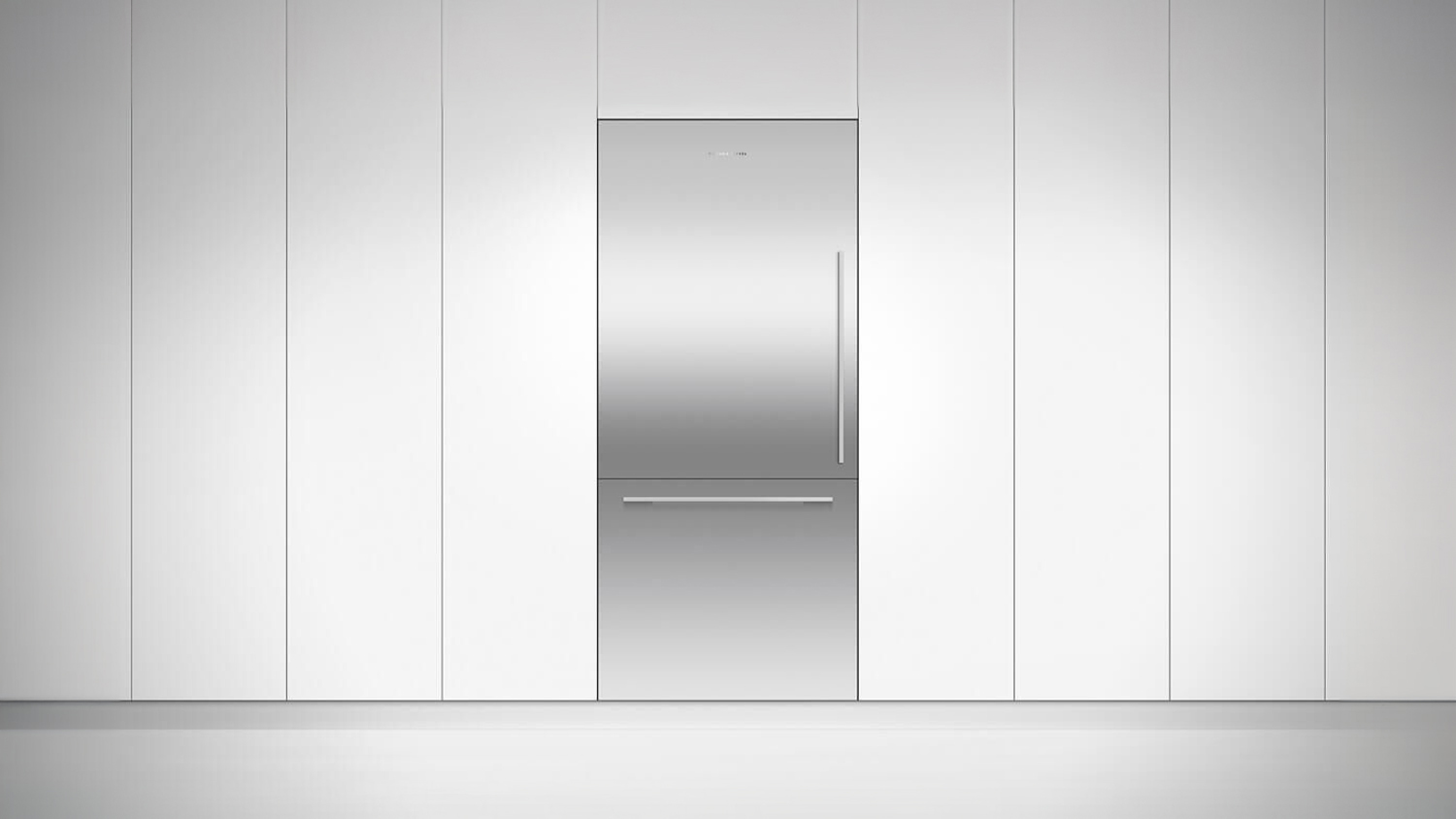

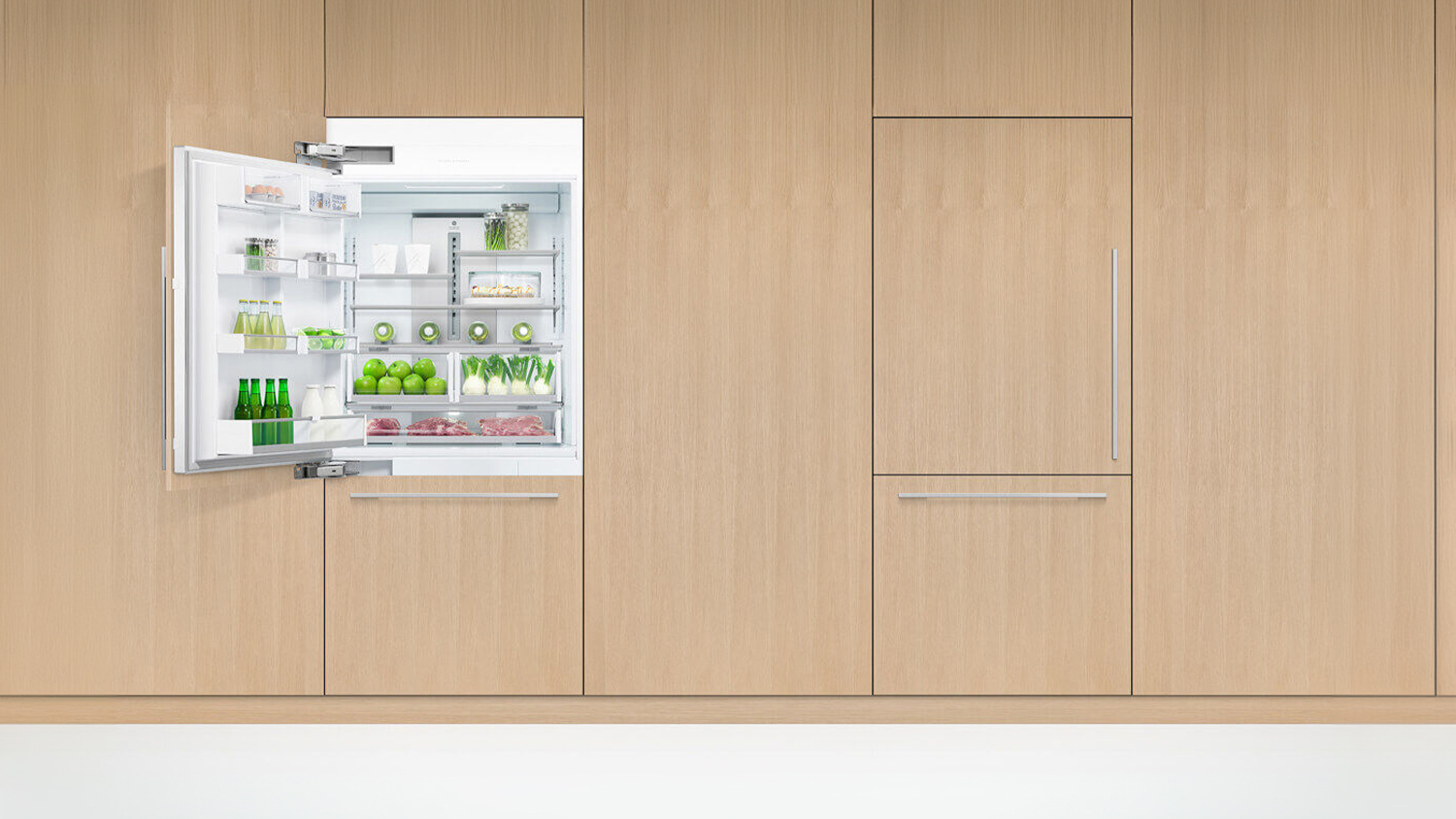

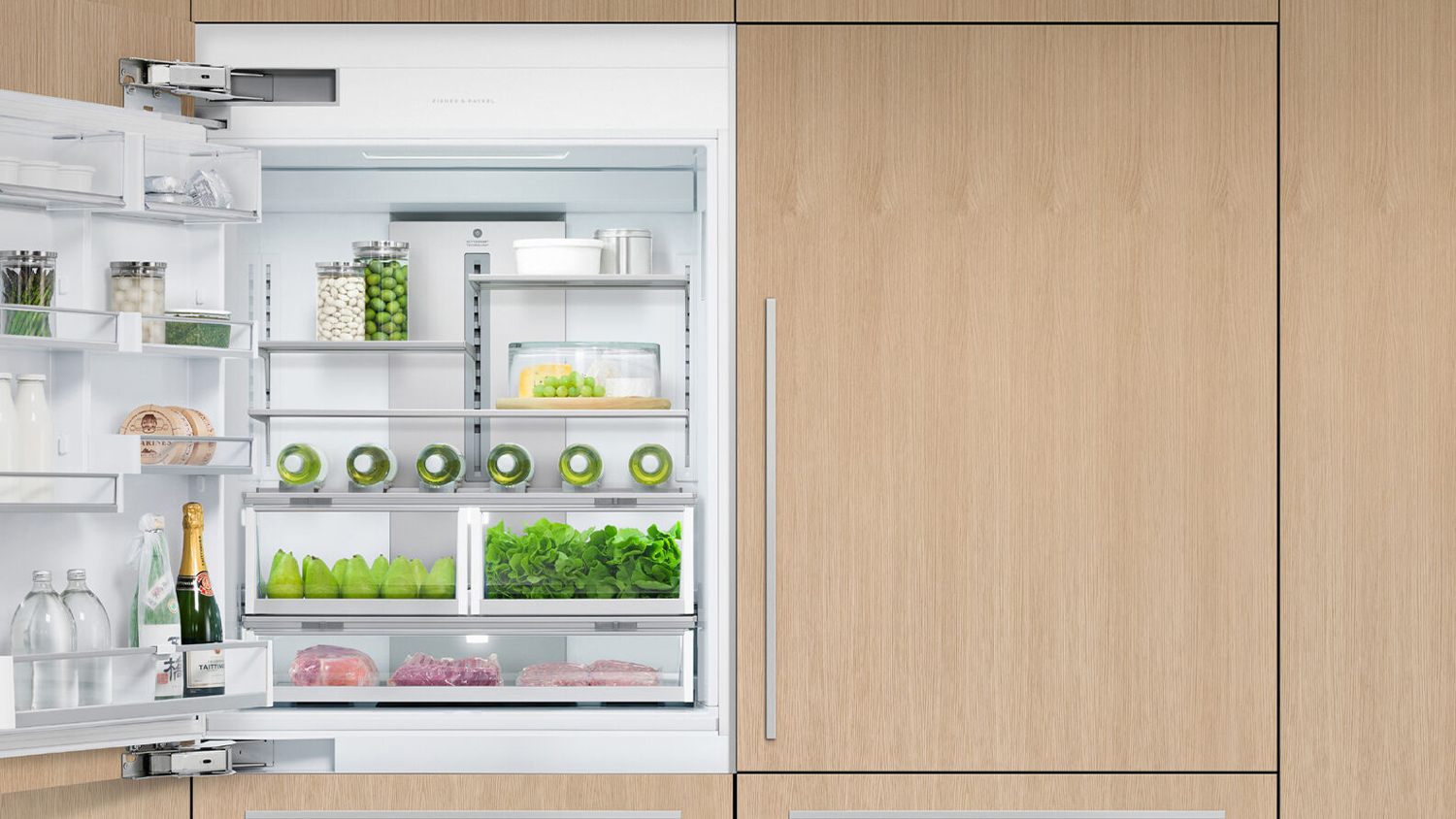

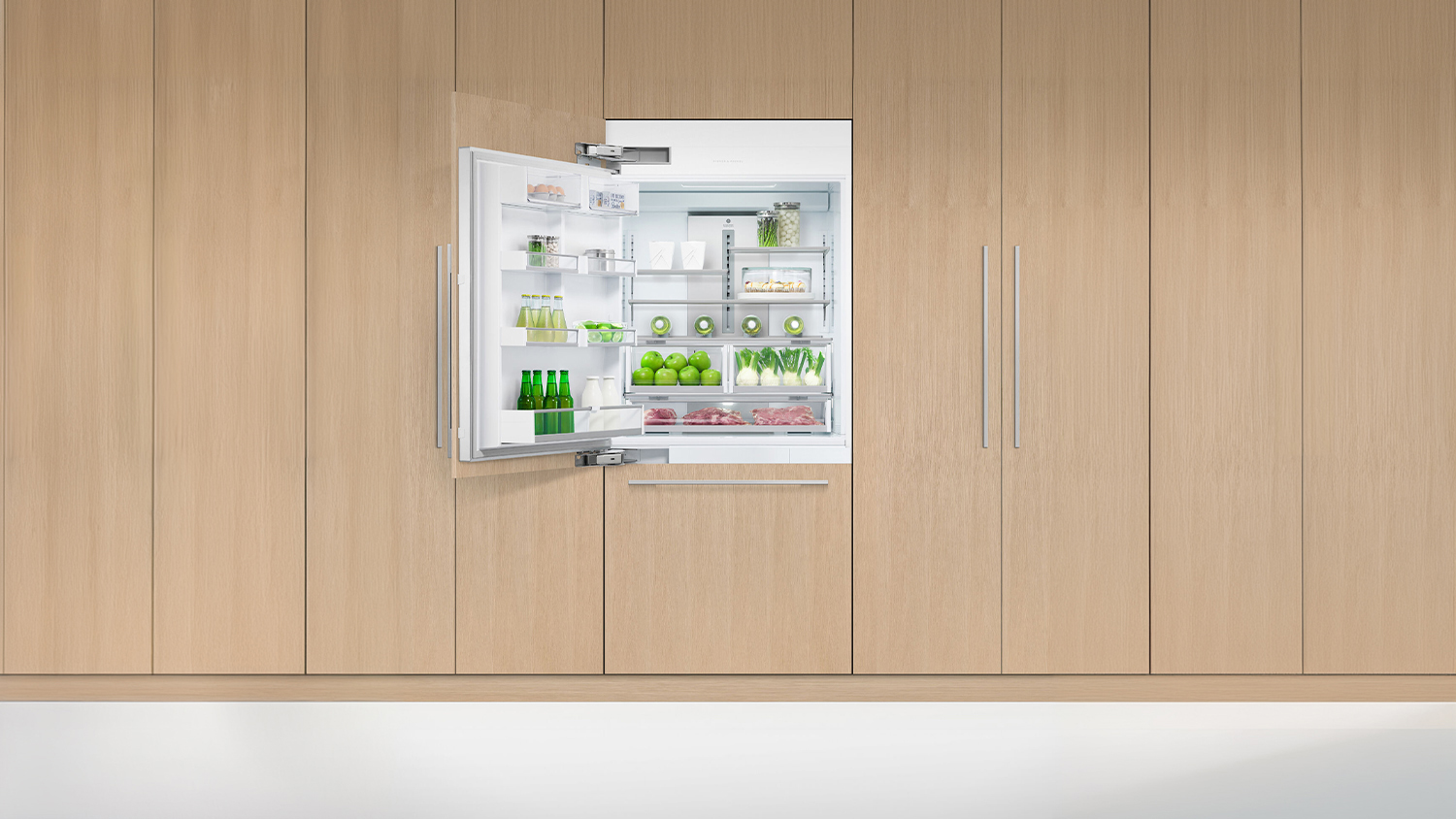

Designed to Fit: Create a more cohesive kitchen setup! With its integrated installation and panel-ready design, you can easily customise this unit to fit your kitchen cabinetry perfectly*.

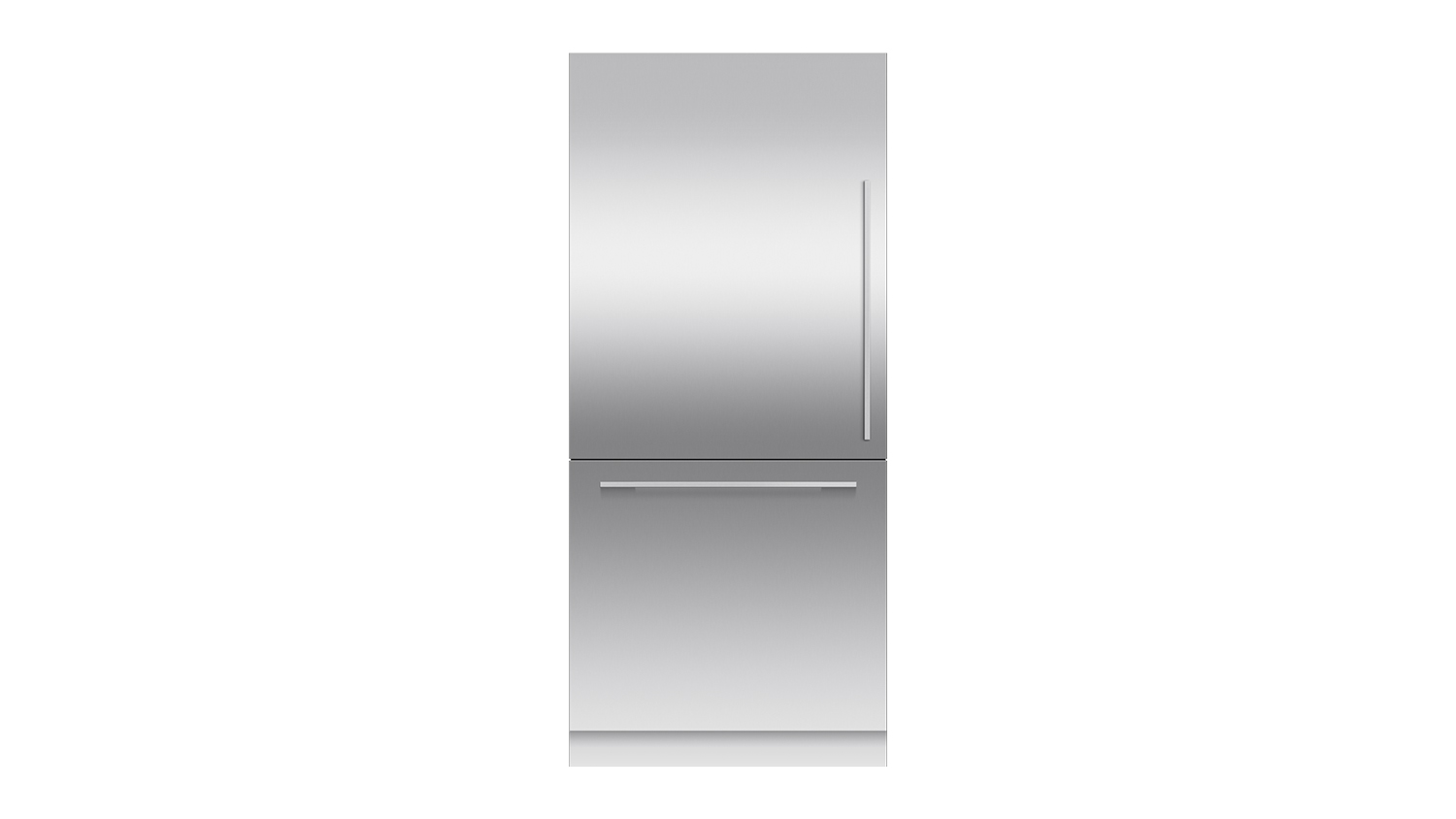

*Please note: Images for illustration only. No door panels or handles are included. Stainless steel versions are available for separate purchase to integrate with kitchen cabinetry.
Specifications
Specifications
All Product Details
Brand
Fisher & Paykel
Product Type
Bottom Mount Fridge/Freezer
Model Number
RS9120WLJ1
Colour
Custom Panel Ready
Product Specifications
Series
Series 7
Whiteware Capacity
Total Capacity
477 L
Fridge Capacity
332 L
Freezer Capacity
145 L
Energy
Energy Star Rating
3.5 Star
Energy Consumption
409 kWh/year
Water Efficiency
Water Supply
Plumbed Water Supply Required
Refrigerator System
Refrigerator Type
Fridge Freezer
Refrigerant Type
R600a Refrigerant
Internal / External Features
Hidden Hinge
Adjustable Feet
White Anodised Lining
Shelf
Shelf Material
Glass Shelves
Shelf Type
Spill-safe & Cantilevered Shelves
Number of Shelves
4 x Fridge Shelves
Adjustable Shelves
Yes
Food / Drink Compartment
Number of Door Shelves
5 x Door Shelves
Number of Bottle Holders
4 x Bottle Holders
Number of Deli Bins
1 x Deli Bin
Number of Fruit and Vegetable Bins
2 x Fruit and Vegetable Bins
Number of Freezer Baskets/Bins
1 x Freezer Baskets/Bins & 2 x Slide Out Trays
Ice Maker
Automatic Ice Maker
Yes
Ice Maker Capacity
11 L
Ice Dispenser
Yes
Ice Cube Tray
Yes
Temperature
Defrost Type
Frost Free Freezer
Temperature Features
Humidity Control
Temperature Control
Temperature Sensor
Quick Chill Function
Fast Freeze
Door
Default Door Hinge
Left
Door Type
Side-Swing Door
Open Door Alarm/Warning
Yes
Plumbed Water Supply Required
Yes
Door Handle Type
Customizable Door Handles - Available Separately
Door Design
Customizable Door Panels - Available Separately
Control Panel
Control Panel Type
SmartTouch Panel
Location of Control Panel
Internal - Fridge Compartment
Lighting
Lighting Type
LED Lighting
Internal Lighting
Yes
Number of Lights
1 x Light
Cavity
External Cavity Dimensions
(H x W x D) - 2030 x 910 x 606 mm
Filter
Filter Type
Internal Replacement Water Filter
Number of Filters
1 x Filter
Replacement Filter
847200
Filter Feature
Replaceable Water Filter
Smart Features
Wi-Fi Embedded
Yes
Connectivity Type
Wi-Fi
Smart Functions
Status View, Remote Start, Notifications, Energy Monitoring
Additional Features
Compatibility
Door Panel Kits - RD9120WL, RD9121WL, RD9120WR, RD9121WR | Door Handle Kits - AHCLRD9120W, AHS-ASBI-B, AHD5RD9120W, AHD5RD9120WB, AHP3RD9120W, AHP3RD9120W
Software / App Compatibility
App Enabled
Yes
Compatible App
SmartHQ App
Compatible Mobile Operating System
Apple iOS, Android OS
Regular Software Updates
Yes
Installation
Assembly Type
Kitchen Integration Required
Settling Period
2-24 Hours (Refer to Manual)
Installation Type
Integrated into Cabinetry - Qualified Cabinetry Maker & Installer Required
Plumbing Requirements
Plumbed Water Supply Required
Electrical Connection
Type of Connection
10A plug & lead
Power Cable Length
2 m
Power Indicator
Yes
Wattage/Voltage
AC220-240V 50/60Hz
Fuse Rating
10A
Dimensions
Height
2030 mm
Width
910 mm
Depth
602 mm
Product Weight
175 kg
Warranty
Manufacturers
24 Months
Reviews
Fisher & Paykel 477L Smart Integrated Bottom Mount Fridge Freezer - Panel Ready (RS9120WLJ1) is rated
4.5 out of
5 by
2.
Rated 4 out of
5 by
Olivia from
Tall fridge, very roomy. Great door space.[This review was collected as part of a promotion.] Great fridge. We’ve only had it a month. It is quite high, we did buy it knowing this, but good to know if you are short. Try and reach the higher stuff in a showroom if you are short like me. Ice works well. Fridge super quiet and pretty. Only makes noise when ice is being dispensed. Be aware that if you integrate the cold water function won’t be accessible, at least it wasn’t in our case. These are the negatives, but really, it is a good size and great fridge.
Date published: 2025-07-26
Rated 5 out of
5 by
Grace88 from
Love it![This review was collected as part of a promotion.] Beautiful integrated fridge. Perfect amount of space for a big family.
We aim to dispatch orders within 2 days. Delivery costs are calculated based on your location and the size of your order. Furniture may take up to 8 weeks to deliver as most products are made specifically for your order. Some Customer Direct products are shipped from overseas and may take longer to arrive. Some goods may take longer to deliver if a product is currently not in stock. A staff member will contact you where this occurs.
Easy returns
If you feel your product has failed a Consumer Guarantee (as defined by New Zealand Consumer Law) then don't worry you can easily return it to your local Harvey Norman store. We'll even pay for the postage if you live in an area where there is no store. Our returns policy covers any purchased item (
conditions apply).
What's in the box
1 x Fridge Freeze
1 x Ice Cube Tray
1 x User Guide
Note: Door Panels & Handles Available Separately
