Fisher & Paykel 476L Smart Integrated French Door Fridge Freezer - Panel Ready (RS90A1)
Fisher & Paykel 476L Smart Integrated French Door Fridge Freezer - Panel Ready (RS90A1)
$6,619
Fisher & Paykel 476L Smart Integrated French Door Fridge Freezer - Panel Ready (RS90A1)
Available on 50 months of equal Interest Free instalments:
$132.38^
approximately per month
^ Total repayments $6,619 (excluding fees). Payment is required monthly. Min purchase applies. Offer ends 24/12/2025. Exclusions, T&Cs & fees apply incl. a $55 Gem Visa estb. fee & annual fees ($65 Gem Visa (charged $32.50 half yearly)/$65 Gem CreditLine (charged $32.50 half yearly)). Interest rate (currently Gem Visa 29.49% p.a./CreditLine 29.95% p.a.) applies after any interest free term ends. Credit provided by Latitude Financial Services Ltd. For cash advances, an interest rate of 29.95% p.a. and fees of $2 Gem Visa/$6 Gem CreditLine applies. Further information on rates and fees can be found at gemfinance.co.nz. How it works
Gem Finance Interest Free
Available on participating Gem credit cards.
New to Gem? Follow the steps below to apply for a Gem Visa now.
Apply Online
Complete your online application in just 10-15 minutes
Credit Check
Submit income, employment details, and expenses. Include proof of income by sharing your online statement or uploading income documents.
Provide Identification
All applicants must provide a form of identification, e.g., NZ driver's license, NZ Passport, or International Passport.
Please note this product is not available in all stores but can be ordered.
Delivery expectation: 1-2 weeks This item is available by special order and may not be stocked in stores. Purchase online today to secure your product. For more information, please contact your local Harvey Norman store.
Customise with your own kitchen cabinetry and handles, or purchase the Fisher & Paykel Stainless Steel door panel.
Preserve and organise your weekly groceries in this massive Fisher & Paykel 476L Integrated French Door Fridge Freezer. A perfect solution for your food storage needs, this appliance boasts ActiveSmart Foodcare, optimised compartments, and clever energy efficiency. It also incorporates spill-safe, secure glass shelves, making it a breeze to clean every time. Plus, this unit features a panel-ready design, letting you customise its doors and handles to better match your kitchen.
Key Overview
Fridge Freezer
476L Total Capacity
331L Fridge Capacity
145L Freezer Capacity
3.5 Star Energy Rating
Inverter Controlled Compressor Motor
Internal LED Lighting
(H x W x D) - 1798 x 896 x 610 mm
Qualified Cabinetry Maker & Installer Required
Product Highlights

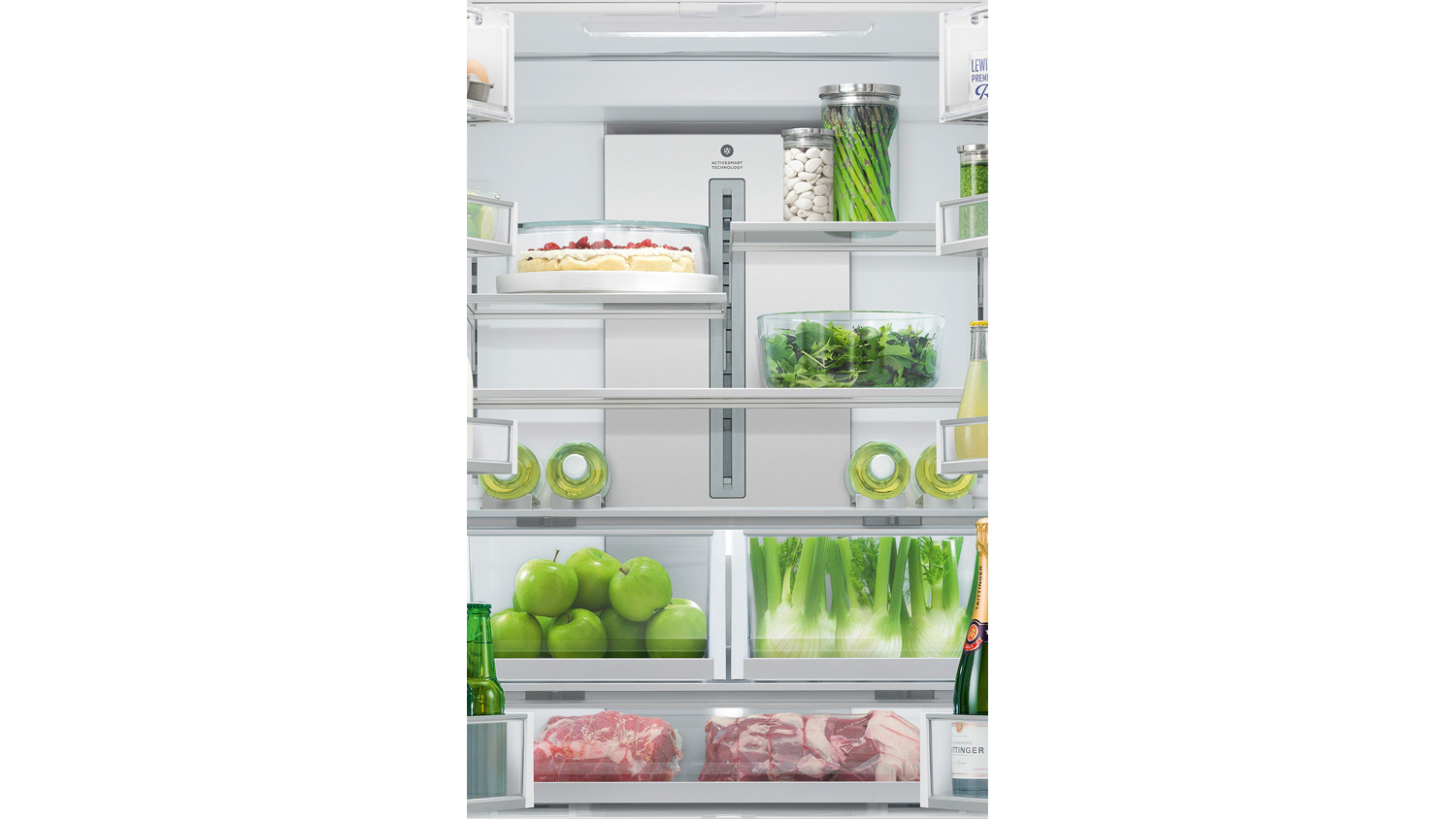

Smarter Food Storage Solution: With the Fisher & Paykel 476L Integrated French Door Fridge Freezer, you can now keep your food and beverages fresh for longer. Made energy-efficient, this premium appliance incorporates ActiveSmart Foodcare technology that intuitively understands your usage patterns and adjusts the temperature, airflow, and humidity accordingly.
Chill & Freeze: Rapidly cool newly loaded goods, as this innovative appliance has a Fast Freeze feature that lowers the temperature to the coldest setting. It also comes with a Bottle Chill function, letting you enjoy refreshingly cold sodas, water, or liquor anytime you want.
User-Friendly Controls: Using the integrated SmartTouch control panel, you’ll be able to easily recalibrate your appliance’s settings as needed. It is also Wi-Fi embedded and supports the SmartHQ app, letting you have access to additional features for your unit.

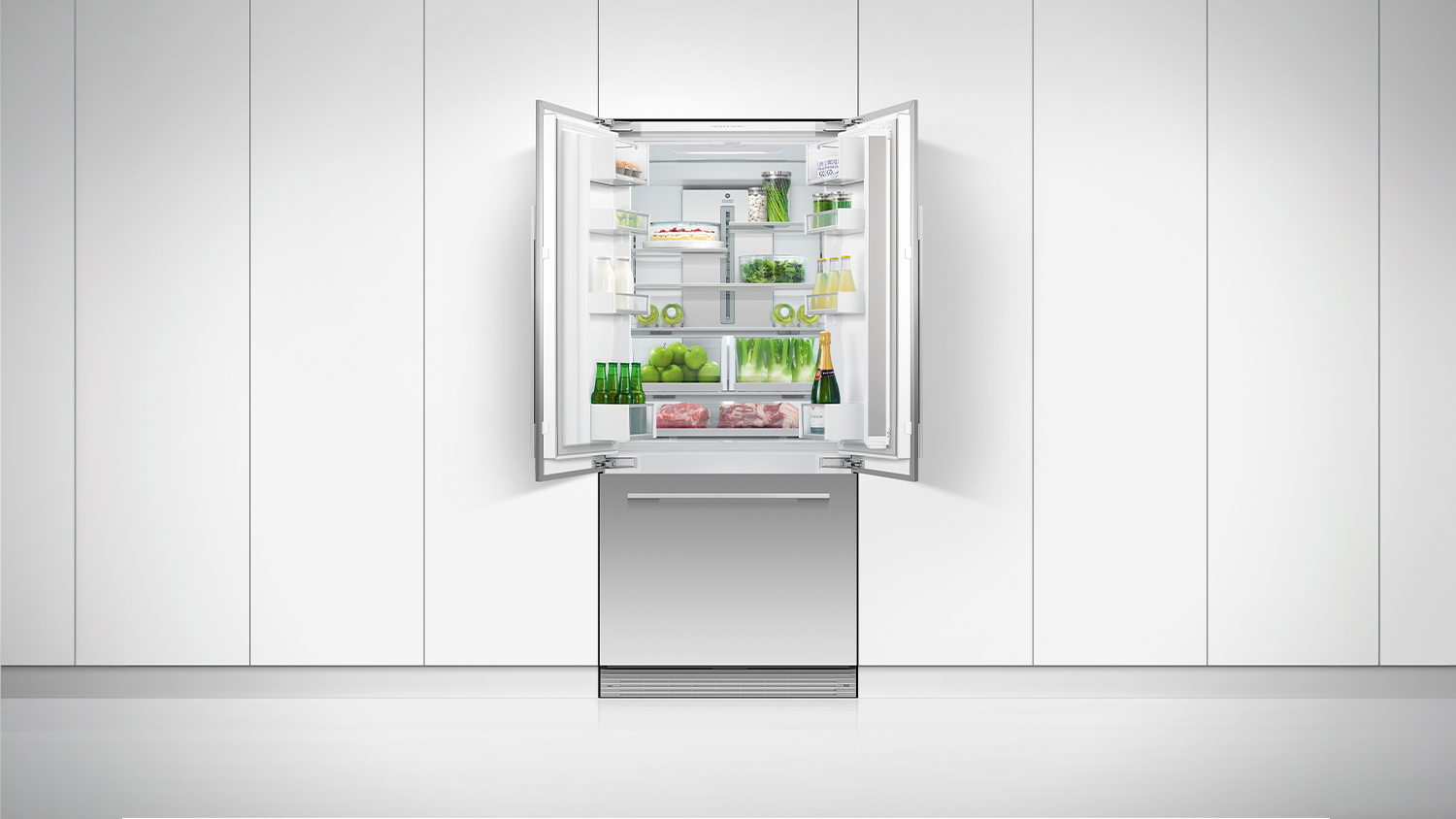

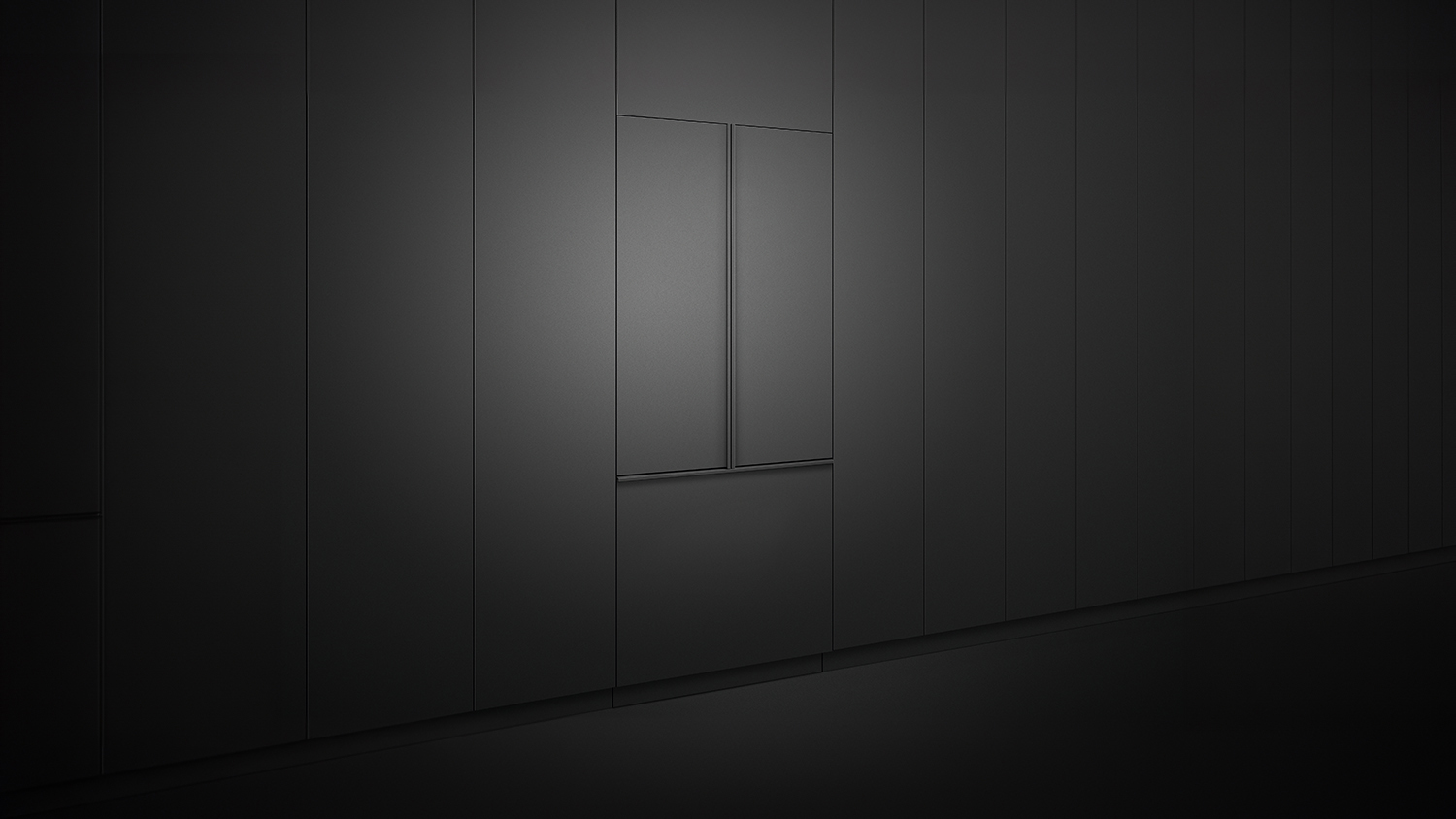

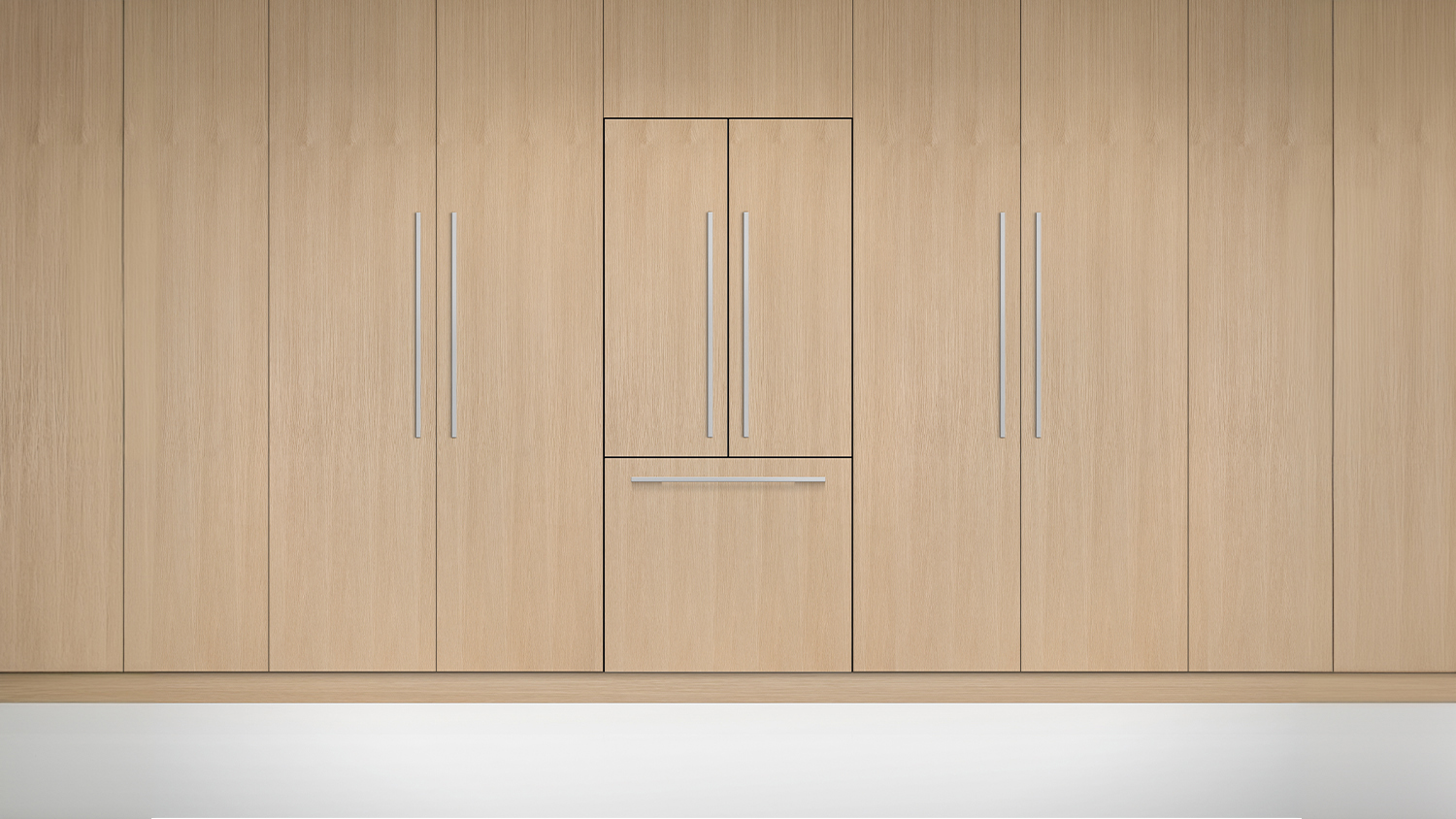

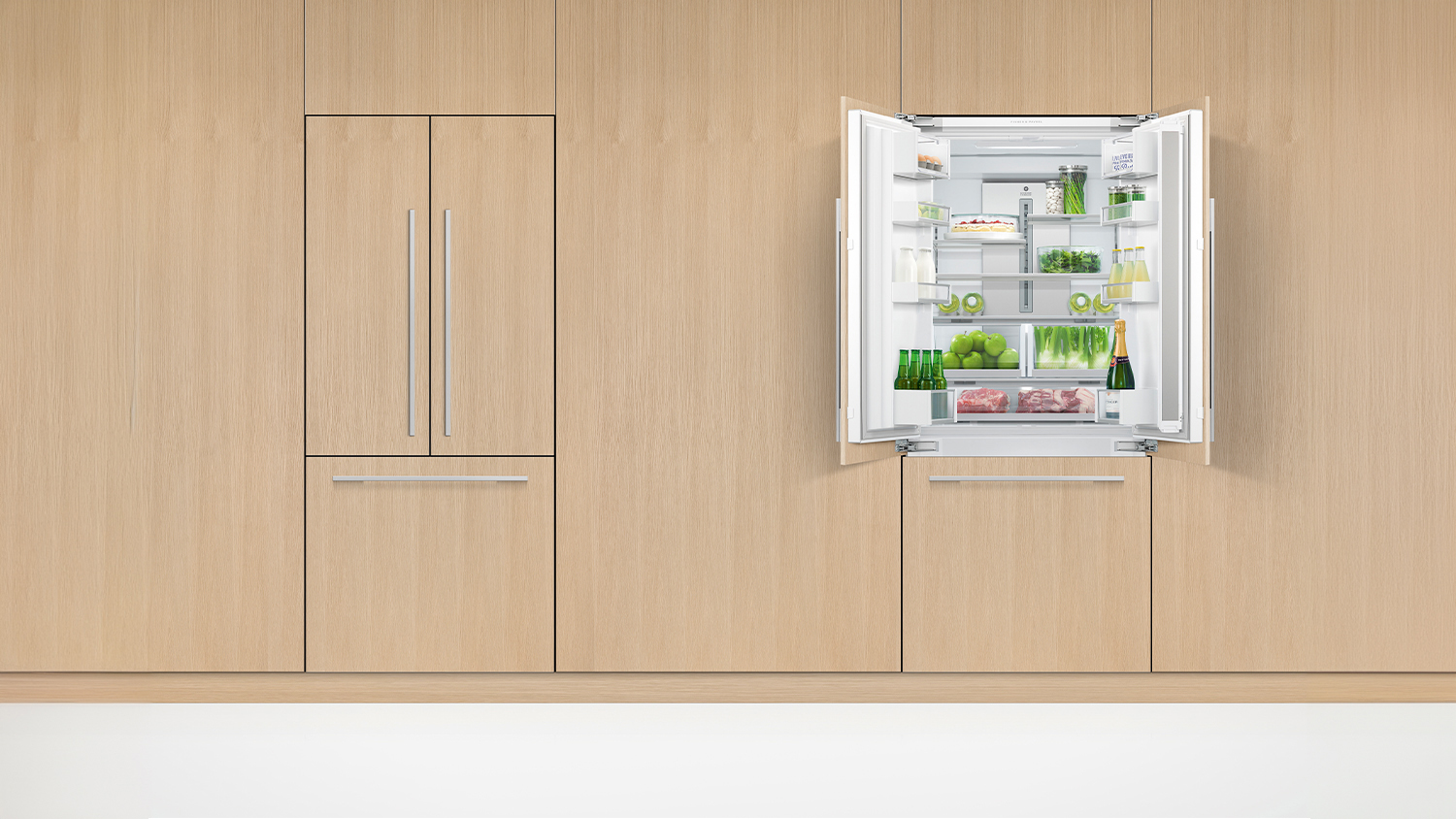

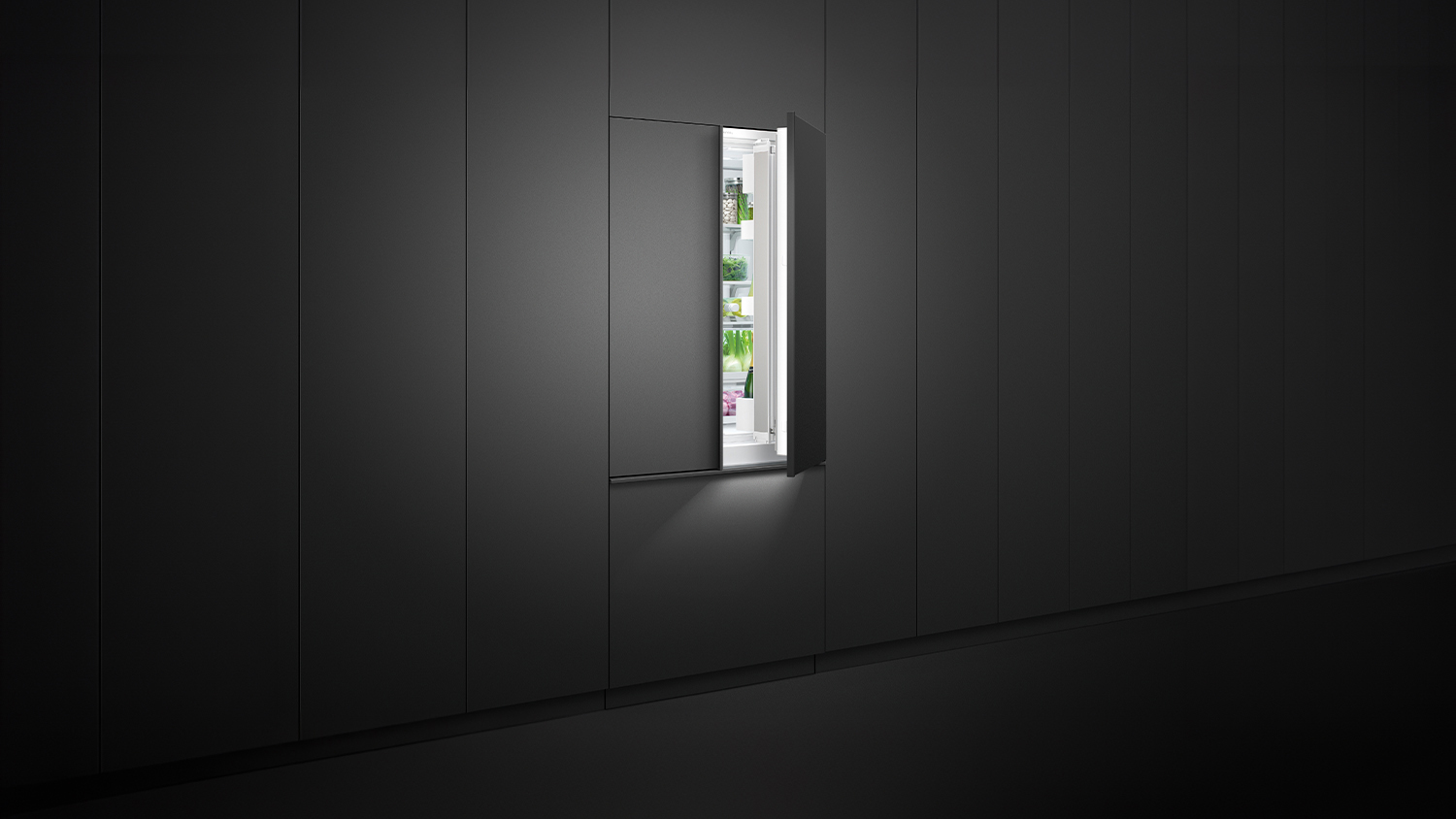

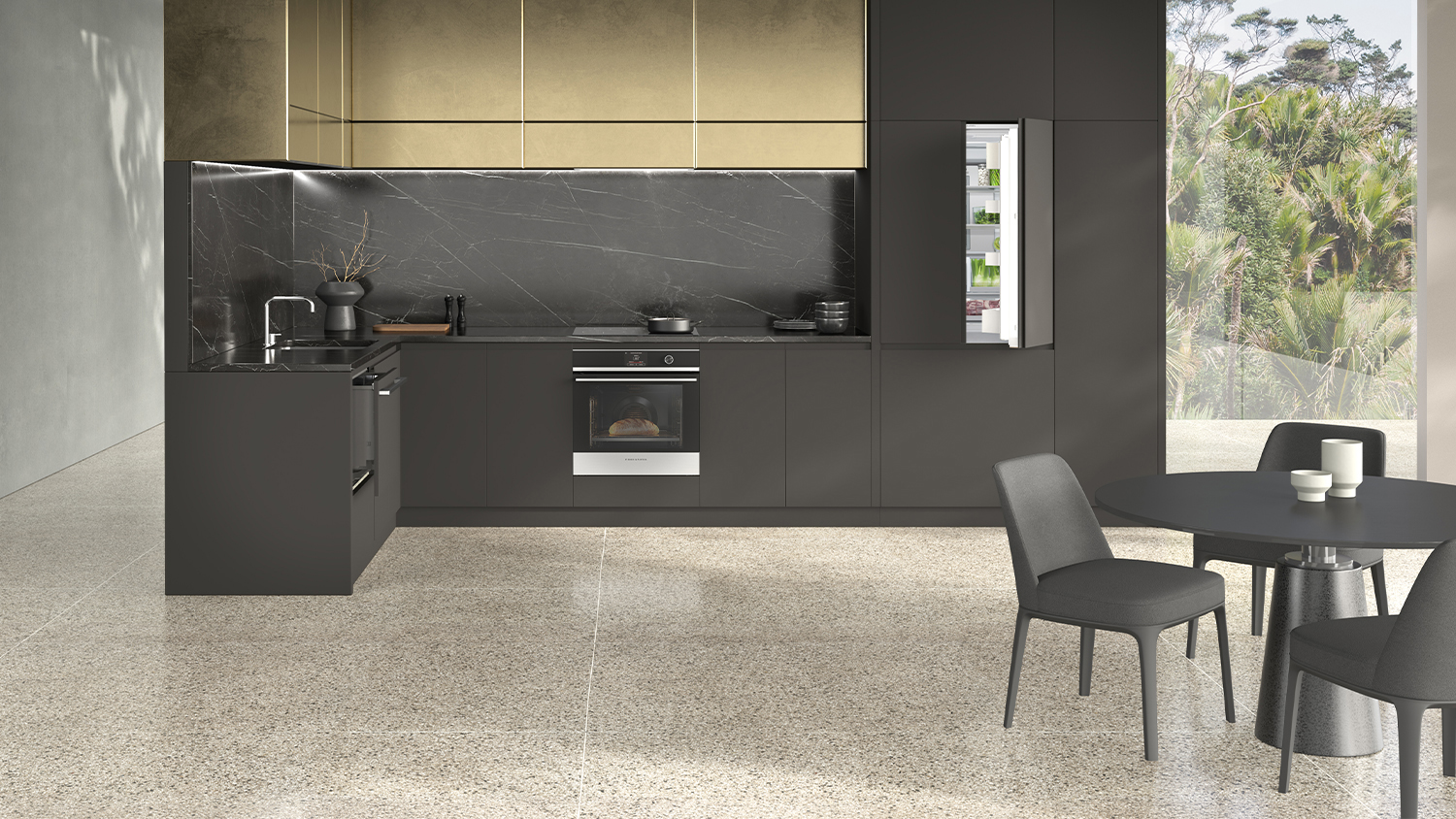

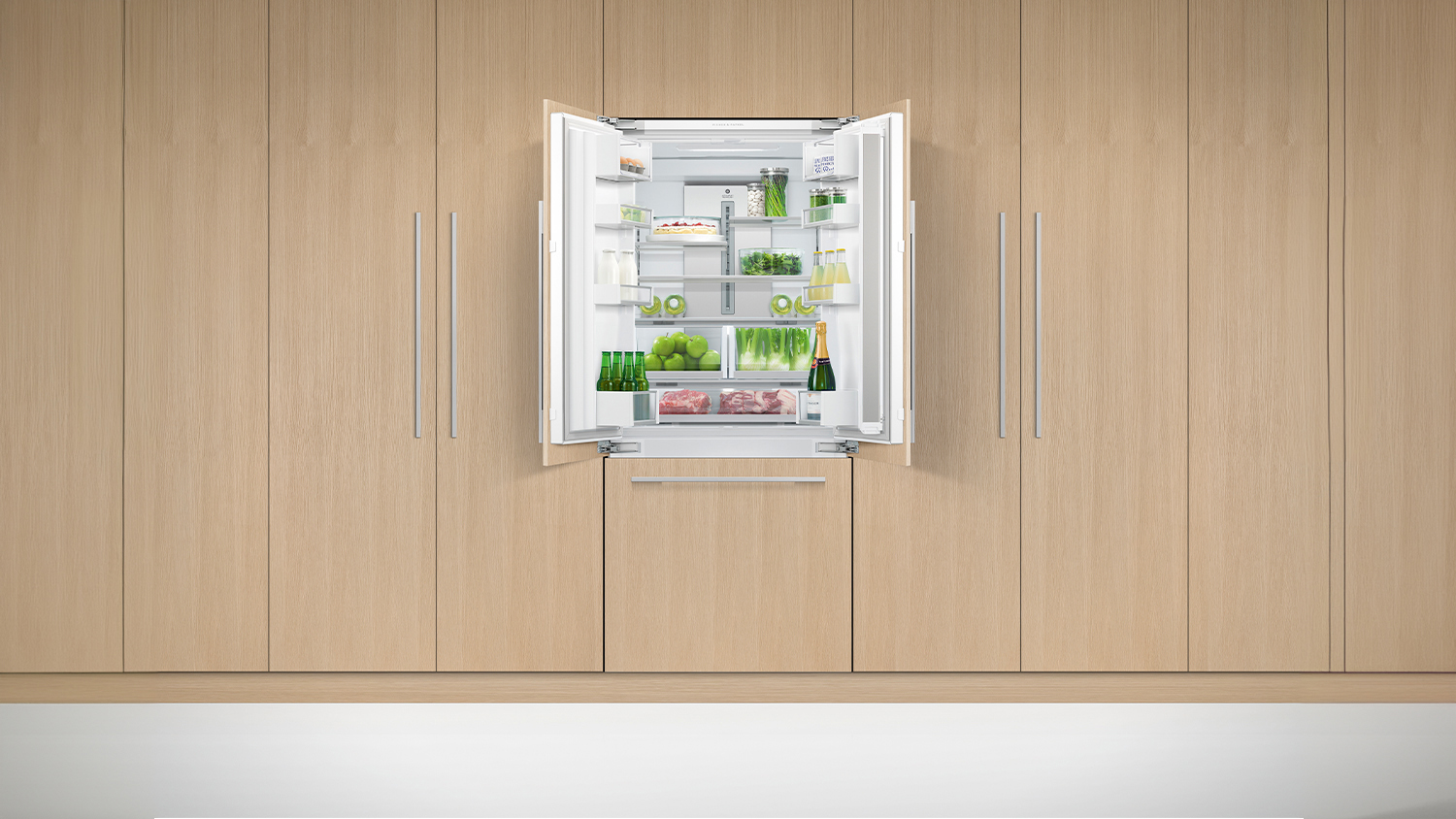

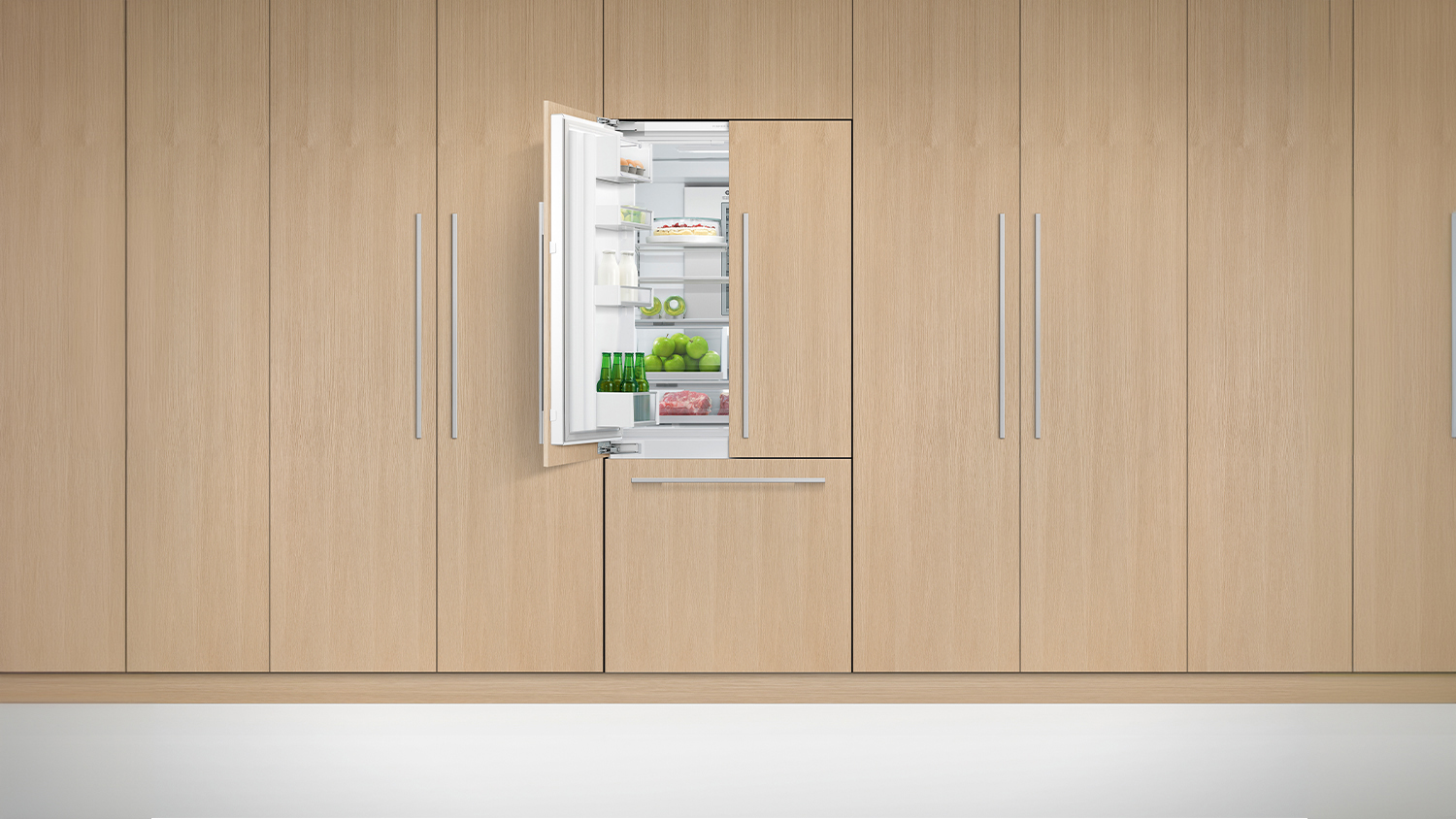

Seamless Integration: Achieve a cohesive look in your kitchen as the Fisher & Paykel Series 7 Fridge Freezer features a panel-ready design, allowing you to pair it with your preferred door panels and handles*.

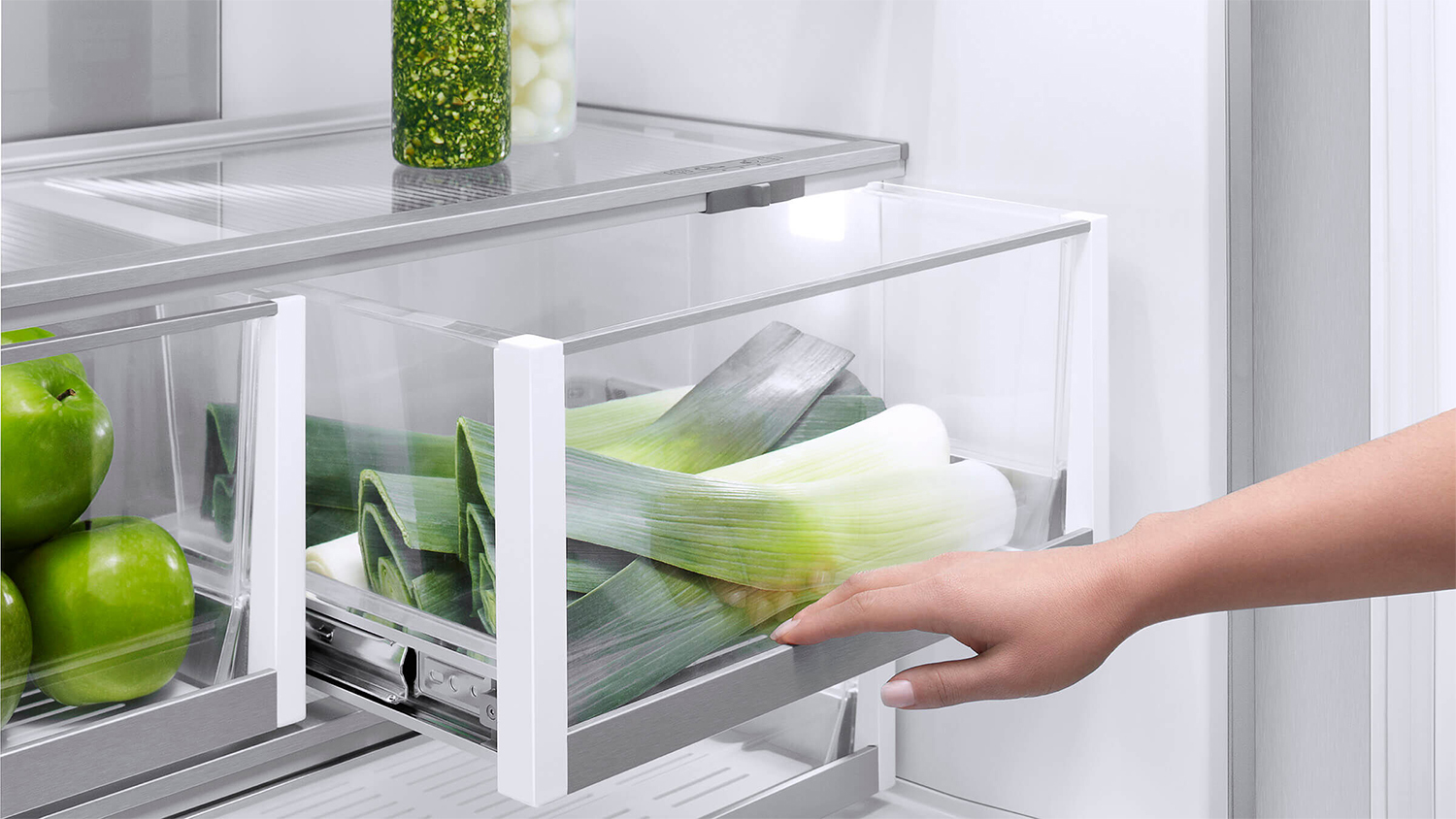

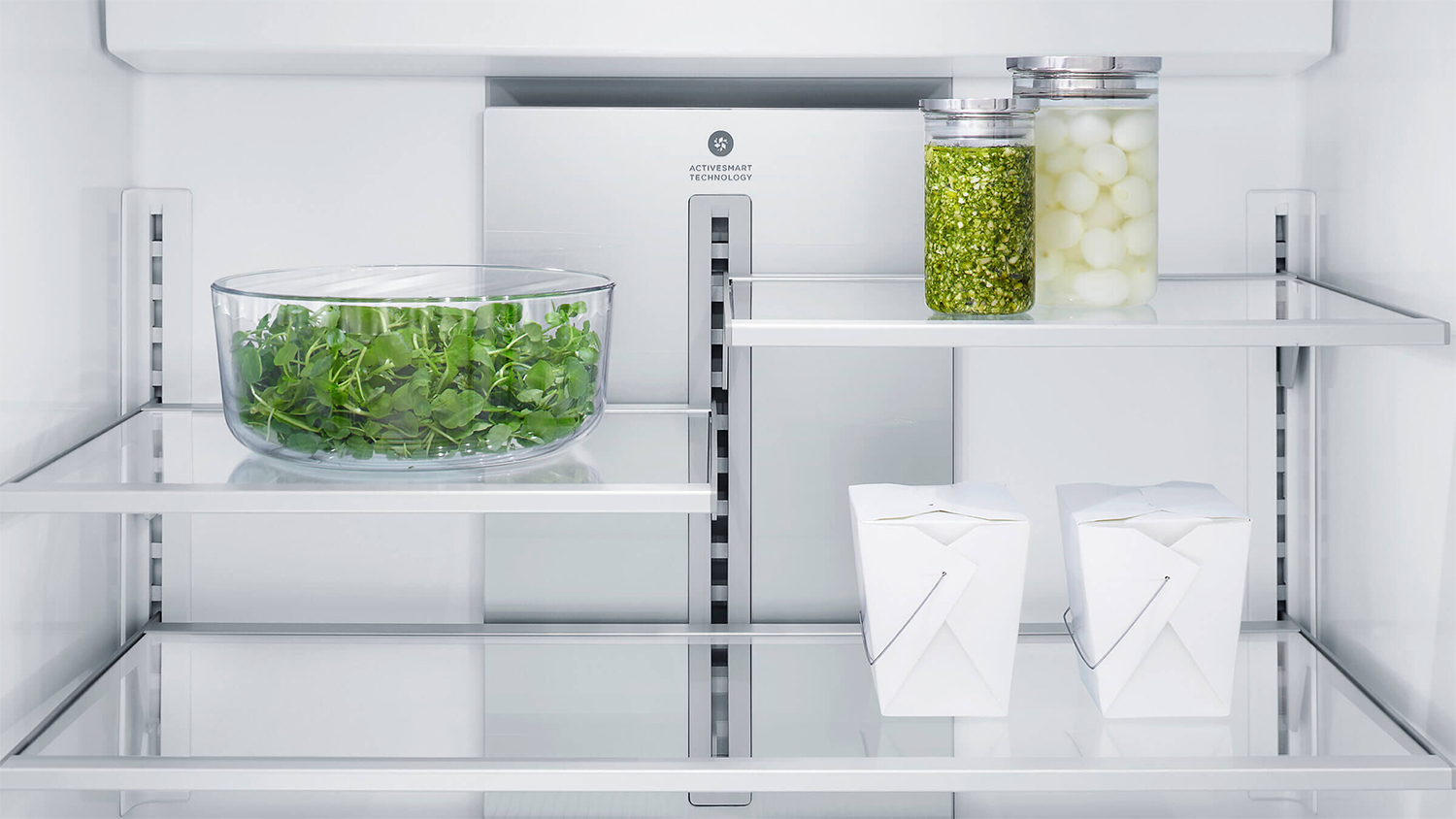

Optimised Storage: Arrange your stock efficiently, thanks to this unit’s multiple storage options. Its fridge compartment comes with four adjustable, spill-proof and cantilevered glass shelves, eight door shelves, two fruit and vegetable bins, and four stackable bottle holders. Meanwhile, its spacious pull-out freezer compartment equips two freezer baskets/bins, an ice cube tray, and a slide-out pastry tray.
*Please Note: This product does not come with door panels and handles. Stainless steel door panels and handles can be purchased separately.
**The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.
Specifications
Specifications
All Product Details
Brand
Fisher & Paykel
Product Type
French Door Fridge/Freezer
Model Number
RS90A1
Colour
Custom Panel Ready
Product Specifications
Series
Series 7
Whiteware Capacity
Total Capacity
476 L
Fridge Capacity
331 L
Freezer Capacity
145 L
Energy
Energy Star Rating
3.5 Star
Energy Consumption
420 kWh/year
Refrigerator System
Refrigerator Type
Fridge Freezer
Refrigerant Type
R600a Refrigerant
Internal / External Features
Hidden Hinge
Adjustable Feet
White Anodised Lining
Shelf
Shelf Material
Glass Shelves
Shelf Type
Spill Proof & Cantilevered Shelves
Number of Shelves
4 x Fridge Shelves
Adjustable Shelves
Yes
Food / Drink Compartment
Number of Door Shelves
8 x Door Shelves
Number of Bottle Holders
4 x Bottle Holders
Number of Deli Bins
1 x Deli Bin
Number of Fruit and Vegetable Bins
2 x Fruit and Vegetable Bins
Number of Freezer Baskets/Bins
2 x Freezer Baskets/Bins
Ice Maker
Ice Cube Tray
Yes
Temperature
Defrost Type
Frost Free Freezer
Temperature Features
Temperature Control
Temperature Sensor
Thermostat Control
Fast Freeze
Door
Default Door Hinge
Right & Left
Door Type
French Door + Freezer Drawer
Open Door Alarm/Warning
Yes
Door Handle Type
Customizable Door Handles - Available Separately
Door Design
Customizable Door Panels - Available Separately
Control Panel
Control Panel Type
Touch Panel
Location of Control Panel
Internal - Fridge Compartment
Lighting
Lighting Type
LED Lighting
Internal Lighting
Yes
Light Position
Top
Number of Lights
1 x Light
Cavity
External Cavity Dimensions
(H x W x D) - 1802 x 904 x 650 mm
Motor
Type of Motor
Inverter Controlled Compressor Motor
Smart Features
Wi-Fi Embedded
Yes
Connectivity Type
Wi-Fi
Smart Functions
Status View, Remote Start, Notifications, Energy Monitoring
Software / App Compatibility
App Enabled
Yes
Compatible App
SmartHQ App
Compatible Mobile Operating System
Apple iOS, Android OS
Installation
Assembly Type
Kitchen Integration Required
Settling Period
2-24 Hours (Refer to Manual)
Installation Type
Built-In to Cabinetry - Qualified Cabinetry Maker & Installer Required
Electrical Connection
Type of Connection
10A plug & lead
Power Cable Length
2 m
Wattage/Voltage
AC220-240V 50/60Hz
Fuse Rating
10A
Dimensions
Height
1798 mm
Width
896 mm
Depth
610 mm
Product Weight
138 kg
Warranty
Manufacturers
24 Months
Reviews
Fisher & Paykel 476L Smart Integrated French Door Fridge Freezer - Panel Ready (RS90A1) is rated
4.3 out of
5 by
19.
Rated 5 out of
5 by
Anonymous from
Perfect size for a familyGreat product, integrates perfectly into our new kitchen
Date published: 2021-10-21
Rated 2 out of
5 by
Frustrating Experience from
Initial Dodgy Unit but replacement fridge is fine.The initial brand new unit was extremely noisy, apparently a problem with a fan stuck in overdrive, after 3 failed attempts over 5 weeks F&P couldn't fix the problem so decided to replace the whole fridge with a new unit, unfortunately by this time with the fridge being removed and re install a few times resulted with the brand new kitchen cabinetry damage. The new fridge, although not installed / aligned correctly by F&P which later had to be rectified, is working fine and super quiet, the cabinetry is yet to be repaired.
Date published: 2023-12-07
Rated 4 out of
5 by
41 6C 65 78 from
Good size, good shelves, disappointing Wi-FiA good-sized fridge that seems to get the job done so far. The split shelving is a nice touch. The motor is barely audible compared to previous fridges we’ve owned. The Wi-Fi functionality is a little disappointing as it only seems to allow adjustment of the set temperatures rather than reporting the actual detected ones—maybe improvable with a firmware update. The hinged panel that sits between the two doors retracts quite noisily when opened and could benefit from some sort of damper.
Date published: 2023-06-01
Rated 4 out of
5 by
Howick from
RS90 Integrated Frech DoorThis is a great looking fridge in our open-plan kitchen. We wouldn't want to go back to a free-standing fridge now. The one gripe I have is the "flapper" on the right-hand fridge door - it doesn't engage properly unless we close the fridge door carefully. This means we have a leaky fridge (cold air blows out between the doors) unless we pay attention.
Date published: 2023-11-12
Rated 5 out of
5 by
MartydG from
Integration Convert 😊[This review was collected as part of a promotion.] Very happy with the quality and operation. The cabinet fit is perfect to the specifications for the product. Love the soft and self close doors. Adds awesome dimension to new kitchen. Something a bit “different”. Appreciate no product markings to the eye until door opened.
Date published: 2025-06-21
Rated 5 out of
5 by
MatD from
Fisher and Paykal french door[This review was collected as part of a promotion.] This was our first french door fridge and it is amazing. Lots of room and very functional.Keeps the veges and salad very fresh and the lighting is fabulous. I love the freezer section and its surprising size options.The soft door close is a real bonus.
Date published: 2021-10-08
Rated 5 out of
5 by
Integrated fridge freezer from
French door fridge[This review was collected as part of a promotion.] This is our second French door fridge from fisher and paykel only reason we had 2 is new kitchen installed with integrated fridge freeze! There delivery guys were awesome and there product are excellent quality! I highly recommend these manufacturers
Date published: 2025-10-12
Rated 5 out of
5 by
Hilma & Guy from
How do you like your Integrated French Door Refreg[This review was collected as part of a promotion.] The refrigerator was included in the kitchen of our new apartment. It is by far the best refrigerator we ever had: spacious, well designed with different compartments allowing storage of items according to size and type.
We aim to dispatch orders within 2 days. Delivery costs are calculated based on your location and the size of your order. Furniture may take up to 8 weeks to deliver as most products are made specifically for your order. Some Customer Direct products are shipped from overseas and may take longer to arrive. Some goods may take longer to deliver if a product is currently not in stock. A staff member will contact you where this occurs.
Easy returns
If you feel your product has failed a Consumer Guarantee (as defined by New Zealand Consumer Law) then don't worry you can easily return it to your local Harvey Norman store. We'll even pay for the postage if you live in an area where there is no store. Our returns policy covers any purchased item (
conditions apply).
What's in the box
1 x Fridge Freezer
1 x Installation kit
1 x Trims Install Kit
1 x Install Fastners
1 x Hinge Limiting Pin
1 x Spanner
1 x Hex Key
1 x Install & User Guide
Handle Kits - Available Separately
AHCLRD90A - Classic
AHS-ASBI-A - Contemporary Round – Aluminium
AHD5RD90AB - Contemporary Square Fine – Black
RS90A - Contemporary Square - Aluminium
AHP3RD90A - Professional Round Flush
