Mitsubishi Electric LX Designer Series 564L Multi Drawer Fridge Freezer - Glass Gunmetal (MR-LX564ER-GDS-A)

Mitsubishi Electric LX Designer Series 564L Multi Drawer Fridge Freezer - Glass Gunmetal (MR-LX564ER-GDS-A)

$3,849

Mitsubishi Electric LX Designer Series 564L Multi Drawer Fridge Freezer - Glass Gunmetal (MR-LX564ER-GDS-A)

MR-LX564ER-GDSA

Front view of the Mitsubishi Electric LX Designer Series fridge freezer in glass gunmetal finish

Promotion

$3,849

Receive up to $1000 Harvey Norman Gift Card* when you spend over $2500 on multiple eligible Kitchen Appliances! Details

or 50 months of equal Gem Visa Interest Free Installments of Total repayments $3,849 excluding fees.

Extended Range | Allow 2-4 weeks for delivery

Available Services:

Prices shown are for standard service only. Delivery fees are additional and will be calculated at checkout. Service availability is limited to addresses within 30km of your local store.
Terms and Conditions apply — select a service to view full details.

	Standard Large Refrigeration Installation Service Installation price only. Tap the service name for full details. Our *Standard Large Refrigeration Appliance^1 Installation Service** includes: Unpacking your fridge or freezer. Placing appliance in position. Connection to existing power socket only (where no alterations or additional fittings are required). Taking away packaging (if required) More complex installation requirements? Standard Installation does not include plumbing for fridges with ice and water dispensers. To discuss these and any other additional requirements, please contact your local Harvey Norman store to obtain a quote. *1 You must be within a 30km radius of a Harvey Norman store or additional charges apply. Installation includes connection to existing power socket only where no alterations or additional fittings are required. Installation excludes additional plumbing for fridges with ice and water, or changes to fridge door hinges in order to swap door opening sides. Any alterations to cabinetry, flooring or fittings will be the purchaser’s sole responsibility to arrange required modifications with a suitable provider. Complex or difficult jobs may require additional charges. On site evaluation is carried out at time of service, and it is at the providers sole discretion as to whether install can be completed. There may be restrictions, additional costs or inability to provide services for locations that are rural or on remote islands.	$40
	Removal of Old Appliance Removal price only. Tap the service name for full details. Our *Whiteware Removal of Old Unit^1 Service offers the removal of your old dishwasher, washing machine, dryer, refrigerator or oven, when the new one is delivered. To use this service, the old appliance must be the same type and configuration as the new one being delivered. The appliance being removed must match the category (e.g., washing machine for washing machine, fridge for fridge), and It must match the format/style** where applicable (e.g., freestanding vs integrated, single vs double cavity, top‑load vs front‑load, etc.). The old appliance must also be disconnected from power, plumbing and gas and be ready to be uplifted. *1 Service only available on delivery of new appliance. Delivery must be within a 30km radius of a Harvey Norman store or additional charges apply. Excludes removing units still wired-in, plumbed or built in to cabinetry. Unit must be unplugged and ready to be uplifted. Complex or difficult jobs may require additional charges. There may be restrictions, additional costs or inability to provide services for locations that are rural or on remote islands.	$30

Find in store

For delivery estimate & stock availability

Delivery
Free 1 Hour Click & Collect
Stores from Whangarei to Invercargill.
We're here to help!

Available on 50 months of equal Interest Free instalments:

$76.98^{^}

approximately per month

^ Total repayments $3,849 (excluding fees). Min purchase of $1,500 applies. Offer ends 14/07/2026. Equal monthly payments required. Lending criteria, T&Cs & fees apply incl. a $55 estb. fee & $65 annual fee ($32.50 half yearly). Standard interest rate (currently 29.49% p.a.) applies after interest free term ends. Exclusions may apply. *Further information on rates and fees can be found at gemfinance.co.nz. Credit provided by Latitude Financial Services Ltd.

How it works

Description

Extended Range Item | Available by Special Order Only

Delivery expectation: 2-4 weeks
This item is available by special order and may not be stocked in stores. Purchase online today to secure your product. For more information, please contact your local Harvey Norman store.

Receive up to $1000 Harvey Norman Gift Card* when you spend over $2500 on multiple eligible Kitchen Appliances!

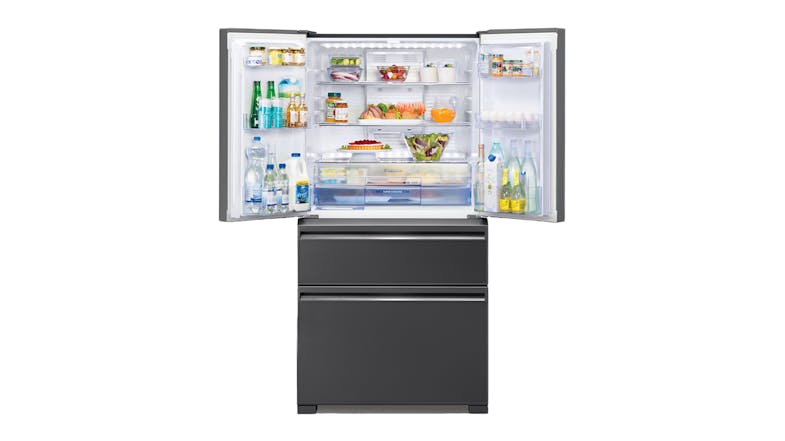

Spacious in storage and smart in features, the Mitsubishi Electric LX Designer Series 564L Multi Drawer Fridge Freezer is truly a smart investment for large households. This appliance incorporates Neuro Inverter, which delivers a quiet, energy-efficient performance that adapts to your lifestyle. It also packs a wide range of shelves, ready to store your various groceries from produce to frozen goods.

Key Overview

Fridge Freezer
564L Total Capacity
426L Fridge Capacity
138L Freezer Capacity
4 Star Energy Rating
Internal Lighting
19 dB(A) Noise Level
(H x W x D) - 1798 x 900 x 735 mm

Product Highlights

Room For Everything: Stock up on your grocery items using the Mitsubishi Electric LX Designer Series Multi Drawer Fridge Freezer. A perfect choice for a family home, this appliance boasts a whopping 564L capacity and Advanced Food Storage Technology that reliably preserves your various grocery items.
Neuro Inverter: With its Inverter Technology, you can rest assured that this unit delivers quiet yet energy-efficient performance you can count on. It also employs Neuro Fuzzy Logic Technology that intelligently optimises compressor and multi fans according to your lifestyle.

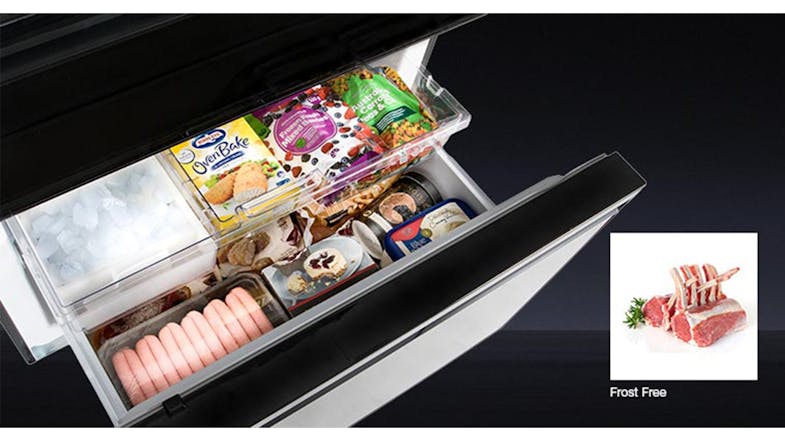

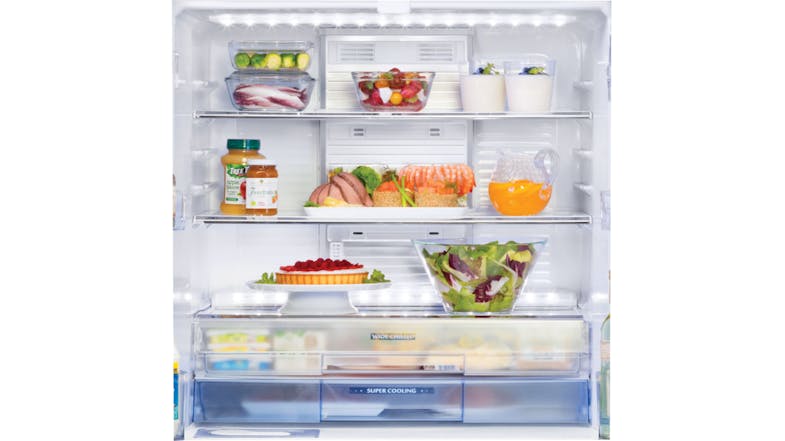

Special Compartments: Along with its multiple shelves, the fridge equips a Vitalight Humidity Drawer for preserving your produce and a Supercool Chilling Case for storing your meat without freezing. Meanwhile, the freezer drawer offers spacious capacity and a non-plumbed automatic ice maker, so you can readily prepare refreshing drinks whenever you want.
Breezy Operations: Easily adjust various settings using the integrated LED Touch Panel. It also equips internal LED lighting to help you view your food items. Plus, it has an Automatic Defrost feature, so you can save time on maintenance.

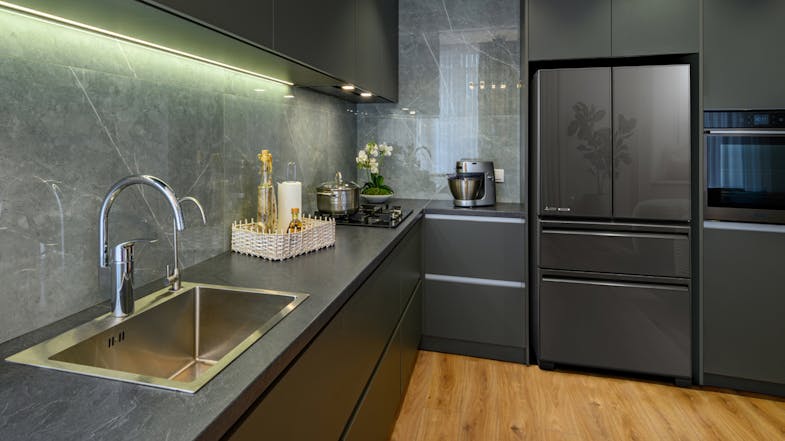

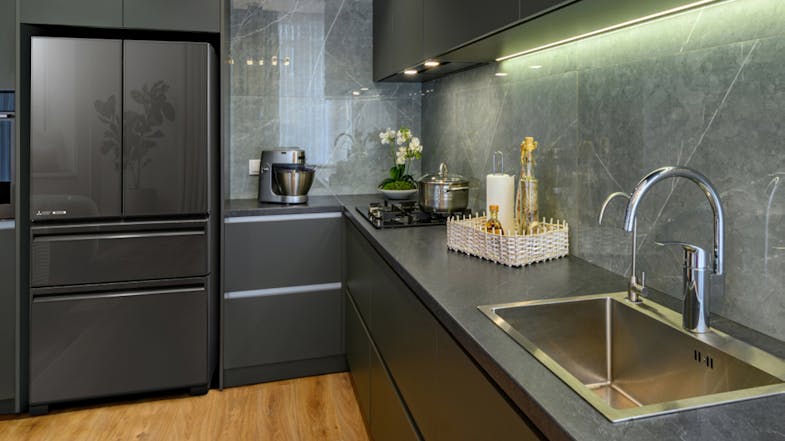

Chill In Style: Made to complement your modern kitchen, this Mitsubishi Electric LX Fridge Freezer showcases a slimline footprint with a flat panel design and sleek glass gunmetal finish.

*Professional Installer Recommended.

Specifications

All Product Details

Brand	Mitsubishi
Product Type	Multi Drawer Fridge/Freezer
Model Number	MR-LX564ER-GDS-A
Colour	Grey

Whiteware Capacity

Total Capacity	564 L
Fridge Capacity	426 L
Freezer Capacity	138 L

Energy

Energy Star Rating	4 Star
Energy Consumption	385 kWh/year

Refrigerator System

Refrigerator Type	Fridge Freezer
Refrigerant Type	R600A Refrigerant
Internal / External Features	Adjustable Feet Castors/Wheels

Shelf

Shelf Material	Glass Shelves
Shelf Type	Tempered Shelves
Number of Shelves	3 x Shelves

Food / Drink Compartment

Number of Drawers	1 x Freezer Drawer
Number of Door Shelves	6 x Door Shelves
Number of Deli Bins	2 x Deli Bins
Number of Fruit and Vegetable Bins	1 x Fruit and Vegetable Humidity Drawer
List of Included Accessories	1 x Egg Tray

Ice Maker

Automatic Ice Maker	Yes
Ice Maker Capacity	1.1L
Ice Dispenser	Yes

Temperature

Cooling System	Multi Airflow Cooling System
Number of Cooling Zones	2 x Cooling Zones
Defrost Type	Automatic Defrost
Climate Class	T
Temperature Features	Temperature Control Thermostat Control Quick Chill Function Fast Freeze

Door

Default Door Hinge	Right & Left
Door Type	French Door + Drawers
Open Door Alarm/Warning	Yes
Type of Opening	Recessed Handle

Control Panel

Control Panel Type	Touch Control Panel

Lighting

Lighting Type	LED Lighting
Internal Lighting	Yes
Light Position	Top

Motor

Noise Level	19 dB(A)

Safety

Child Lock	Yes

Smart Features

Display Type	Digitalc Display

Installation

Assembly Type	Professional Installer Recommended
Settling Period	2-24 Hours (refer to Manual)
Installation Type	Freestanding

Electrical Connection

Power Cable Length	2.46 m
Wattage/Voltage	230-240V 50Hz
Fuse Rating	1.10A

Dimensions

Height	1798 mm
Width	900 mm
Depth	735 mm
Product Weight	112 kg

Warranty

Manufacturers	60 Months

Reviews

Delivery

We aim to dispatch orders within 2 days. Delivery costs are calculated based on your location and the size of your order. Furniture may take up to 8 weeks to deliver as most products are made specifically for your order. Some Customer Direct products are shipped from overseas and may take longer to arrive. Some goods may take longer to deliver if a product is currently not in stock. A staff member will contact you where this occurs.

Easy returns

If you feel your product has failed a Consumer Guarantee (as defined by New Zealand Consumer Law) then don't worry you can easily return it to your local Harvey Norman store. We'll even pay for the postage if you live in an area where there is no store. Our returns policy covers any purchased item ( conditions apply).

What's in the box

1 x Fridge Freezer
1 x Egg Tray
3 x Glass Shelves
1 x Sliding Case - (Top Drawer in Fridge)
1 x Supercool Chill Case - (Bottom Drawer in Fridge)

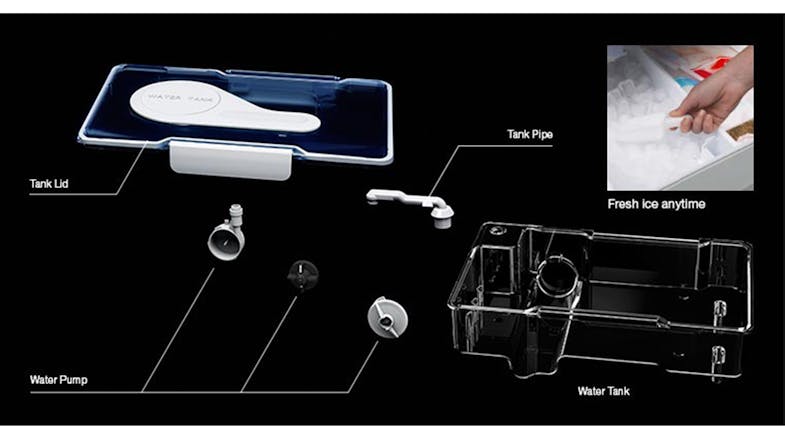

1 x Water Tank - (for Non-Plumbed Automatic Ice Maker)
1 x Vegetable Case
1 x Sliding Case - (in Vegetable Drawer)
1 x Upper Case - (in Freezer)
1 x Lower Case - (in Freezer)
1 x Noise Reduction Mat
1 x Ice Server
1 x Kickplate
1 x User Guide
