Mitsubishi Electric LX Designer Series 564L Multi Drawer Fridge Freezer - White (MR-LX564ER-GWHA)

Mitsubishi Electric LX Designer Series 564L Multi Drawer Fridge Freezer - White (MR-LX564ER-GWHA)

$3,849

Mitsubishi Electric LX Designer Series 564L Multi Drawer Fridge Freezer - White (MR-LX564ER-GWHA)

MR-LX564ER-GWHA

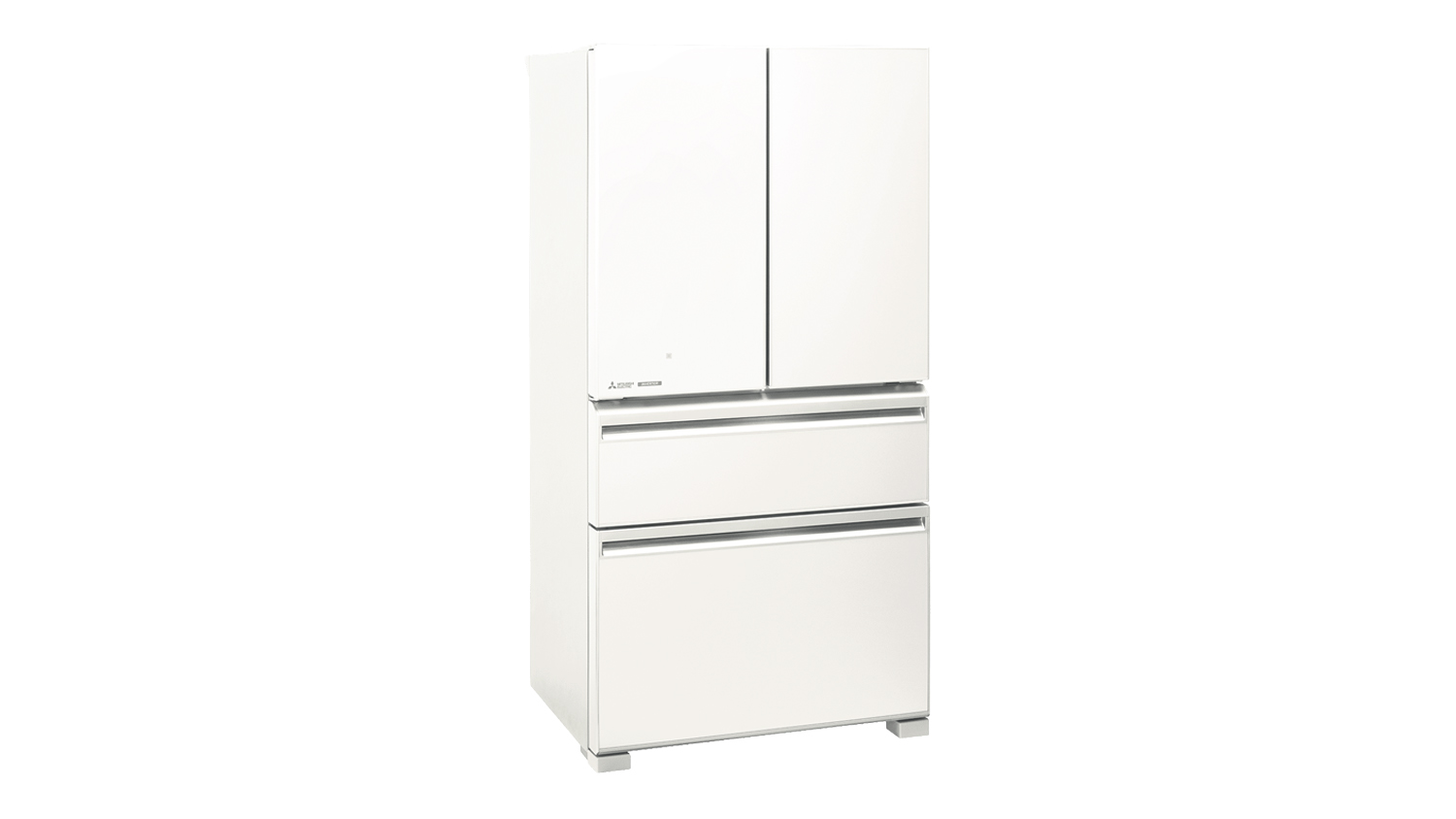

Front view of the Mitsubishi Electric LX Designer Series white 4-door fridge

Promotion

$3,849

Receive up to $1000 Harvey Norman Gift Card* when you spend over $2500 on multiple eligible Kitchen Appliances! Details

or 50 months of equal Gem Visa Interest Free Installments of Total repayments $3,849 excluding fees.

Extended Range | Allow 2-4 weeks for delivery

Available Services:

Prices shown are for standard service only. Delivery fees are additional and will be calculated at checkout. Service availability is limited to addresses within 30km of your local store.
Terms and Conditions apply — select a service to view full details.

	Standard Large Refrigeration Installation Service Installation price only. Tap the service name for full details. Our *Standard Large Refrigeration Appliance^1 Installation Service** includes: Unpacking your fridge or freezer. Placing appliance in position. Connection to existing power socket only (where no alterations or additional fittings are required). Taking away packaging (if required) More complex installation requirements? Standard Installation does not include plumbing for fridges with ice and water dispensers. To discuss these and any other additional requirements, please contact your local Harvey Norman store to obtain a quote. *1 You must be within a 30km radius of a Harvey Norman store or additional charges apply. Installation includes connection to existing power socket only where no alterations or additional fittings are required. Installation excludes additional plumbing for fridges with ice and water, or changes to fridge door hinges in order to swap door opening sides. Any alterations to cabinetry, flooring or fittings will be the purchaser’s sole responsibility to arrange required modifications with a suitable provider. Complex or difficult jobs may require additional charges. On site evaluation is carried out at time of service, and it is at the providers sole discretion as to whether install can be completed. There may be restrictions, additional costs or inability to provide services for locations that are rural or on remote islands.	$40
	Removal of Old Appliance Removal price only. Tap the service name for full details. Our *Whiteware Removal of Old Unit^1 Service offers the removal of your old dishwasher, washing machine, dryer, refrigerator or oven, when the new one is delivered. To use this service, the old appliance must be the same type and configuration as the new one being delivered. The appliance being removed must match the category (e.g., washing machine for washing machine, fridge for fridge), and It must match the format/style** where applicable (e.g., freestanding vs integrated, single vs double cavity, top‑load vs front‑load, etc.). The old appliance must also be disconnected from power, plumbing and gas and be ready to be uplifted. *1 Service only available on delivery of new appliance. Delivery must be within a 30km radius of a Harvey Norman store or additional charges apply. Excludes removing units still wired-in, plumbed or built in to cabinetry. Unit must be unplugged and ready to be uplifted. Complex or difficult jobs may require additional charges. There may be restrictions, additional costs or inability to provide services for locations that are rural or on remote islands.	$30

Find in store

For delivery estimate & stock availability

Delivery
Free 1 Hour Click & Collect
Stores from Whangarei to Invercargill.
We're here to help!

Available on 50 months of equal Interest Free instalments:

$76.98^{^}

approximately per month

^ Total repayments $3,849 (excluding fees). Min purchase of $1,500 applies. Offer ends 14/07/2026. Equal monthly payments required. Lending criteria, T&Cs & fees apply incl. a $55 estb. fee & $65 annual fee ($32.50 half yearly). Standard interest rate (currently 29.49% p.a.) applies after interest free term ends. Exclusions may apply. *Further information on rates and fees can be found at gemfinance.co.nz. Credit provided by Latitude Financial Services Ltd.

How it works

Description

Extended Range Item | Available by Special Order Only

Delivery expectation: 2-4 weeks
This item is available by special order and may not be stocked in stores. Purchase online today to secure your product. For more information, please contact your local Harvey Norman store.

Receive up to $1000 Harvey Norman Gift Card* when you spend over $2500 on multiple eligible Kitchen Appliances!

Keep your groceries fresh and organised with the Mitsubishi Electric LX Designer Series 564L Multi Drawer Fridge Freezer. It is a practical choice for modern households, boasting multiple compartments, an automatic ice maker, Vitalight humidity drawer, and various advanced features. It also utilises innovative Inverter Technology to ensure outstanding energy efficiency and whisper-quiet operations.

Key Overview

426L Fridge Capacity
138L Freezer Capacity
4 Star Energy Rating
R600a Refrigerant
Inverter Compressor Motor
Automatic Defrost Type
Electronic Control Panel
Freestanding Installation*

Product Highlight

Essential Kitchen Appliance: Say goodbye to fridge chaos! With its multi-drawer design, the Mitsubishi Electric LX Designer Series Fridge Freezer provides more than enough room to store and sort your day-to-day groceries. It also comes with a Non-Plumbed Automatic Ice Maker drawer, so you can have clean, fresh ice at any time.
Optimum Cooling Performance: Effectively preserve your food items, as this Mitsubishi Electric Fridge Freezer employs a Multi Airflow Cooling System that evenly circulates cold air throughout the unit. It also has an Inverter Compressor to ensure energy-efficient and quiet operations.
Convenient to Use: Manage settings with ease, thanks to the intuitive electronic control panel. It also offers temperature and thermostat controls to perfectly suit your needs. Plus, it comes with built-in LED Lighting to provide optimum visibility.
Streamlined Design: Large in capacity but slim in design, this LX Designer Series helps you maximise food storage without taking up extra floor space. Its French door top and slide-open drawer door design provide easy access to your groceries. Additionally, it boasts a beautiful white finish that goes well with other appliances.

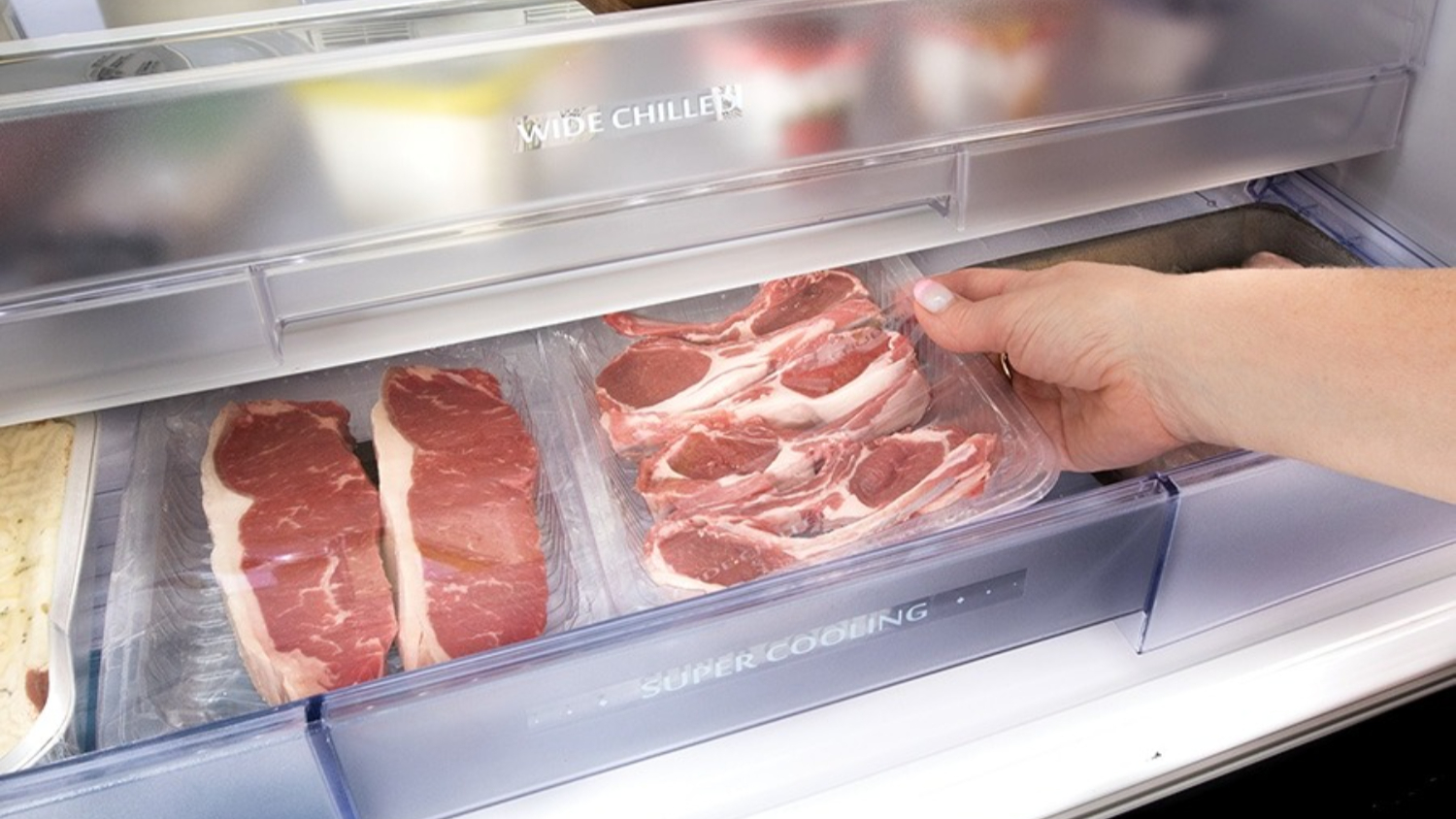

Seamless Organisation: Rest assured that the Mitsubishi Electric Multi-Drawer Fridge Freezer can fit your different food items. It offers multiple shelving options like glass shelves, six door shelves, deli bins, freezer baskets, and an egg tray. Plus, it highlights special compartments such as Vitalight Humidity Drawer, Supercool Chilling Case, and Wide Chilled Case.

*Assembly Required.

Specifications

All Product Details

Brand	Mitsubishi
Product Type	Multi Drawer Fridge/Freezer
Model Number	MR-LX564ER-GWHA
Colour	White

Product Specifications

Series	LX Designer Series

Whiteware Capacity

Total Capacity	564 L
Fridge Capacity	426 L
Freezer Capacity	138 L

Energy

Energy Star Rating	4 Star
Energy Consumption	385 kWh/year

Refrigerator System

Refrigerator Type	French Door Fridge Freezer
Refrigerant Type	R600a
Internal / External Features	Adjustable Feet Castors/Wheels

Shelf

Shelf Material	Tempered Glass Shelves
Number of Shelves	3 x Shelves

Food / Drink Compartment

Number of Door Shelves	6 x Door Shelves
Number of Deli Bins	2 x Deli Bins
Number of Fruit and Vegetable Bins	1 x Fruit and Vegetable Bin
Number of Freezer Baskets/Bins	2 x Freezer Baskets/Bins
List of Included Accessories	1 x Egg Tray

Ice Maker

Automatic Ice Maker	Yes
Ice Maker Capacity	1.1L
Ice Dispenser	Yes

Temperature

Cooling System	Multi Airflow Cooling System
Defrost Type	Automatic
Climate Class	T
Temperature Features	Temperature Control Thermostat Control

Door

Default Door Hinge	Right & Left
Exterior Door Finish	Glass White
Door Type	French Door
Open Door Alarm/Warning	Yes
Door Handle Design	Handleless

Control Panel

Control Panel Type	Electronic Control Panel
Control Functions	Child Lock, Supercool Chilling Mode, Rapid Cool Mode, Ice Making On/Off
Location of Control Panel	External Location of Control Panel

Lighting

Lighting Type	LED Lighting
Light Position	Back

Motor

Type of Motor	Inverter Compressor Motor
Noise Level	19 dBA

Installation

Assembly Type	No Assembly Required
Installation Type	Freestanding

Electrical Connection

Type of Connection	AC Power Cable
Power Cable Length	2.46 m
Wattage/Voltage	230-240V 50Hz
Fuse Rating	1.10A

Dimensions

Height	1798 mm
Width	900 mm
Depth	735 mm
Product Weight	112 kg

Packaged Dimensions

Packaged Width	96.6 cm
Packaged Depth	77 cm
Packaged Height	188.7 cm
Packaged Weight	123 kg

Warranty

Manufacturers	60 Months

Reviews

Delivery

We aim to dispatch orders within 2 days. Delivery costs are calculated based on your location and the size of your order. Furniture may take up to 8 weeks to deliver as most products are made specifically for your order. Some Customer Direct products are shipped from overseas and may take longer to arrive. Some goods may take longer to deliver if a product is currently not in stock. A staff member will contact you where this occurs.

Easy returns

If you feel your product has failed a Consumer Guarantee (as defined by New Zealand Consumer Law) then don't worry you can easily return it to your local Harvey Norman store. We'll even pay for the postage if you live in an area where there is no store. Our returns policy covers any purchased item ( conditions apply).

What's in the box

1 x Fridge Freezer
1 x Egg Tray
3 x Glass Shelves
1 x Sliding Case (Upper)
1 x Supercool Chilling Case
1 x Water Supply Tank
2 x Large Door Pockets
2 x Small Free Pockets
2 x Bottle Pockets
1 x Vegetable Case
1 x Sliding Case (Located in Vegetable Drawer)
1 x Upper Case (In Freezer)
1 x Lower Case (In Freezer)
1 x Noise Reduction Mat
1 x Ice Server
1 x Kickplate
